12V 24V BLDC Micro High Speed Motor 3000rpm 6000rpm PWM Speed Controller Reverse CW CCW Brake DC Brushless Motor 3525
Regular price
$58.26 USD
Regular price
$49.73 USD
Sale price
$58.26 USD
Unit price
per
Shipping calculated at checkout.
Added ✓
Couldn't load pickup availability
SPECIFICATIONS
12V 24V BLDC Micro High Speed Motor 3000rpm 6000rpm PWM Speed Controller Reverse CW CCW Brake DC Brushless Motor 3525
Brand Name: HYSMOTOR
Origin: Mainland China
Specification:
-
Volt:12V speed:3000rpm
-
Volt:24V speed:6000rpm
-
Long life Low noise,Applied to continuous operating environment
Wiring:
-
Red line: power +
-
Black line: Power -
-
White line: CW / CCW control line,White line and black line together, you can change the motor direction
-
Blue line: PWM speed control line, then 0 ~ 5V pulse width governor,when put blue line on Power-,motor Brake.
-
Yellow line: FG signal line

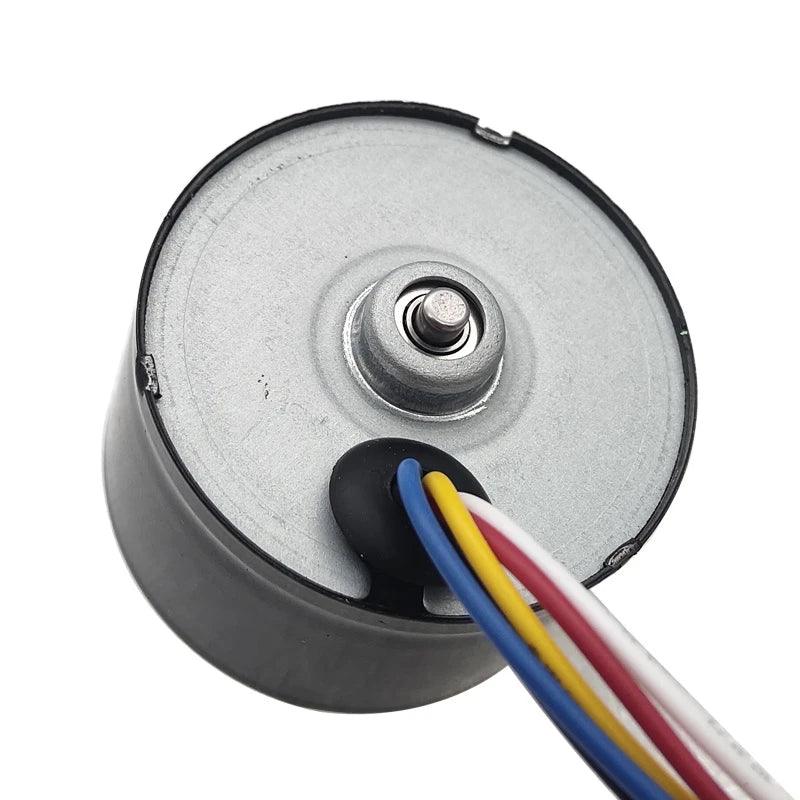

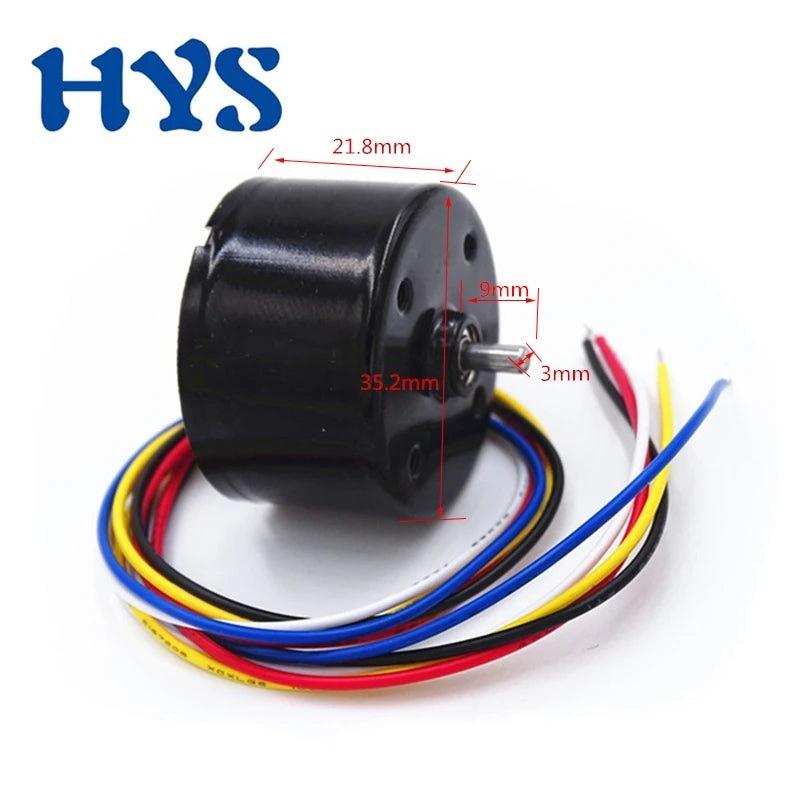

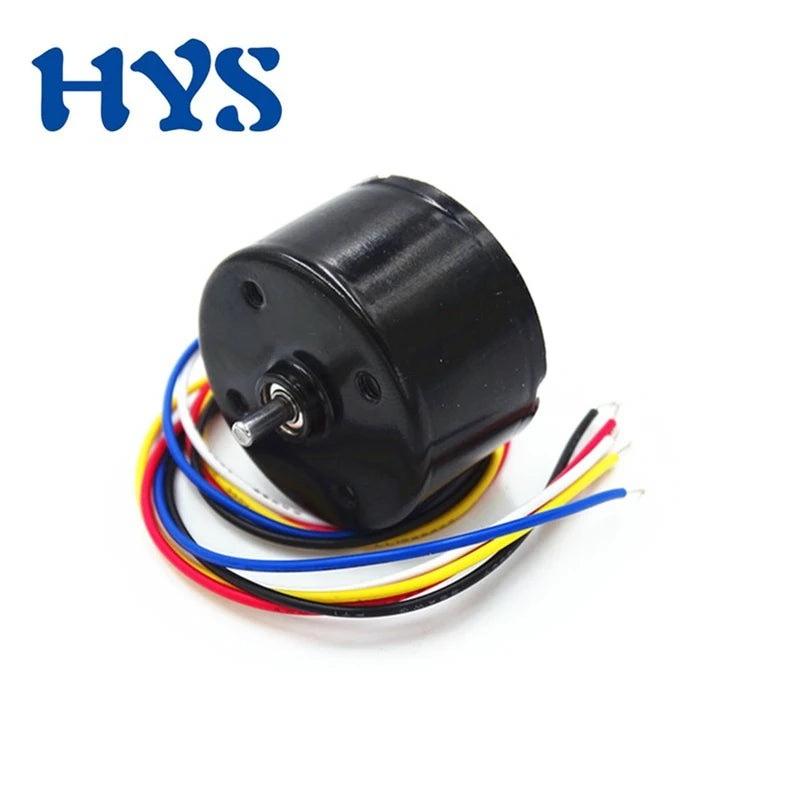

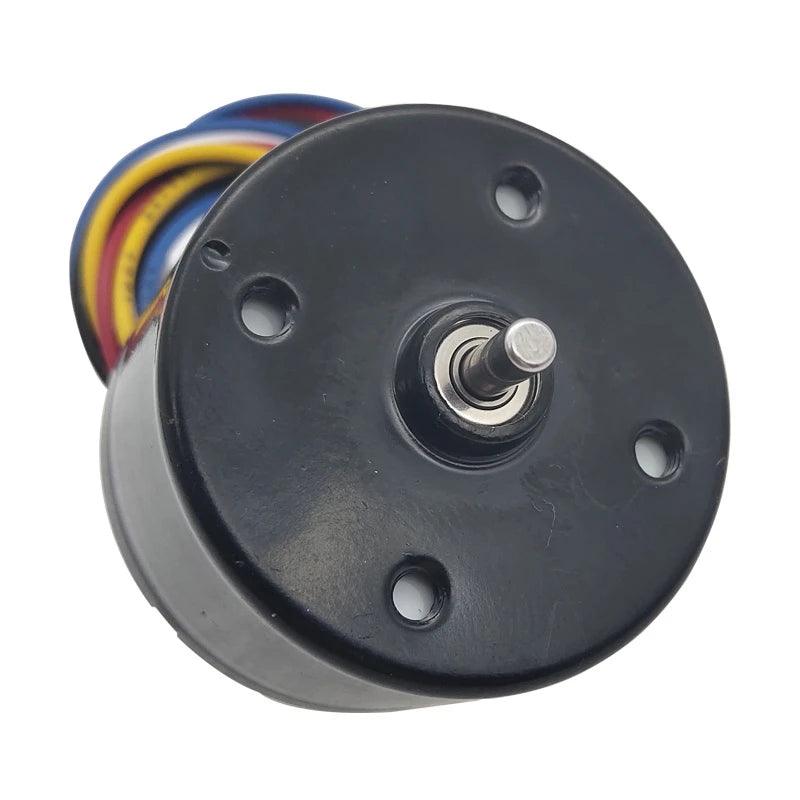

BLDC Motor Show:
