Mini Linear Actuator 10-150mm Stroke 12VDC with Bracket Wireless Controller Power Adapter

miniature electric actuators - rod, micro linear actuator, small electric actuator, linear electric actuator

12V DC Mini Linear Actuator Motor, 10mm~150mm Adjustable Stroke, Micro Electric Telescopic Rod for DIY Projects

Micro Electric Linear Actuator, 12V, 180N Force, 5-30mm/s Speed, Compact Reciprocating Lift Cylinder

Product Description

Key Features

• ✅ Adjustable Stroke & Speed:

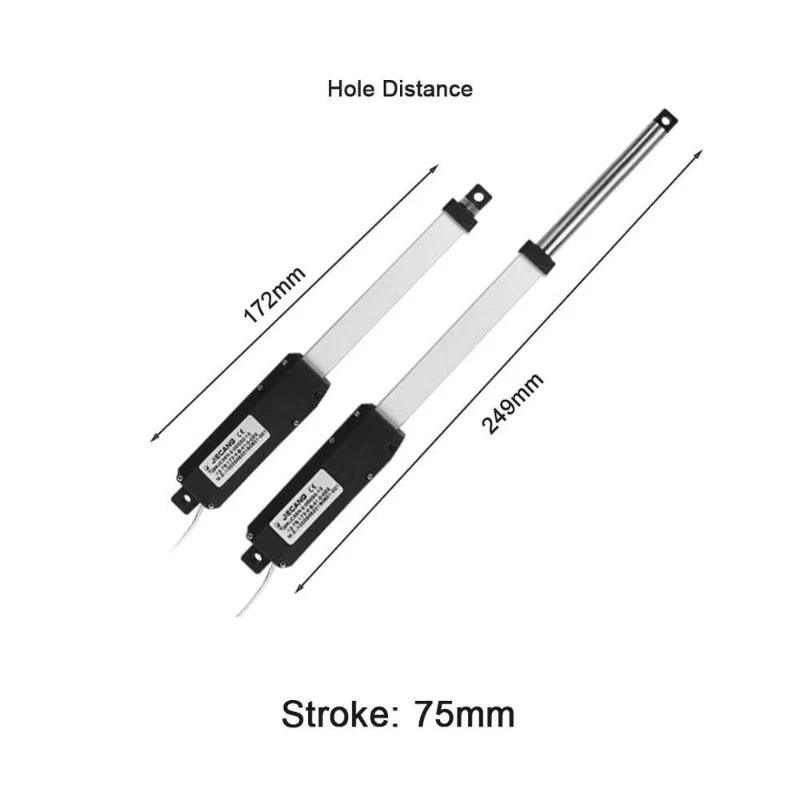

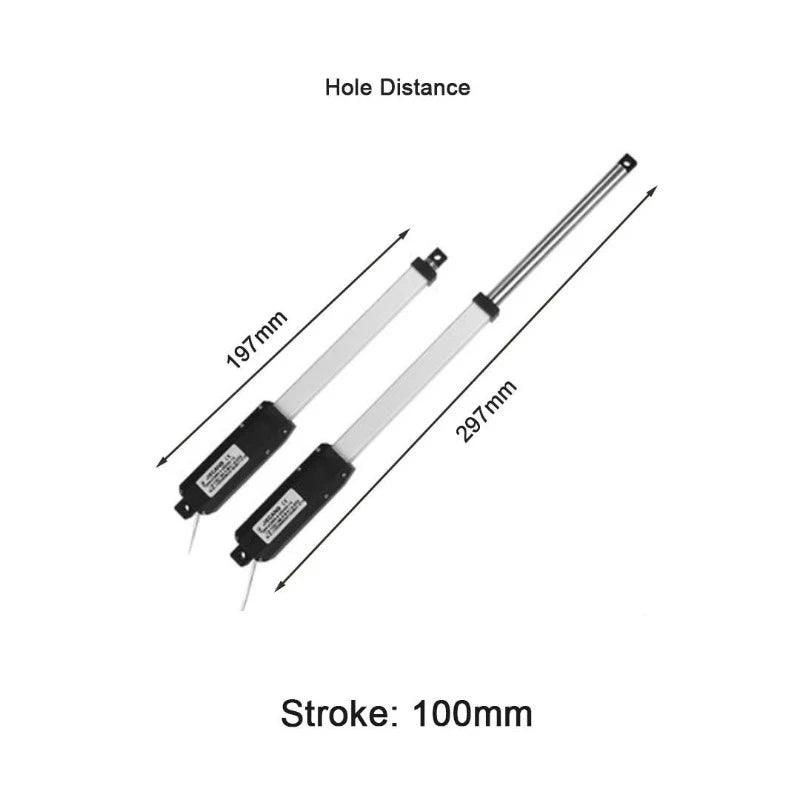

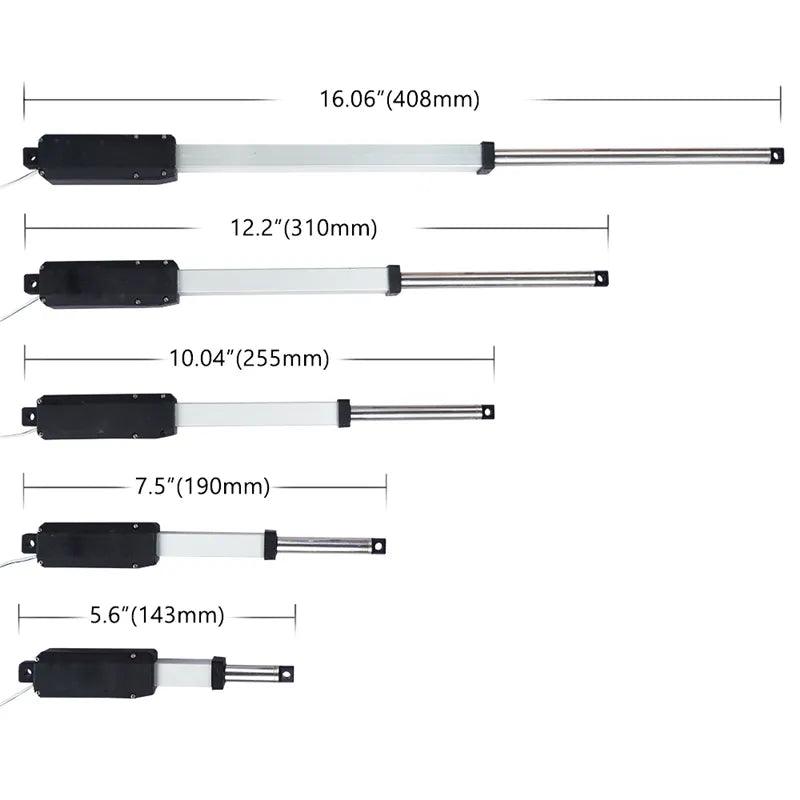

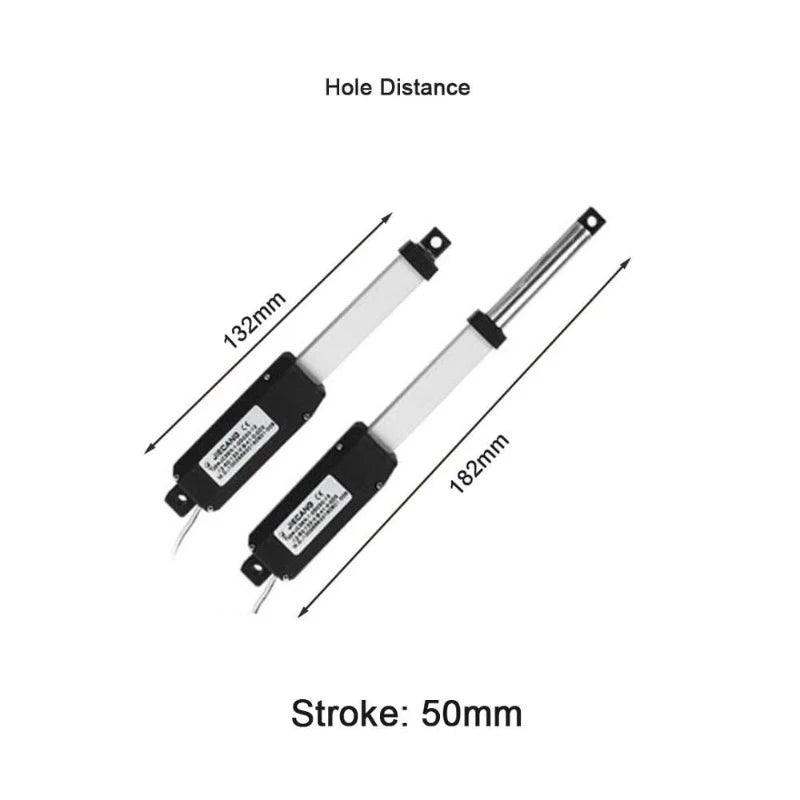

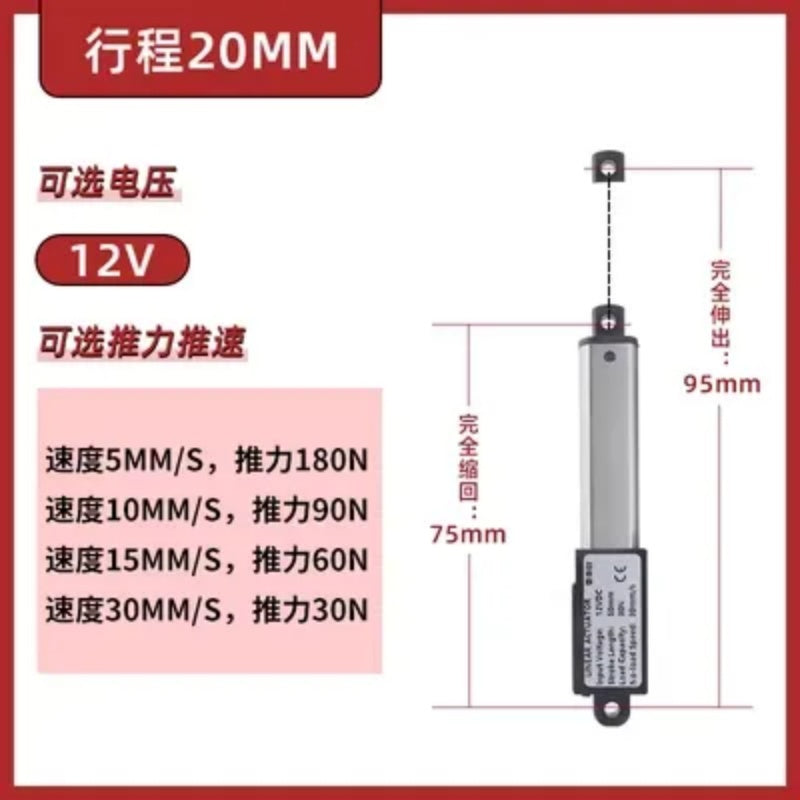

  • Standard stroke from 10mm to 150mm (customizable).

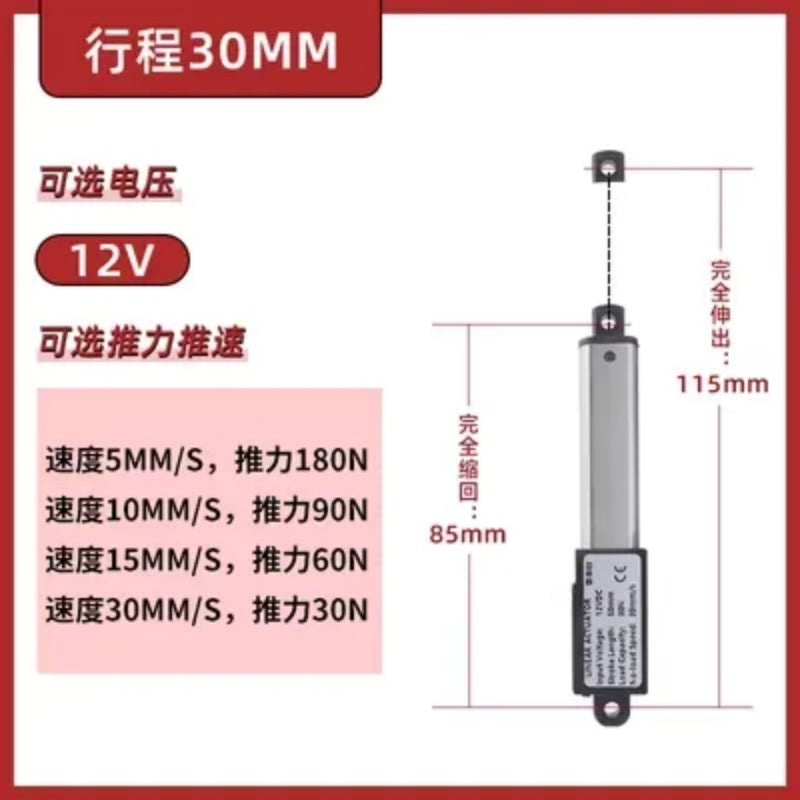

  • Speed/load options: 5mm/s(180N), 10mm/s(90N), 15mm/s(60N), 30mm/s(30N).

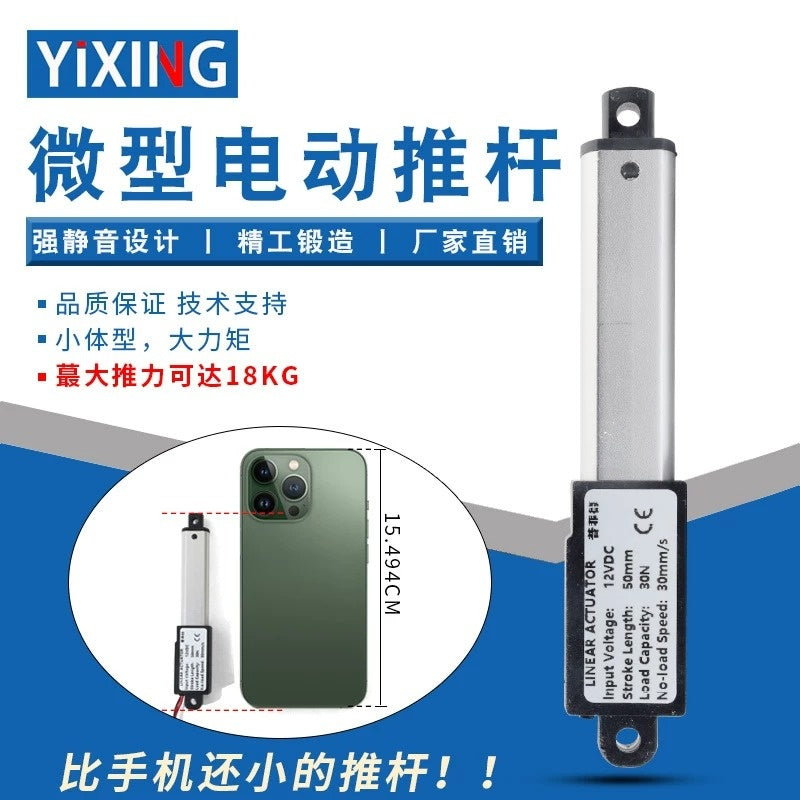

• ✅ Compact & Lightweight Design: Miniature form factor made of aluminum alloy + plastic, perfect for projects with limited installation space.
• ✅ Wide Operating Range:
  • Working voltage: 12V DC.
  • Operating temperature: -26℃ ~ +85℃, suitable for diverse indoor environments.
  • Protection rating: IP54 (dustproof, splash-resistant).


• ✅ Efficient & Low-Power: Rated power 10W, no-load current only 0.4A, energy-efficient for small-scale use.

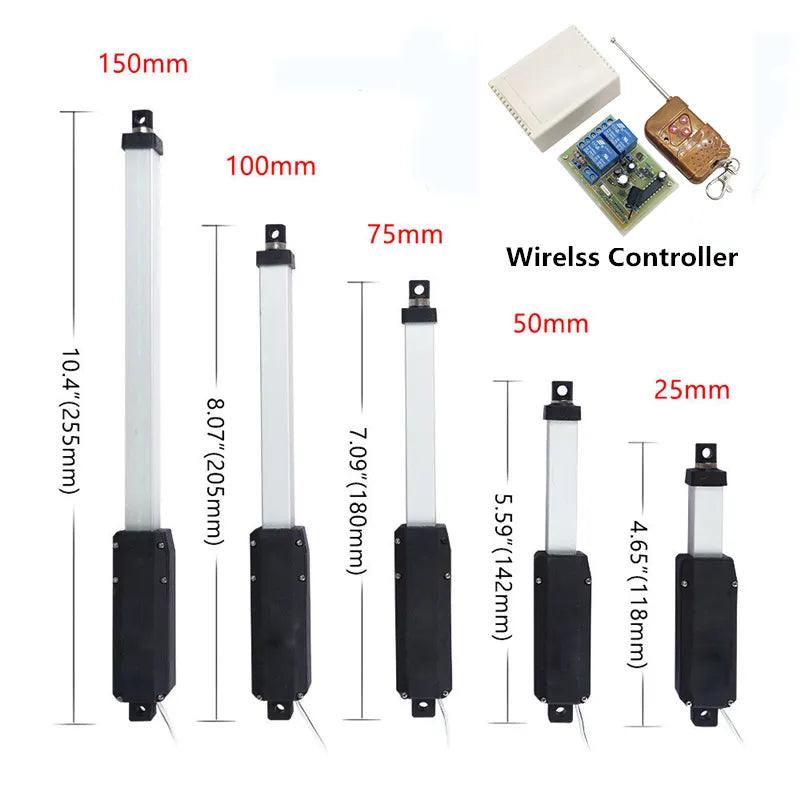

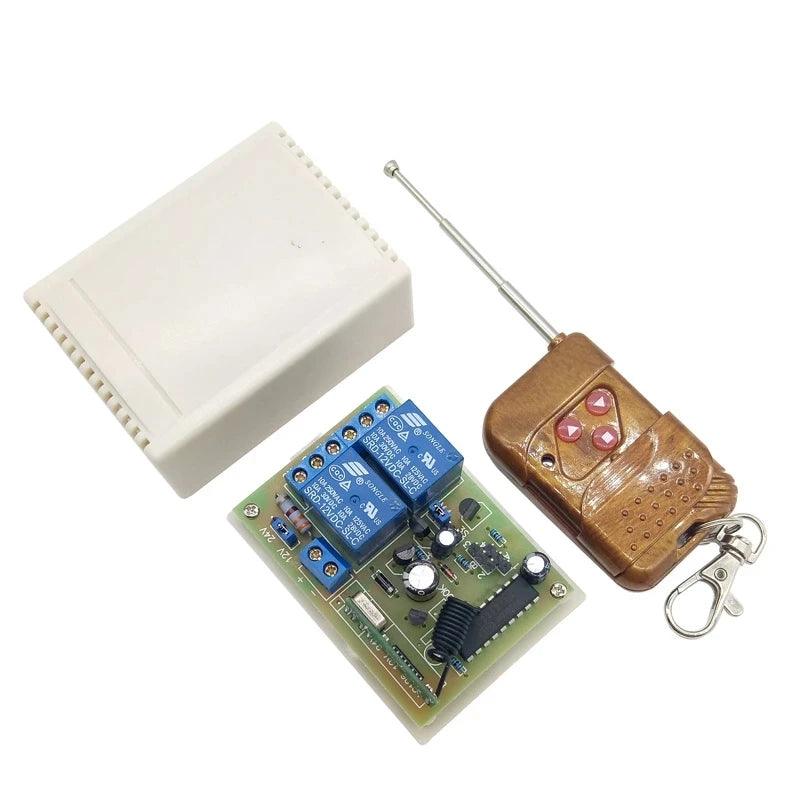

• ✅ Versatile Control Options: Compatible with wired/wireless remote controls and power supplies (sold separately) for flexible operation.

Technical Specifications

Applications

• DIY & Small Automation: Hobby projects, robotics, small lifting mechanisms
• Smart Home: Miniature cabinets, motorized small fixtures, pet doors
• Electronics: Camera sliders, small equipment positioning
• Education & Prototyping: Student projects, engineering prototypes, small-scale automation demos

Package Contents (Customizable)

• 1 x Mini Linear Actuator (12V DC)

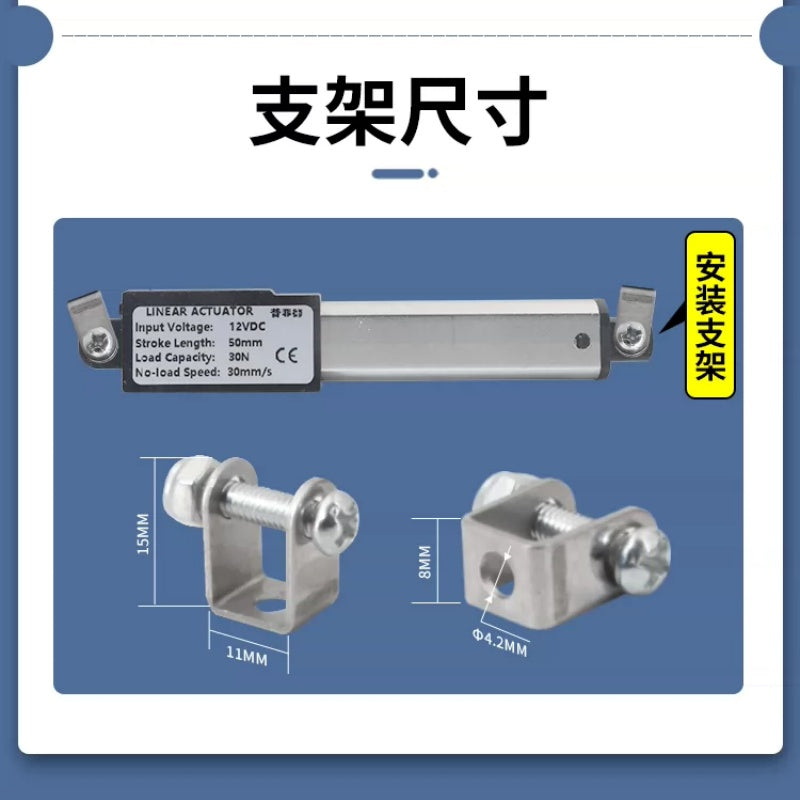

• 1 x Mounting Bracket (included)
• Optional: Wireless Remote Control / 50W 12V Power Supply (sold separately)

FAQs

Q1: What is this product?

A1: This is a DC12V mini linear actuator with controller, also known as micro electric telescopic rod, used for small reciprocating lifting and pushing tasks.

Q2: What stroke lengths are available?

A2: Standard stroke range 10mm ~ 150mm, customizable stroke available upon request.

Q3: What are the speed and thrust combinations?

A3:

• 5mm/s: 180N max thrust
• 10mm/s: 90N max thrust
• 15mm/s: 60N max thrust
• 30mm/s: 30N max thrust Higher thrust comes with slower speed.

Q4: What is the rated voltage and power?

A4: Rated voltage DC12V, rated power 10W; no-load current 0.4A.

Q5: What material is this linear actuator made of?

A5: Aluminum alloy + plastic, compact and lightweight structure.

Q6: What is the IP protection rating?

A6: IP54, dust-protected and splash-proof, not for continuous heavy water immersion.

Q7: What is the operating temperature range?

A7: -26℃ ~ +85℃, suitable for most indoor and mild outdoor environments.

Q8: What accessories are included? What optional extras?

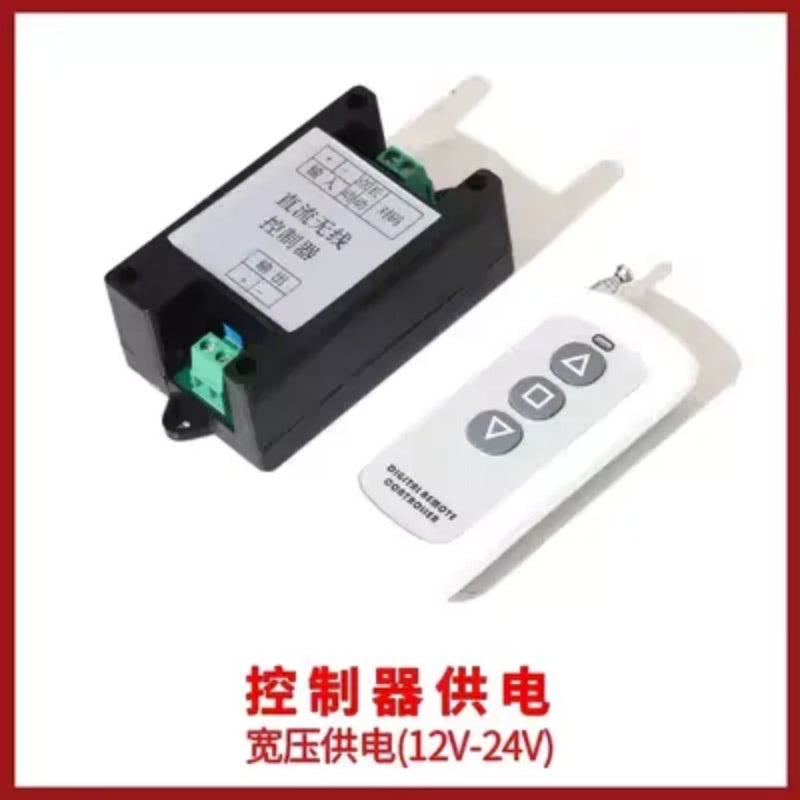

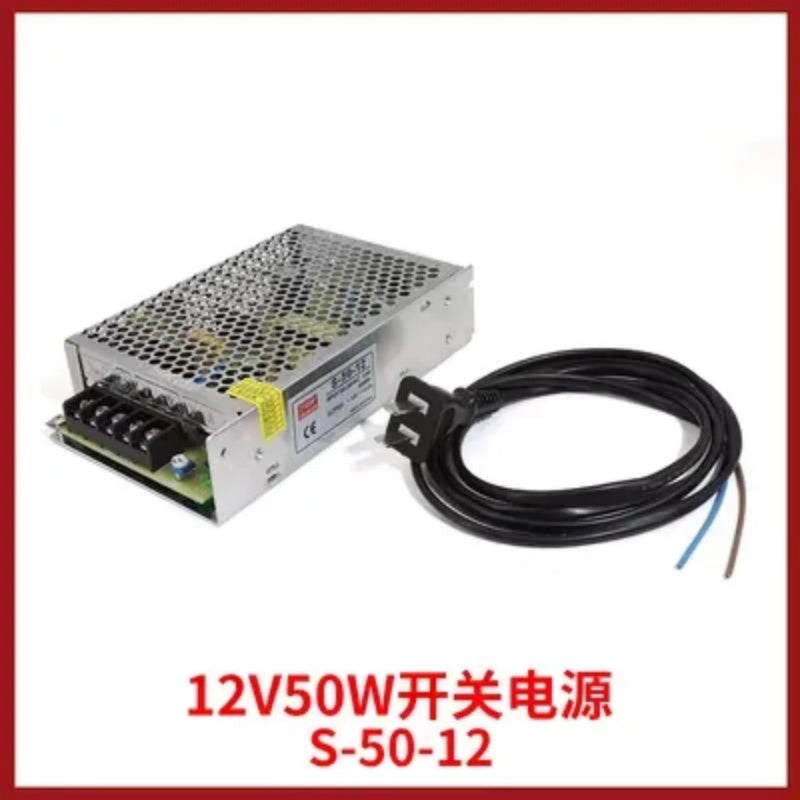

A8: Comes with mounting bracket. Optional accessories: wireless remote controller, 50W 12V power supply.

Q9: What applications is this micro linear actuator suitable for?

A9: DIY projects, robotics, small automation equipment, smart home systems, prototype development, small lifting, pushing and positioning tasks.

Q10: Can I reverse the extension/retraction direction?

A10: Yes, direction can be reversed by the matched controller.

Q11: Can it run continuously for long hours?

A11: It is designed for intermittent operation, not recommended for 24-hour continuous running to avoid overheating.

Q12: Is custom stroke supported?

A12: Yes, we support custom stroke lengths beyond the standard 10-150mm range, please contact us for details.
