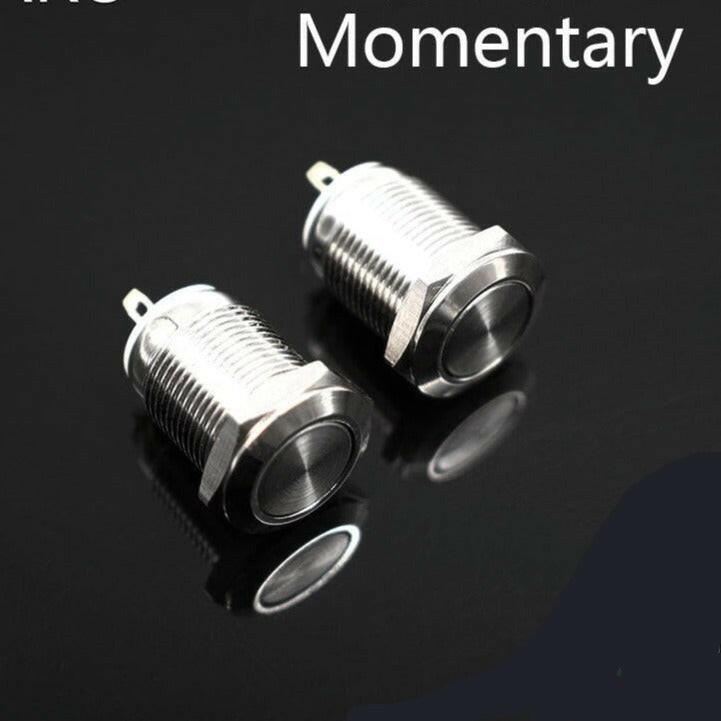

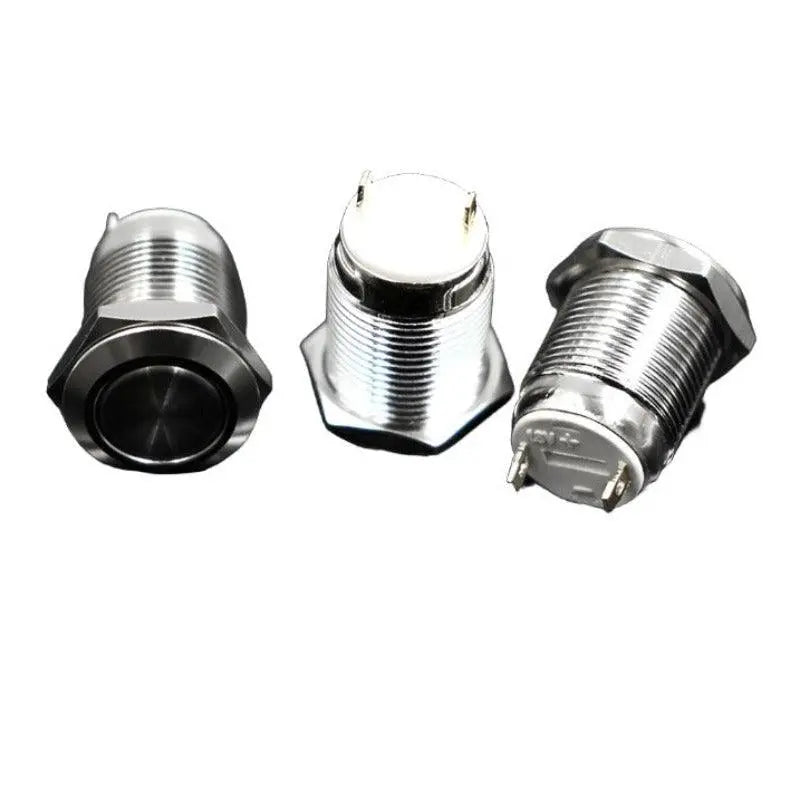

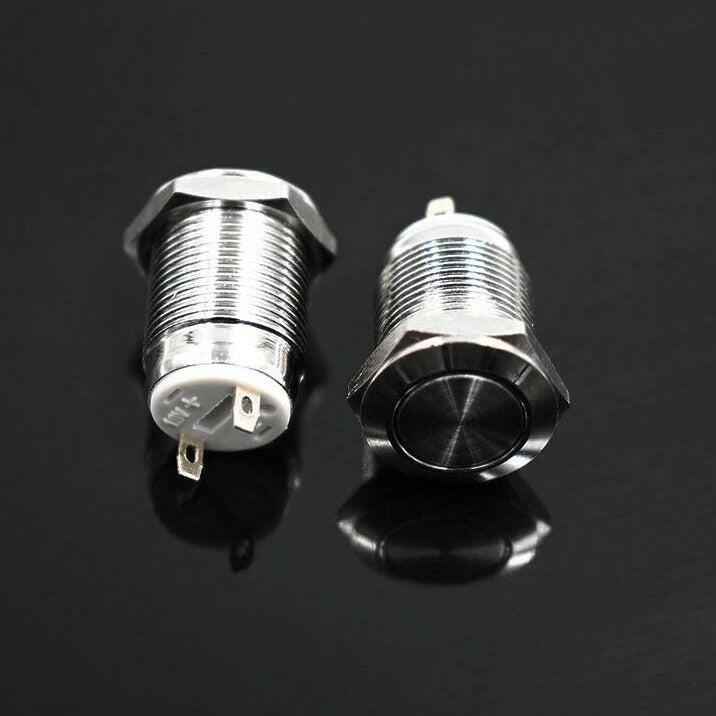

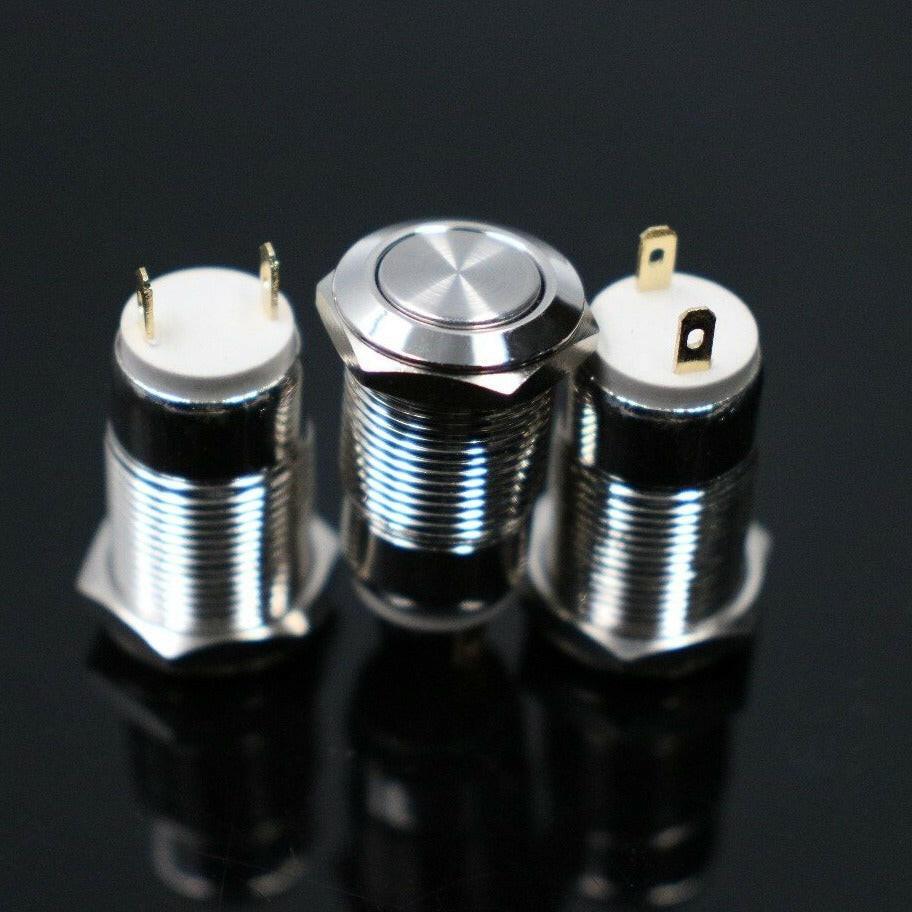

12mm Waterproof Momentary Metal Power Push Buttons Switch

Regular price $3.83 USD
Regular price Sale price $3.83 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

12mm Waterproof Momentary Flat Round Stainless Steel Metal Power Push Button Switch

Car Start Horn Speaker Bell Automatic Reset

Warranty: 10 years

Vibration Resistance: 10 to 55Hz, amplitude 1.2mm p-p

Switch Type: Push Button Switch

Operating Temperature: -25°C to +55°C

Operating Humidity: 45 to 85% RH

Model Number: 12mm Push Button Switch

Minimum Applicable Load: 5V AC/DC, 1mA

Maximum Voltage: 250V AC/DC

Material: Stainless steel

Item Type: Switches

12mm Waterproof Momentary Flat Round Stainless Steel Metal Push Button Switch Car Start Horn Speaker Bell Automatic Reset

Packet Include: 1pcs Switch





Principle: Automatic Reset; Push is to contact, Let go is to separationaeProduct.getSubject()

Insulation Resistance: 100MΩ minimum (500V DC megger)

Features: Momentary

Electrical Life: 100,000 operations minimum (at full rated load)

Degree of Protection: IP67, >10g

Contact material: Silver plated

Contact Resistance: 50MΩ maximum

Certification: ce,UL,CCC

Brand Name: EARUELETRIC
