1218-N20 3V6V12V 20MM Round Shaft Micro DC Gear Motor

Regular price $17.72 USD
Regular price $18.19 USD Sale price $17.72 USD
Sale Sold out
Shipping calculated at checkout.


1218-N20 3V6V12V 20MM Round Shaft Micro DC Gear Motor

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Gear Motor

Protect Feature: Explosion-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Model Number: N20

The parameters of the motor

Rated voltage 3v ;
No load speed 15/30/60/100/150/200/250/300/600rpm/min

Rated voltage 6v
No load speed 30/60/100/150/200/250/300/600rpm/min

Rated voltage 12v ;
No load speed 60/100/150/200/250/300/600rpm/min

If the motor is connected to a non-rated voltage input, all parameters of the motor will change.

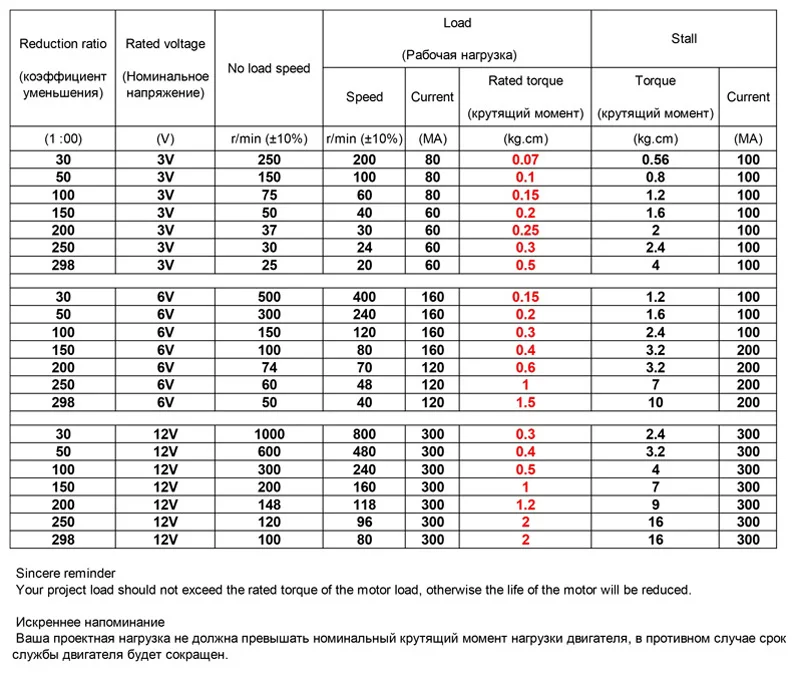

The parameter table of the motor

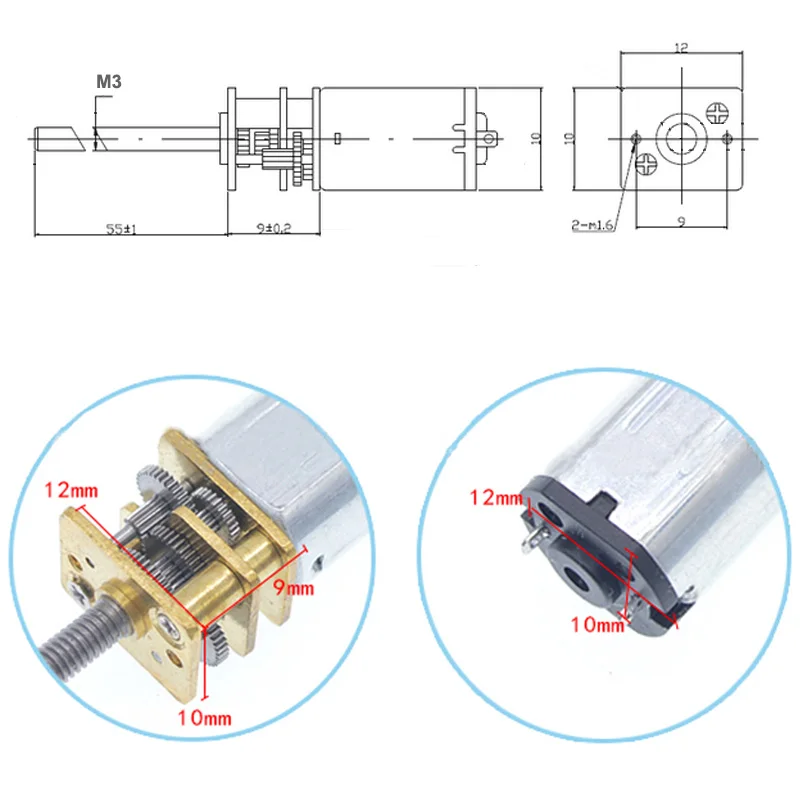

The size is for reference only, the measurement will be slightly different,please pay attention before buying

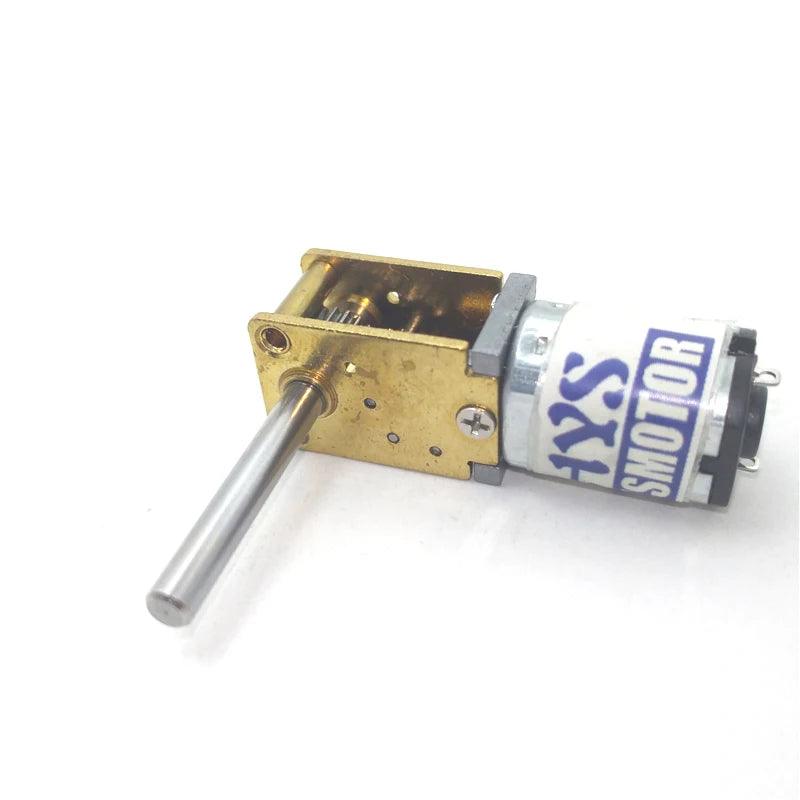

The following is the picture of the motor
