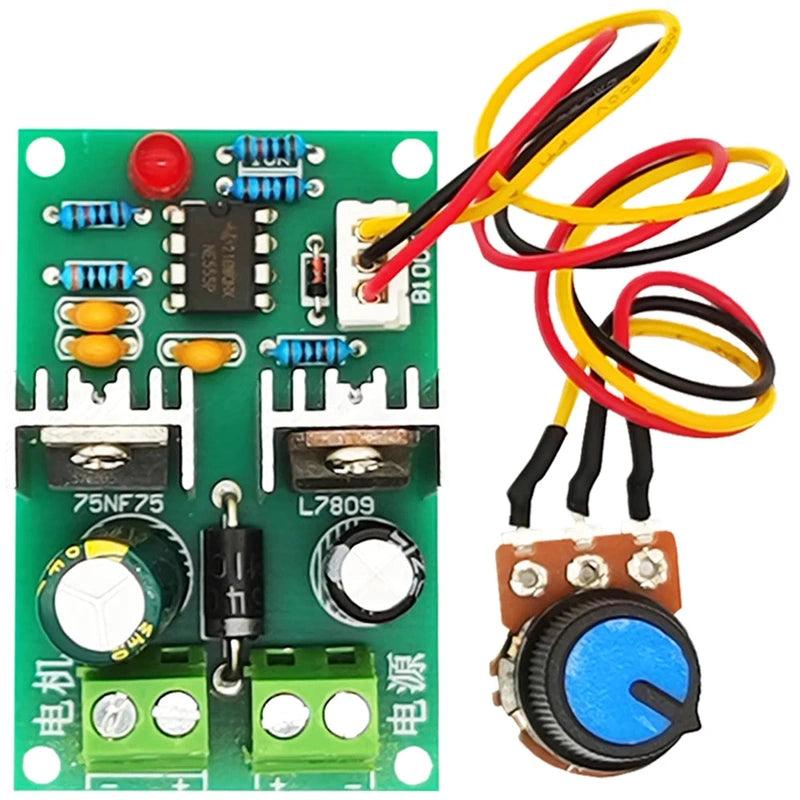

12~36V 6A 120W DC Brush Motor PWM Governor LED Light Dimmer Speed Controller

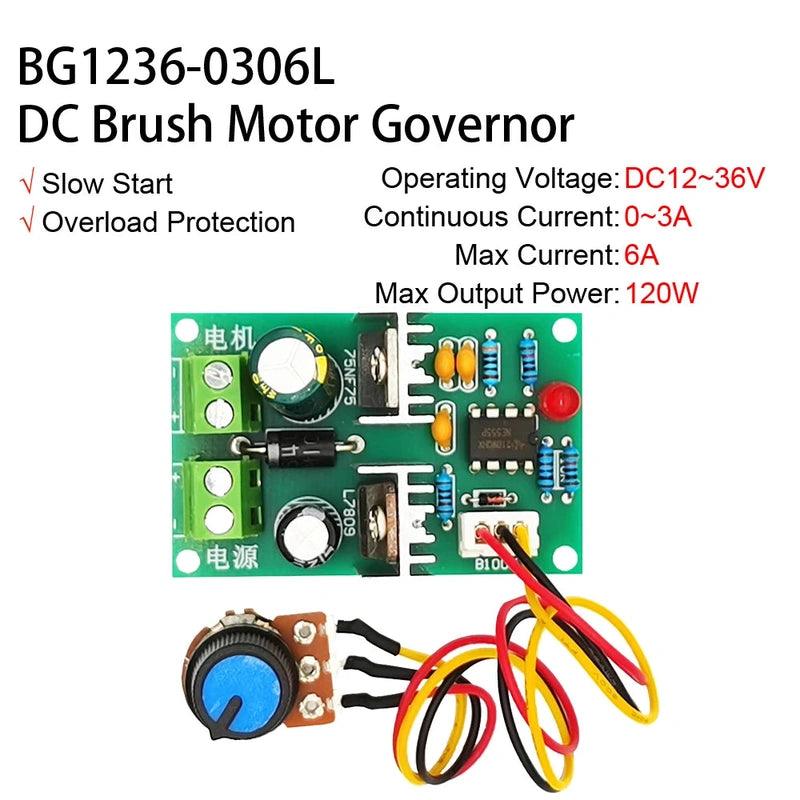

Model: BG1236-0306L
Applicable Motor: DC brush motor
Applicable Models: 5 Series (520, 555), etc. and LED light
Speed Control Mode: PWM
Slow Start: Yes
Overload Protection: Yes
Operating Voltage: DC12~36V
Continuous Current: 0~3A
Max Current: 6A
Max Output Power: 120W
Max Efficiency: 98%
PWM Frequency: 500KHz
PWM Duty Cycle: 0~100%

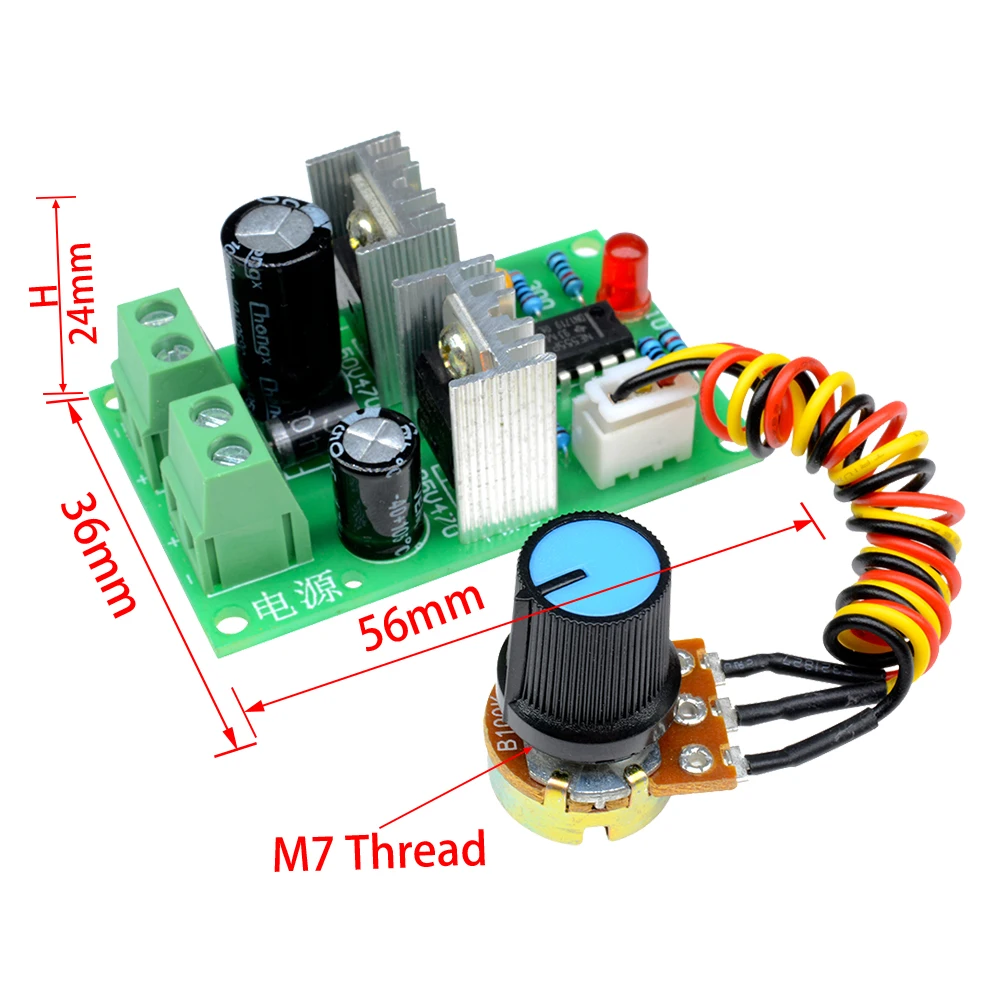

Size: 56x36x24mm
Weight: 36g
Speed Switch: Line-in Potentiometer
Reversible Switch: No
Digital Display: No
Product Case: No

Notes:
1. The governor can be used not only for motor speed control, but also for LED light/lamp dimming.
2. When used for LED light dimming, you need to ensure that the LED light is directly DC power supply, then the governor will be connected in series between the DC power supply and the LED lamp, by turning the speed potentiometer knob to achieve dimming.
3. If the LED lamp is not, or can not be directly connected to the DC power supply, you can not use this governor to dimming.
4. But the governor with the forward and reverse function (the governor’s name contains the R character, such as BG0628-0304R, BG0630-0610LR, G1055-4060LRD, etc.), is strongly discouraged for LED dimming, it is very easy because of the wrong set the forward and reverse switch, resulting in the wrong polarity of the power supply to the LED lamp, and lead to LED lamp burn.

For corporate customers:
1. If you are using our speed governors (dimmers), or motors to develop your products, we can provide technical support and customization services to customize the circuits boards (such as shape, size, mounting method, speed regulation and forward/reverse control method, voltage/current/power parameters, etc.), and customize the motors (such as voltage, speed, shaft type, mounting method, etc.) according to your requirements.
2. We can also provide solution development for small and miniature electromechanical products, please contact customer service for details.

Package Included:
1 x DC Motor PWM Governor (with Speed Switch potentiometer knob cap and matching nut)

Notes:
As all sizes are measured manually, so there may be 1~2mm error, please pay attention before purchasing.

Notes:

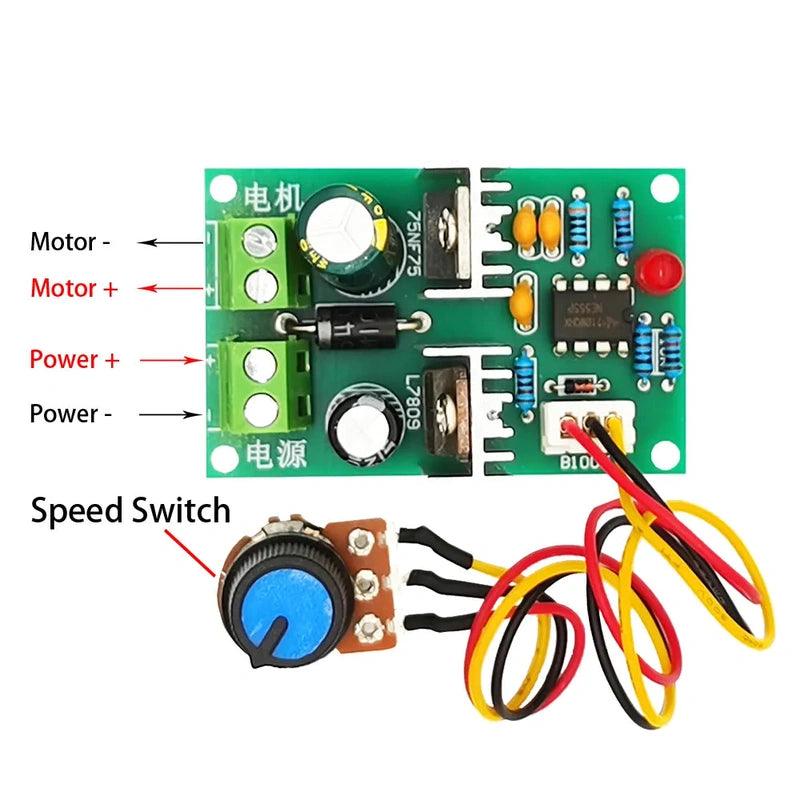

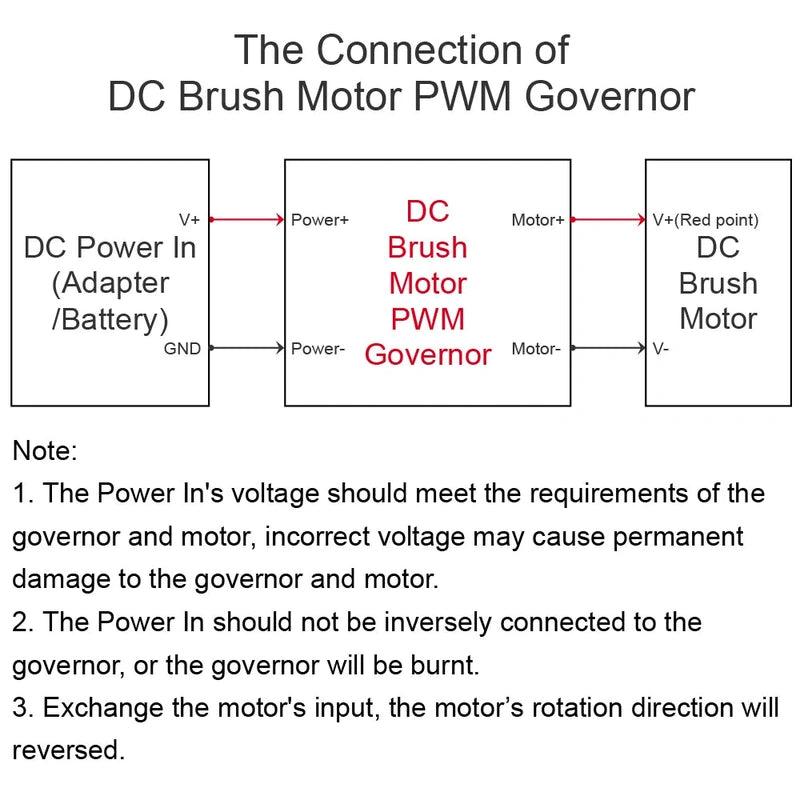

1. The Power In's voltage is DC, and should meet the requirements of the governor and motor, incorrect voltage may cause permanent damage to the governor and motor. Special attention that the governor should not be directly connected to the AC power (such as AC110/220V), otherwise it will burn!
2. The Power In's positive and negative should not be inversely connected to the governor, or the governor will be burnt.
3. The Motor's positive and negative can be inversed, and exchange the motor's input positive and negative, the motor's rotation direction will be reversed.
