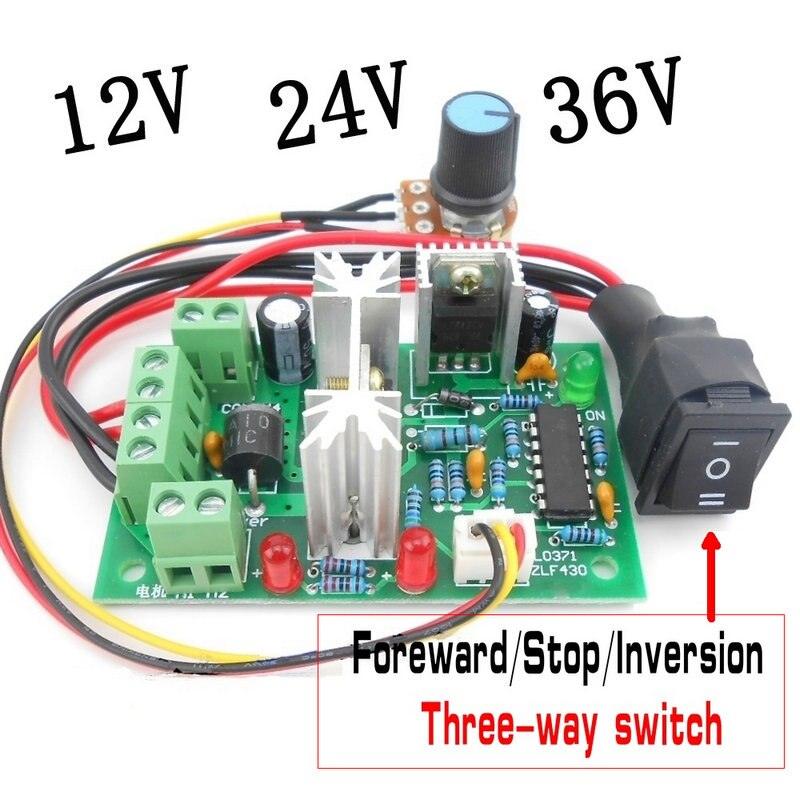

10V 12V 24V 36V PWM DC controller with Positive inversion switch 150W

SPECIFICATIONS

10V 12V 24V 36V PWM DC controller with Positive inversion switch PWM DC controller

for DC motor speed controller 150W

Model Number: 150W DC motor Speed controller

The PWM controller must be loaded with equipment in order to work properly. Please do not test without load.

10V 12V 24V 36V PWM DC controller with Positive inversion switch PWM DC

controller for DC motor speed controller 150W

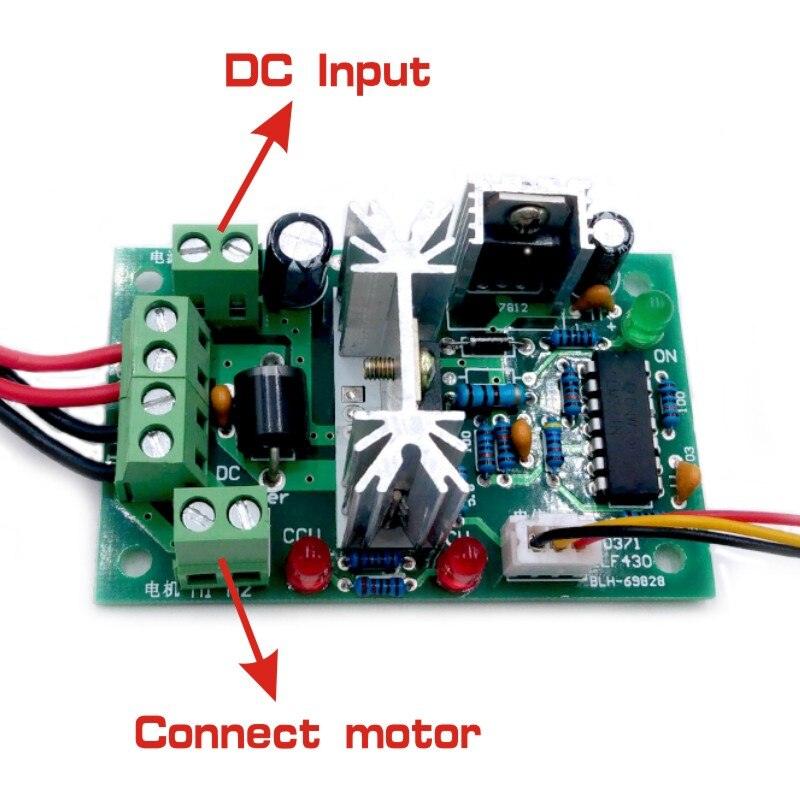

• Input voltage requirement:10V~40VDC(Wide range)

• Maximum output power:150W

• Maximum continuous current:5A

• Overload short circuit protection current:8A

• Short circuit time no more than 30 seconds

• PWM range :0%~100%

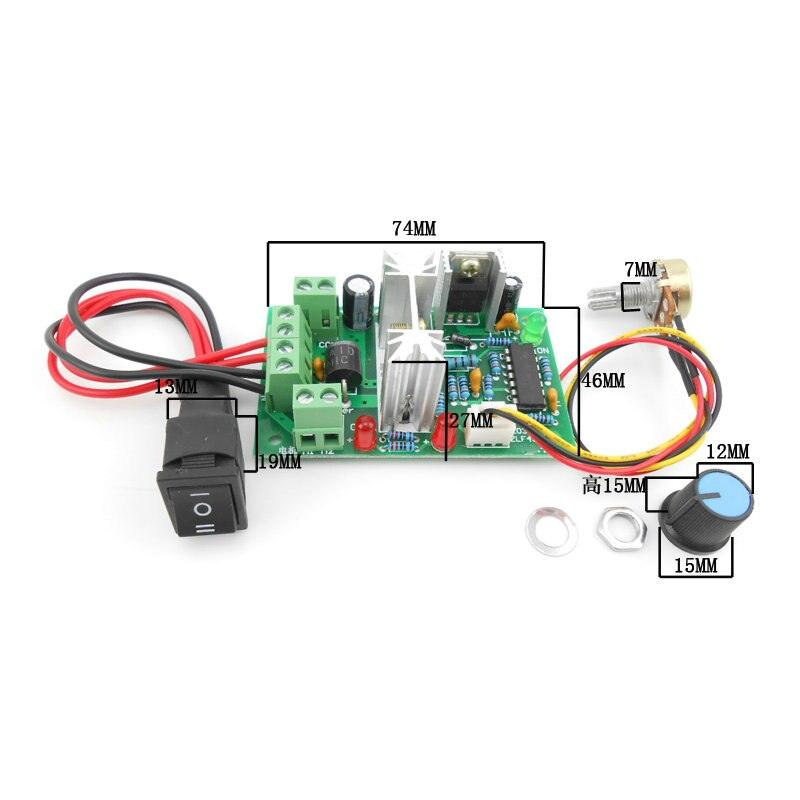

• Size:74mm*46mm*27mm

• Installation hole spacing:63.5mm*36.5mm

• Diameter of installation hole:3.5m

•
•
•
