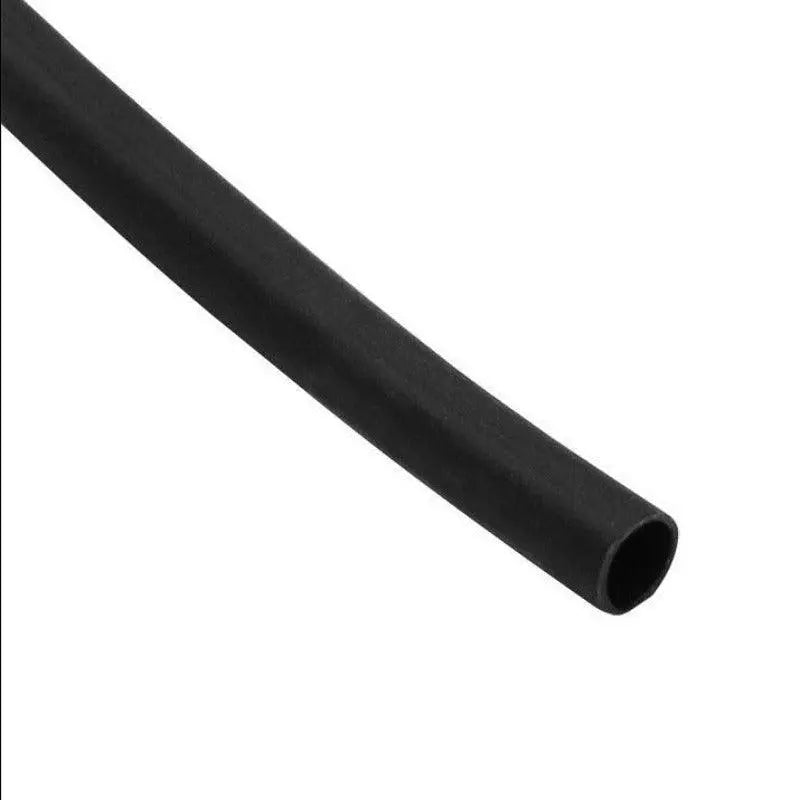

Name: Dia 1mm~22mm 2:1 Heat Shrink Tubing (2M/10M/1Roll)
Brand: electrical center b2c
SKU: Black Tube 2:1 / Dia.1mm (0.5mm After Shrink)| 200M/Roll / 2 Meter
Price: 8.6 USD
Availability: InStock

High Toughness 2X Heat Shrink Tube, No‑Adhesive Polyolefin Heat Shrink Sleeve, Multiple Sizes & Colors for Electrical Wiring, Copper Bar & Bus Bar Insulation

Product Description

This is 2:1 fast heat‑shrink tubing with national standard thickness, high toughness, wear‑resistant and anti‑aging, safe insulation performance up to 1000V rated voltage.

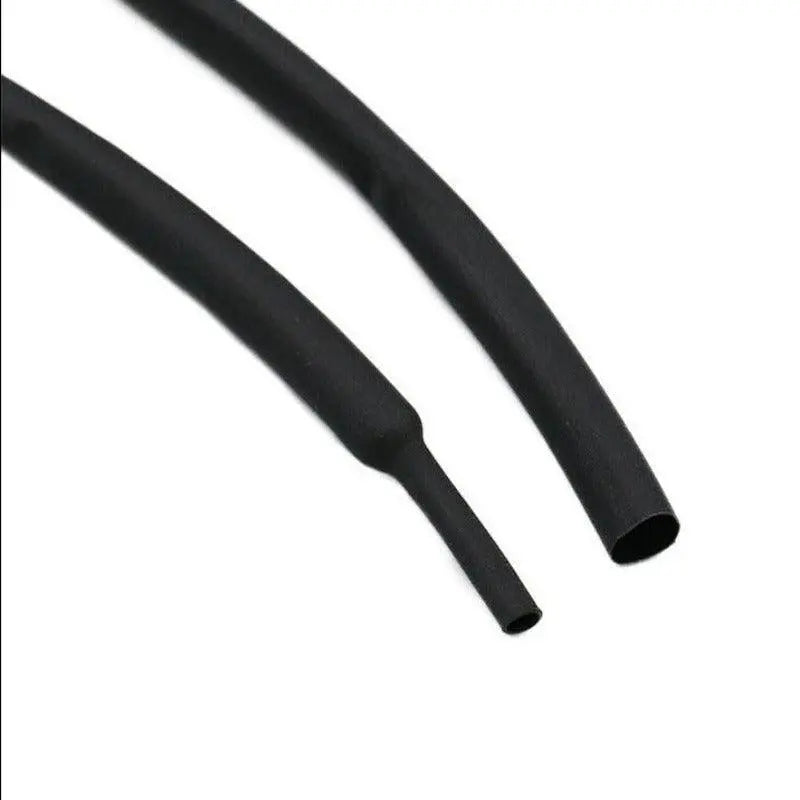

It is non‑adhesive polyolefin heat shrink tube, featuring fast 2‑times shrinkage rate. For example, Φ5mm shrinks to 2.5mm maximum, Φ10mm shrinks to 5mm maximum.

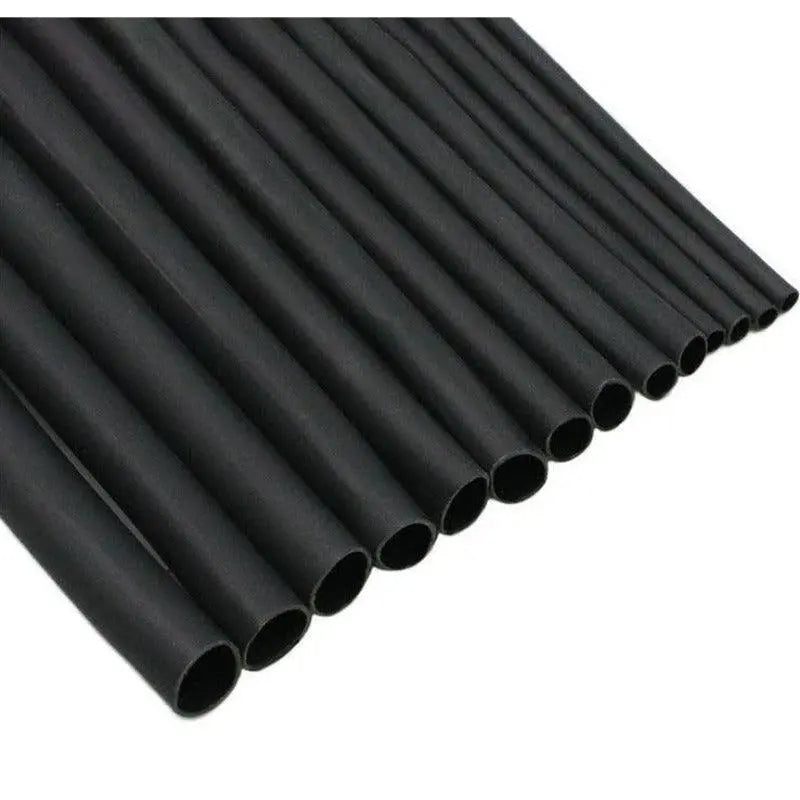

Multiple inner diameters are available: 1mm‑80mm, colors include black, red, green, yellow, blue. Length options: 2m, 10m, full roll. Sizes above 8mm are flat‑shaped.

Important Note: The model number represents the inner diameter before shrinkage, not the flattened width. Actual inner diameter is larger than marked specification (e.g., Φ1mm actual inner diameter is 1.5mm).

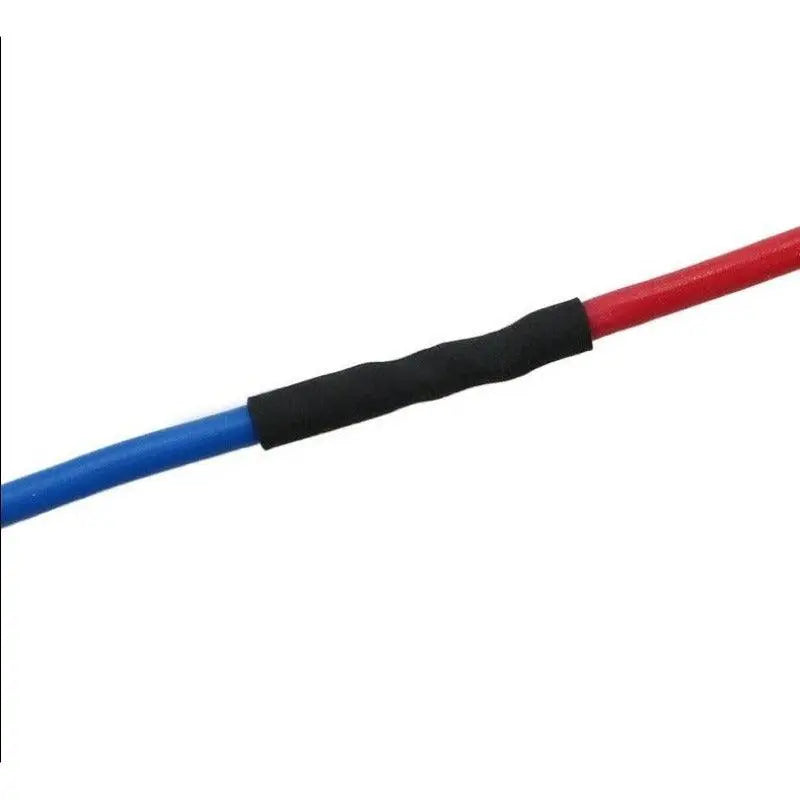

Widely used for wire insulation, cable repair, busbar, copper bar protection, electrical wiring harness insulation and DIY electronic projects.

Key Features

2:1 fast shrink ratio, non‑adhesive design
High toughness, thickened material, wear‑resistant & anti‑aging
1000V high‑voltage insulation, safe & reliable
Waterproof, dustproof, flexible & easy to operate
Multiple sizes, colors and lengths for flexible selection
Wide application for electrical wiring, busbar & copper bar protection

Specification

Attribute Name	Attribute Value
Product Name	2:1 Heat Shrink Tubing
Material	Polyolefin (Non‑Adhesive)
Shrink Ratio	2:1 Fast Shrinkage
Rated Voltage	1000V
Inner Diameter Options	1/2/2.5/3/4/5/6/8/10/12/14/16/18/20/22mm
Color Options	Black, Red, Green, Yellow, Blue

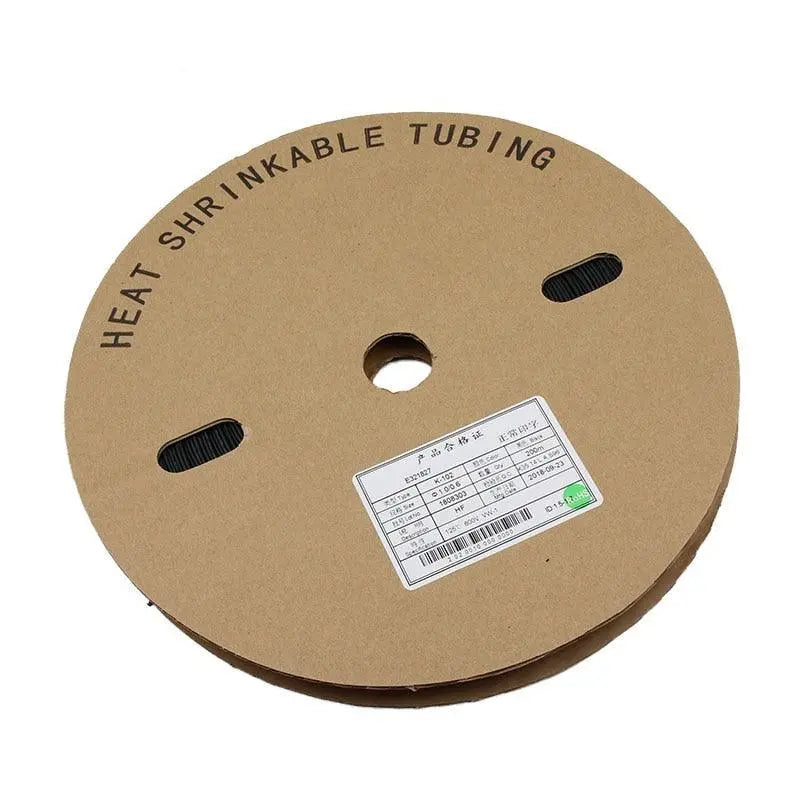

Length Options	2m, 10m, Full Roll
Shape	Round (≤7mm), Flat (≥8mm)
Features	High Toughness, Thickened, Wear‑Resistant, Anti‑Aging, Waterproof, Electrical Insulation
Application	Wire Insulation, Cable Repair, Busbar & Copper Bar Protection, Electrical Wiring Harness, DIY Electronic Projects
Note	Model refers to pre‑shrink inner diameter, not flattened width; actual inner diameter is larger than marked size

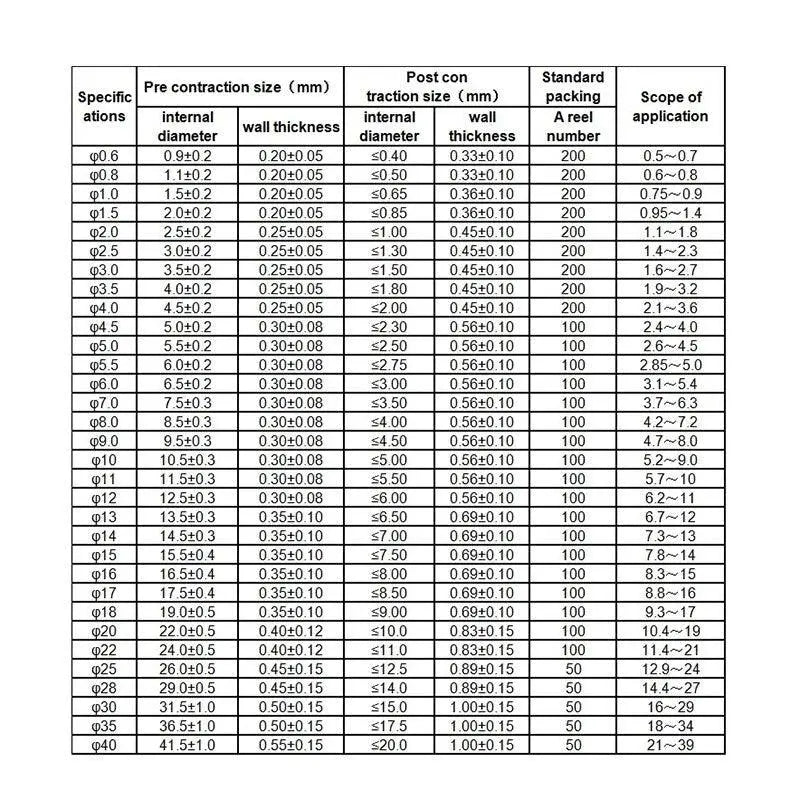

Heat Shrink Tubing Specification Table

Buyer Notice: The model number refers to the inner diameter before shrinkage, not the flattened width. Actual inner diameter of all sizes is larger than marked specification (e.g., Φ1mm actual inner diameter is 1.5mm).

Model (mm)	Actual Inner Diameter (mm)	Flattened Width (mm)	Wall Thickness Before Shrinkage (mm)	Wall Thickness After Shrinkage (mm)	Length Per Roll (m)
Φ1	1.5±0.2	‑	0.185±0.03	0.37±0.05	200
Φ2	2.5±0.2	‑	0.19±0.03	0.38±0.05	200
Φ2.5	3.0±0.2	‑	0.20±0.03	0.40±0.05	200
Φ3	3.5±0.2	‑	0.20±0.03	0.40±0.05	200
Φ3.5	4.0±0.3	‑	0.20±0.03	0.40±0.05	200
Φ4	4.5±0.3	‑	0.21±0.03	0.42±0.05	200
Φ5	5.5±0.4	‑	0.21±0.03	0.42±0.05	200
Φ6	6.5±0.4	‑	0.21±0.03	0.42±0.05	100
Φ8	8.5±0.5	14	0.21±0.03	0.42±0.05	100
Φ10	10.5±0.5	16	0.24±0.03	0.48±0.05	100
Φ12	12.5±0.5	20	0.25±0.03	0.50±0.05	100
Φ14	14.5±0.5	23	0.26±0.04	0.52±0.07	100
Φ16	16.5±0.5	26	0.29±0.04	0.58±0.07	100
Φ18	19.0±0.5	30	0.29±0.04	0.60±0.07	100
Φ20	21.0±0.5	32	0.31±0.04	0.62±0.07	100
Φ22	23.0±0.5	35	0.32±0.04	0.65±0.07	100
Φ25	26.0±0.5	42	0.35±0.04	0.70±0.07	25
Φ30	31.5±0.5	50	0.39±0.04	0.78±0.07	25
Φ35	36.5±1.0	55	0.39±0.05	0.78±0.07	25
Φ40	41.5±1.0	64	0.39±0.05	0.78±0.07	25
Φ50	≥50	80	0.41±0.05	0.80±0.1	25
Φ60	≥60	94	0.42±0.05	0.86±0.1	25
Φ70	≥70	112	0.43±0.05	0.88±0.1	25
Φ80	≥80	129	0.45±0.05	0.90±0.1	25
Φ90	≥90	140	0.50±0.05	1.00±0.1	25
Φ100	≥100	162	0.55±0.05	1.10±0.1	25
Φ120	≥120	190	0.57±0.05	1.20±0.1	25
Φ150	≥150	233	0.60±0.05	1.20±0.1	25
