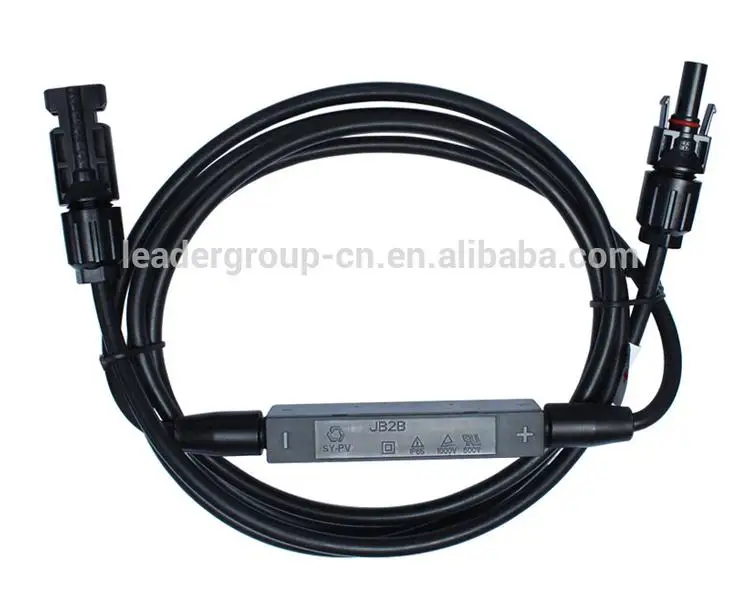

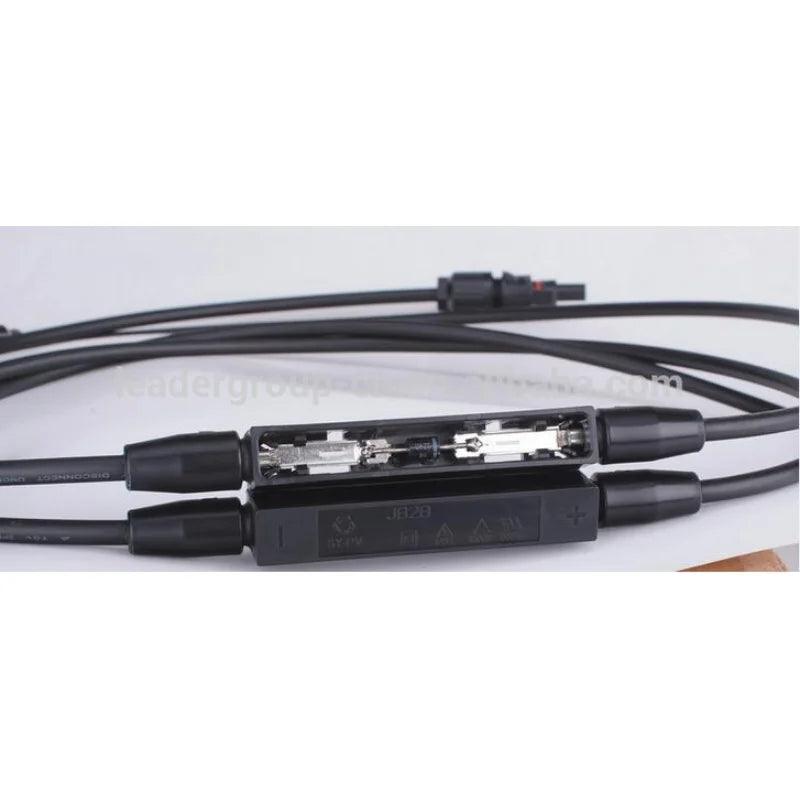

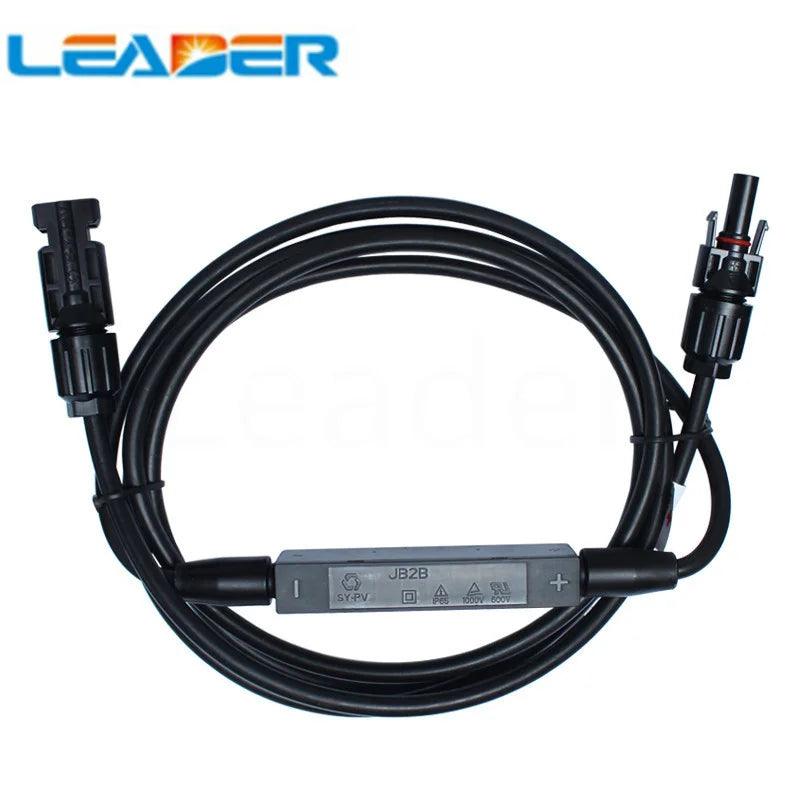

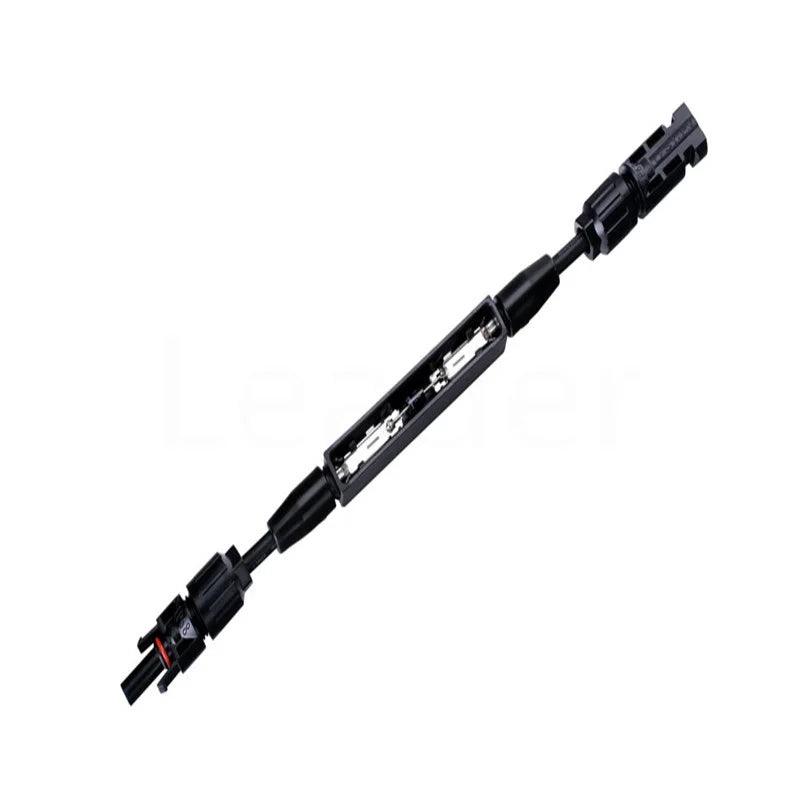

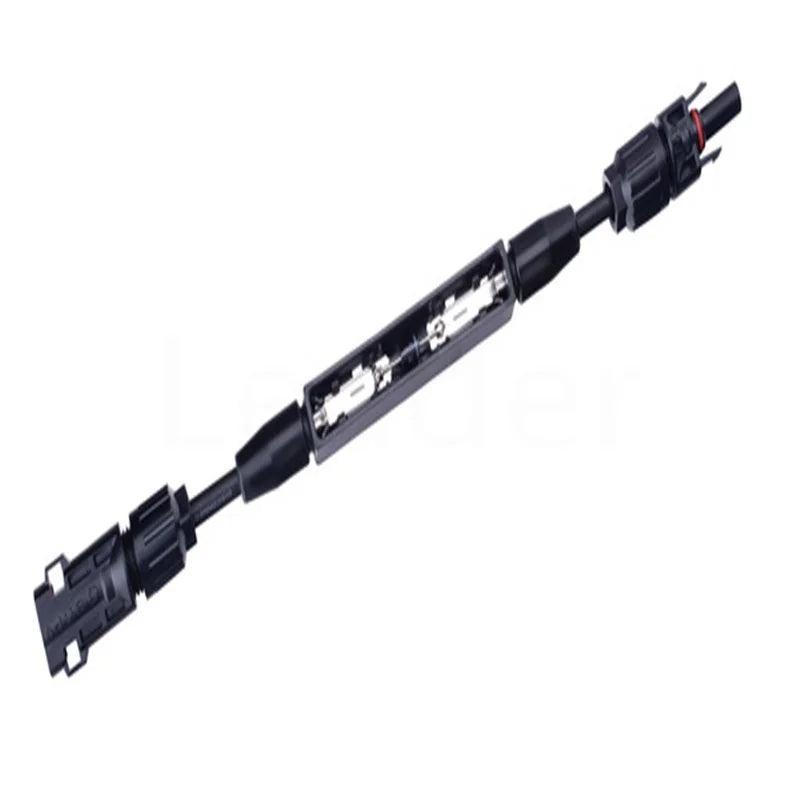

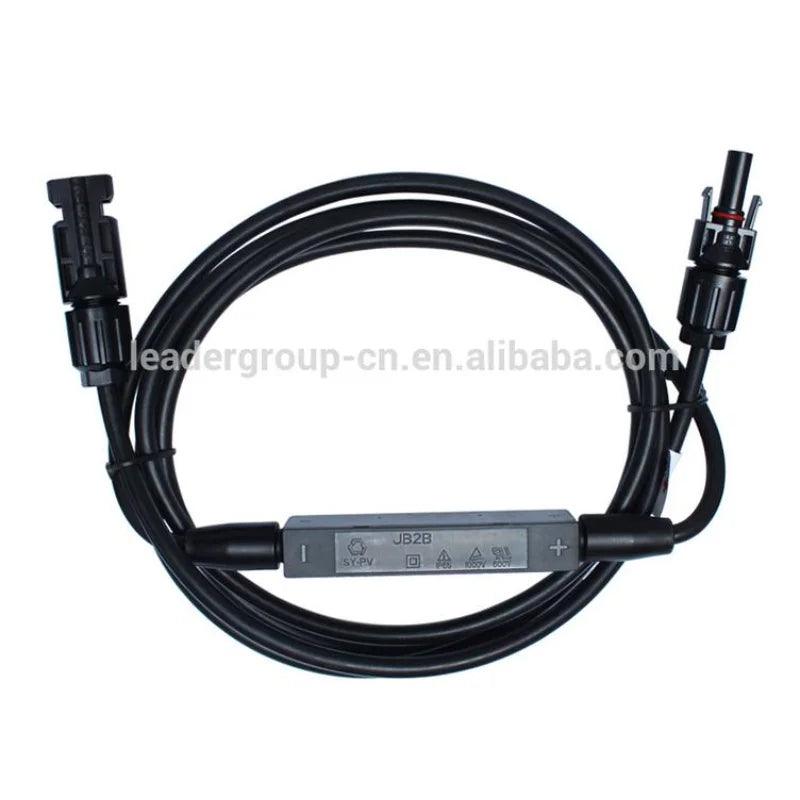

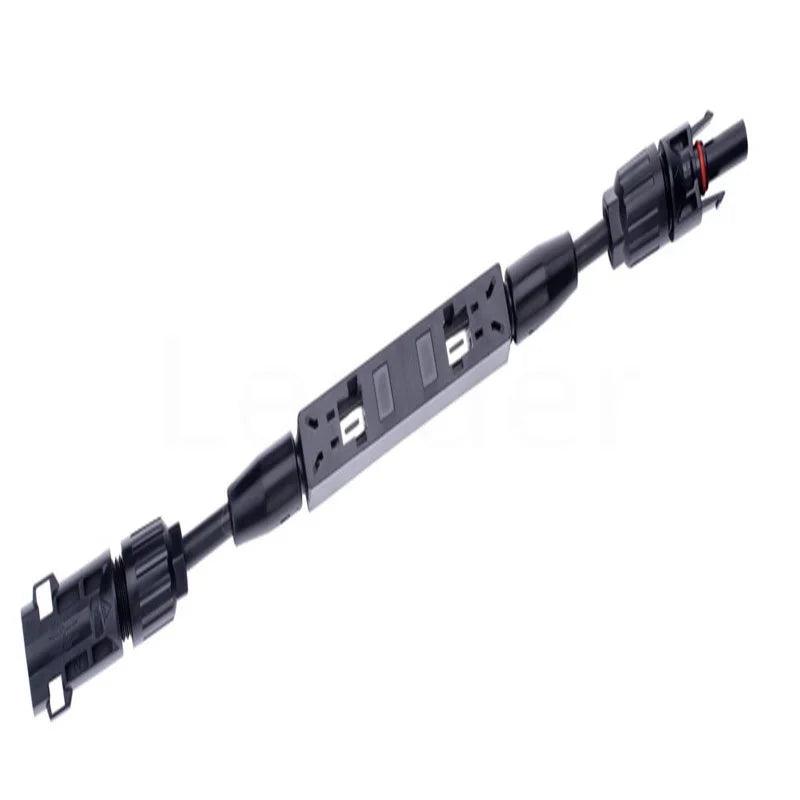

100 Pcs/lot TUV/ 2 Way Solar Energy Junction Box PV Panel Boxes Solar JB with 2.5mm2 Cable and IP67 Solar Panel Connector

Regular price $1,044.17 USD
Regular price $932.86 USD Sale price $1,044.17 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

100 Pcs/lot TUV/ 2 Way Solar Energy Junction Box PV Panel Boxes Solar JB with 2.5mm2 Cable and IP67 Solar Panel Conenctor

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: JB2B

Type: Adapter

Application: RF, Lighting

is_customized: Yes

Gender: Female and male



2 Way Solar Junction Box with 1M 2.5mm2 Cable and IP67 SOLAR Connector

PV Junction Box with 2 Terminal Junction Box
Product NO. SY-JB2B- rails terminals
Insulation material PPO
Rated Voltage TUV 1000 DC/ UL 600V DC
Rated Current 3A-20A (Potting)
Joining of Ribbon Soldering
Test voltage 6KV(50Hz,1Min)
Contact material copper, tin plated
Contact resistance less than 0.5 m ohm
Degree of protection IP67
Pollution Degree 2
Protection class Class II
Flame class UL94V-0
Plug Force less than 50N
Withdrawal force more than 50N
Ambient temperature range -40°C  ~ +  90°C
Pin dimension 4.0mm
Total Cable Length 90CM
