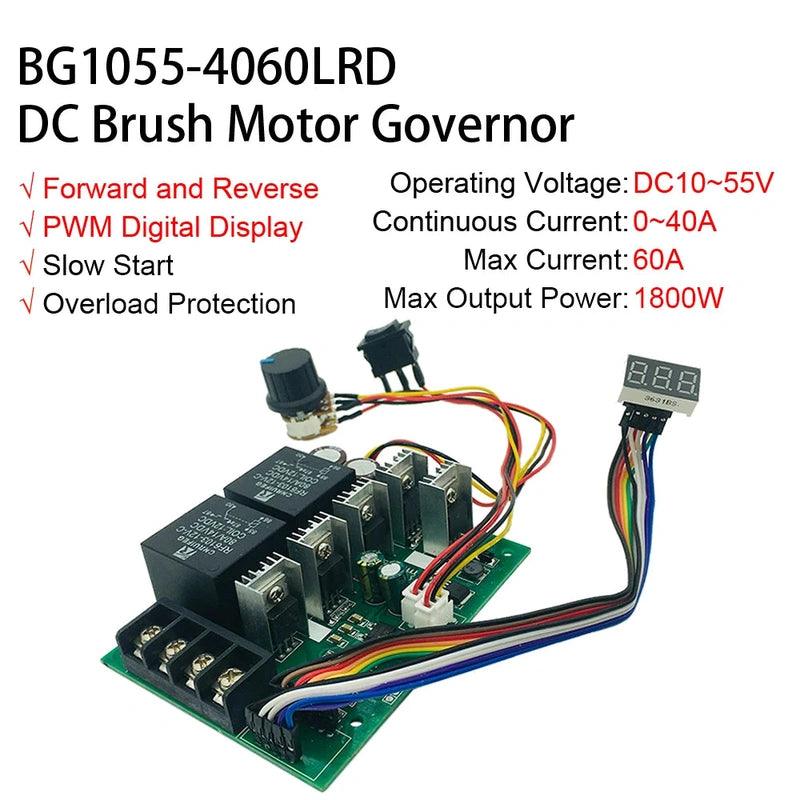

10~55V 60A 1800W DC Brush Motor PWM Governor 12V 36V 48V Reverse Digital Display Speed Controller Boat Scooter (BG1055-4060LRD)

Model: BG1055-4060LRD
Applicable Motor: DC brush motor
Applicable Models: 7 Series (775, 795, 799), 8 Series (895), 9 Series (997), etc.
Speed Control Mode: PWM
Slow Start: Yes
Overload Protection: Yes
Operating Voltage: DC10~55V
Continuous Current: 0~40A
Max Current: 60A
Max Output Power: 1800W
Max Efficiency: 98%
PWM Frequency: 15KHz
PWM Duty Cycle: 0~100%

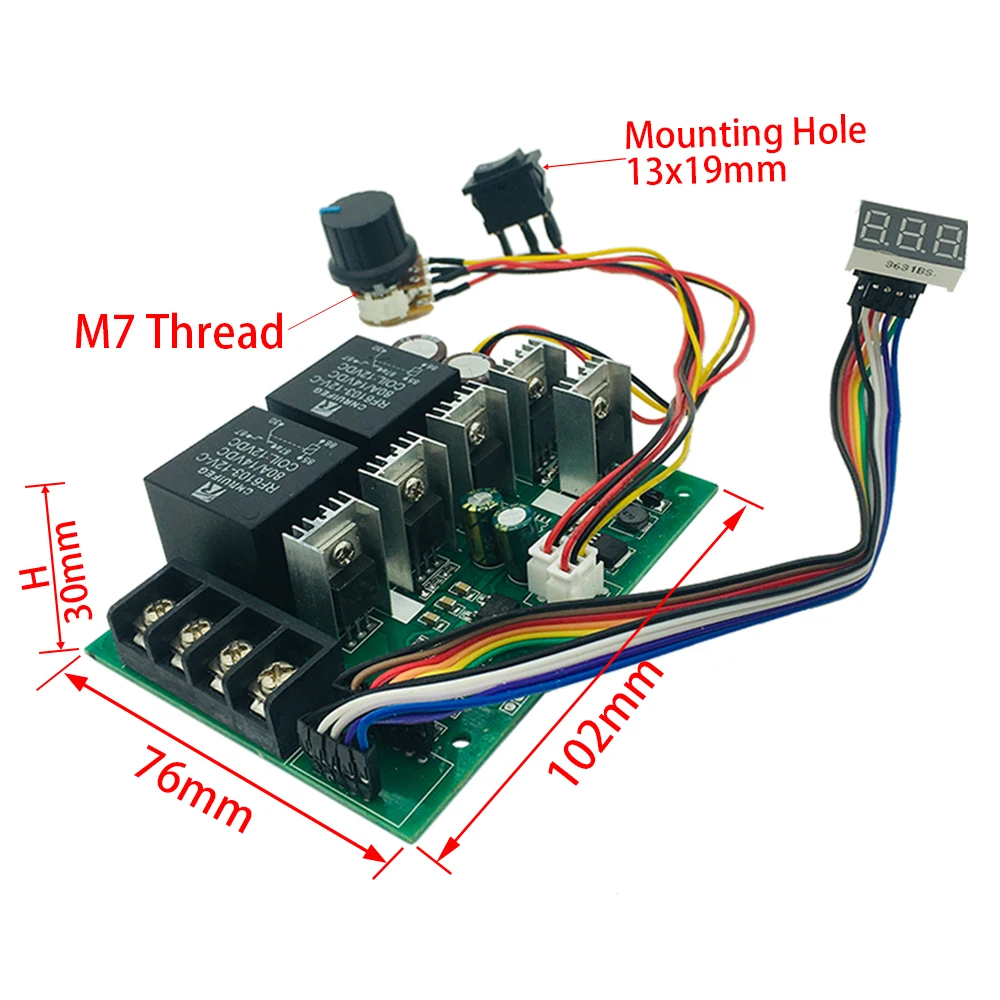

Size: 102x76x30mm
Weight: 170g

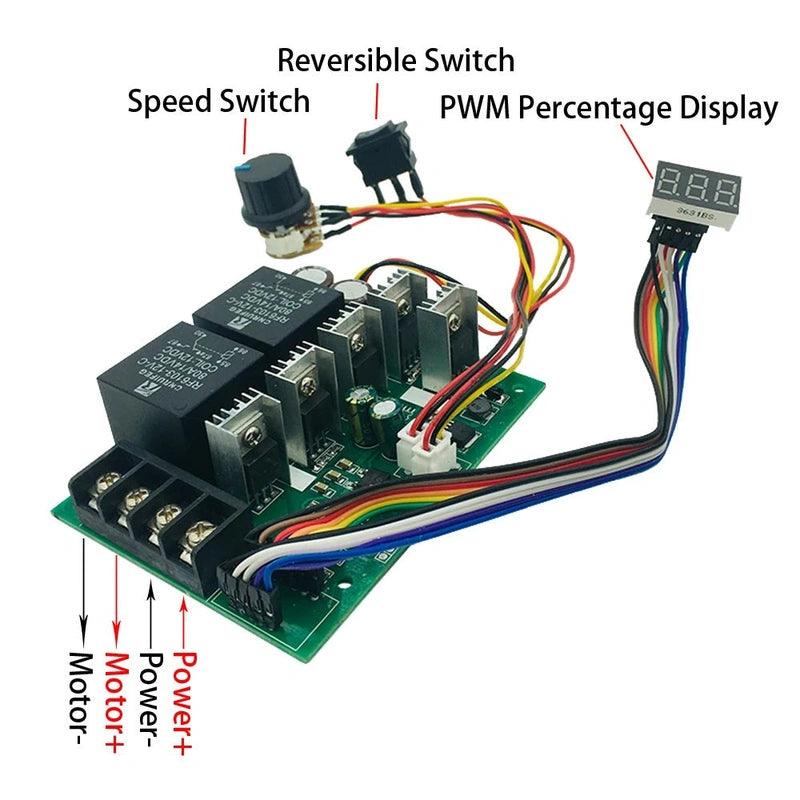

Speed Switch: Line-in Potentiometer
Reversible Switch: Forward, Stop, Reverse
Digital Display: PWM duty cycle percentage
Product Case: No

Notes:
The governor with the forward and reverse function (the governor's name contains the R character, such as BG0628-0304R, BG0630-0610LR, G1055-4060LRD, etc.), is strongly discouraged for LED dimming, it is very easy because of the wrong set the forward and reverse switch, resulting in the wrong polarity of the power supply to the LED lamp, and lead to LED lamp burn.

For corporate customers:
1. If you are using our speed governors (dimmers), or motors to develop your products, we can provide technical support and customization services to customize the circuits boards (such as shape, size, mounting method, speed regulation and forward/reverse control method, voltage/current/power parameters, etc.), and customize the motors (such as voltage, speed, shaft type, mounting method, etc.) according to your requirements.
2. We can also provide solution development for small and miniature electromechanical products, please contact customer service for details.

Package Included:
1 x DC Motor PWM Governor (with Speed Switch potentiometer knob cap and matching nut)

Notes:
As all sizes are measured manually, so there may be 1~2mm error, please pay attention before purchasing.

Notes:

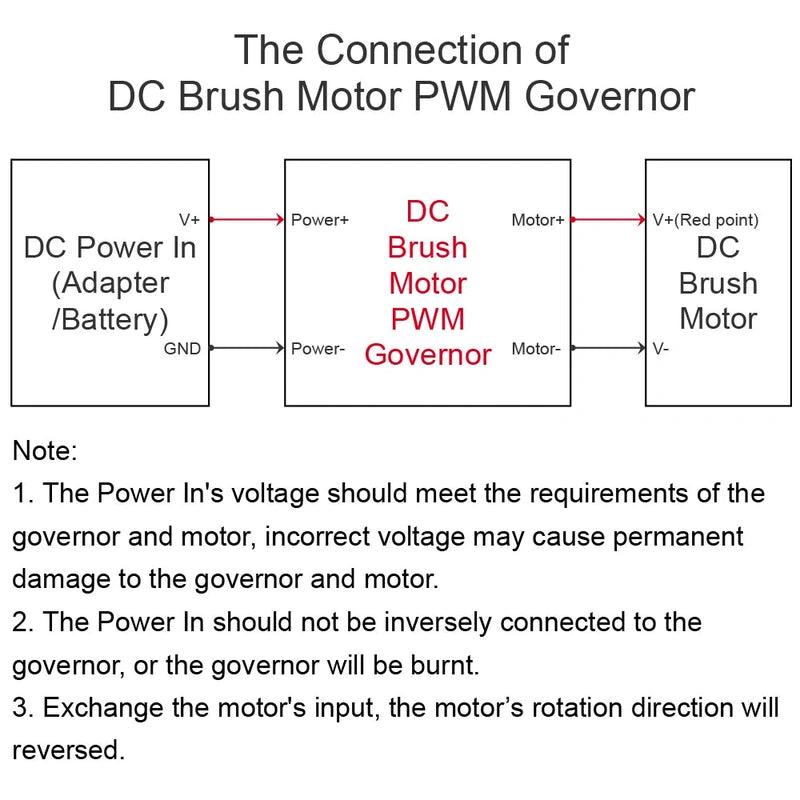

1. The Power In's voltage is DC, and should meet the requirements of the governor and motor, incorrect voltage may cause permanent damage to the governor and motor. Special attention that the governor should not be directly connected to the AC power (such as AC110/220V), otherwise it will burn!
2. The Power In's positive and negative should not be inversely connected to the governor, or the governor will be burnt.
3. The Motor's positive and negative can be inversed, and exchange the motor's input positive and negative, the motor's rotation direction will be reversed.
