JGB37-520 DC Gear Motor 6V 12V 24V High Torque Metal Gear Low Speed DIY Gear Motor

March 12, 2026

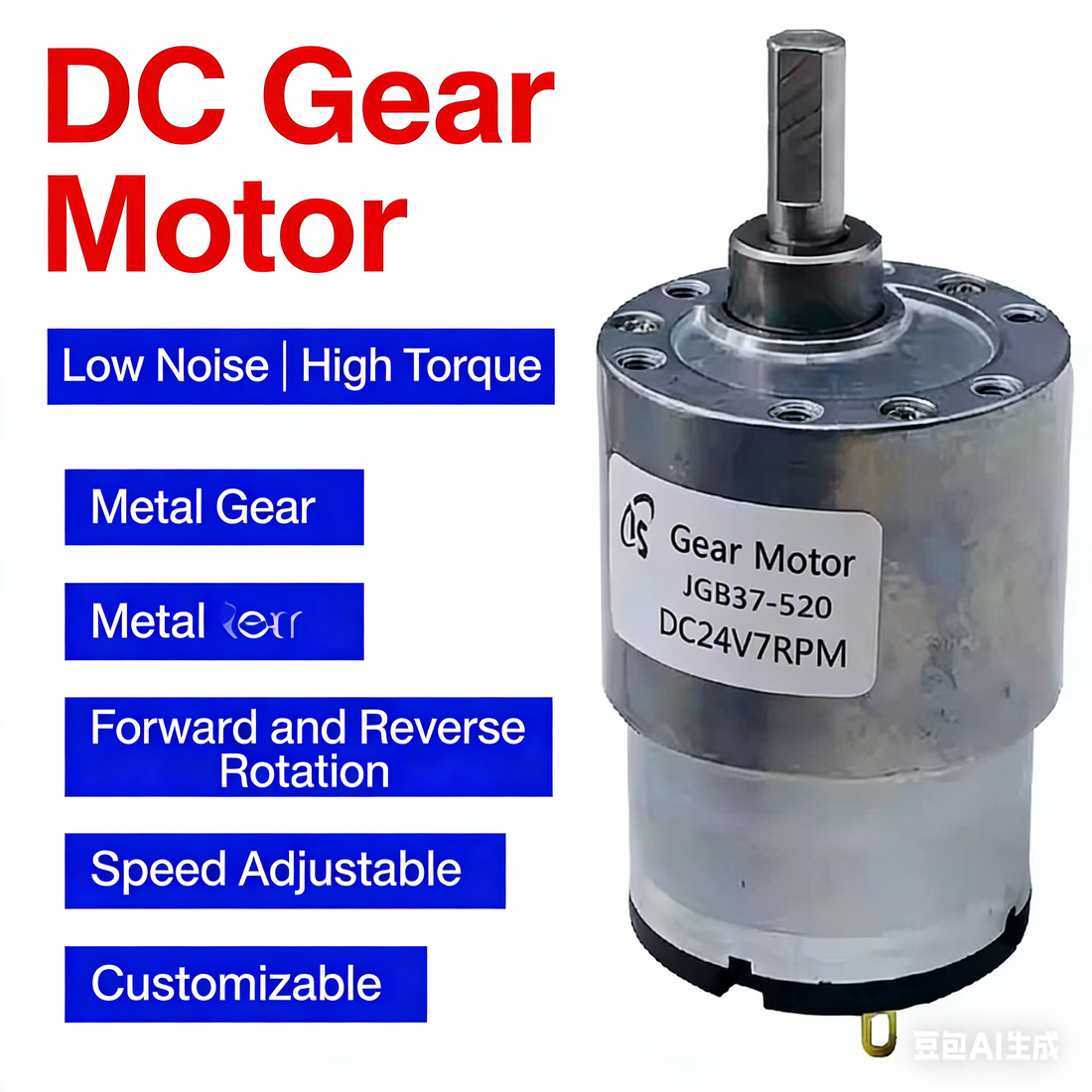

This is a JGB37-520 DC gear motor, featuring high torque, low speed, and all-metal gears. It supports 6V, 12V, and 24V voltage input, with stable performance and long service life. It is widely used in DIY projects, smart cars, robots, electronic locks, monitoring equipment, and various low‑speed power drive devices.

Features

High torque, low noise, stable operation
All-metal gearbox, wear-resistant and durable
Forward and reverse rotation supported
Small size, easy installation
Wide voltage range: 6V / 12V / 24V
Suitable for industrial control, model making, and intelligent equipment

Application

DIY robots & smart vehicles
Electronic door locks & curtains
Monitoring PTZ & rotating devices
Automation equipment & small power tools

Motor Usage Instructions

Voltage & Current Tolerance: Operate the motor within the specified voltage and current range. Failure to do so will shorten the motor's service life.
Handling: Handle the motor with care, holding it by the outer casing whenever possible.
Wiring: Connect the red wire to the positive (+) terminal and the black wire to the negative (-) terminal. Reversing the polarity will reverse the motor's rotation direction.
Overload: Use the motor only within the load range specified by our company. Prolonged stalling or operation near stall conditions will cause the motor to burn out.
Storage:
- Storage Temperature: 0°C to 40°C
- Storage Humidity: 15% to 90% RH
- Avoid storing in high-temperature, high-humidity, or corrosive gas environments.
Operating Temperature: 0°C to 70°C

Motor Precautions

Do not allow any objects to bind the motor. Ensure no adhesive flows into the bearings through the rotating shaft, as this will damage motor operation.
Shaft rotation can adversely affect motor lifespan. To extend longevity, verify that your load complies with specifications. Do not overload or attach harmful items to the shaft end.
Eccentric heavy radial loads will damage the motor's lifespan.
Do not store the motor in high-temperature, extremely humid, or corrosive gas environments, as this will reduce performance.
Do not operate the motor in high-temperature or humid environments.
When soldering power terminals, use a soldering iron at 340°C ± 40°C for a maximum of 3 seconds. Avoid plastic deformation, solder flow into the motor, or wire breakage, as these will degrade motor function.
Do not jam the motor. Applying power to a jammed motor will cause rapid overheating and burnout of components.
The manufacturer cannot guarantee quality if damage results from operator negligence, failure to follow instructions, or obvious misuse.
Supply the specified voltage and ensure it remains within measurable limits.
When installing pulleys or gears, avoid applying excessive force during press-fitting.
When mounting the motor, ensure screws are not too long, as they may contact the rotor and affect performance.
