7 Type 545 Motor Full Metal Gear DC Reducter Motor 5V-12V 32rpm-83rpm High Torque Slow Speed Moteur
Couldn't load pickup availability
SPECIFICATIONS
7 Type 545 Motor Full Metal Gear DC Reducter Motor 5V-12V 32rpm-83rpm High Torque Slow Speed Moteur
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 545 Geared Speed Motor
Voltage: DC5V-12V

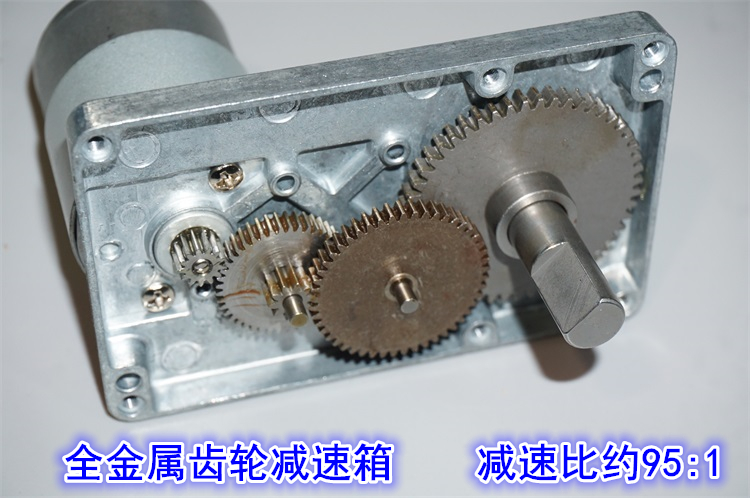

The brand new 7-shaped reduction motor is equipped with all metal gears and an aluminum alloy gearbox, with a reduction ratio of approximately 95:1. The motor is a 545 type carbon brush motor.
The actual no-load current and speed of the motor tested are as follows:
Voltage 5V, no-load current 0.35A, no-load speed 32 revolutions.
The voltage is 8V, the no-load current is 0.41A, and the no-load speed is 55 revolutions.
Voltage 12V, no-load current 0.55A, no-load speed 83 revolutions.
The deceleration weight is 496 grams.
