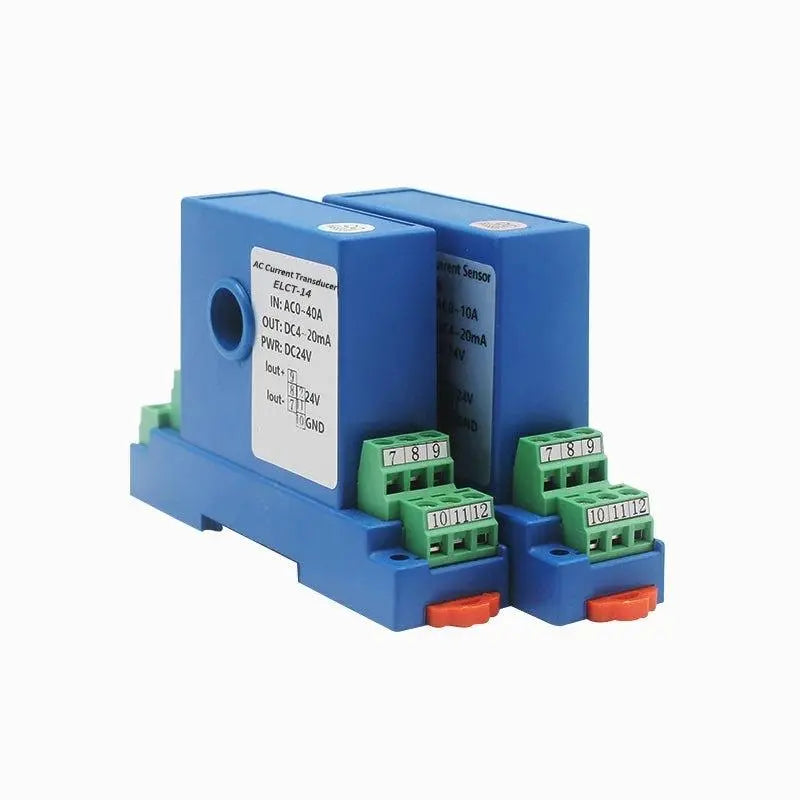

0-200A AC Current Transmitter with Analog Output 4-20ma 0-10v 0-5v CT for AC Current
Couldn't load pickup availability
SPECIFICATIONS
0-200A AC Current Transmitter Closed Hall Effect Current Transducer with Analog Output 4-20ma 0-10v 0-5v CT for AC Current 12mm aperture|AC220V powered
Supply Voltage: DC12V-24V, AC220V
Response time: <200ms
Product name: Hall current transducer
Output signal: 4-20mA,0-5V,0-10V,RS485
Origin: Mainland China
Operating Temperature: -30℃~+85℃
Model Number: ELCT-14
Installation method: DIN 35mm rail+ plane screw fixation
Input current range: AC 0-200A
Frequency range: 40-60HZ
Display Type: Analog Only
Dimensions: 8mm,12mm
DIY Supplies: ELECTRICAL
Certification: CE
Brand Name: KEJUN
Accuracy Class: 0.5%FS
0-200A AC Current Transmitter Closed Hall Effect Current Transducer with Analog Output 4-20ma 0-10v 0-5v CT for AC Current
This link is special for AC current transducer.
DC current transducer link click here: DC current transducer
NOTES:
The aperture diameter is 8mm, 12mm.
If you need other size (4mm, 15mm), please contact me.
We can make special customization for you.
1>>. Working principle: Open loop direct measurement.
2>>. Usage: Used for measuring DC,AC,pulse current and other arbitrary waveform current.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.
5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.
6>>. Full channel configuration,parameters customized.
