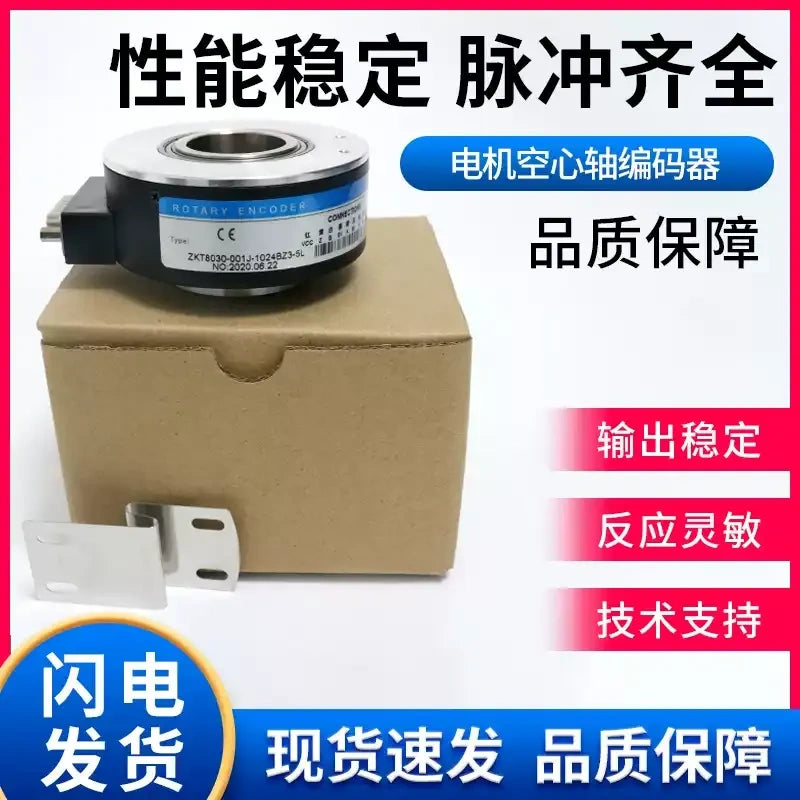

ZKT8030 Hollow Shaft Rotary Encoder Hole 18~45mm/ 200~5000PPR

$126.00 NZD
$126.00 NZD
Sale Sold out
Shipping calculated at checkout.
Hollow Bore Sizes
Pulse Resolution (PPR)
Output Signal Types

ZKT8030 Hollow Shaft Rotary Encoder, Repu Type Incremental Optical Hollow Bore Encoder for Elevator Motor, Multiple Bore Sizes & Pulse Resolution, NPN/PNP/5L Differential/24T HTL Output

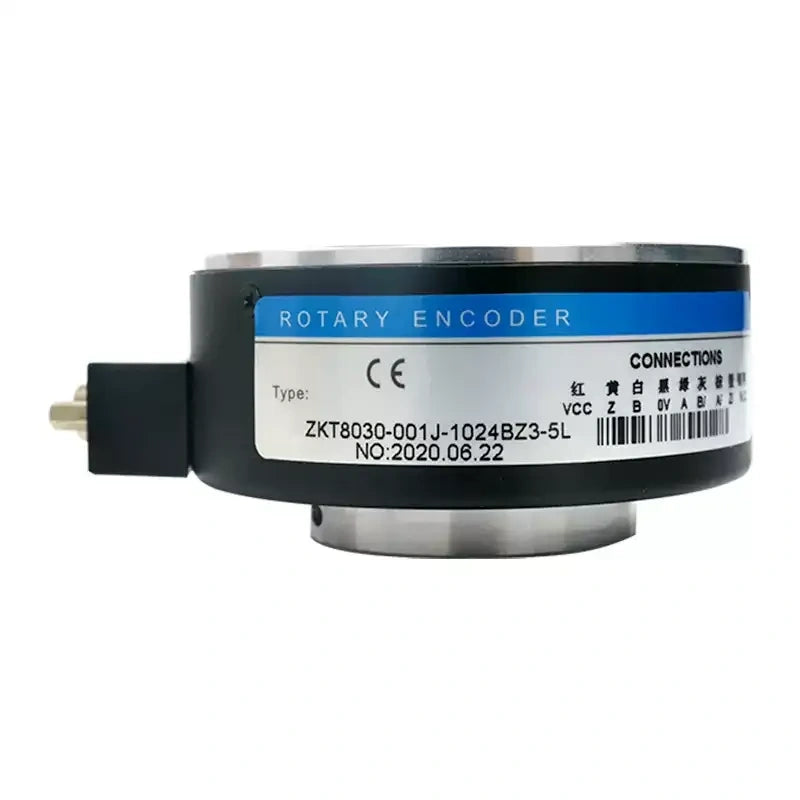

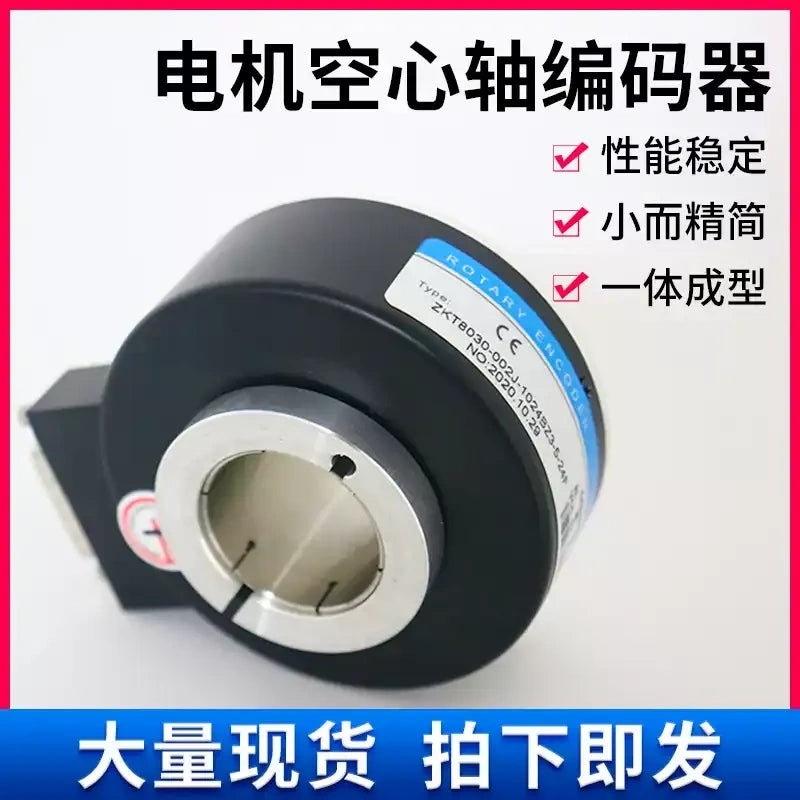

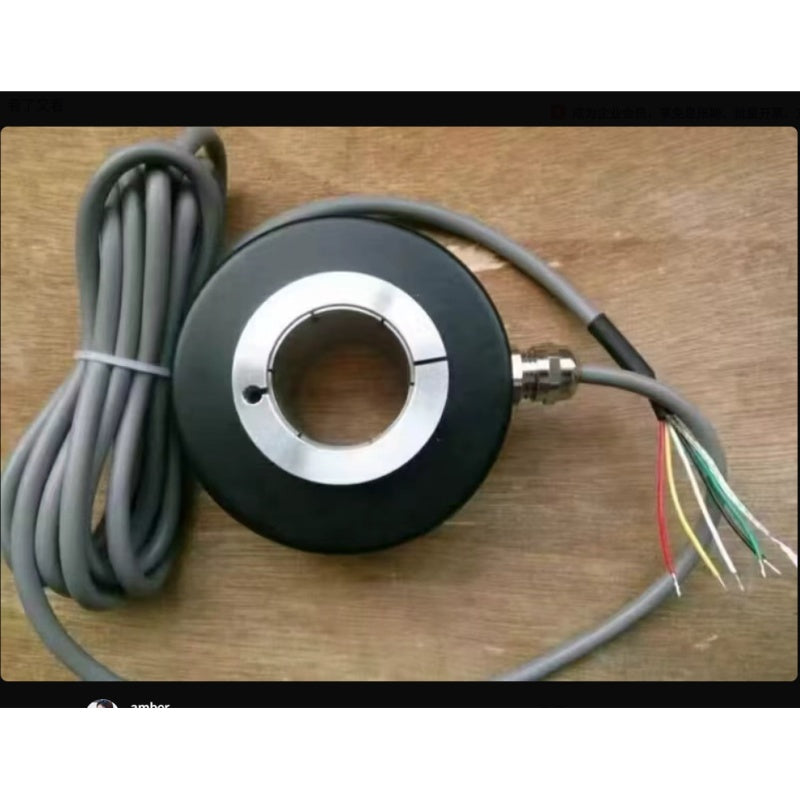

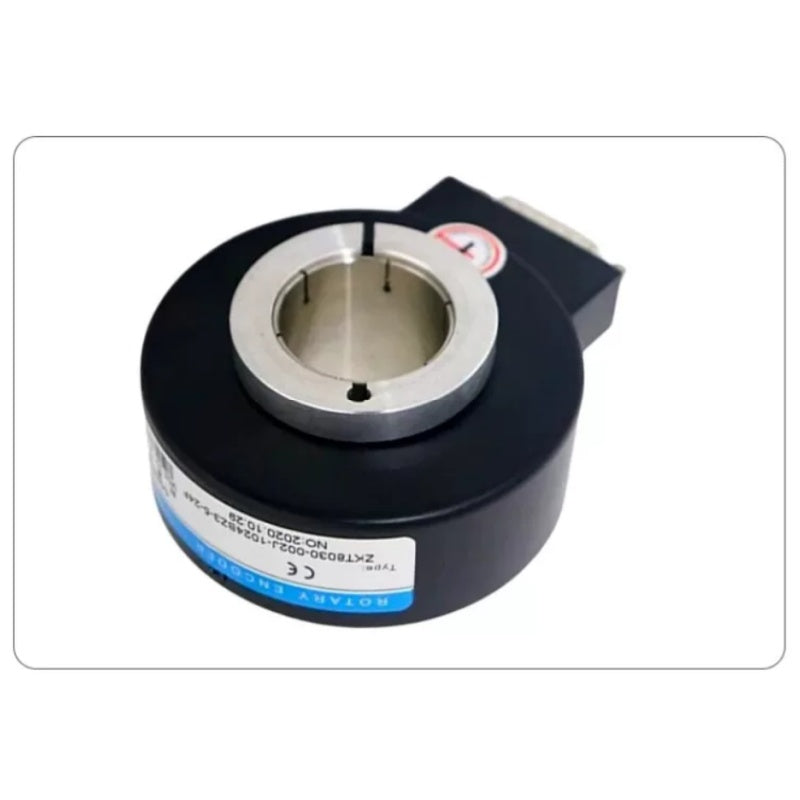

ZKT8030 hollow shaft rotary encoder is a Repu-compatible incremental photoelectric encoder with hollow bore design, specially optimized for elevator traction motor speed and position feedback. It supports multiple hollow aperture sizes, abundant pulse resolutions and four mainstream output signal types, stable anti-interference signal output for long-term industrial operation.

Parameter Options

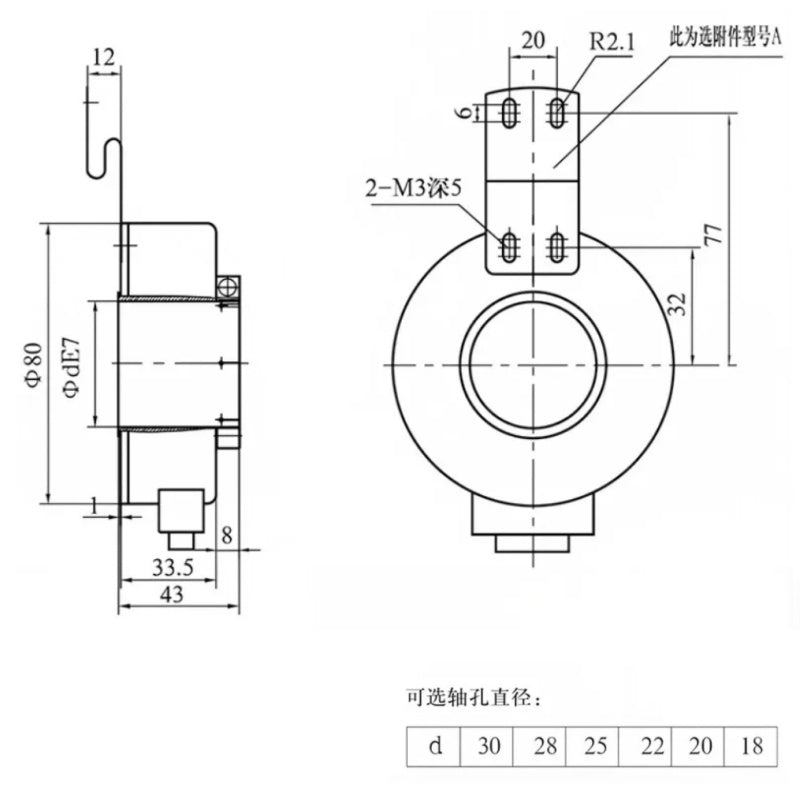

  1. Hollow Bore Diameter: 18mm / 19mm / 20mm / 25mm / 30mm / 32mm / 40mm / 45mm
  2. Pulse Count (PPR): 200, 300, 360, 500, 600, 1000, 1024, 1200, 2000, 5000 PPR
  3. Output Signal Types:
  • NPN Open Collector Output
  • PNP Open Collector Output
  • 5L Differential Line Driver Output
  • 24T HTL Voltage Output

Wide Industrial Application Scenarios

  • Construction Industry: Tower crane, lifting machinery, tile press & packaging equipment
  • Power Industry: Power transmission monitoring equipment
  • Aerospace: Aviation motion control detection
  • Textile Industry: Circular knitting machine, textile loom speed feedback
  • Transportation: Elevator, subway, rail transit vehicle control system

Product Advantages

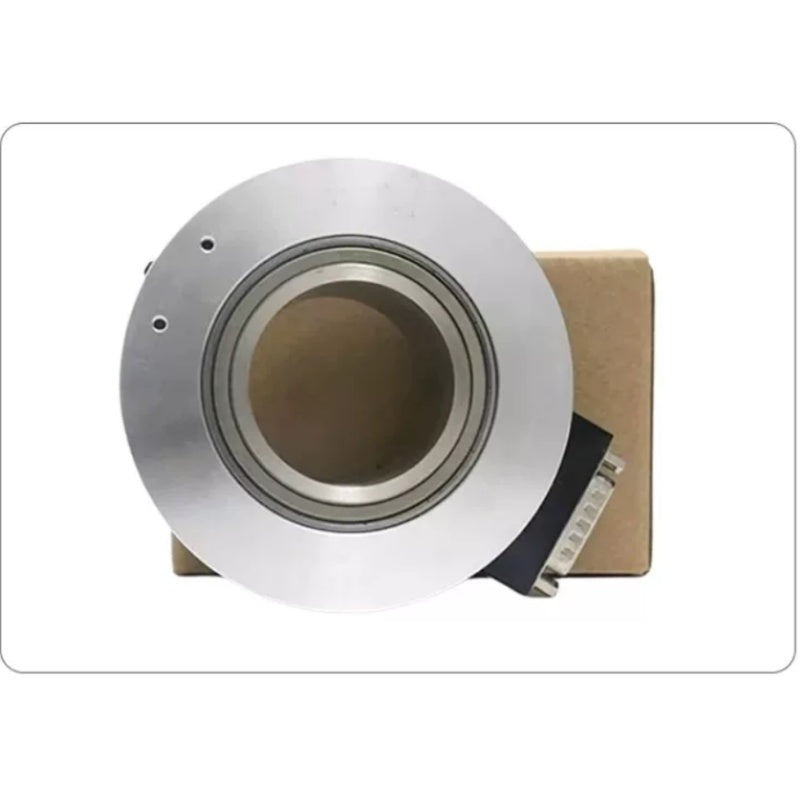

  • Large hollow bore design, easy installation on motor shaft without disassembling the motor
  • High precision photoelectric chip, stable pulse signal, high frequency lossless transmission
  • Multiple output signals compatible with mainstream PLC, servo drive and elevator controllers
  • Metal flame retardant housing, IP54 protection, wide temperature range -20℃~+75℃
  • Strong shock and vibration resistance, durable for harsh factory and construction environments

Specification

Attribute Name Attribute Value
Full Product Name ZKT8030 Hollow Shaft Incremental Optical Rotary Encoder
Compatible Model Repu Type Hollow Bore Encoder
Series Model ZKT8030
Product Type Hollow Shaft Rotary Encoder, Hollow Bore Photoelectric Encoder, Elevator Motor Speed Sensor
Sensing Principle Photoelectric Incremental
Hollow Bore Sizes 18mm,19mm,20mm,25mm,30mm,32mm,40mm,45mm
Pulse Resolution (PPR) 200,300,360,500,600,1000,1024,1200,2000,5000 PPR
Output Modes NPN, PNP, 5L Differential Line Driver, 24T HTL
Core Application Elevator Traction Motor, Construction Machinery, Textile Loom, Power Equipment, Aerospace, Rail Transit
Matching Device Elevator Controller, PLC, Servo Motor, Industrial Motion Controller
Key Features Large Hollow Bore, Easy Shaft Mounting, Multi Signal Output, Anti-interference, High Precision
Protection Grade IP54
Operating Temperature -20℃ ~ +75℃
