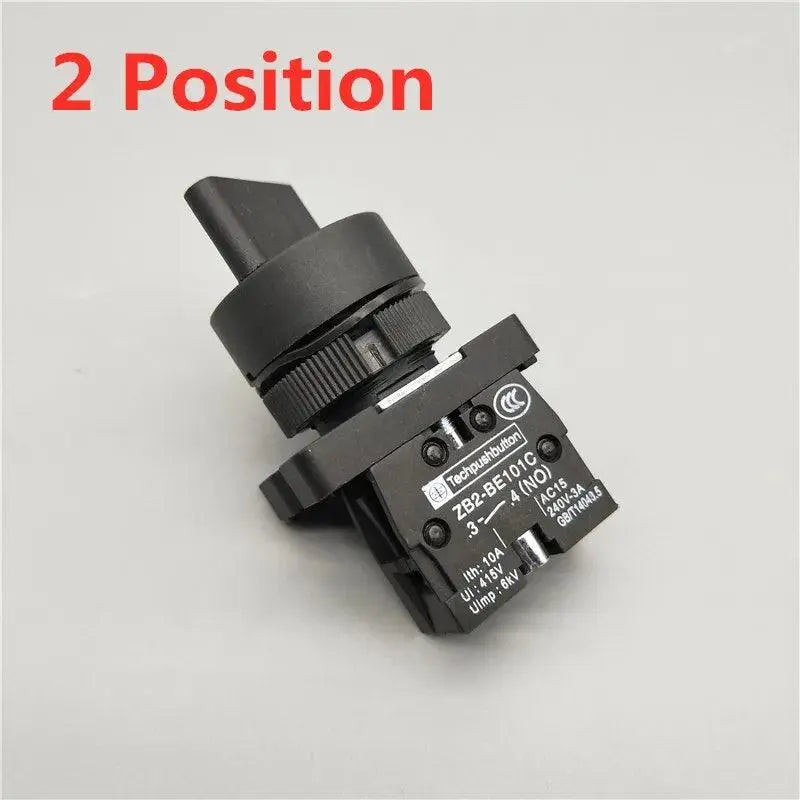

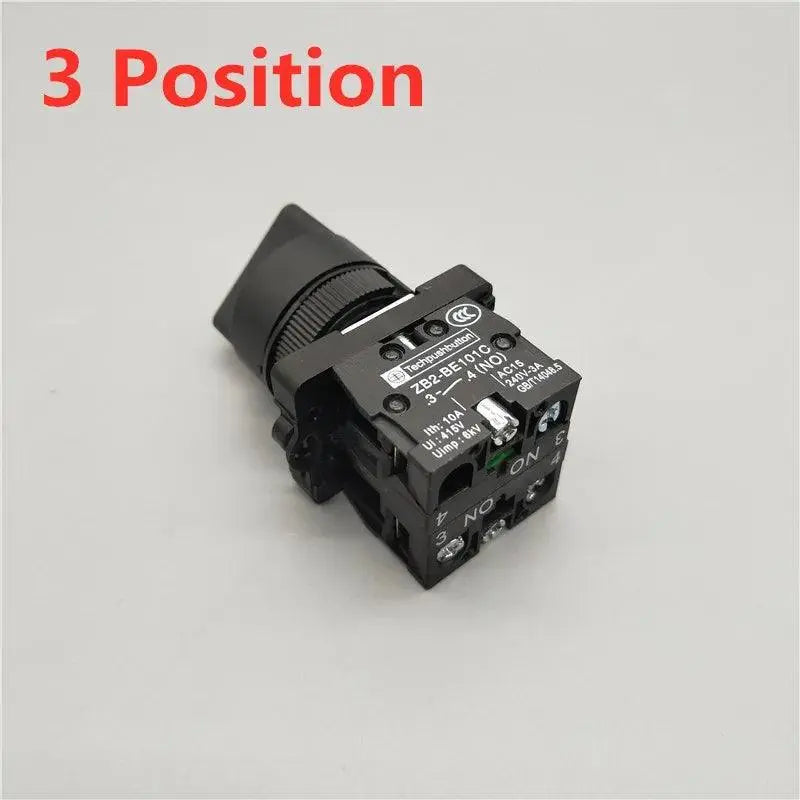

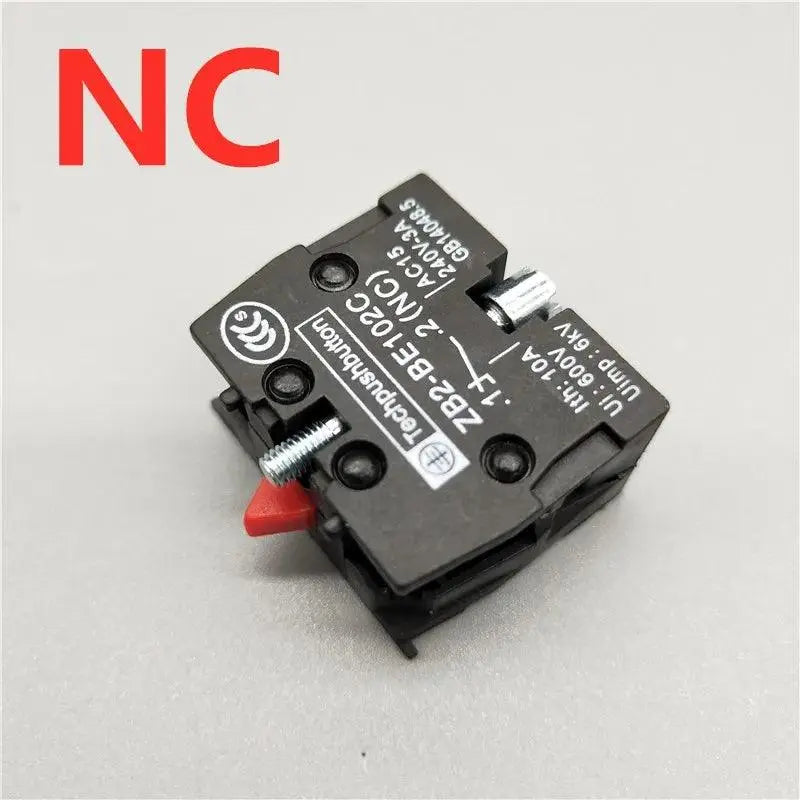

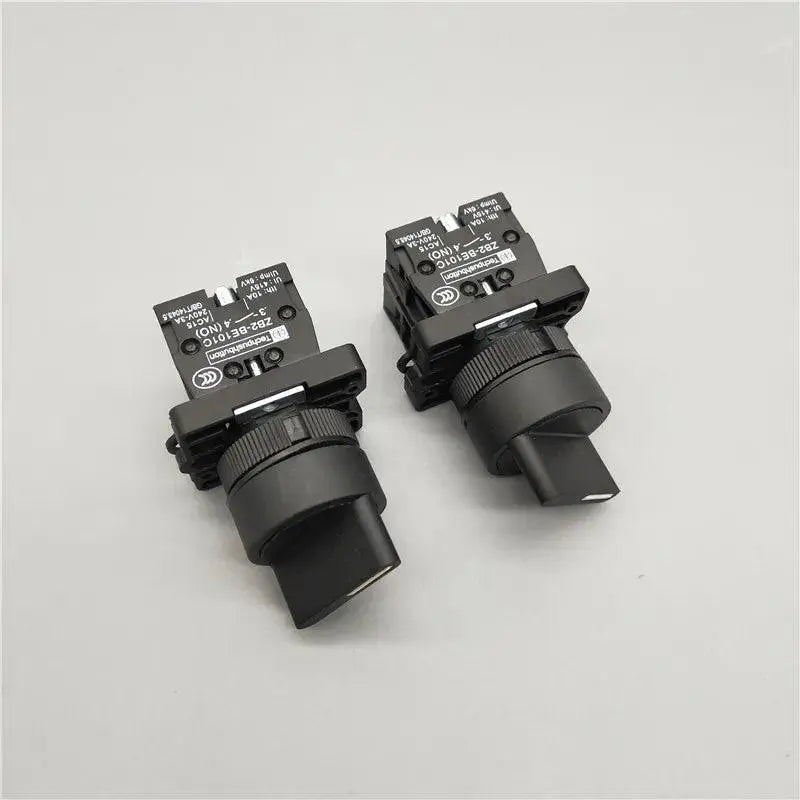

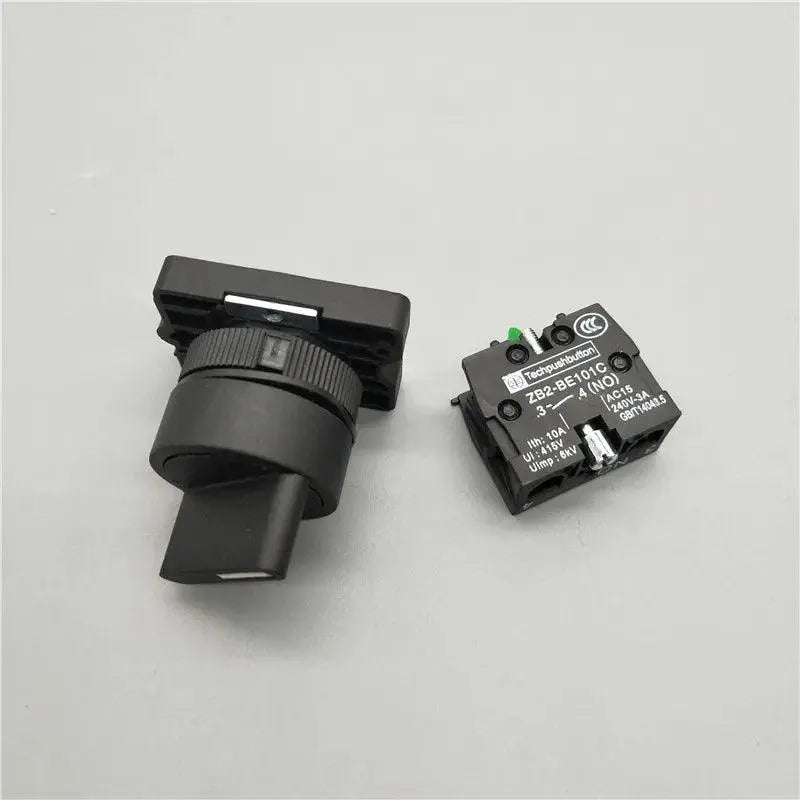

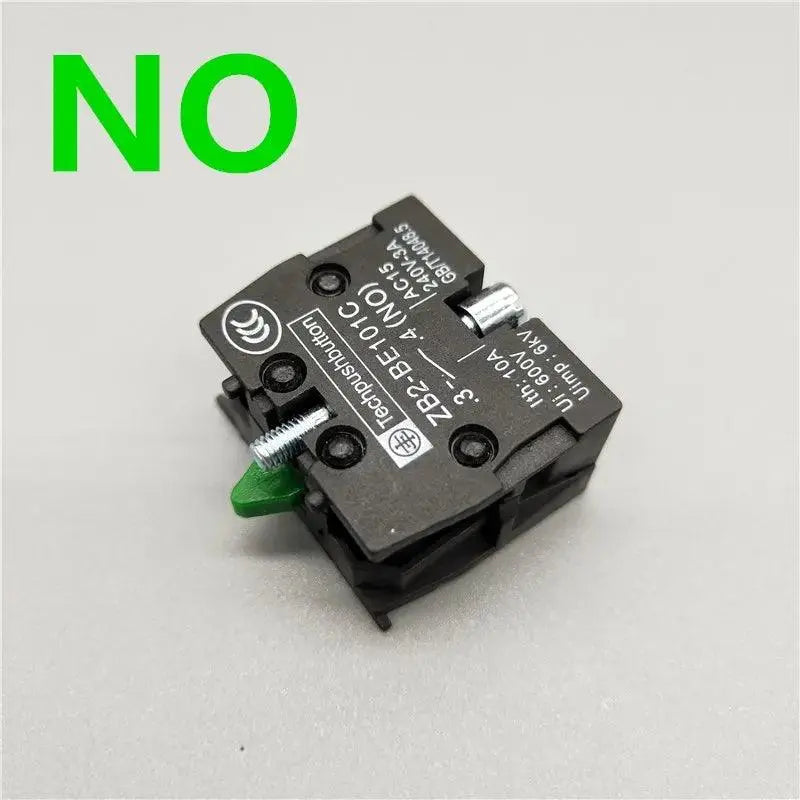

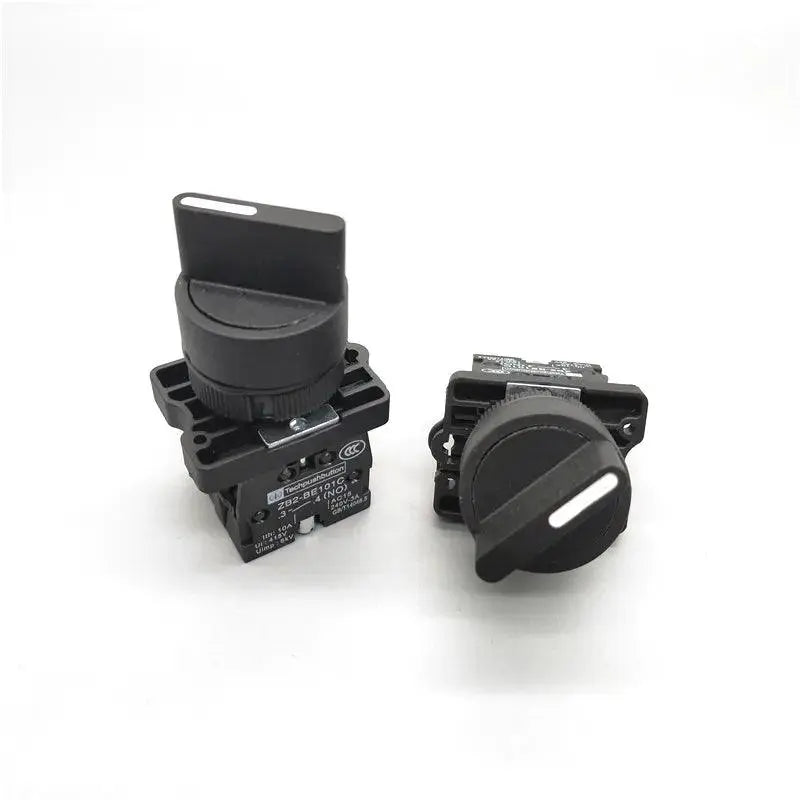

XB2-ED21 XB2-ED25 XB2-ED33 XB2-ED33 2/3 Positions 1N0/1NC&1NO/2NO Latching Self-Locking /Momentary Selector Push Button Switch
Couldn't load pickup availability
Key Features of The XB2-ED21 Push Button Switch.
SPECIFICATIONS
Origin: Mainland China
Current: 10A
Material: Plastic
Item Type: Switches
Switch Type: Touch On/Off Switch
Certification: RoHS
Certification: CE
Certification: CCC
Certification: ROHS
Is Smart Device: YES
Features: On-Off On-Off-Off
Warranty: 2 year
Model Number: XB2-ED2 XB2-ED3
1 Basic spec code: 22mm
2 Protection grade: IP40, IP65
3.Electrical durability: 50 x 104
4.CE,CCC certification
Application:
XB2 series pushbutton switches are used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, DC operational voltage up to 220V and below for controlling in magnetic starter, contactor, relay and other electrical circuits. The buttons with indication conform with the standard of GB14048.5-2001.
Main Technical Parameter
Ambient Temperature: |
-5+40 |
Relative Humidity: |
45%85% |
|||||
Contact Resistance: |
≤50mΩ |
Electrical Life |
5.0x105 |
|||||
Withstanding Voltage |
2500V, 1min |
Protection Degree |
IP40 |
|||||
Rated Insulation Voltage, Ui |
660V |
|||||||
Conventional Thermal Current, Ith |
10A |
|||||||
Rated Operational Voltage, Ue |
380V |
220V |
110V |
48V |
24V |
|||
Rated Operational Current, Ie |
AC-15 |
2.5A |
4.5A |
6A |
8A |
- |
||
DC-13 |
- |
0.3A |
0.6A |
1.3A |
2.5A |
|||
Rated Voltage |
Voltage Input Directly |
Resistance |
Transformer |
|||||||
Lamp-House |
6V |
12V |
24V |
48V |
110V |
220V |
380V |
220V |
220V |
380V |
LED Lamp |
√ |
√ |
√ |
- |
- |
- |
- |
- |
√ |
√ |
Neon Lamp |
- |
- |
- |
- |
√ |
√ |
√ |
√ |
- |
- |
Incandecent Lamp |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
√ |
√ |
The XB2-ED21 Push Button Switch is an innovative solution designed to enhance usability and control in various machines and equipment. The latching self-locking /momentary selector feature offers versatility and adaptability to different operational settings because it allows users to easily switch between two or three positions.
This unique characteristic of the XB2-ED21 Switch, combined with its latching self-locking and momentary functions, makes it a user-friendly tool for various industrial applications. Not only does it function seamlessly, but it also provides a high level of flexibility and control.
The overall design and quality of the XB2-ED21 Switch is robust and built to last, providing long-term reliability in various environments and situations. So whether you're operating heavy machinery or utilizing it in a domestic setting, it's a trustworthy option.
