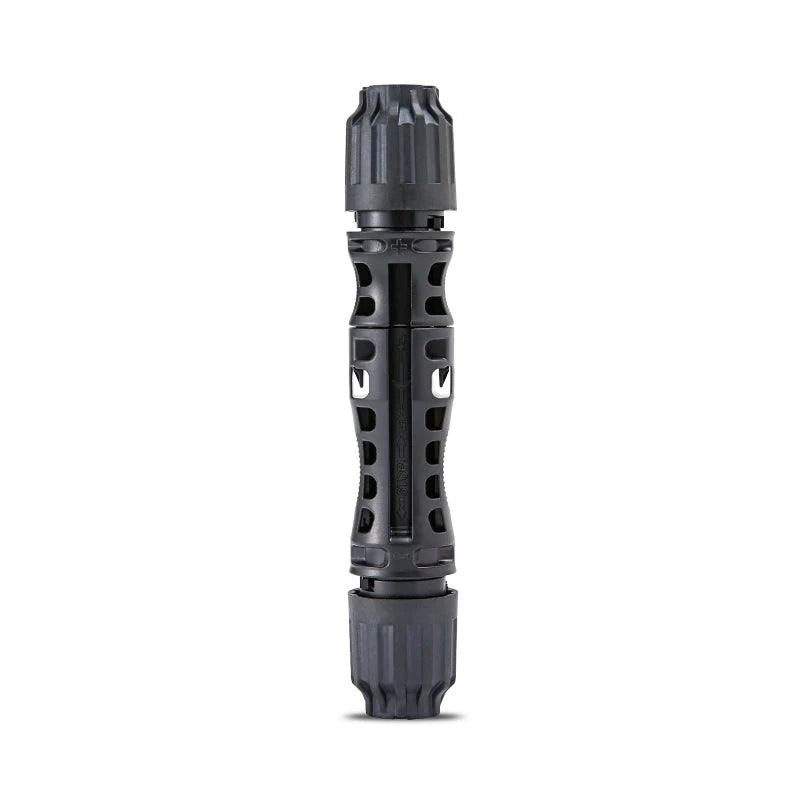

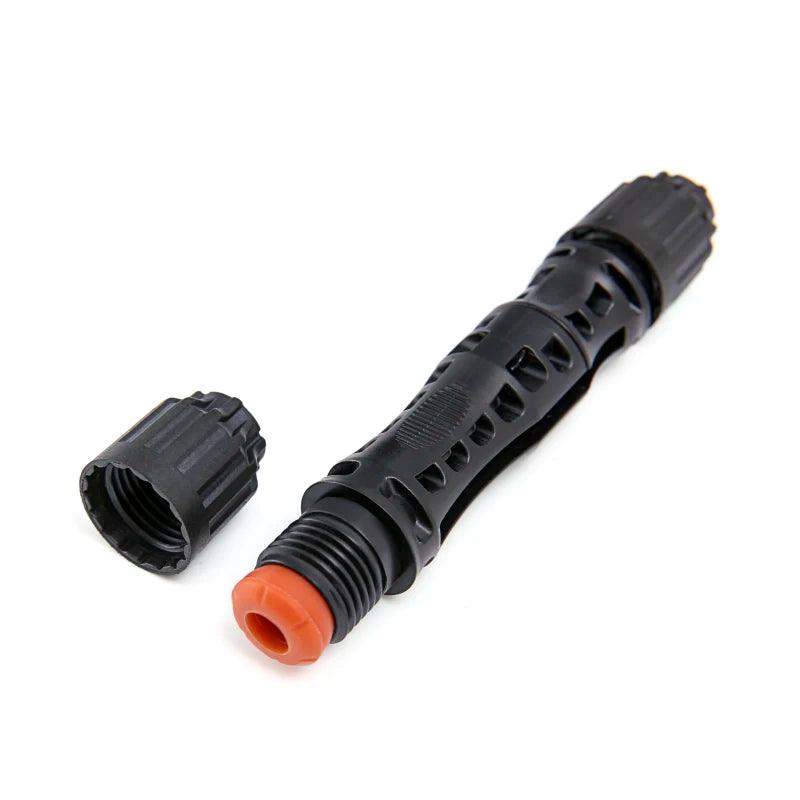

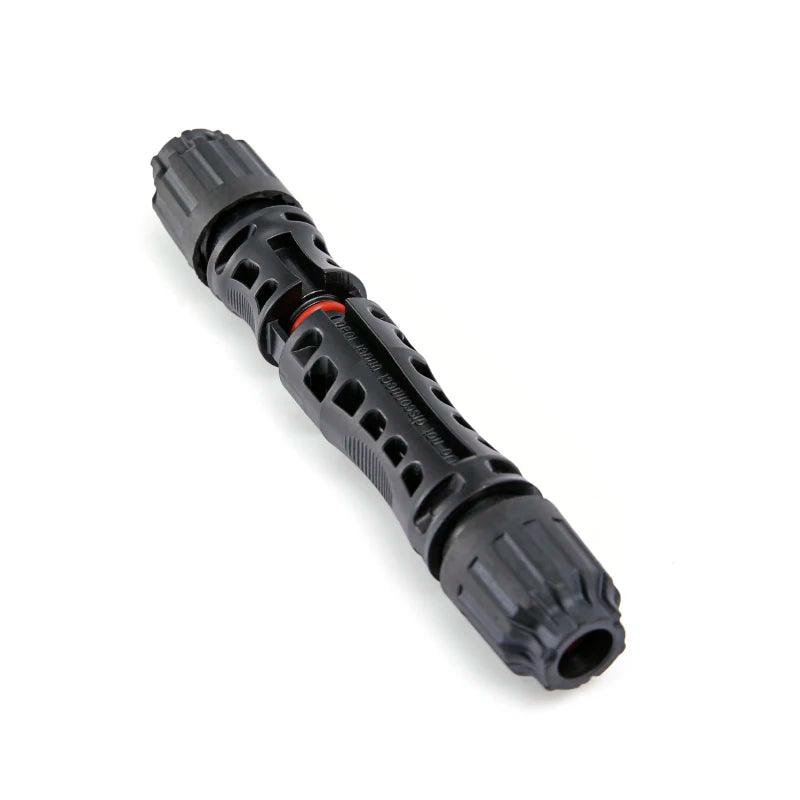

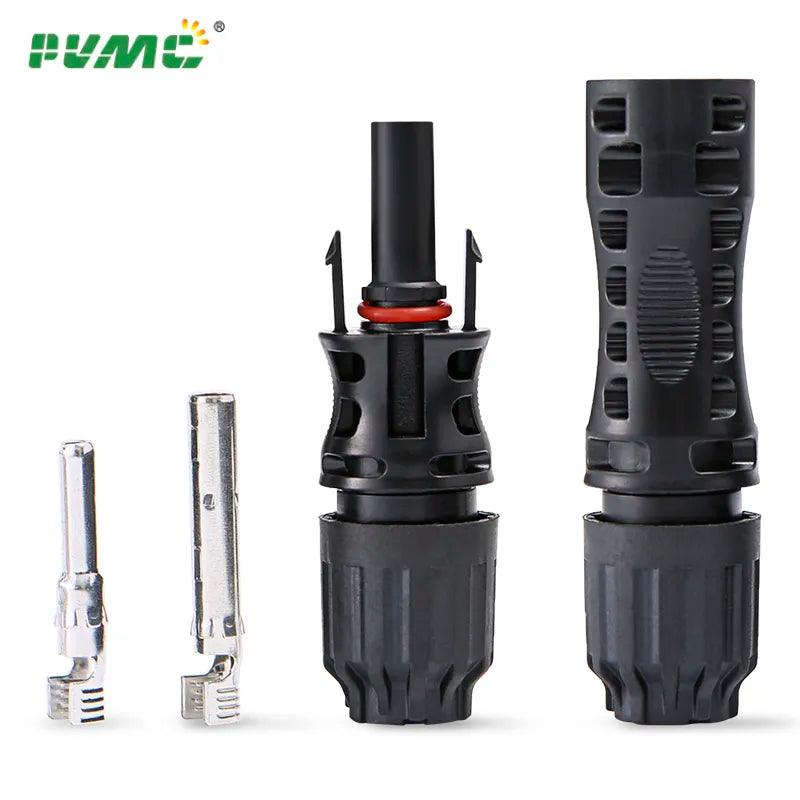

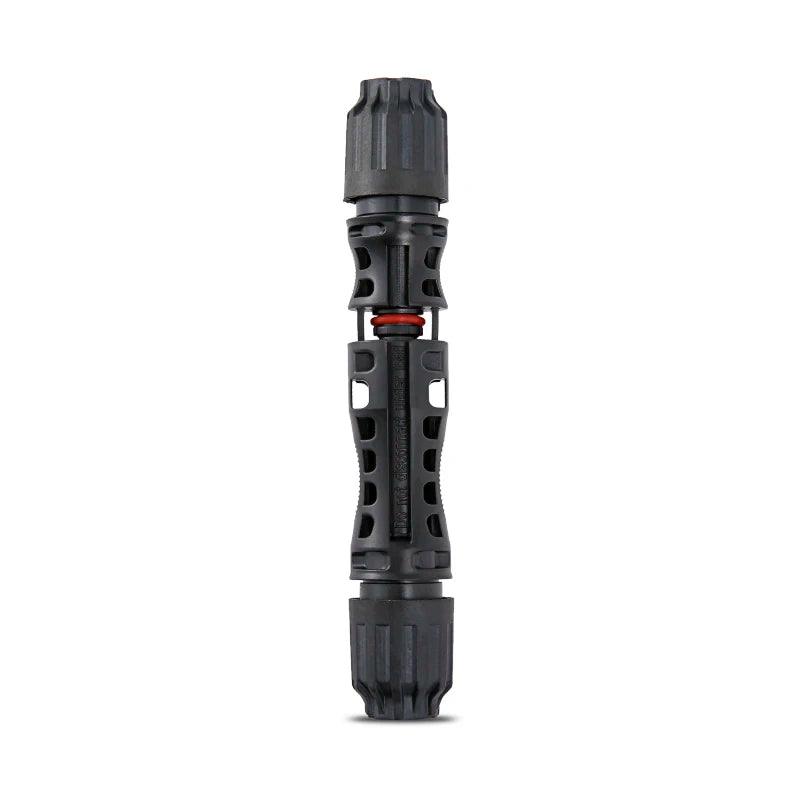

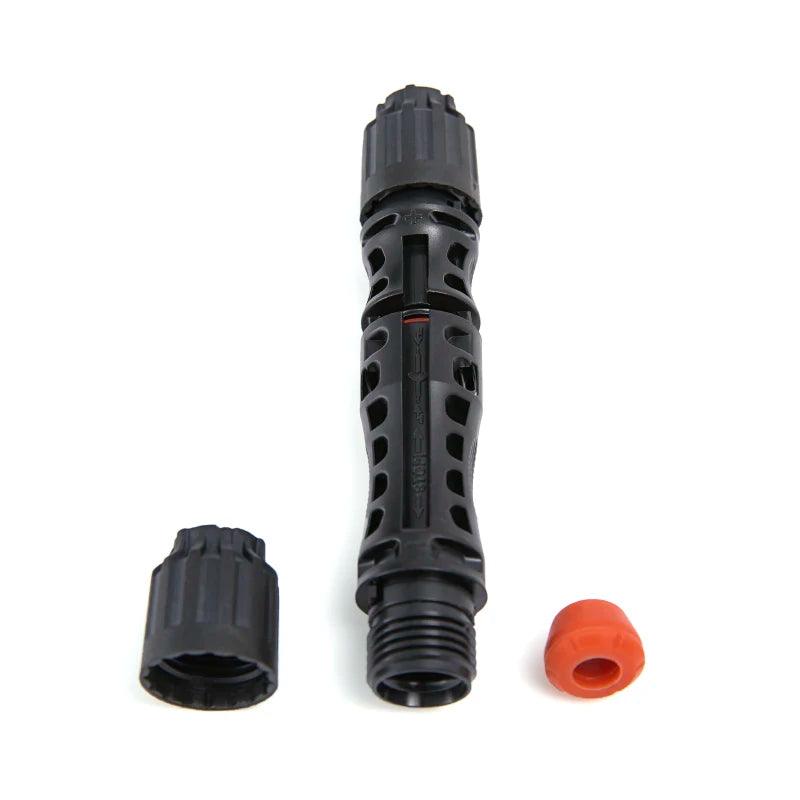

IP67 1500V Solar Conenctors PPO Housing Material solar connector PV Connector for 2.5/4/6mm2 Solar Cable

Regular price $17.00 NZD
Regular price $3.00 NZD Sale price $17.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Wholesale ip67 1500V Solar Conenctors PPO Housing Material solar connector PV Connector for 2.5/4/6mm2 Solar Cable

Brand Name: PVMC

Origin: Mainland China

Model Number: 1500V

Certification: CE

Rated voltage:: 1500V DC

Rated current:: 30A

Connector contact resistance:: ≤0.5mΩ

Degree of waterproof:: IP67

Operating temperature range:: -40℃---85℃

Specifications

* Rated current: 30A (2.5m㎡--6m㎡)

* Rated voltage: 1500V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP67

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃~ +85℃

* Connection: Clamp
