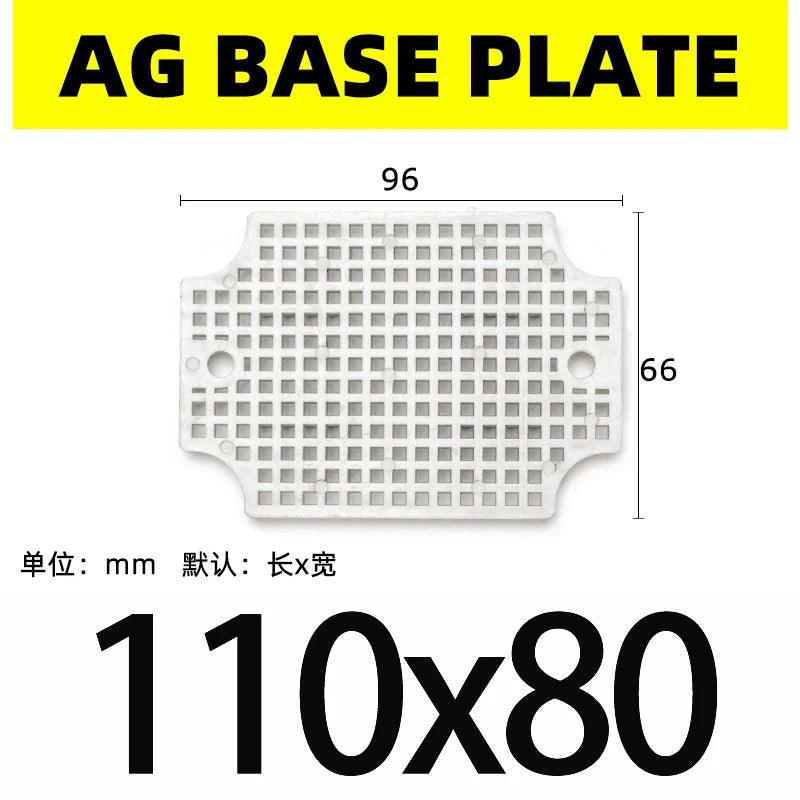

  • waterproof junction box base plate ABS honeycomb mounting base plate 110x80

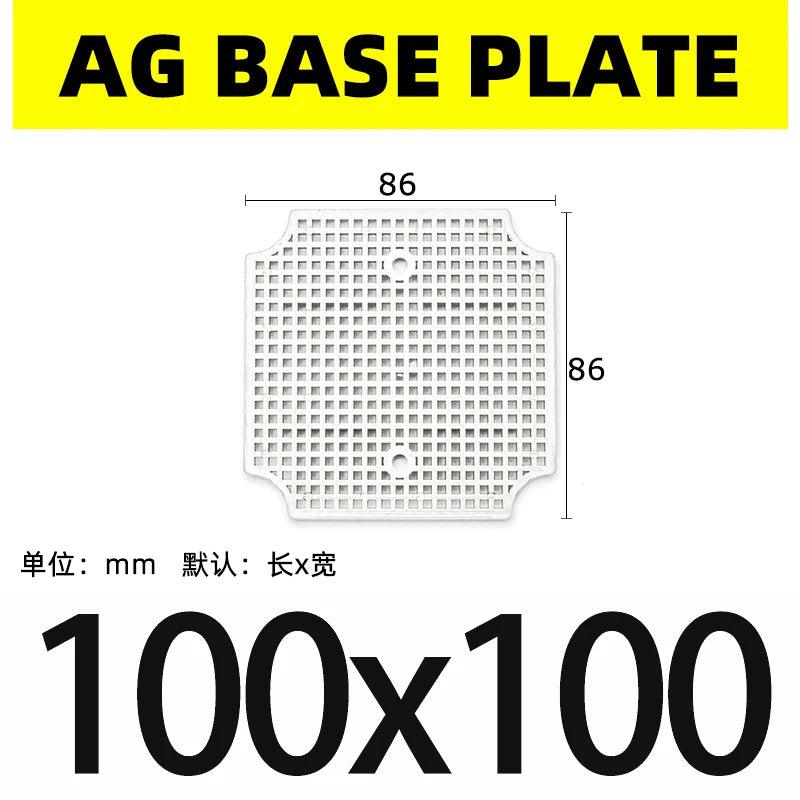

  • waterproof junction box base plate ABS honeycomb mounting base plate 100x100mm

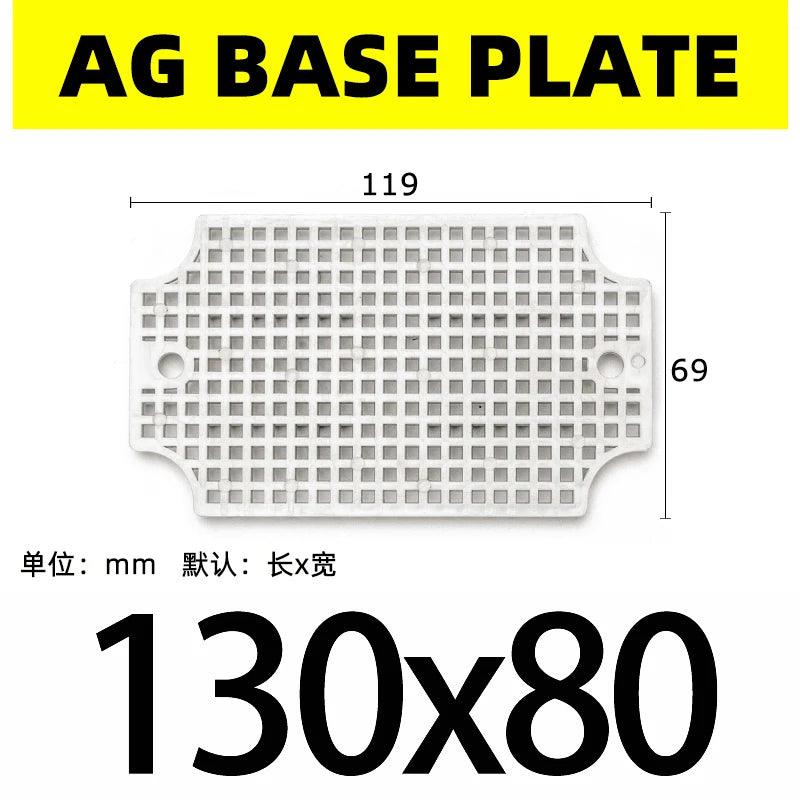

  • waterproof junction box base plate ABS honeycomb mounting base plate 130x80mm

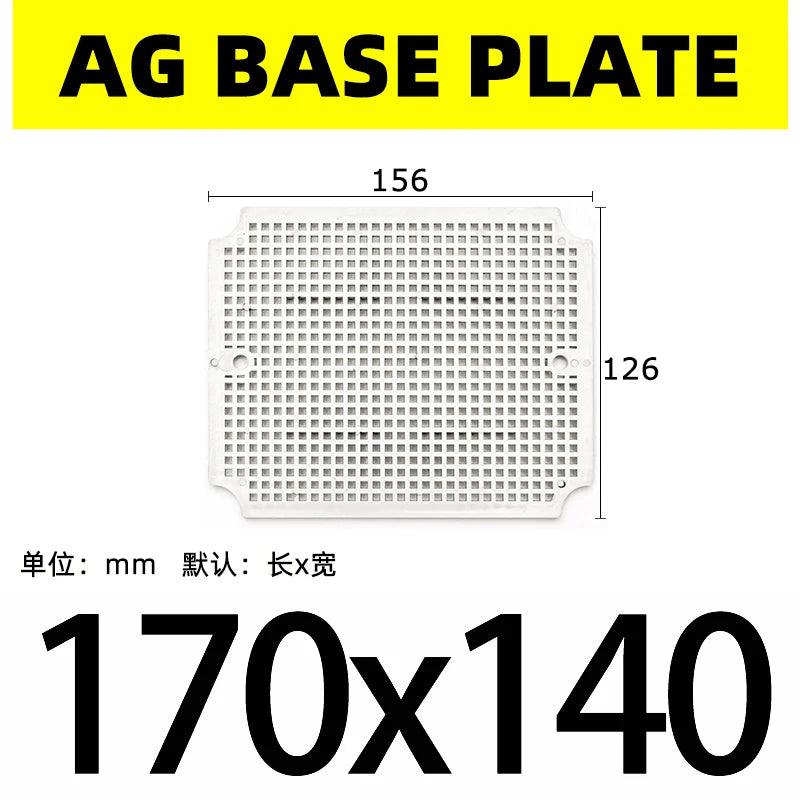

  • waterproof junction box base plate ABS honeycomb mounting base plate 170x140mm

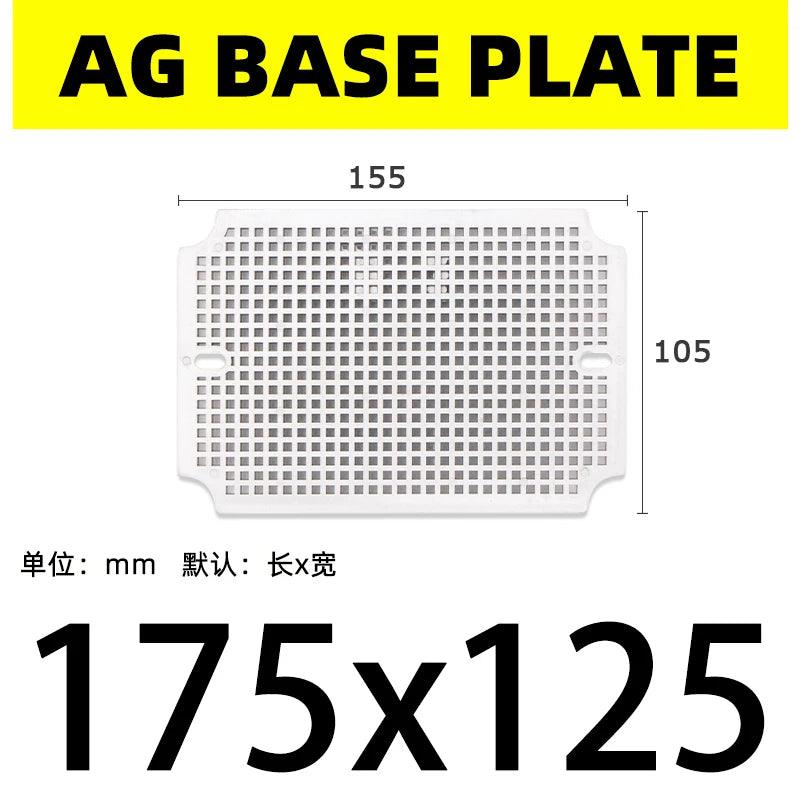

  • waterproof junction box base plate ABS honeycomb mounting base plate 175x125mm

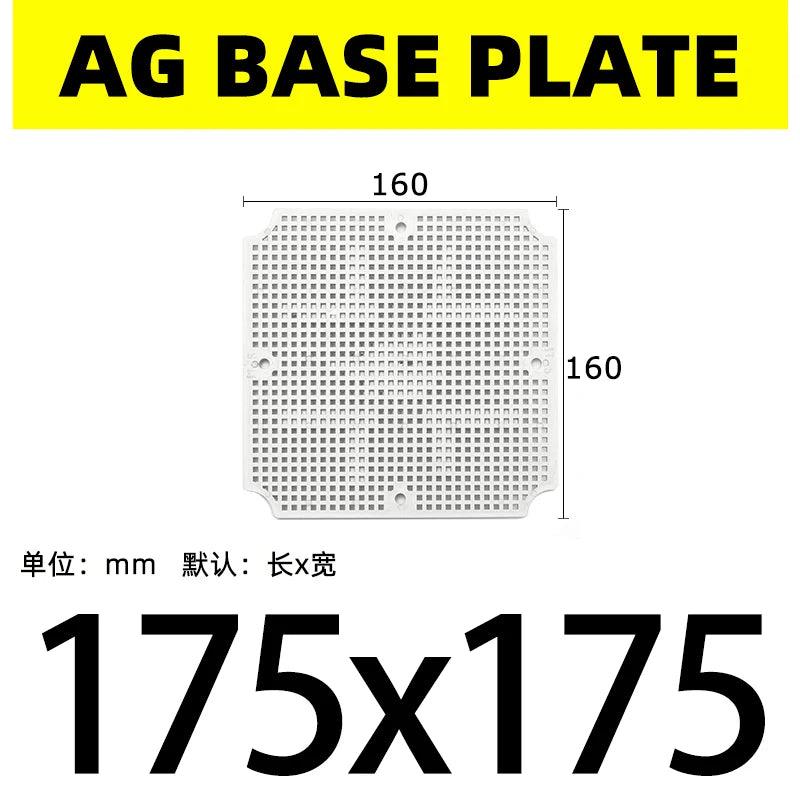

  • waterproof junction box base plate ABS honeycomb mounting base plate 175x175mm
  • waterproof junction box base plate ABS honeycomb mounting base plate 180x80mm

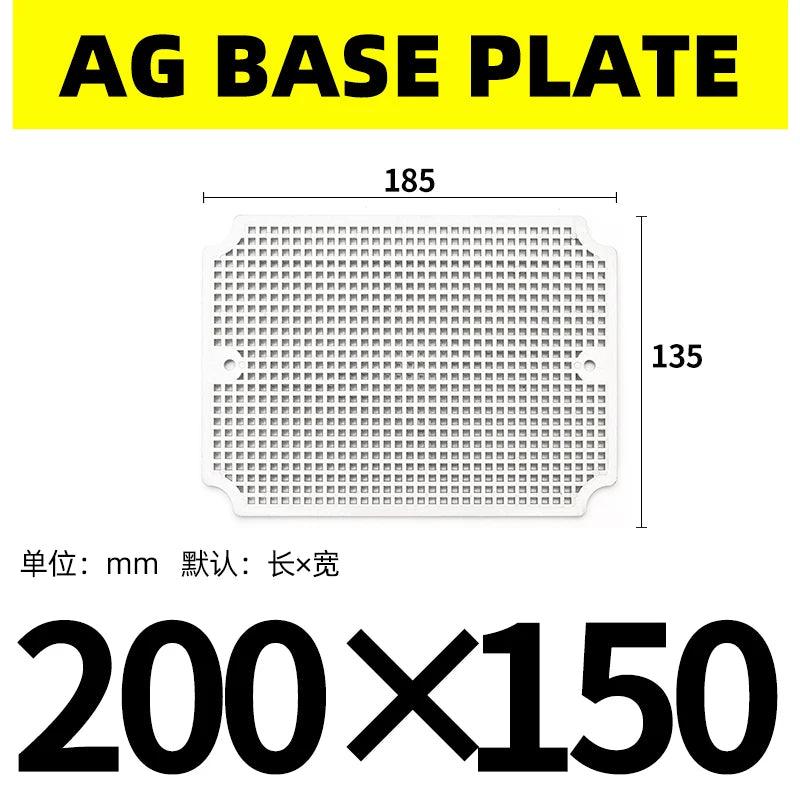

  • waterproof junction box base plate ABS honeycomb mounting base plate 200x150mm
  • waterproof junction box base plate ABS honeycomb mounting base plate 200x200mm
  • waterproof junction box base plate ABS honeycomb mounting base plate 250x80mm
  • waterproof junction box base plate ABS honeycomb mounting base plate 250x150mm

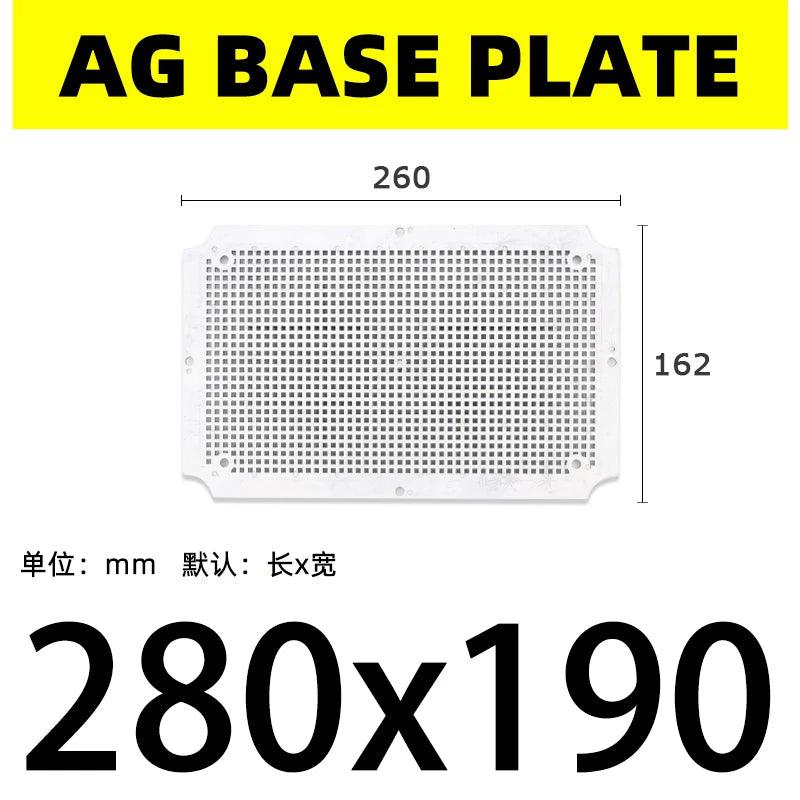

  • waterproof junction box base plate ABS honeycomb mounting base plate 280x190mm
1 7

electrical center b2c

ABS Grid Mounting Back Plate For Waterproof Junction Box

$37.00 NZD
$33.00 NZD $37.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color

waterproof box grid mounting plate,abs back plate for enclosure

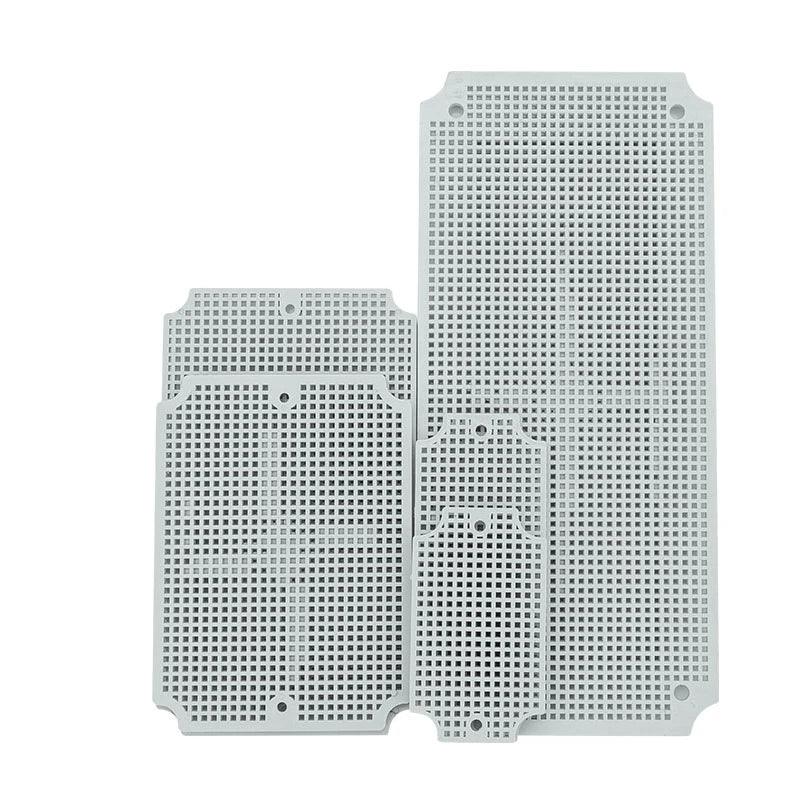

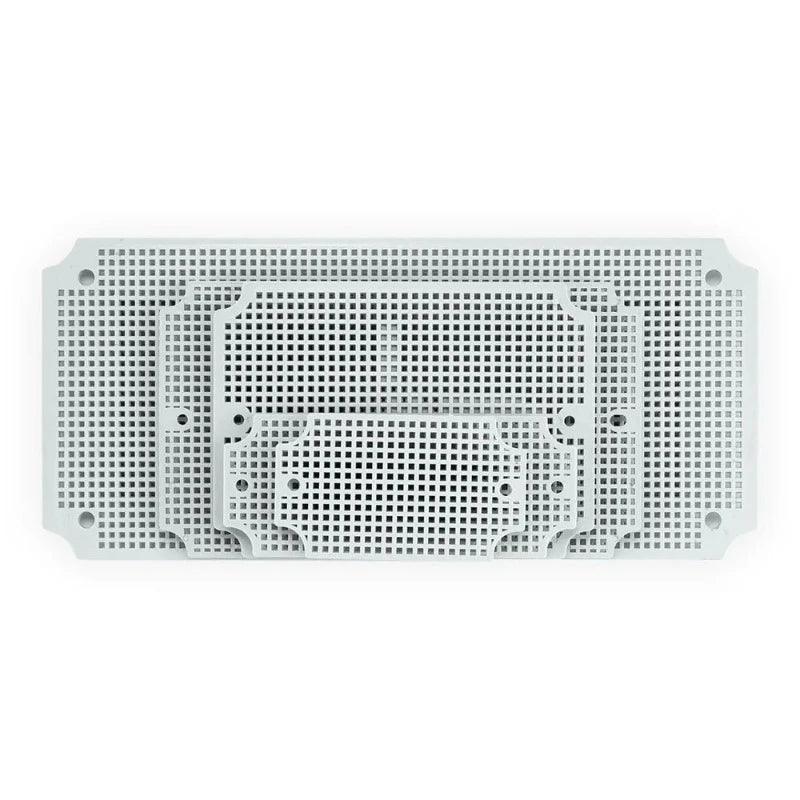

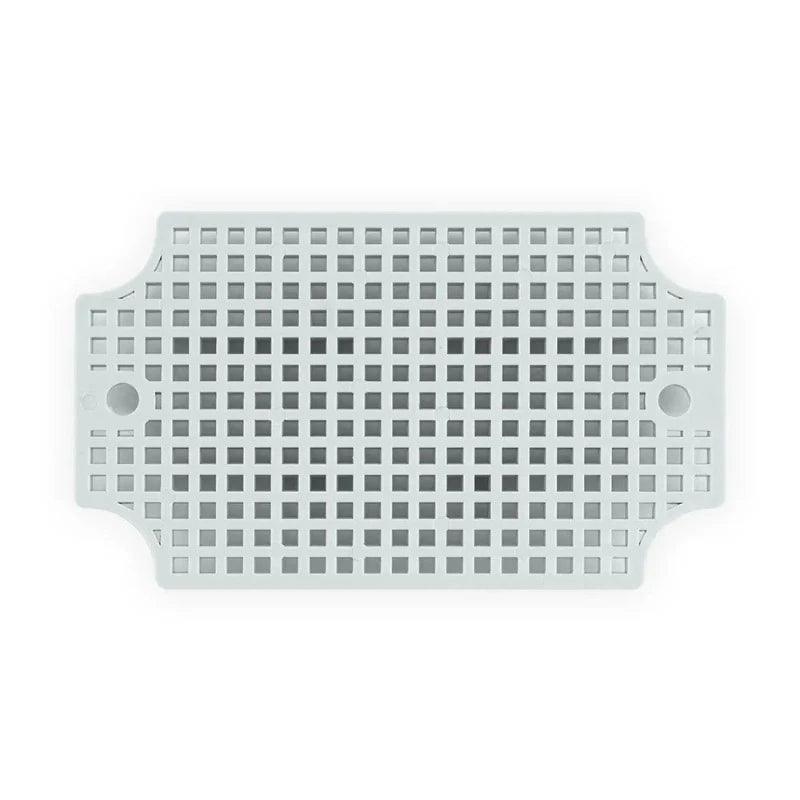

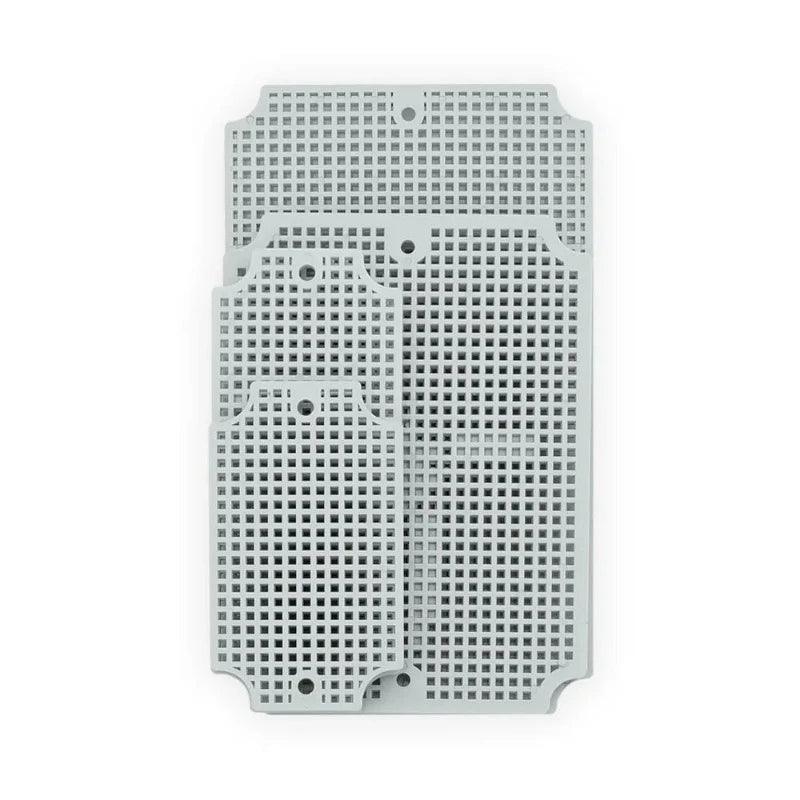

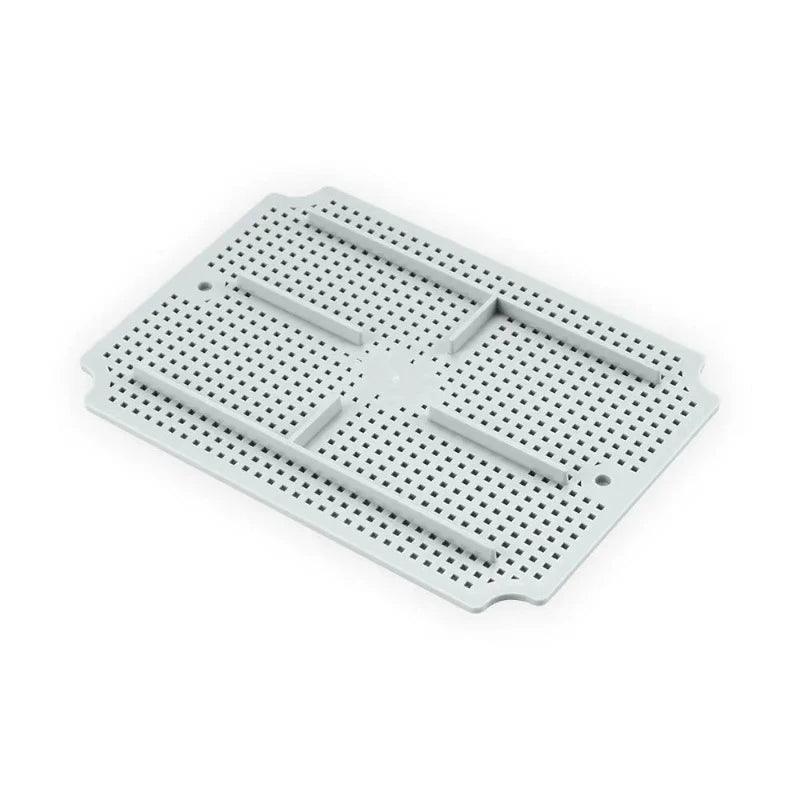

ABS grid mounting back plate is internal accessory for plastic waterproof junction box / electrical enclosure. Perforated mesh grid structure allows flexible screw position for installing PCB circuit board, power supply module, Din‑rail, relays and other electrical components inside enclosure housing.
✅ High‑quality ABS plastic material, insulation performance, anti‑aging, durable for indoor & outdoor enclosure usage.

✅ Grid perforated design: freely choose screw hole position, flexible installation for different‑size PCB and modules.

✅ Multiple matching dimensions (mm):

125×125，110×80，100×100，130×80，170×140，175×125，175×175，180×80，200×150，200×200，250×80，250×150，280×190

✅ Simple installation: place inside waterproof box, fasten components with self‑tapping screws.

✅ Perfect match for corresponding size IP65 / IP67 plastic waterproof junction box.
Typical Application：DIY electrical project enclosure, instrument housing, power supply shell, monitoring control box, automation equipment junction box internal mounting.
⚠️ Order Reminder: Please select the backplate dimension same as your waterproof junction box inner size. Only mounting plate, junction box & screws are NOT included.

Specification

Attribute Content
Product Name ABS Grid Mounting Back Plate For Waterproof Junction Box
Material ABS Plastic (Insulation)
Product Function Internal mounting base for PCB, power supply, Din‑rail and electrical components inside enclosure

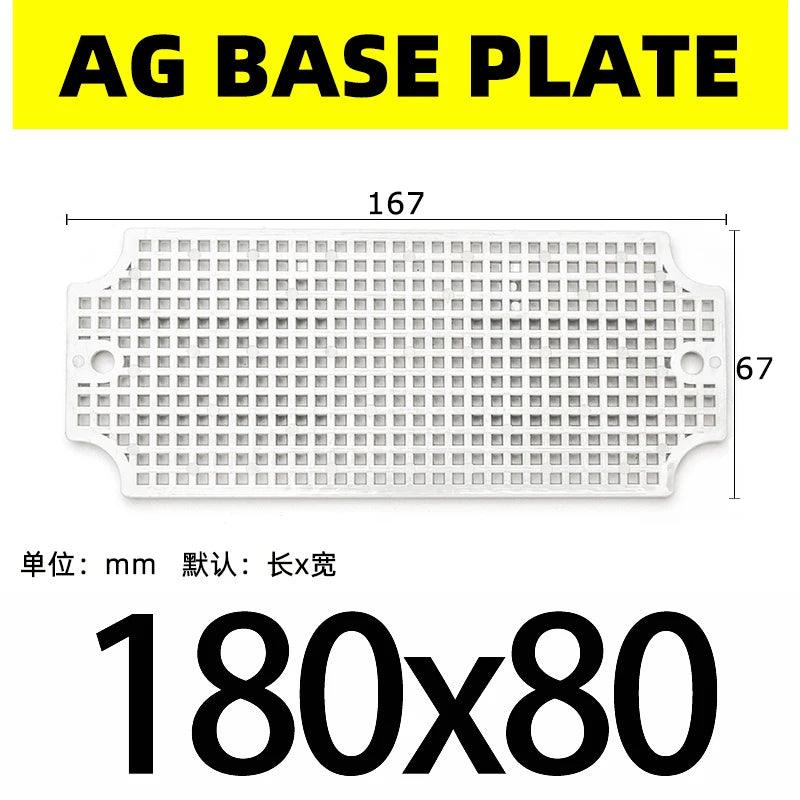

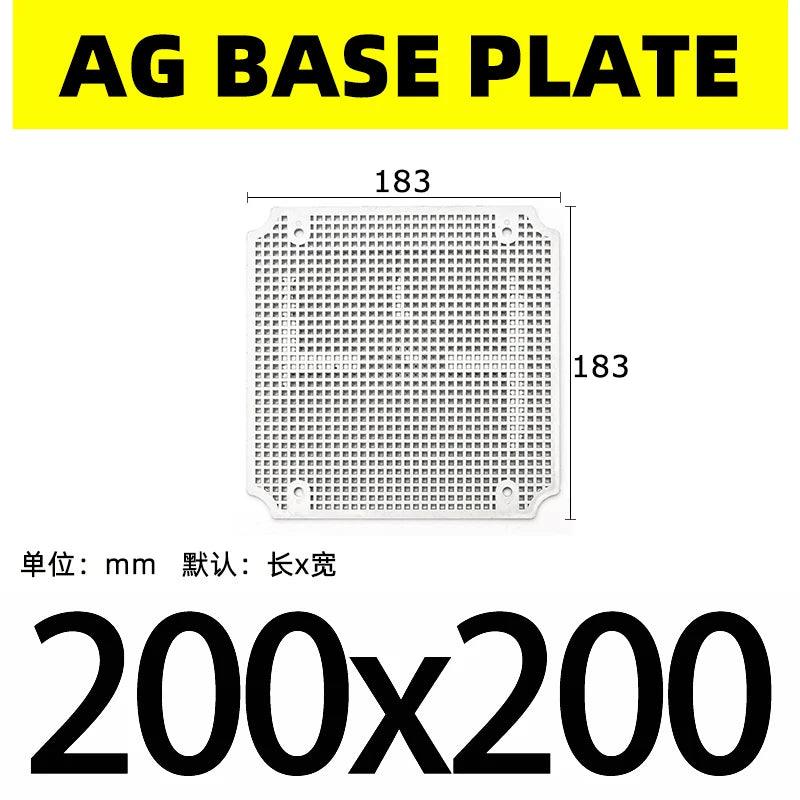

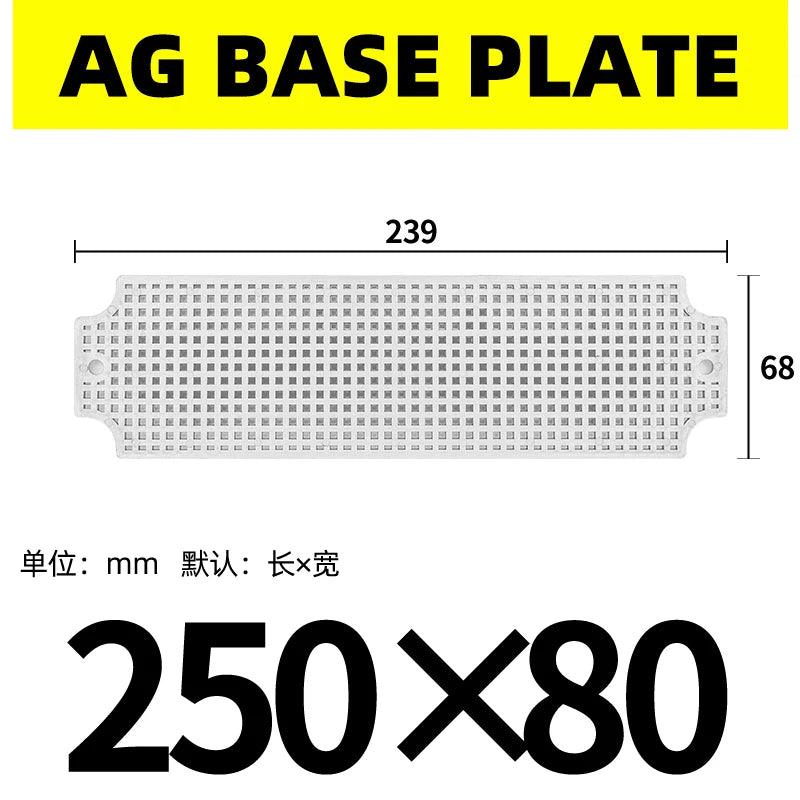

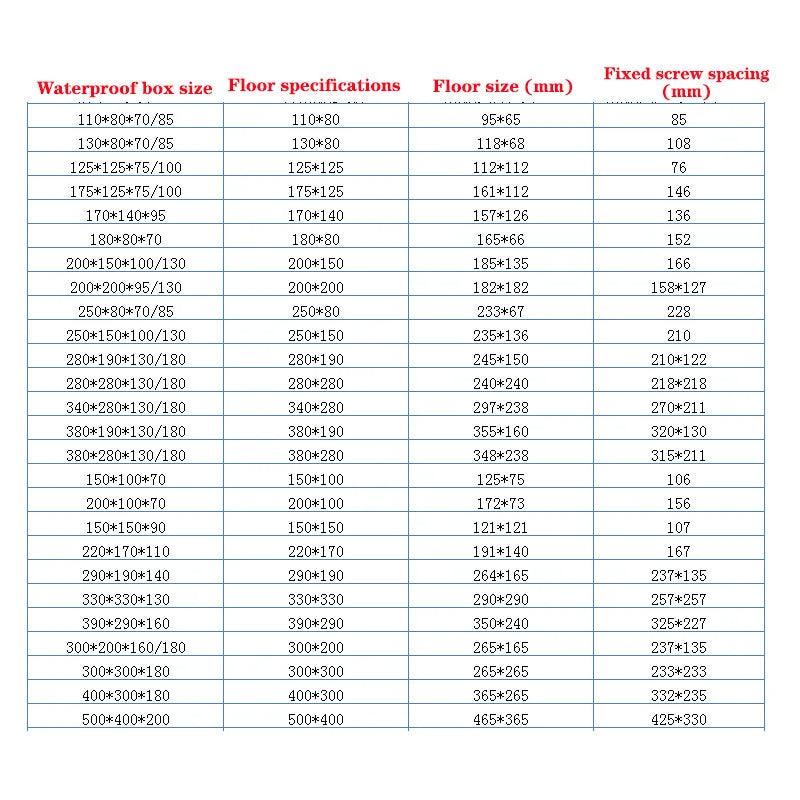

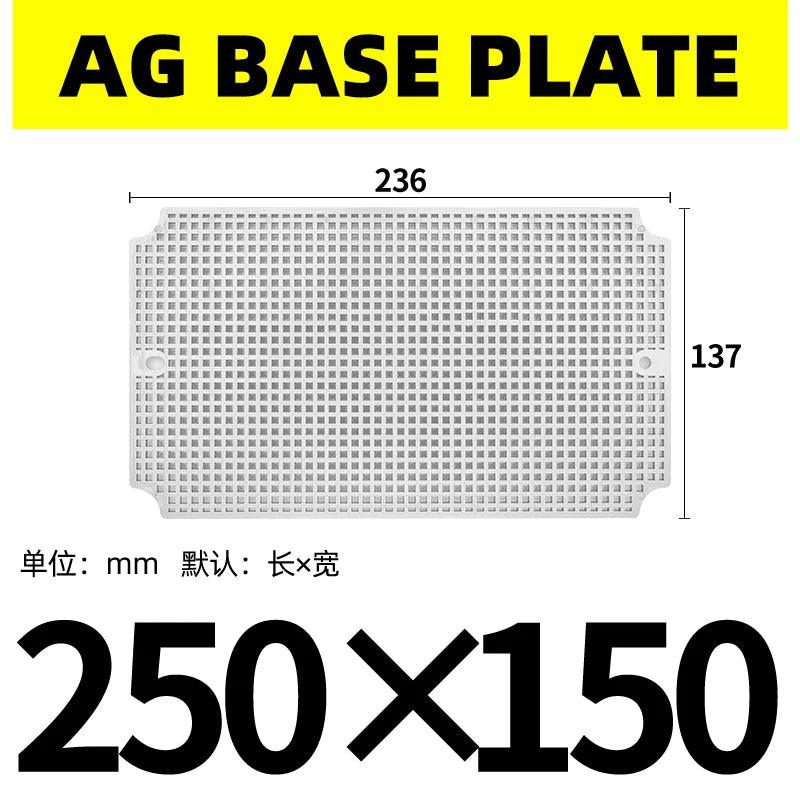

Available Dimension(mm) 125×125,110×80,100×100,130×80,170×140,175×125,175×175,180×80,200×150,200×200,250×80,250×150,280×190
Structure Perforated grid mesh design, flexible screw mounting positions
Fit For IP65 / IP67 plastic waterproof junction box / electrical enclosure
Note Only mounting backplate, junction box and mounting screws not included
Application Electrical project case, power supply housing, monitoring control enclosure, automation junction box
