electrical center b2c

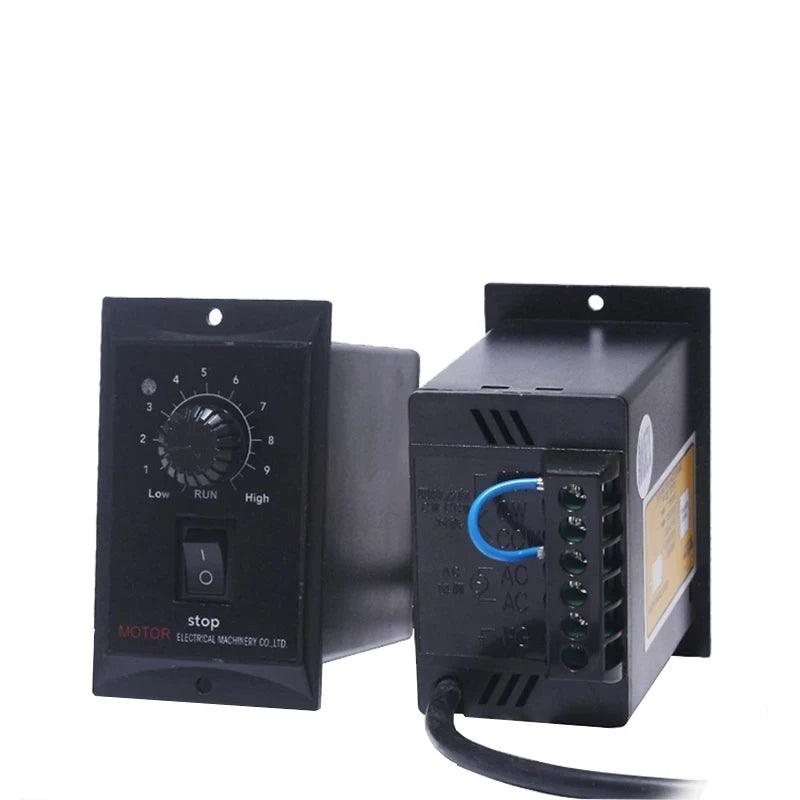

US-52 AC 220V Motor Speed Controller 6W 15W 25W 40W 60W 90W 120W 180W 250W 400W Adjustable Speed Control Mechanical

Regular price $56.00 NZD
Regular price $59.00 NZD Sale price $56.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color
Power

SPECIFICATIONS

US-52 AC 220V Motor Speed Controller 6W 15W 25W 40W 60W 90W 120W 180W 250W 400W Adjustable Speed Control Mechanical

Origin: Mainland China

Output Type: single

Output Power: 101 - 200W

is_customized: Yes

Scope of application

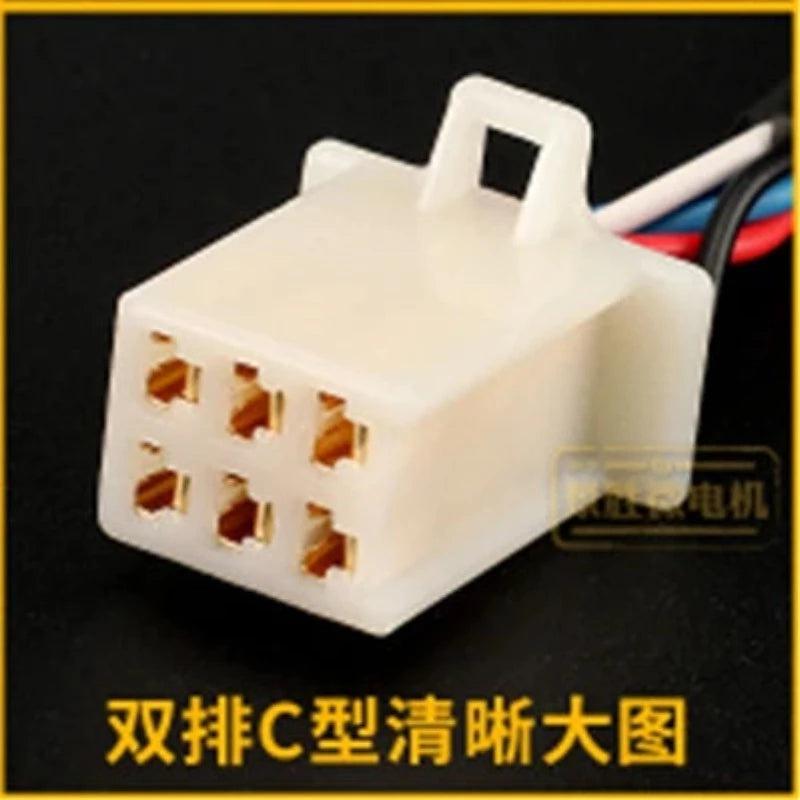

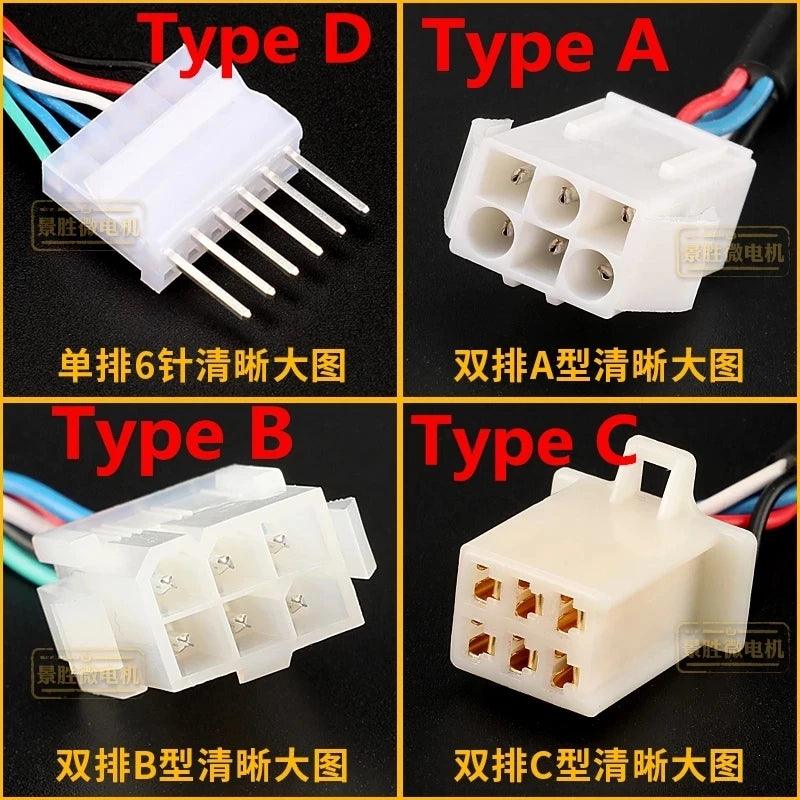

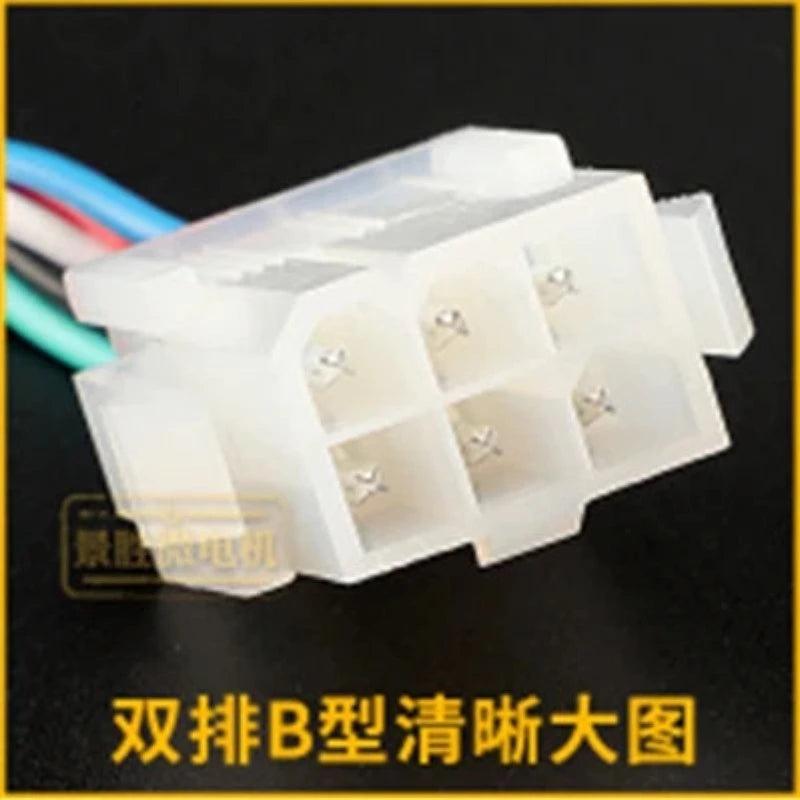

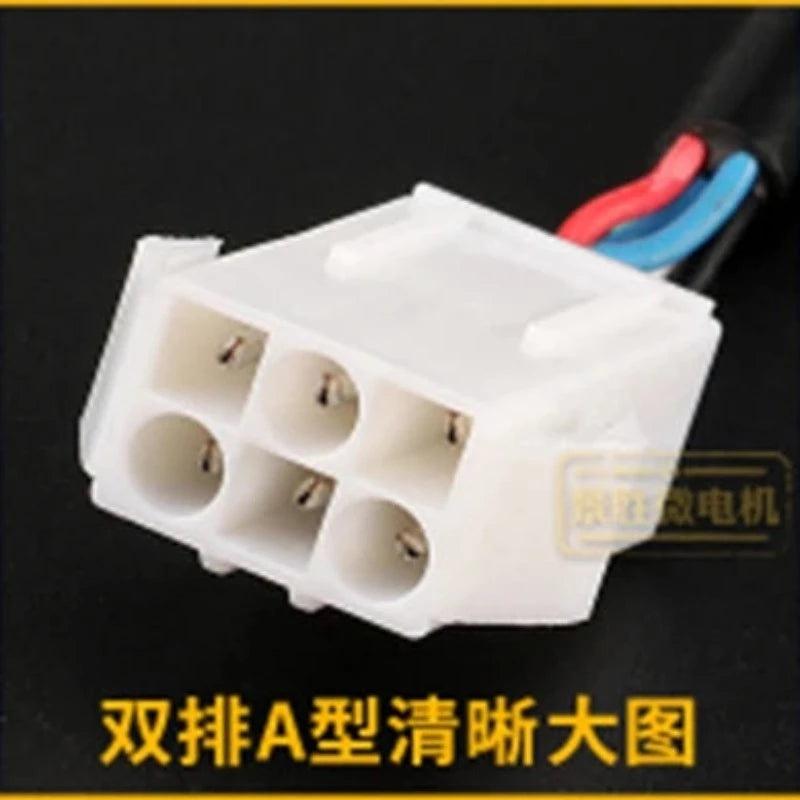

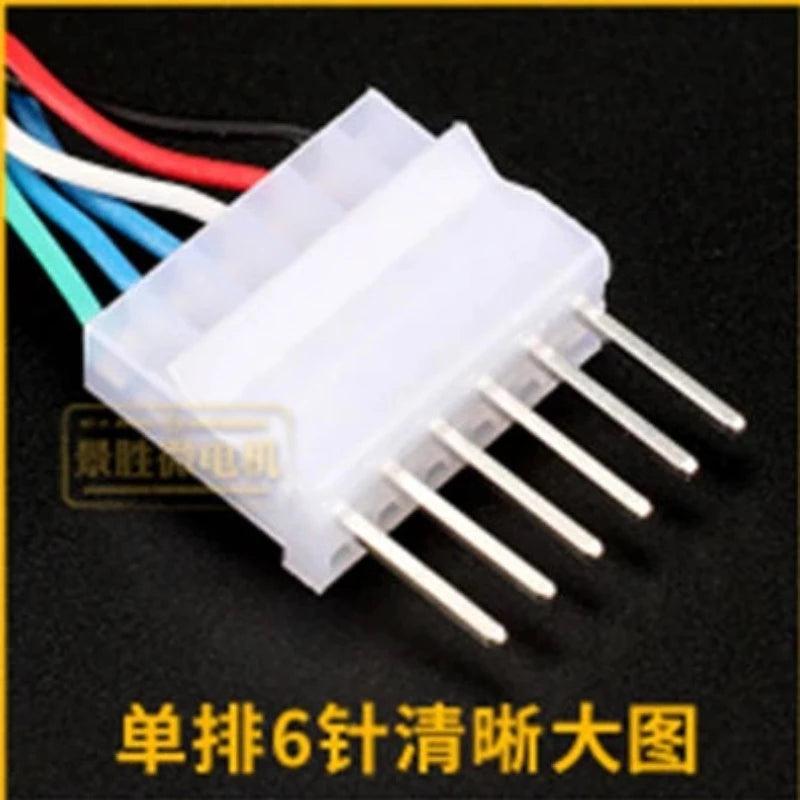

Widely used for speed regulation of 6W 15W 25W 40W 60W 90W 120W 180W 200W 250W, AC220V single-phase AC continuously variable speed motors (not suitable for non speed regulation ordinary motors). In addition, there are four types of wiring ports for the speed controller. When customers take photos, they need to inform us of the power of the motor they are equipped with, so that we can accurately select and ship it!!!
Main technical data:
1. Working power supply: AC220V 50/60HZ, voltage fluctuation range+/-10% Ue;
2. Rated power: 6W 15W 25W 40W 60W 90W 120W 180W 200W 250W
3. Operating environment: -10~+50 ℃;
4. Relative humidity less than 90%;
5. Speed range: 90-1400r/min 50HZ, 90-1700r/min 60HZ
Three Instructions for Use:
1. Before use, set the external speed knob to "0" to avoid generating instantaneous high current and causing damage to the controller.
2. This product series adopts generator feedback voltage control, with control lines divided into two lines: "blue" and "yellow".
3. If the torque or speed of the speed controller connected to the motor does not meet the requirements, adjust the US-52 type side micro potentiometer.

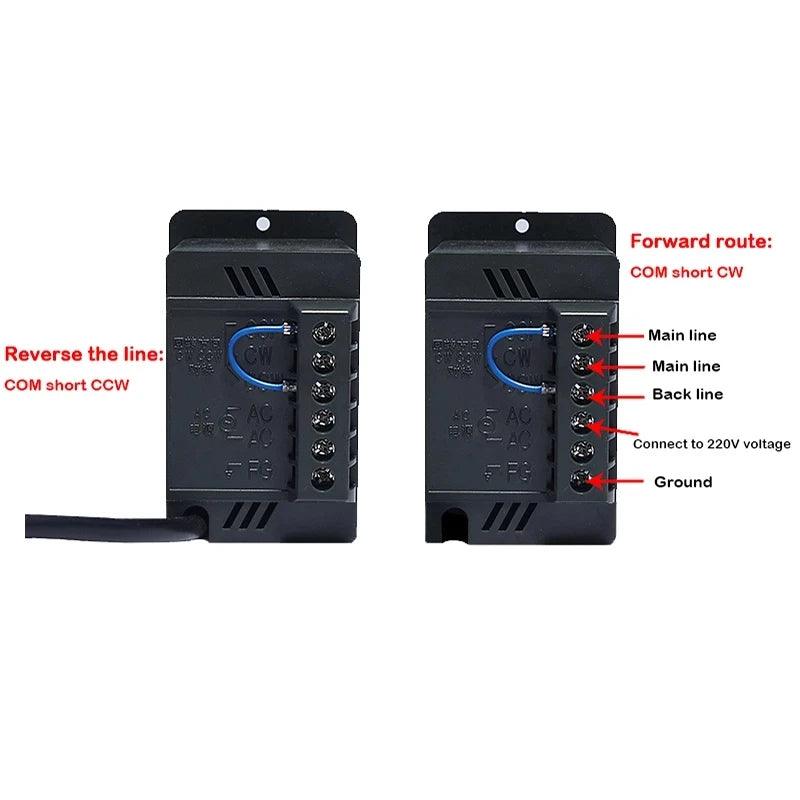

4. To change the direction of motor operation: 1) Select COM and CW short circuiting, the motor will rotate forward. 2) If COM and CCW are short circuited, the motor will reverse.
5. The action switch only controls the motor to move or stop, and is not used for power interruption. If not used for a long time, please turn off the power.

-0

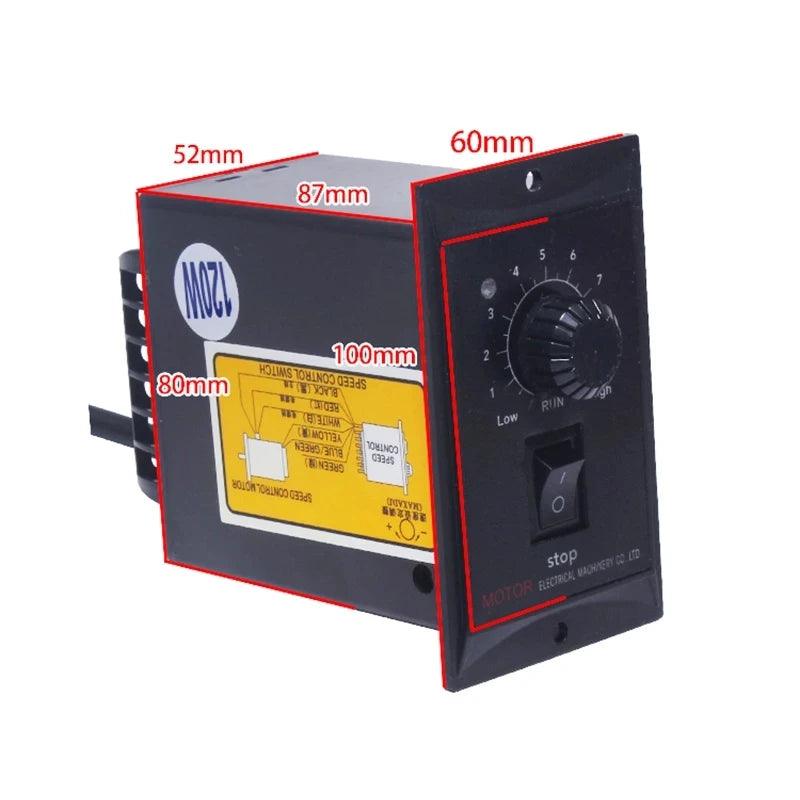

开孔尺寸:长80MM*宽52MM
