Two-Channel Single/Dual Control Solid State Relay

Name: Two-Channel Single/Dual Control Solid State Relay
Brand: electrical center b2c
Price: 38.0 NZD
Availability: InStock

$38.00 NZD

Sale Sold out

Shipping calculated at checkout.

SSR Channel Control Type SSR Dual Channel Dual Control SSR Dual Channel Single Control

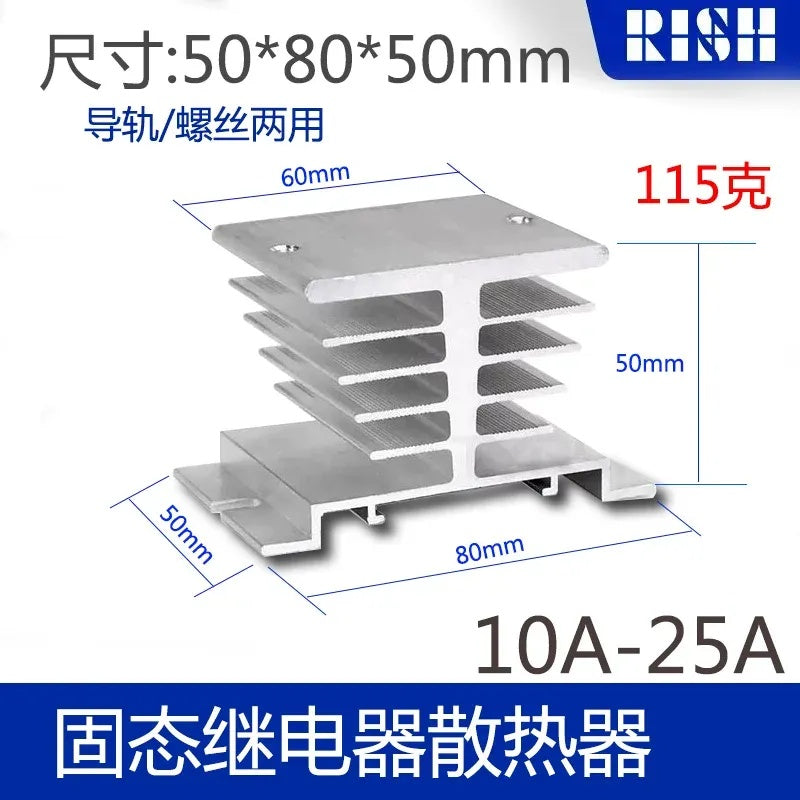

Output Current DC to AC 10A DC to AC 25A DC to AC 40A DC to AC 60A DC to AC 80A Heat Sink 50*80*50 fit for SSR 10-25A

Product variants

Quantity

Dual-Channel Dual/Single Control SSR Solid State Relay 10A-80A DC to AC 24-480VAC

核心描述

This Dual-Channel Single/Dual Control Solid State Relay (SSR) is a DC-to-AC industrial-grade contactor, available in 10A/25A/40A/60A/80A ratings. It features dual-channel design for dual independent or synchronized control, ideal for multi-load applications in automation and power control systems.

关键特性

✅ Dual-Channel Design: Available in Dual Control (independent channel control) or Single Control (synchronized channel control)
✅ DC-to-AC Operation: DC control input (5-20mA) for AC load switching (24-480VAC)
✅ High Reliability: Imported components, low on-state voltage drop (≤1.6V) and leakage current (≤5mA)
✅ No Mechanical Contacts: Silent, spark-free operation with high shock/vibration resistance
✅ Wide Operating Temp: -30°C to +70°C, suitable for harsh industrial environments
✅ Compact Integrated Design: All-in-one module with built-in heat dissipation structure
✅ Versatile Applications: For dual independent loads or synchronized control in heating, lighting, and motor systems

规格说明

Product Name: Dual-Channel Solid State Relay (Single/Dual Control)
Model: SSR-SK Series (10/25/40/60/80A)
Control Type: DC to AC
Rated Current: 10A / 25A / 40A / 60A / 80A (per channel)
Control Current: 5-20mA DC
Control Voltage: ≤1.6V DC
Load Voltage: 24-480VAC
On-State Voltage Drop: ≤1.6V
Off-State Leakage Current: ≤5mA
Operating Temperature: -30°C ~ +70°C
Control Mode: Dual-Channel Dual Control / Dual-Channel Single Control
Application: Industrial Automation, Dual Load Control, Temperature Control, Power Distribution

DATA SHEET

Attribute	Value
Product Name	Dual-Channel Solid State Relay

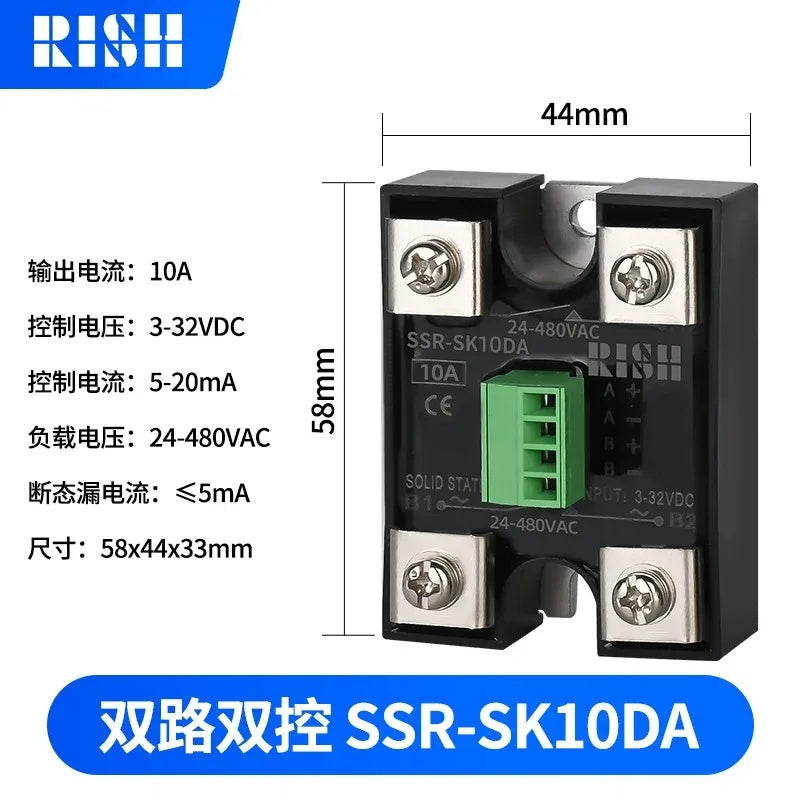

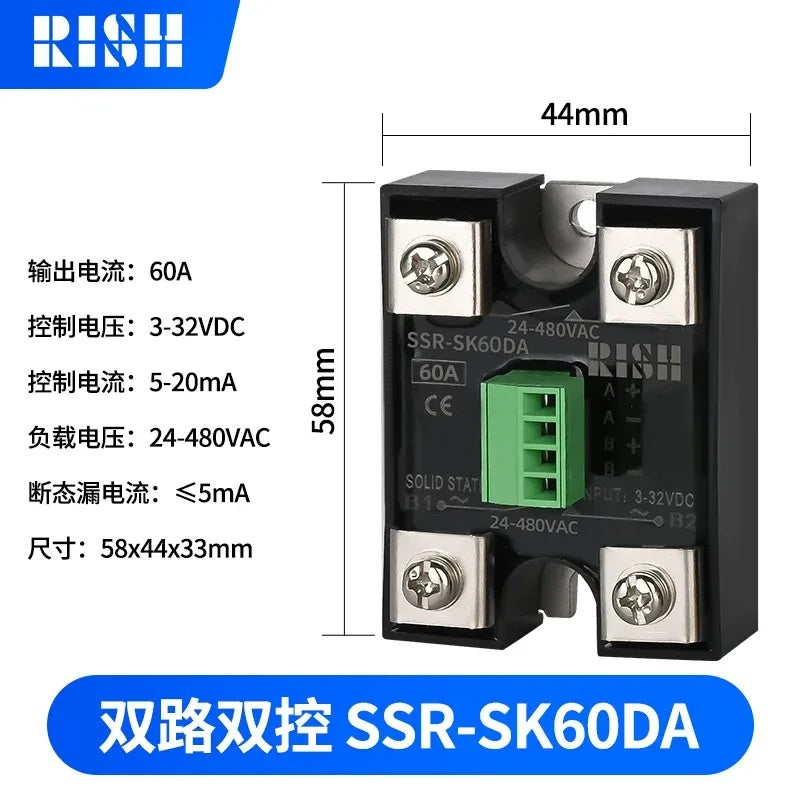

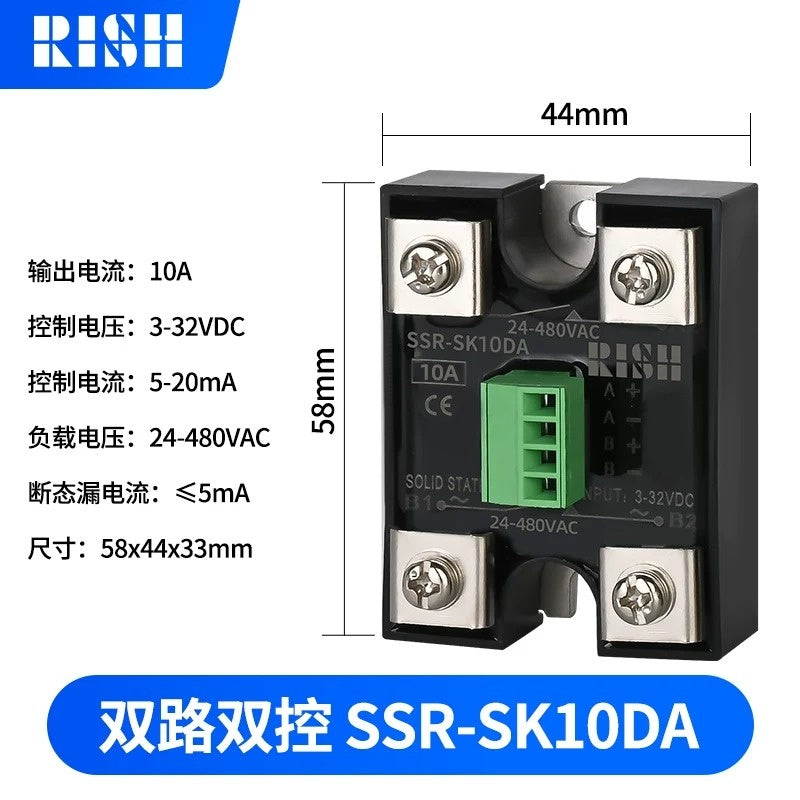

Model	SSR-SK10DA / 25DA / 40DA / 60DA / 80DA
Type	Dual-Channel Single/Dual Control SSR
Control Type	DC to AC
Rated Current (Per Channel)	10A / 25A / 40A / 60A / 80A
Control Current	5-20mA DC
Control Voltage	≤1.6V DC
Load Voltage	24-480VAC
On-State Voltage Drop	≤1.6V
Off-State Leakage Current	≤5mA
Operating Temperature	-30°C ~ +70°C
Control Mode	Dual Control / Single Control
Application	Industrial Control, Dual Load Switching, Automation

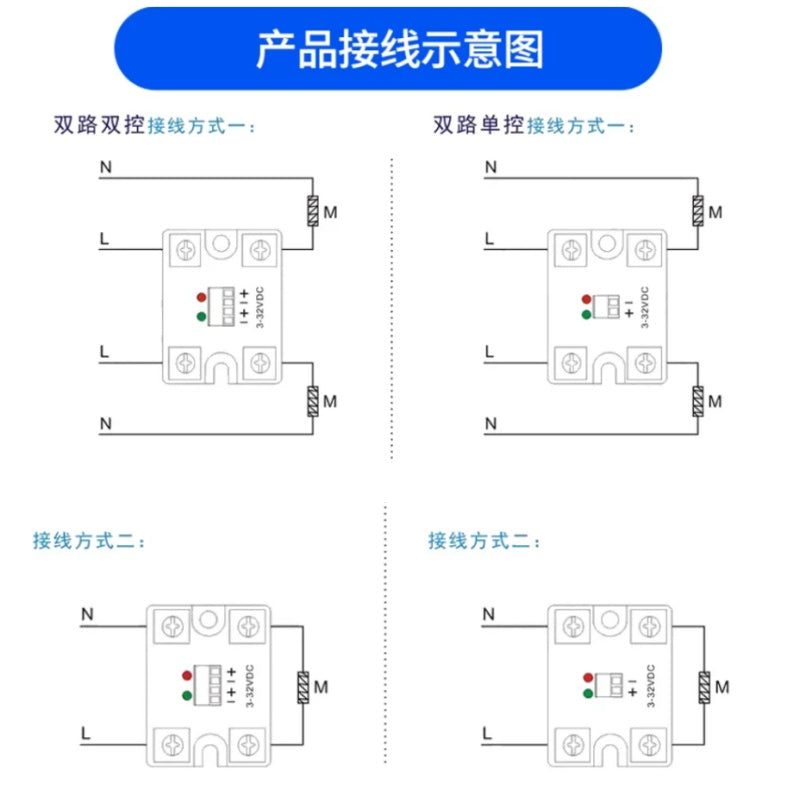

Wiring Diagram
