M280 DC Telescopic Gear Motor with USB Wire Female terminal Regulator+Power Adapter

$59.00 NZD
$40.00 NZD $59.00 NZD
Sale Sold out
Shipping calculated at checkout.
Motor Config.
Free Shipping on Orders $30+

SPECIFICATIONS

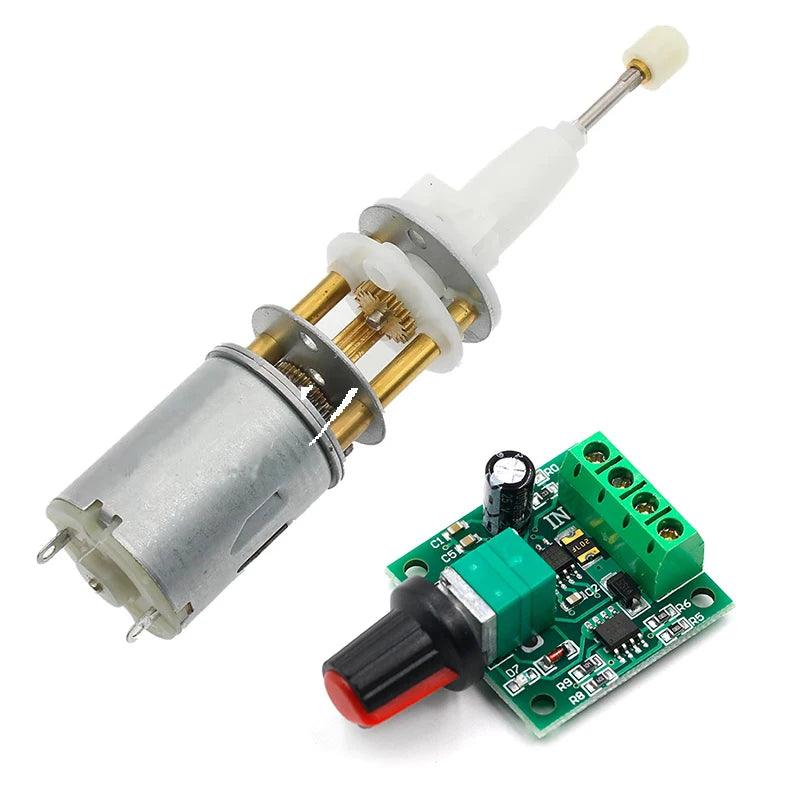

Telescopic Reciprocating Motor Gear DC 1.5V 3V 6V Low Speed Thrust Micro Motor PWM Controller Smart Home Appliance System Toys

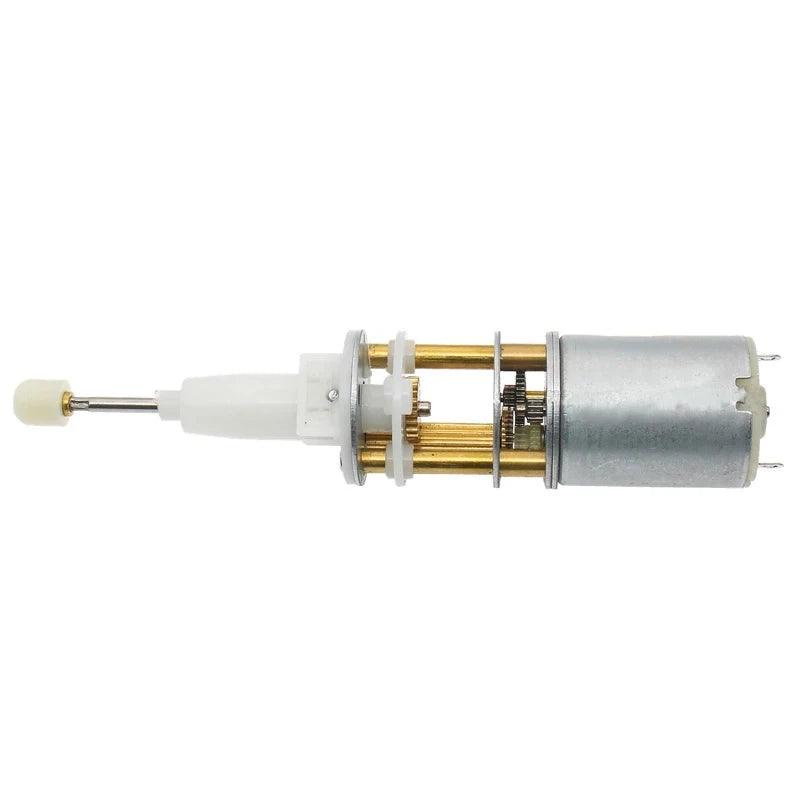

Model Number: Telescopic Reciprocating Rod Motor

Features: worm rotary structure, gear reduction mechanism, strong magnetic torque motor

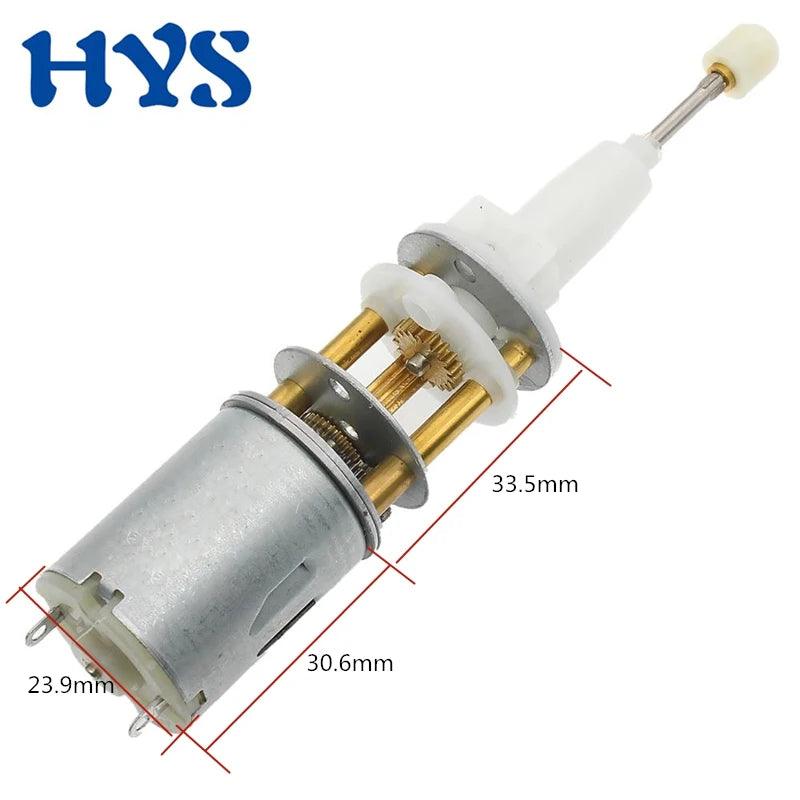

Outer diameter size: ∮24.0mm×105mm—120mm (stretching distance)
Output structure: ∮2.5 round shaft
Rotational expansion rate: 4 turns per motor, one round of telescopic
Weight: about 73g
Application case: adult products, smart home appliances systems, smart educational toys, etc.
product details:
1. Pure copper wire winding: small resistance, strong electrical conductivity, and increased motor torque.
2. Turbine telescopic rotating mechanism: high strength, high efficiency, and small thrust conversion loss.
3, the use of the process is not recommended to frequently block the use or frequent start and reverse, will greatly reduce the service life.


Motor can be adjusted speed with 2A-S voltage regulator

Features:

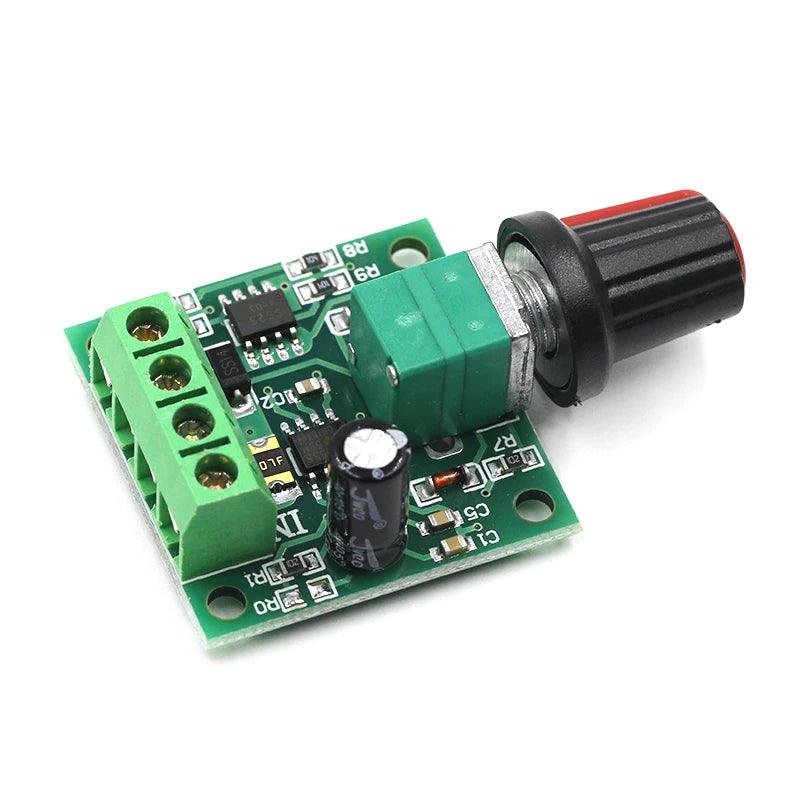

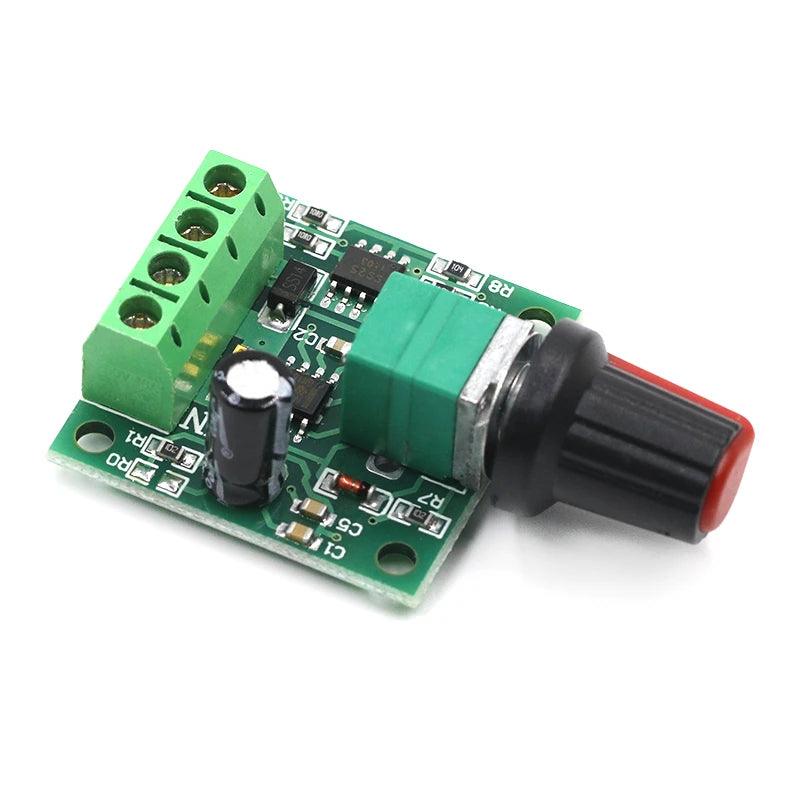

This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.
With a self-recovery fuse 2A and a Power-On LED light.
Enable to provide a continuous current of 2A to your DC motor or other DC load.

Specifications:

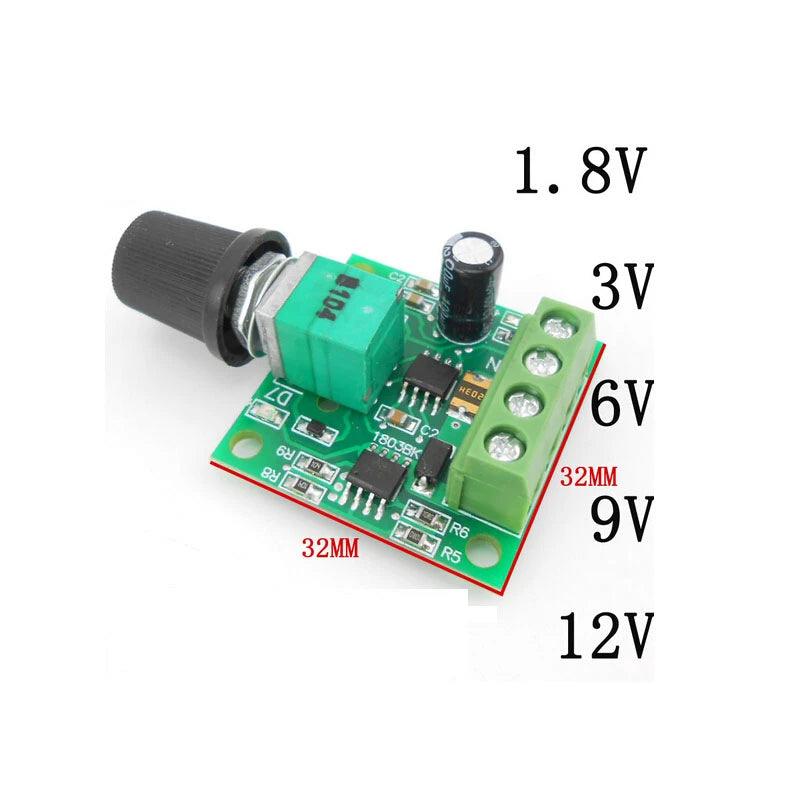

Input supply voltage:1.8V-15V DC
The max output power:30W
The max continuous output current :2A
Duty Cycle adjustable: 0%-100%
Size: approx. 32*32*15mm/1.25*1.25*0.59''
Net weight: approx. 20g


Note:DC motor speed regulator DC power supply, do not be directly connected to household 220V AC.
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.


Attribute Name Attribute Value
Product Model M280
Type DC Telescopic Gear Motor / Linear Actuator
Voltage 3V / 6V
Gear Ratio 1:50
Speed 100/140 RPM (3V) / 200/280 RPM (6V)
Max Thrust 100N (3V) / 200N (6V)
Output Shaft 2.5mm Round Shaft (customizable)
Material Copper Winding, Metal Gear Train
Weight ~73g
Application Smart Home, Toys, DIY Projects, Small Automation
