SSR Voltage Regulator 10A-120A Single Phase
Regular price
$0.00 NZD
Regular price
Sale price
$0.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
核心描述

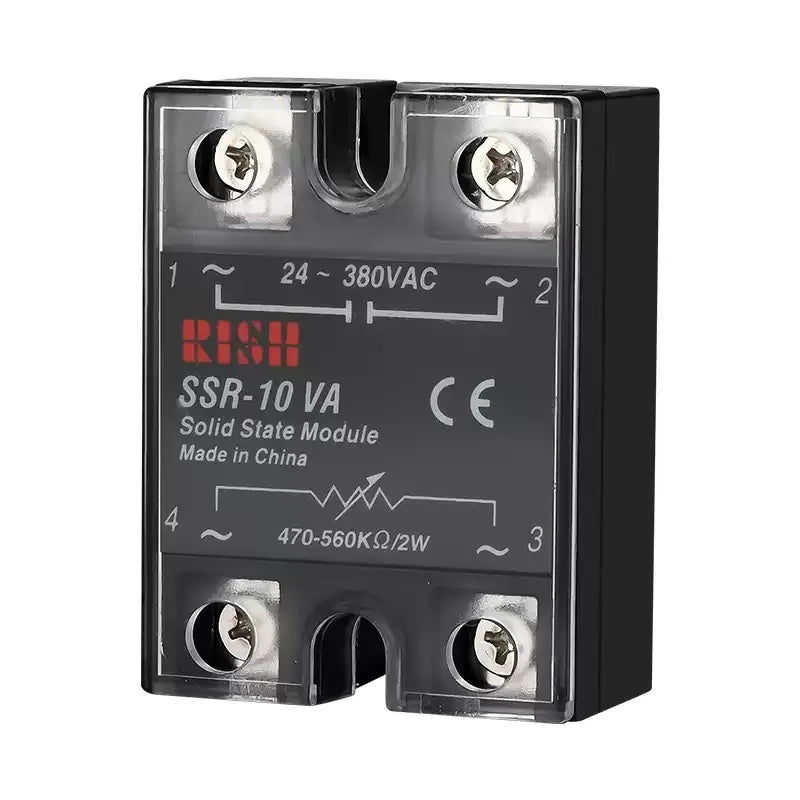

This Single Phase Resistive Solid State Voltage Regulator (SSR) is designed for precise AC voltage control of resistive loads, available in 10A/25A/40A/60A/80A/100A/120A (10-120VA) ratings. It enables smooth, spark-free voltage adjustment with high stability and anti-interference performance.
关键特性
- ✅ Resistive Load Compatibility: Optimized for resistive loads (heaters, ovens, lamps)
- ✅ No Moving Parts: No mechanical contacts, no sparks, silent operation
- ✅ High Anti-Interference: Stable performance in high-shock, vibrating environments
- ✅ Fast Response: ≤10ms switching time, quick and accurate control
- ✅ Low On-State Voltage Drop: ≤1.6V for minimal power loss
- ✅ Wide Operating Range: Supports load voltage 0-380VAC, ambient temperature -30~+75°C

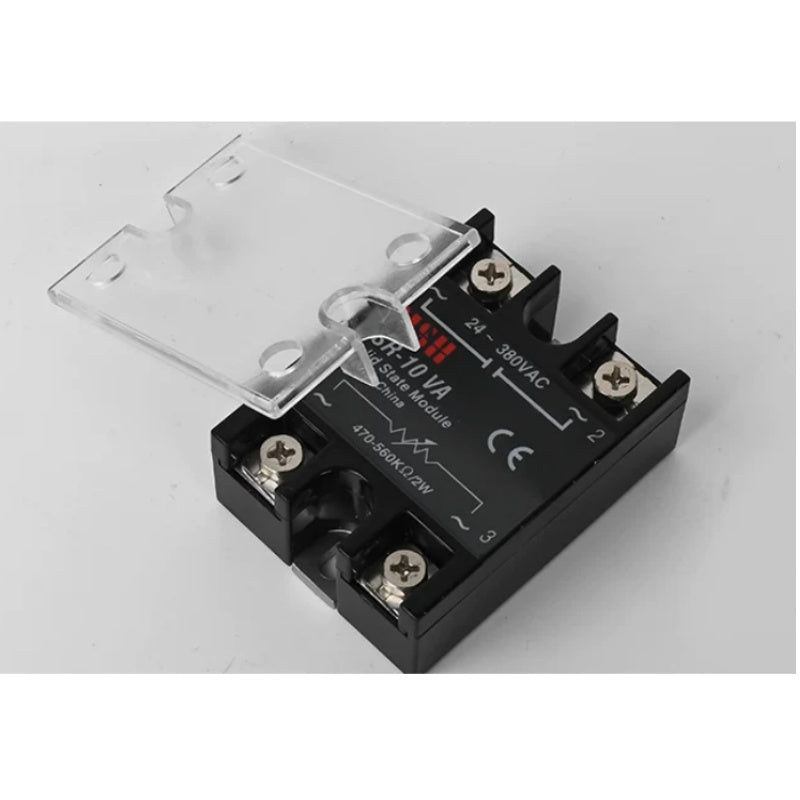

- ✅ Easy Installation: Bolt-on mounting design for secure and simple setup

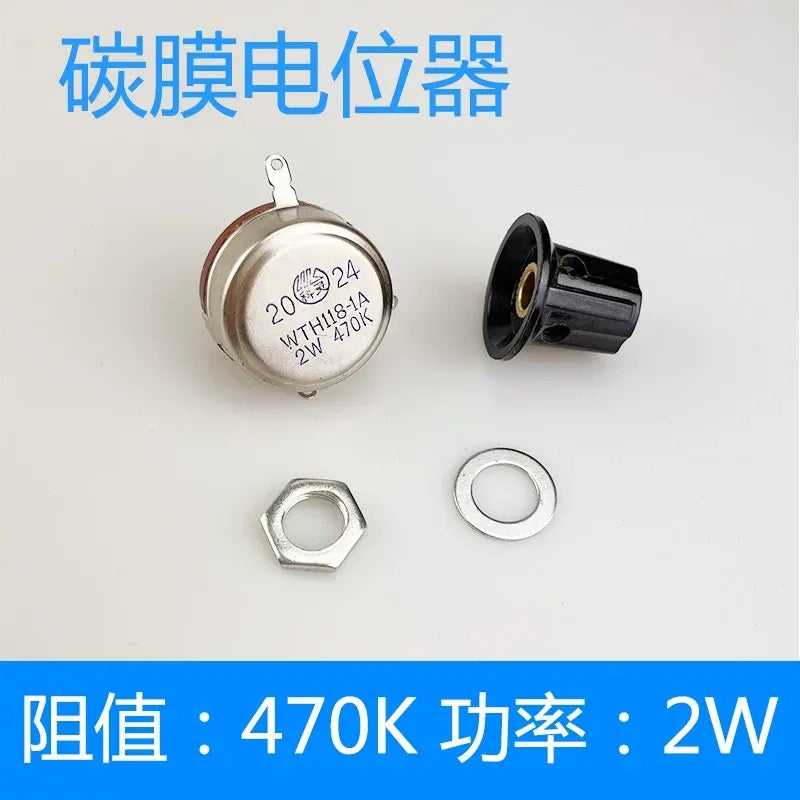

- ✅ Optional Accessories: 470K/2W potentiometer with copper knob for direct manual control
规格说明

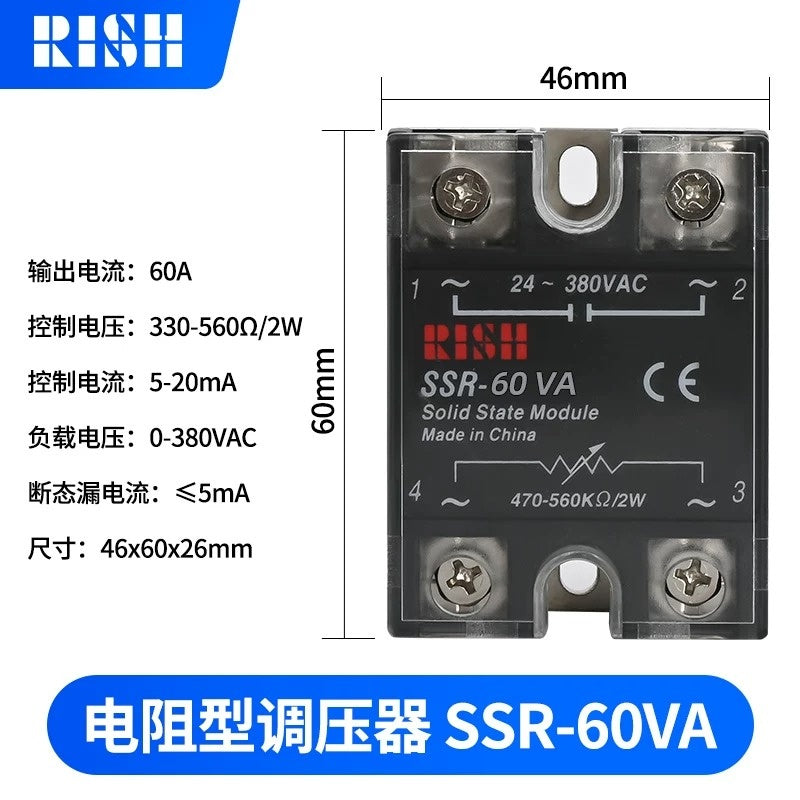

- Product Name: Single Phase Solid State Voltage Regulator
- Model: SSR-XXVA (XX=10/25/40/60/80/100/120)
- Control Current: 5-20mA
- Load Voltage: 0-380VAC
- Output Current: 10A/25A/40A/60A/80A/100A/120A
- On-State Voltage Drop: ≤1.6V
- Switching Time: ≤10ms
- Operating Temperature: -30~+75°C
- Mounting Type: Bolt-on
- Accessories: Optional 470K/2W potentiometer with copper knob
DATA SHEET
| Attribute | Value |
|---|---|
| Product Name | Single Phase Solid State Voltage Regulator |
| Model | SSR-10VA / SSR-25VA / SSR-40VA / SSR-60VA / SSR-80VA / SSR-100VA / SSR-120VA |
| Type | Resistive Type SSR Voltage Regulator |
| Phase | Single Phase |
| Rated Current | 10A / 25A / 40A / 60A / 80A / 100A / 120A |
| Rated Power | 10VA / 25VA / 40VA / 60VA / 80VA / 100VA / 120VA |
| Load Voltage | 0-380VAC |
| Control Current | 5-20mA |
| On-State Voltage Drop | ≤1.6V |
| Switching Time | ≤10ms |
| Operating Temperature | -30~+75°C |
| Mounting Type | Bolt-on |
| Accessories | Optional 470K/2W Potentiometer with Copper Knob |
| Application | Industrial Heating, Temperature Control, Lighting Control, Power Control |
