SPDT Solid State Relay 10A/25A/40A
Regular price
$38.00 NZD
Regular price
Sale price
$38.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
1-Form-C SSR 10A/25A/40A Normally Open & Normally Closed DC Controlled AC Relay
| 规格型号 | 英文标题 |
|---|---|

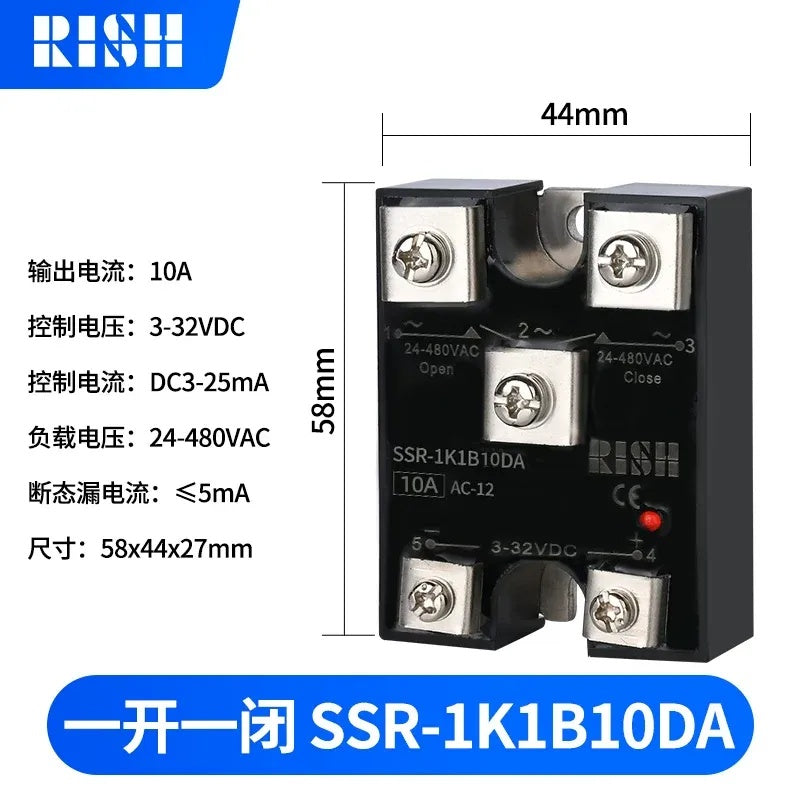

| SSR-1K1B10DA | 10A SPDT Solid State Relay 3-32VDC Control, 24-480VAC Load |

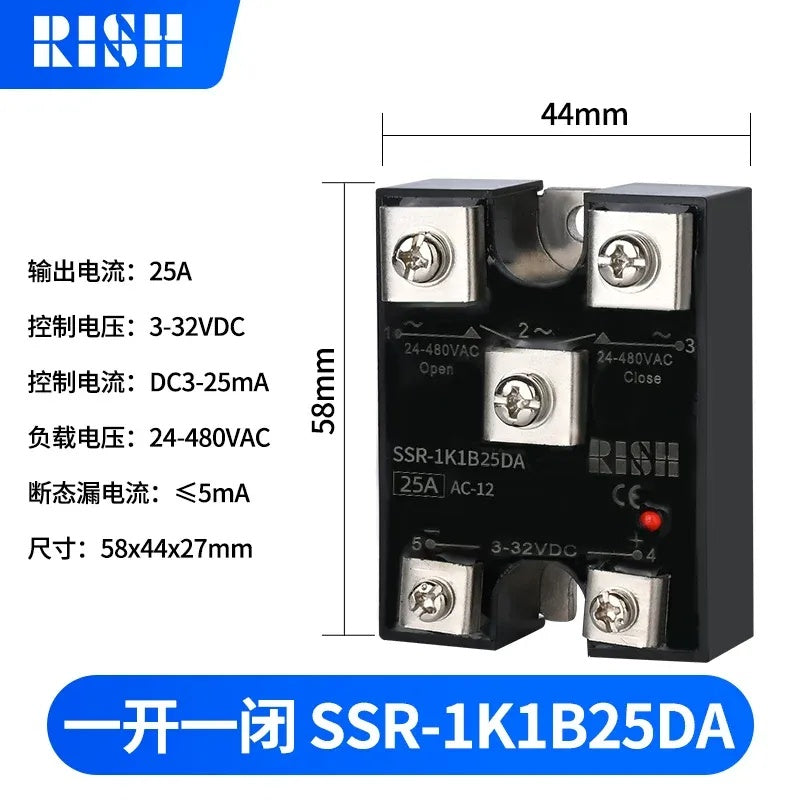

| SSR-1K1B25DA | 25A One Open One Close SSR DC to AC Solid State Relay |
| SSR-1K1B40DA | 40A 1-Form-C Solid State Relay Module 24V DC Control |
核心描述

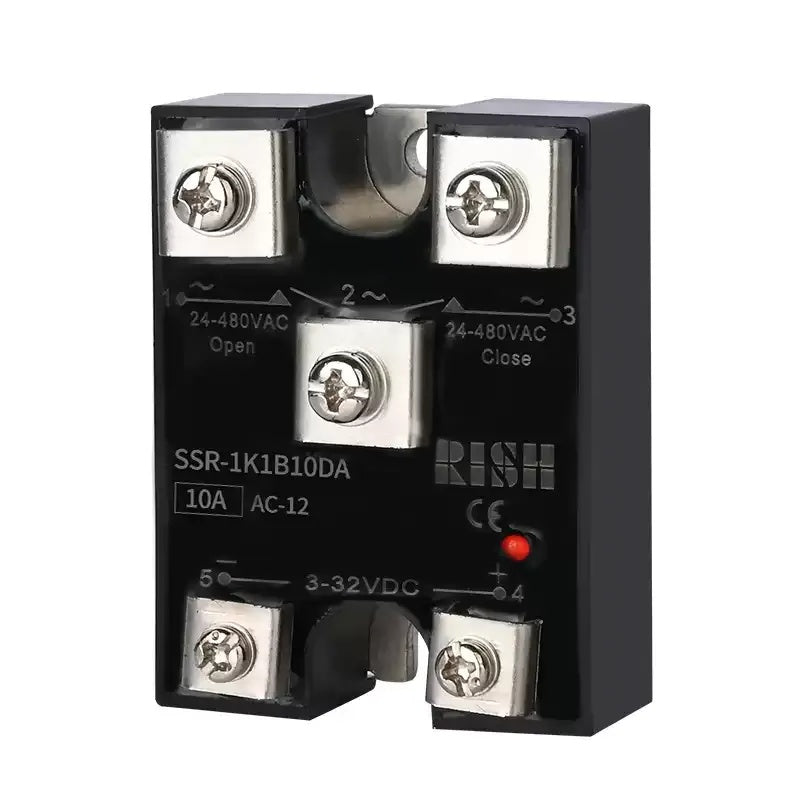

This SPDT (One Open One Close) Solid State Relay (SSR) is a DC-to-AC industrial-grade relay module, available in 10A/25A/40A ratings. It features both normally open (NO) and normally closed (NC) contacts, enabling flexible load switching for complex control scenarios.
关键特性
- ✅ SPDT (1-Form-C) Design: Integrated Normally Open (NO) and Normally Closed (NC) contacts
- ✅ DC-to-AC Operation: 3-32VDC control voltage, compatible with PLC and DC signal sources
- ✅ High Reliability: Low on-state voltage drop (≤1.6V) and leakage current (≤5mA)
- ✅ No Mechanical Contacts: Silent, spark-free operation with high shock/vibration resistance
- ✅ Wide Operating Temp: -30°C to +70°C, suitable for harsh industrial environments
- ✅ Compact Integrated Design: All-in-one module with built-in heat dissipation structure
- ✅ Versatile Applications: Ideal for fail-safe circuits, interlock control, and dual-load switching
规格说明
- Product Name: SPDT (One Open One Close) Solid State Relay
- Model: SSR-1K1B10DA / 25DA / 40DA
- Control Type: DC to AC
- Rated Current: 10A / 25A / 40A
- Control Voltage: 3-32VDC
- Control Current: DC 3-25mA
- Load Voltage: 24-480VAC
- On-State Voltage Drop: ≤1.6V
- Off-State Leakage Current: ≤5mA
- Operating Temperature: -30°C ~ +70°C
- Contact Configuration: 1-Form-C (SPDT: 1 Normally Open, 1 Normally Closed)
- Application: Industrial Automation, Fail-Safe Control, Interlock Systems, Dual Load Switching
DATA SHEET
| Attribute | Value |
|---|---|
| Product Name | SPDT Solid State Relay (One Open One Close) |
| Model | SSR-1K1B10DA / 25DA / 40DA |
| Type | 1-Form-C (SPDT) SSR |
| Control Type | DC to AC |
| Rated Current | 10A / 25A / 40A |
| Control Voltage | 3-32VDC |
| Control Current | 3-25mA DC |
| Load Voltage | 24-480VAC |
| On-State Voltage Drop | ≤1.6V |
| Off-State Leakage Current | ≤5mA |
| Operating Temperature | -30°C ~ +70°C |
| Contact Configuration | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Application | Industrial Control, Fail-Safe Systems, Automation, Dual Load Control |
SSR Dimension & Wiring Diagram
