Name: Single/Three-Phase DIN Rail Smart Energy Meter with RS485
Brand: electrical center b2c
SKU: Single Phase 1P 5(40)A With RS485
Price: 49.0 NZD
Availability: InStock

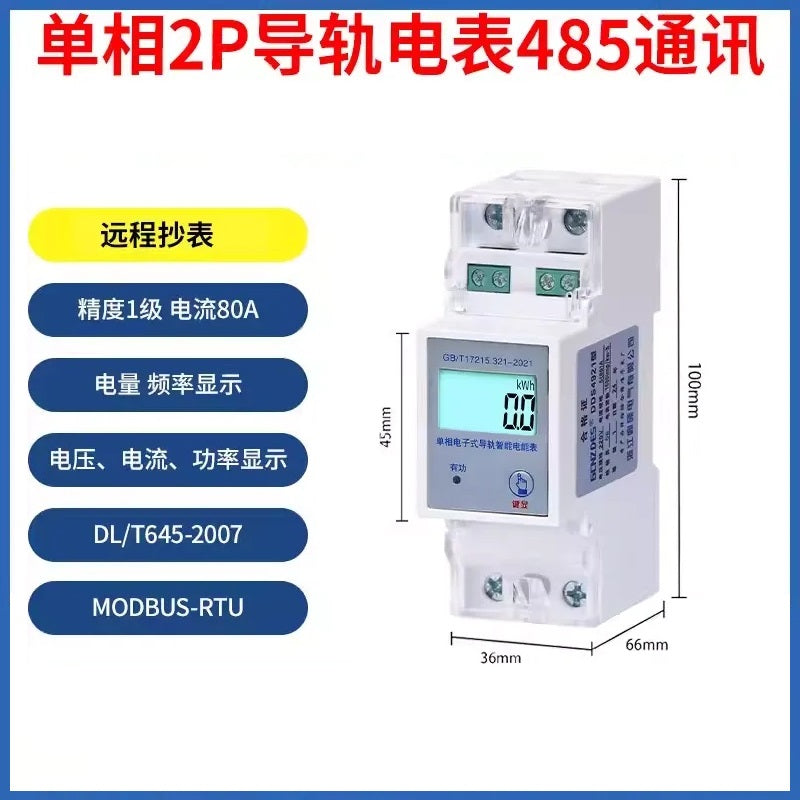

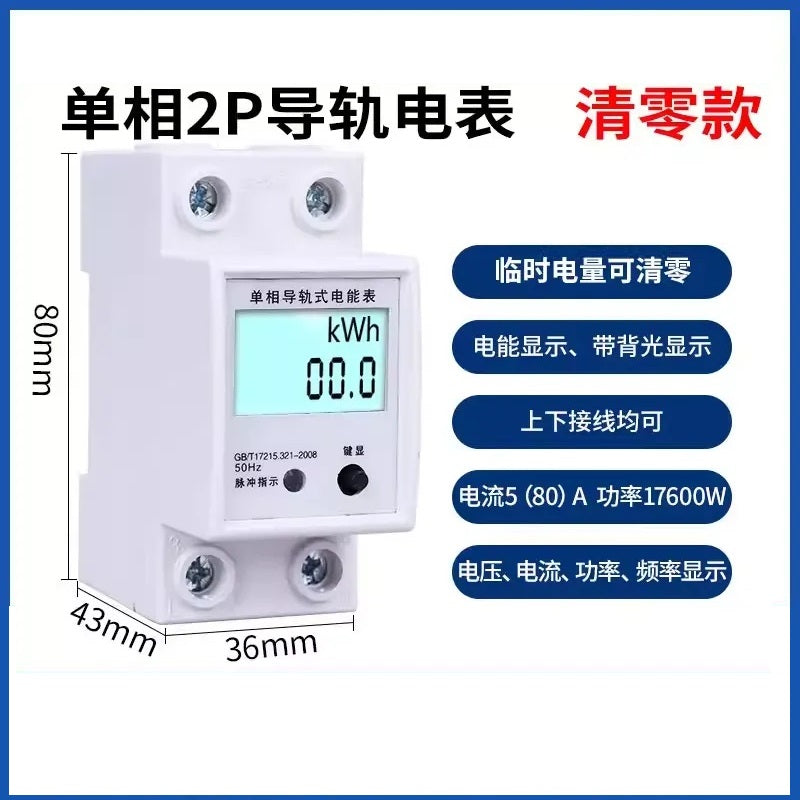

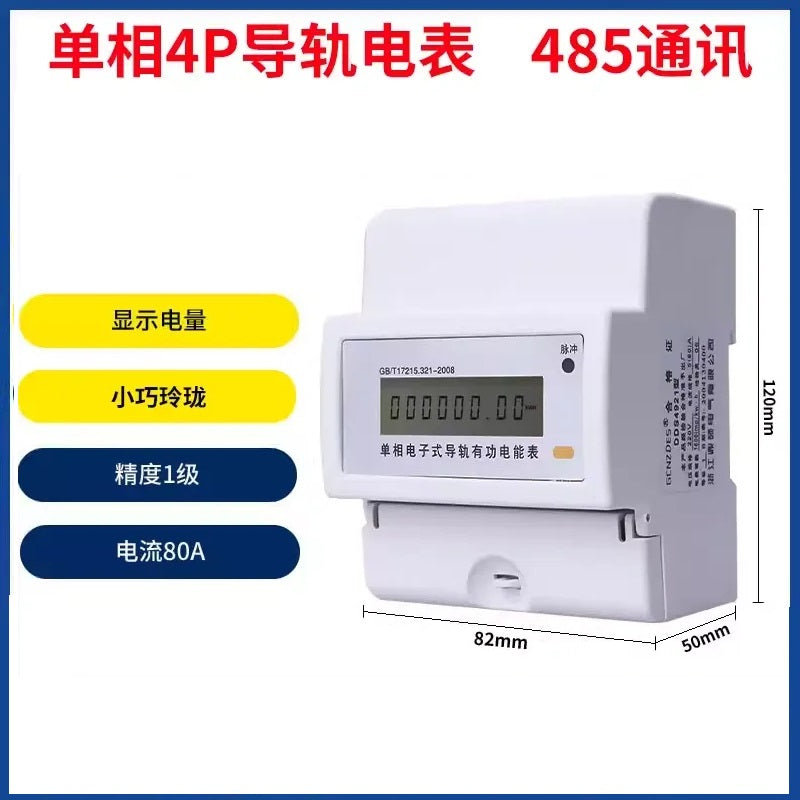

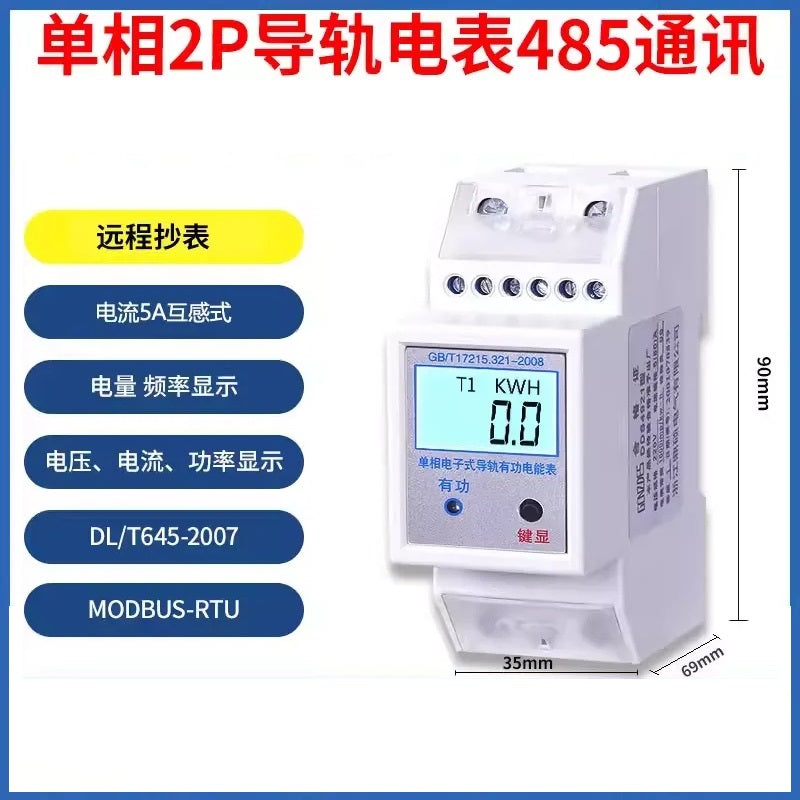

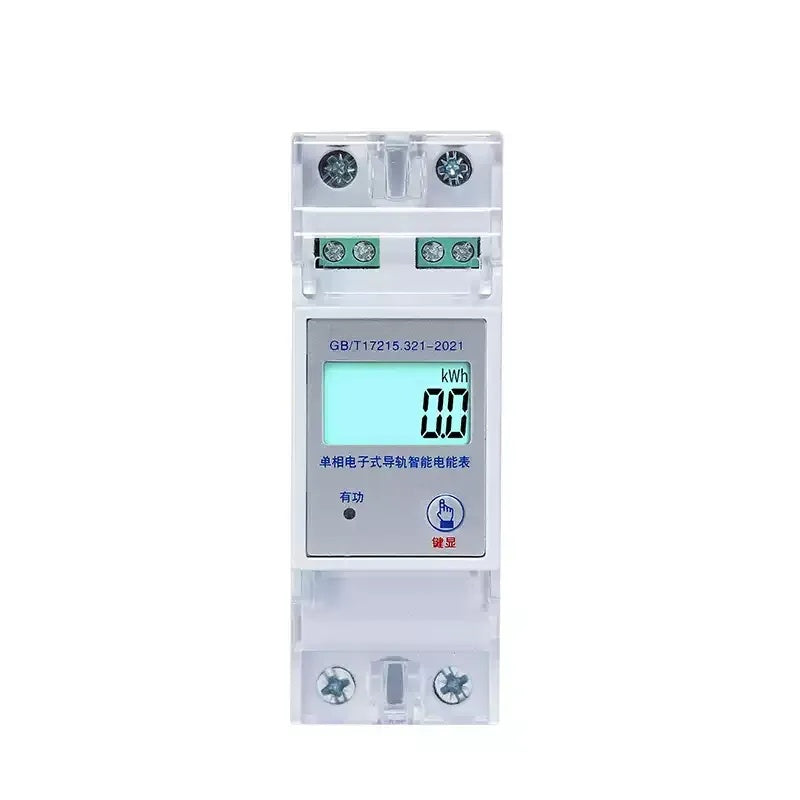

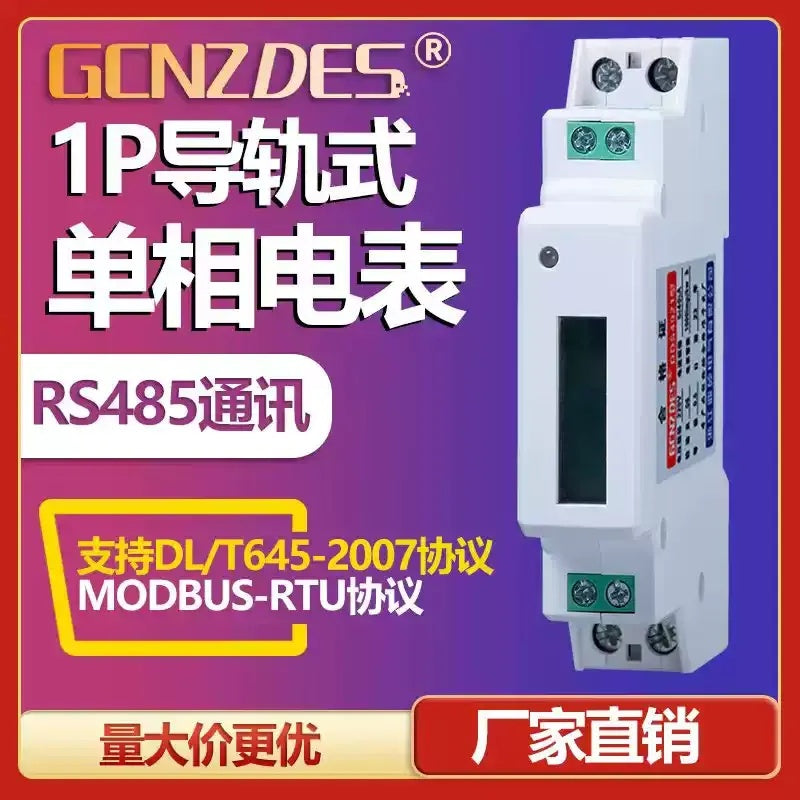

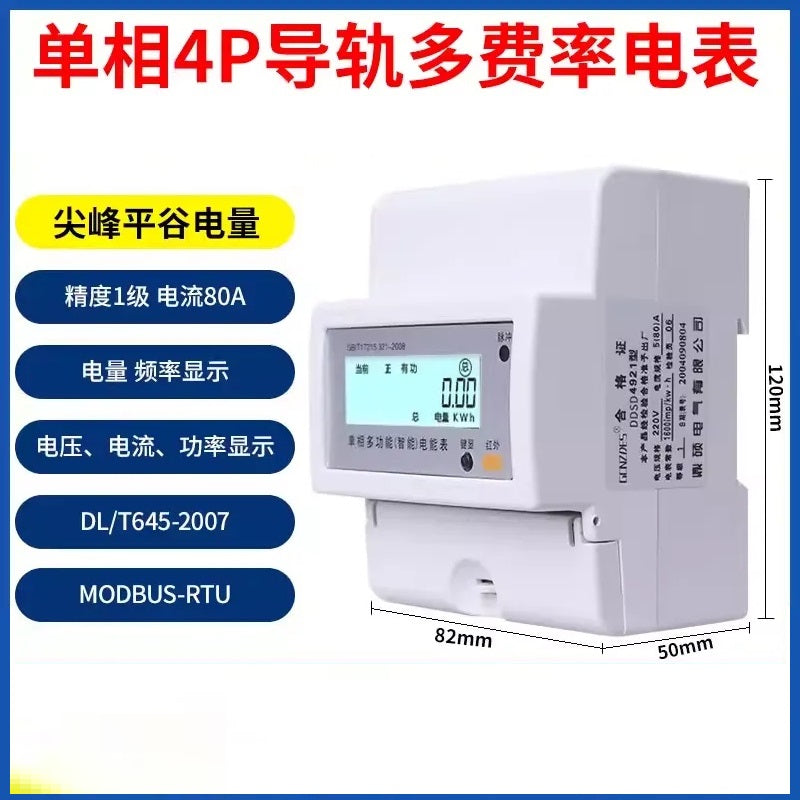

DINGSHUO Single-Phase 1P/2P/4P DIN Rail Smart KWh Meter with RS485 Remote Control

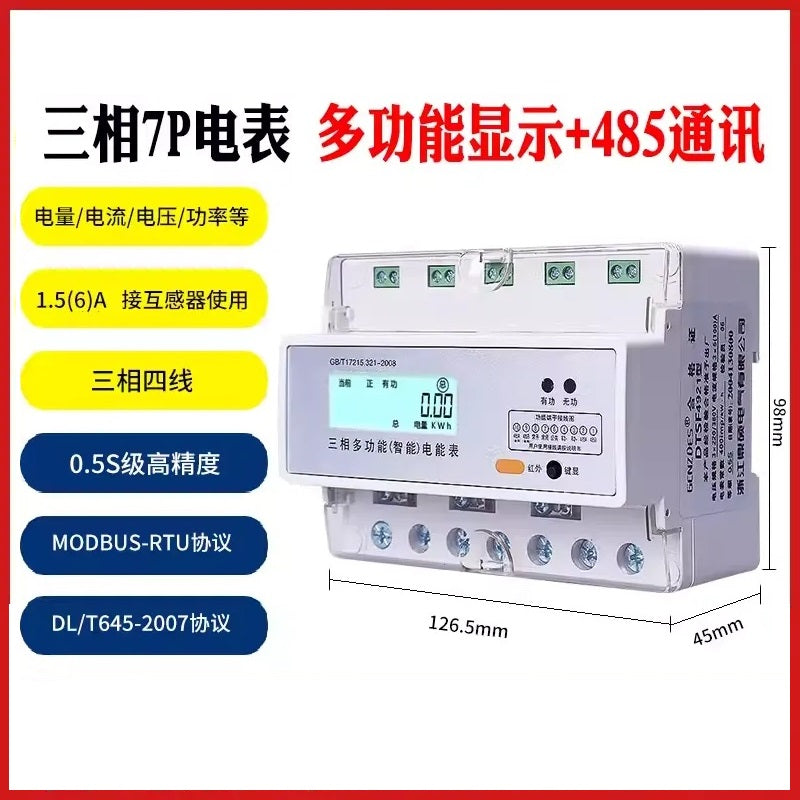

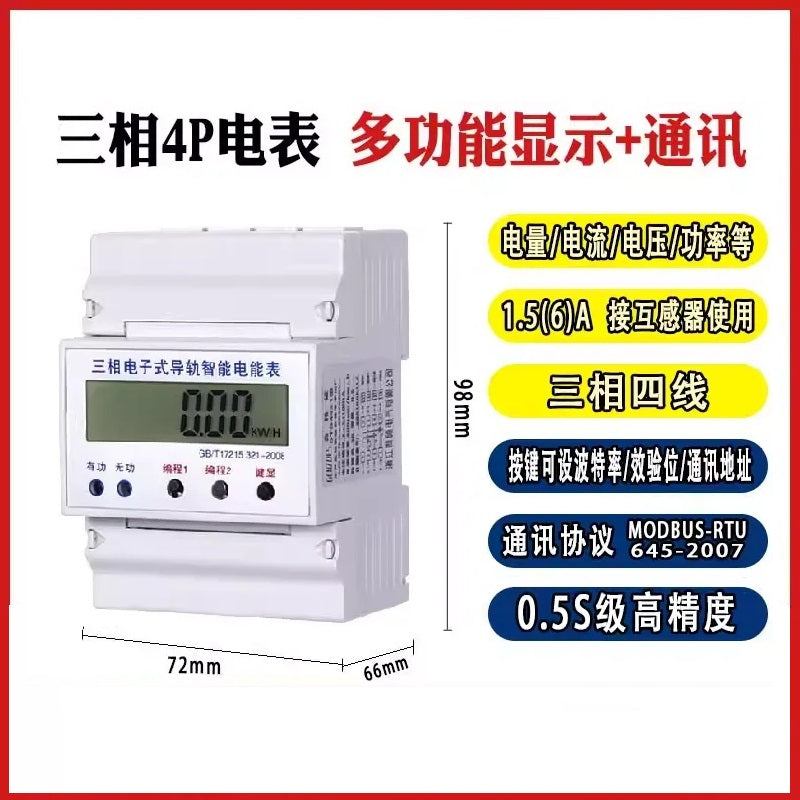

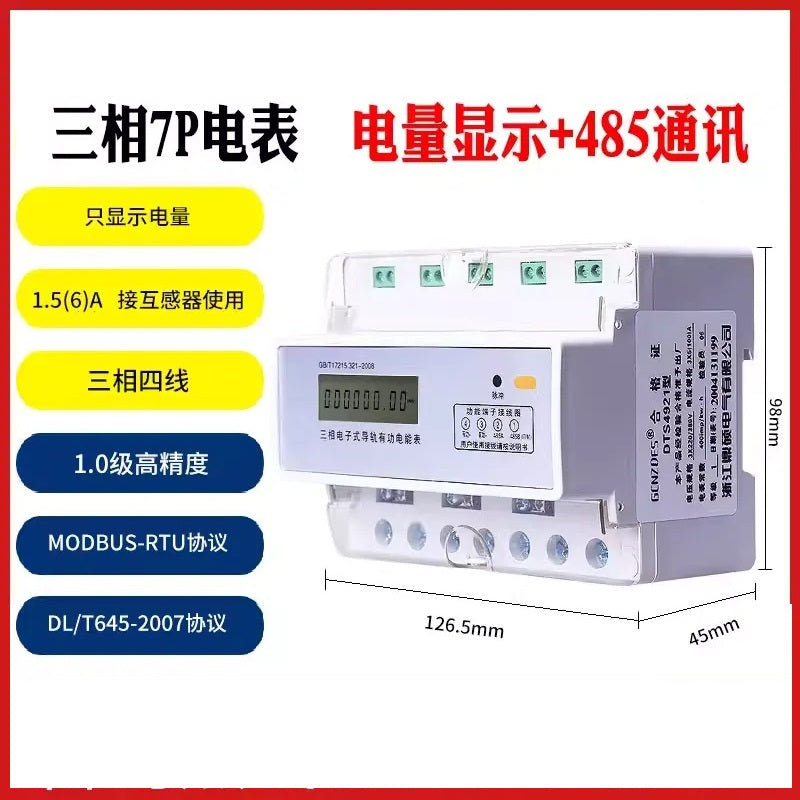

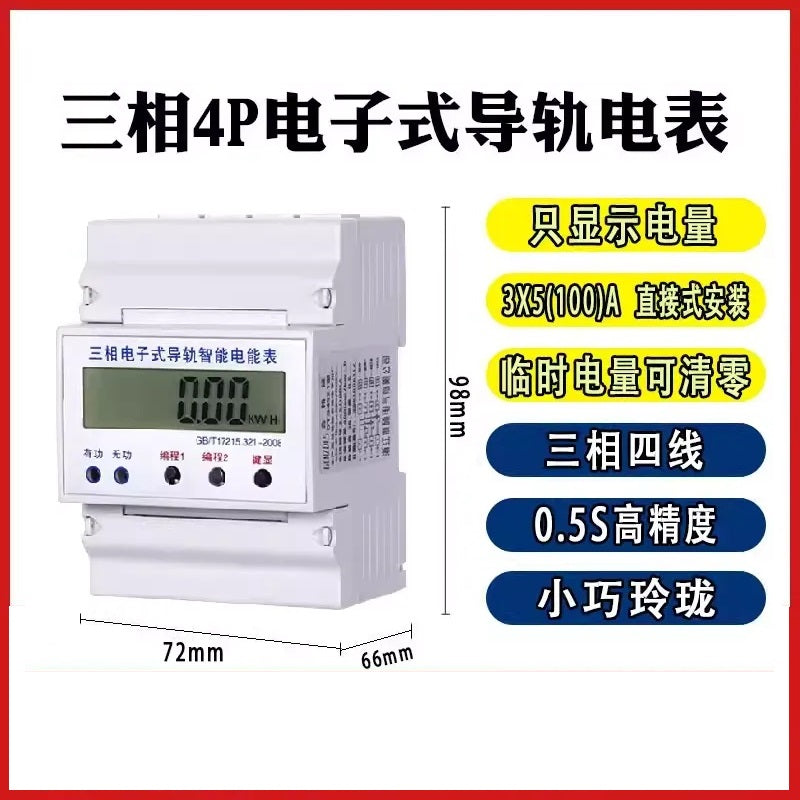

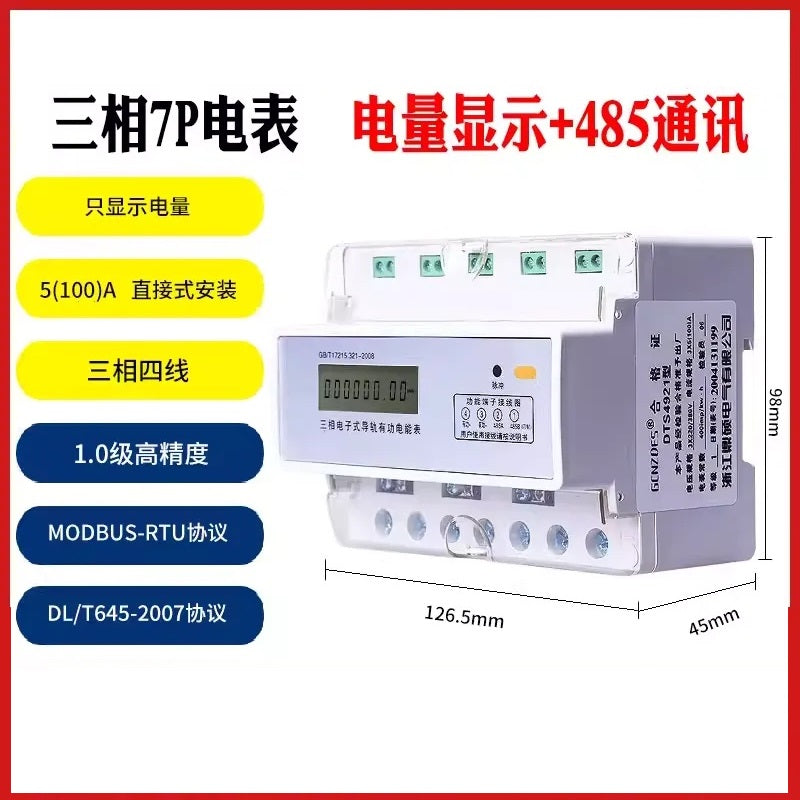

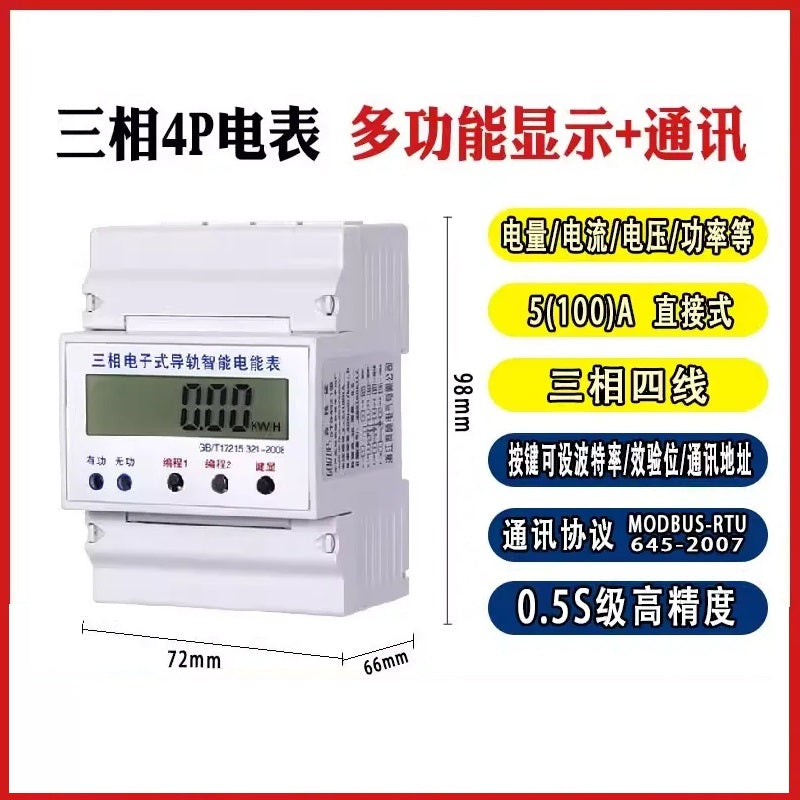

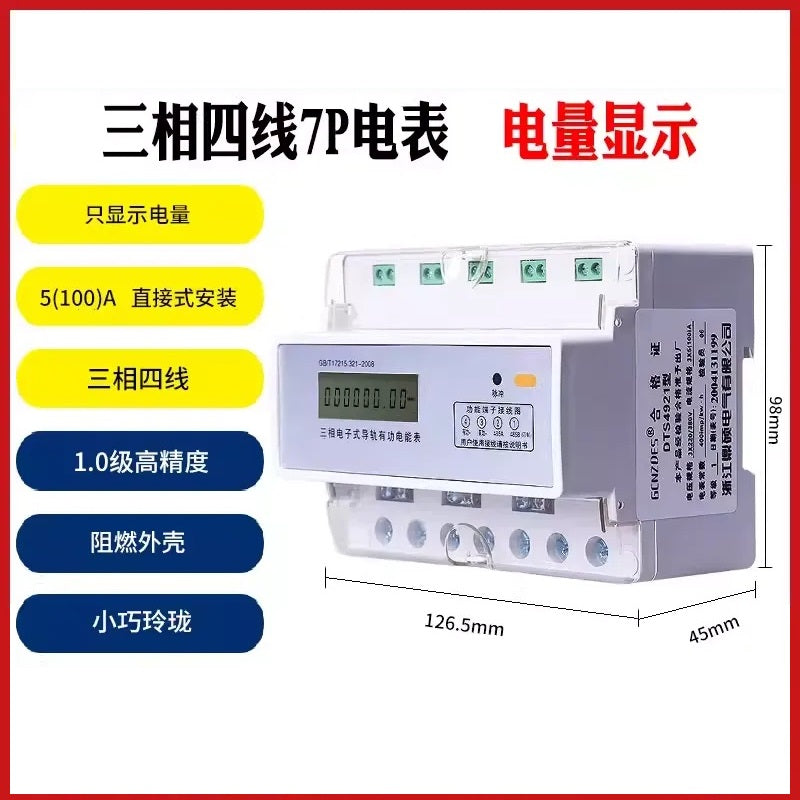

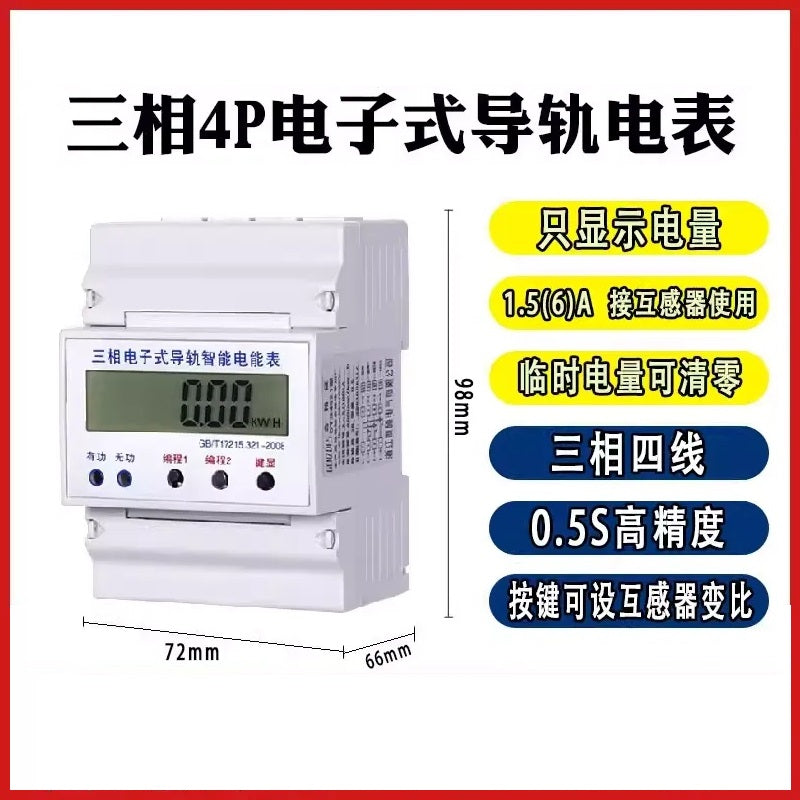

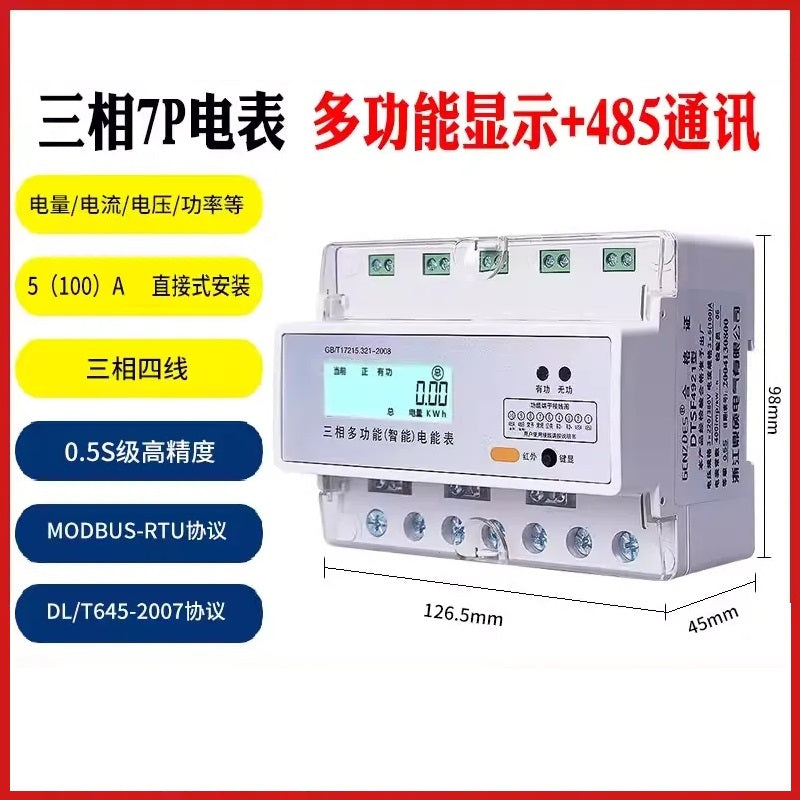

DINGSHUO Three-Phase 4P/7P DIN Rail Multi-Function Energy Meter with Modbus Communication

🔹 Overview 产品概述

The DINGSHUO DDSU (Single-Phase) / DTSU (Three-Phase) series is a compact DIN-rail mounted smart energy meter designed for accurate electricity metering in residential, rental, commercial, factory and construction site applications. It features RS485 communication with dual-protocol support (Modbus-RTU & DL/T645-2007), enabling remote meter reading and control. Available in multiple module sizes (1P/2P/4P/7P) to fit different distribution box requirements.

🔹 Key Features 核心特性

DIN Rail Mount: Standard 35mm DIN rail design, easy installation and removal inside distribution boxes.
Dual-Protocol Communication: Built-in RS485 port supporting both Modbus-RTU and DL/T645-2007 protocols for seamless integration with smart energy systems.
Rolling LCD Display: Segment-code LCD screen with 5-second cyclic display for 8 key parameters (total/resetable energy, voltage, current, power, frequency, meter IDs).

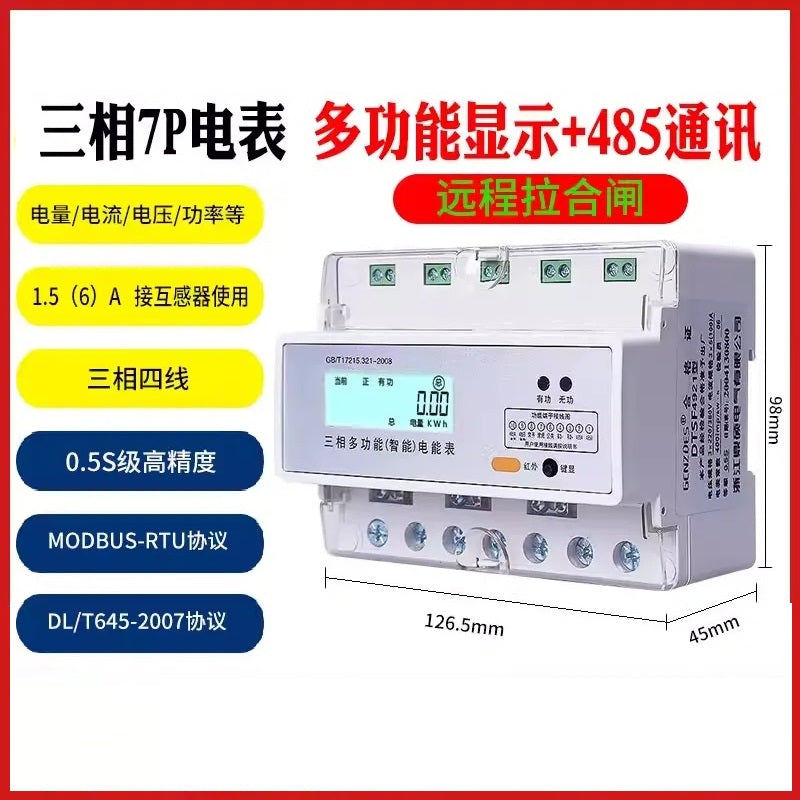

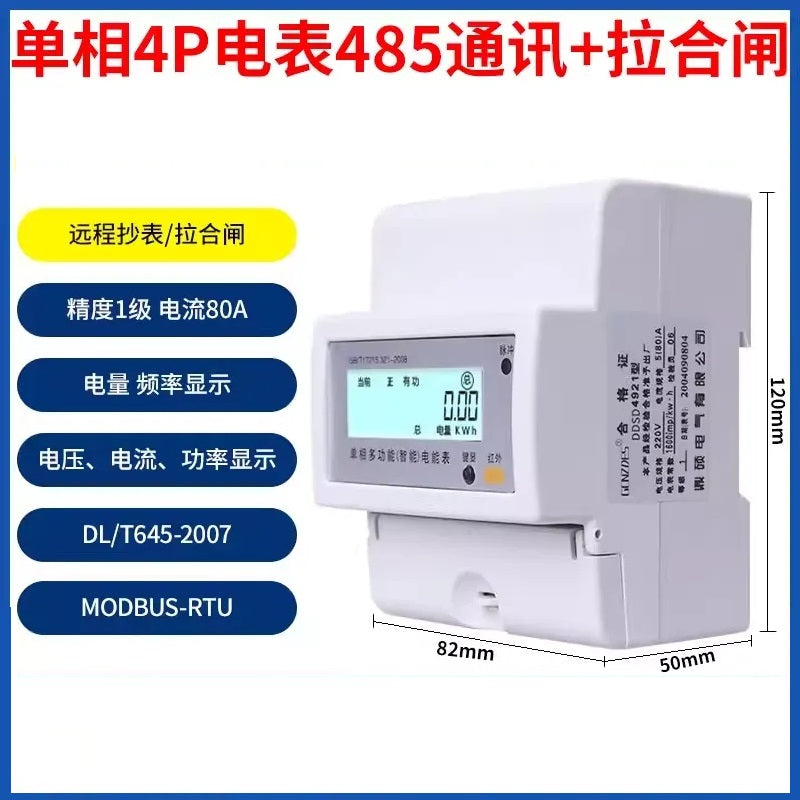

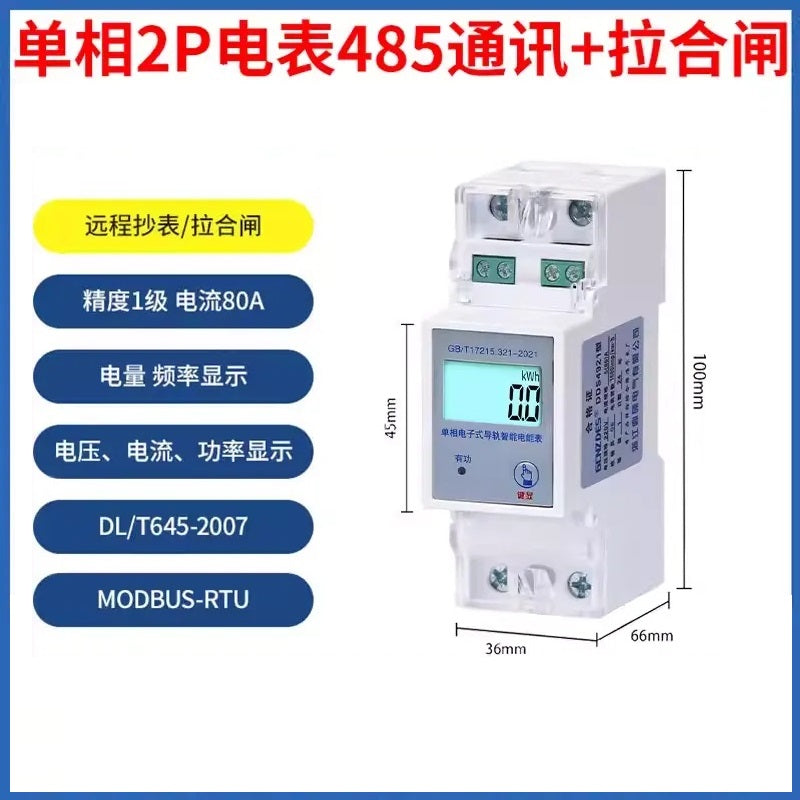

Remote Control & Metering: Supports remote data reading, multi-rate (TOU) metering, and optional remote on/off switching (pull-in/out) via the built-in relay.
High Accuracy & Low Power Consumption: Class 1/Class B accuracy for active energy metering, with ultra-low power consumption to reduce operational costs.
Durable & Safe Construction: Flame-retardant housing and high-quality copper terminals, with explosion-proof LCD design for long-term reliability.

🔹 Applications 应用场景

Residential homes & rental properties
Small commercial buildings, factories and workshops
Construction sites, temporary power distribution
Solar PV monitoring, energy management systems, smart grid projects

DATA SHEET

Name	Parameter
Brand	DINGSHUO
Model	DDSU (Single-Phase) / DTSU (Three-Phase)
Type	Smart DIN Rail Energy Meter / KWh Meter
Phase	Single-Phase / Three-Phase

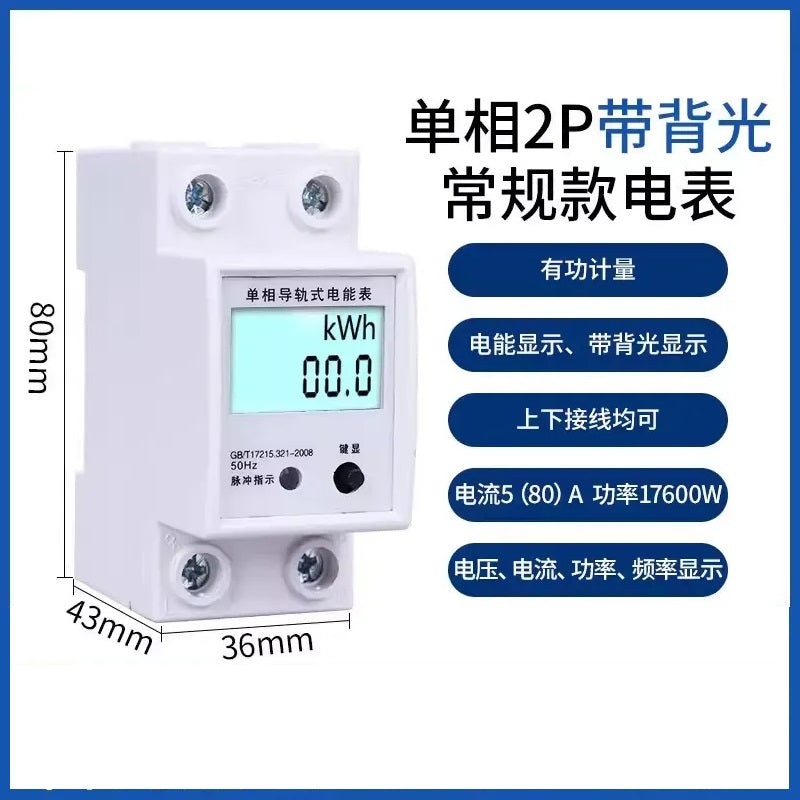

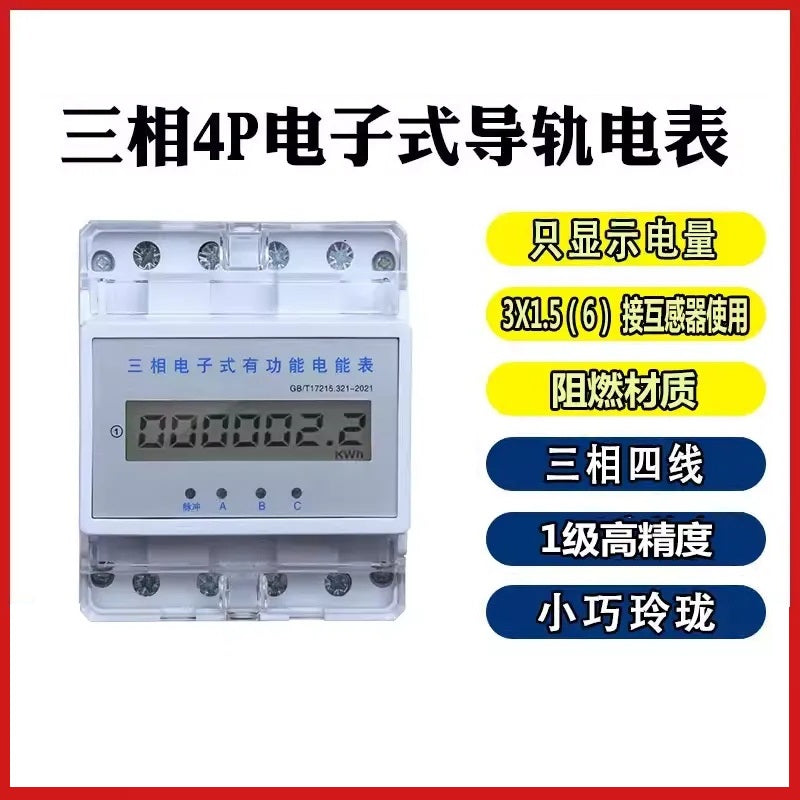

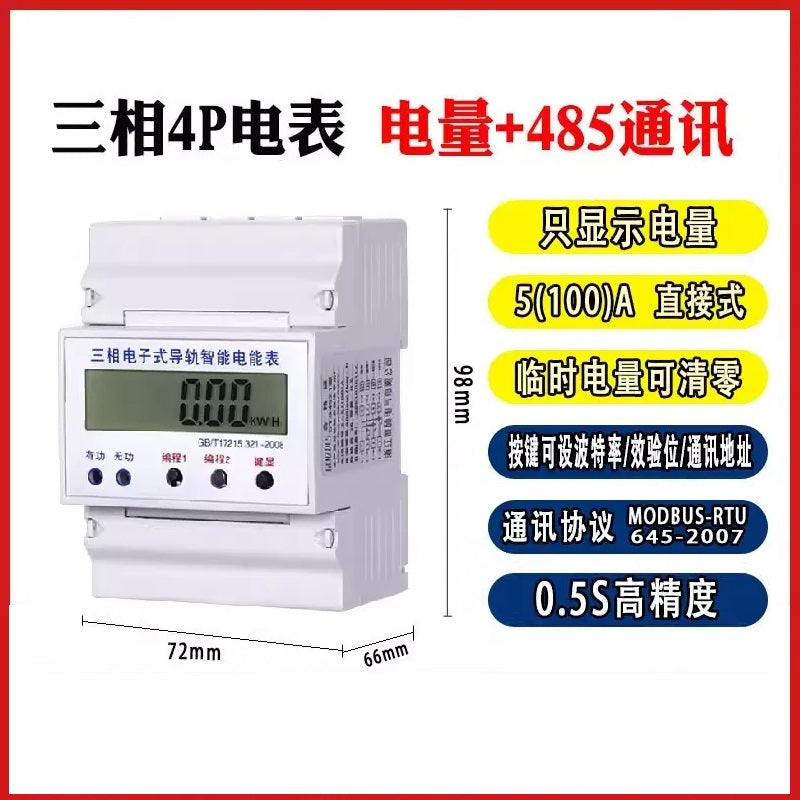

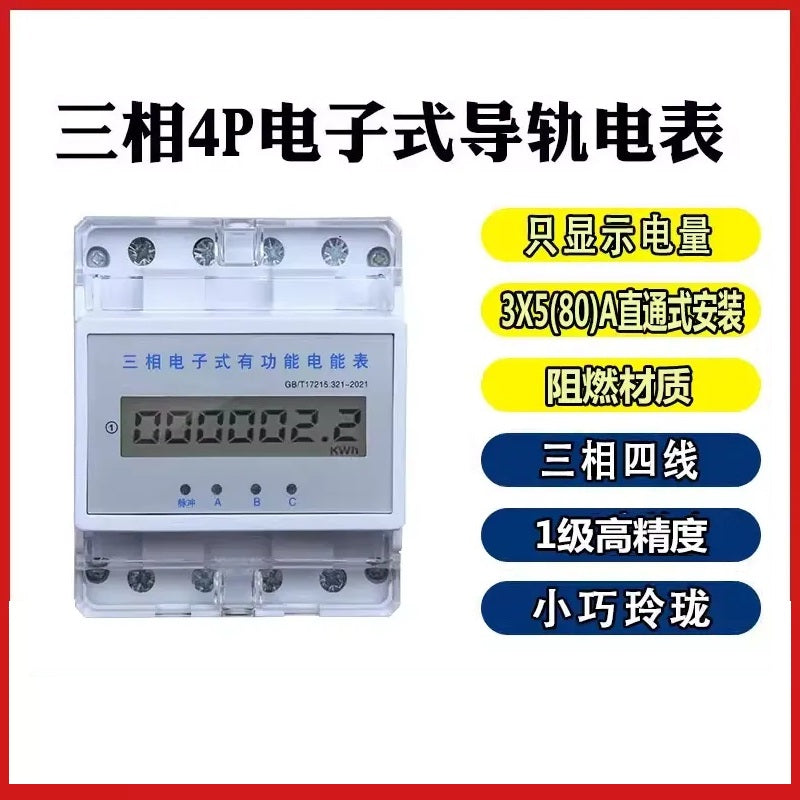

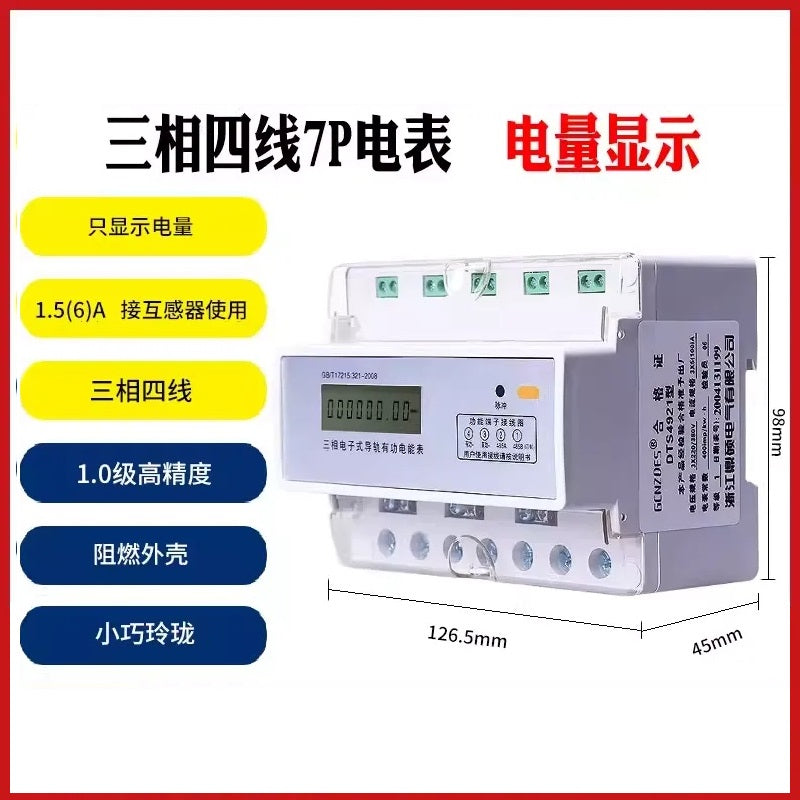

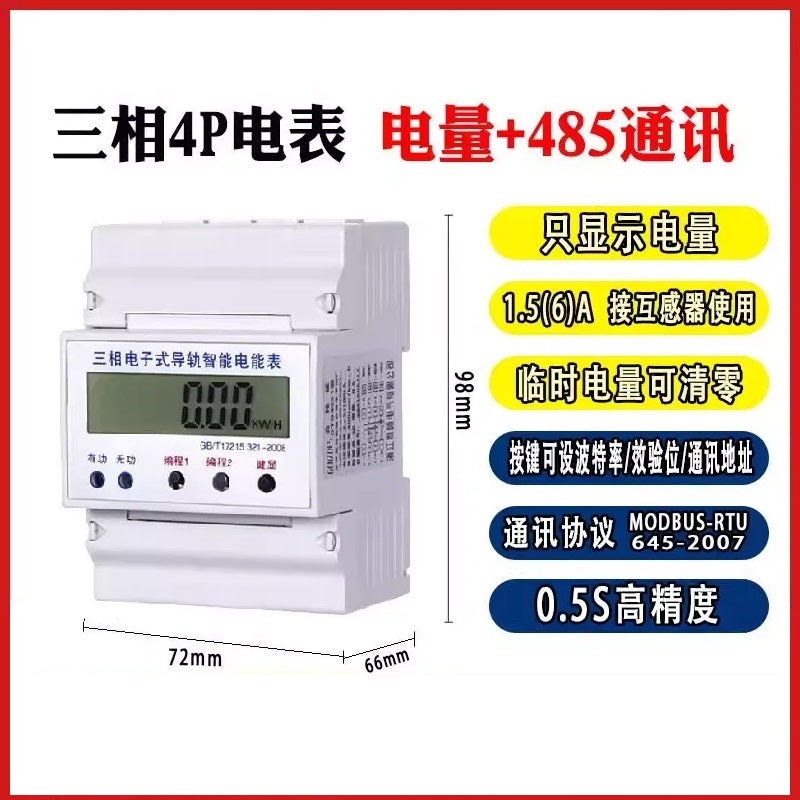

Module Size	1P, 2P, 4P, 7P
Mounting Type	35mm Standard DIN Rail Mount
Rated Voltage	220V / 3×220/380V / 3×57.7/100V
Rated Current	Direct: 0.25-0.5(60/80)A, 0.4-1(100)A; CT-connected: 0.015-0.075(6)A
Display Type	Segment Code LCD, 5s Rolling Update
Communication	RS485 (Modbus-RTU & DL/T645-2007 Dual Protocol)
Accuracy Class	Active: Class 1 / Class B; Reactive: Class 2
Features	Remote Meter Reading, Multi-Rate (TOU) Metering, Resettable Energy, Remote On/Off (Optional)
Application	Home, Rental, Factory, Construction Site, Energy Management
Operating Temperature	-25℃ ~ +70℃ (Standard) / -40℃ ~ +70℃ (Limit)
Power Consumption	Voltage Circuit: ≤1W/5VA per phase; Current Circuit: ≤2VA per phase
Safety Features	Flame-Retardant Housing, Explosion-Proof LCD, Copper Terminals
