Short High Head Metal Push Button Switch 16/19/22mm

$17.00 NZD
$21.00 NZD $17.00 NZD
Sale Sold out
Shipping calculated at checkout.
Button Color
Button Hole Size
Voltage&Operation Mode

Short Pin 16mm 19mm 22mm High Head Illuminated Push Button IP65 Waterproof Momentary Latching Power Switch

Short High-Head 20A Metal Push Button Switch, IP67 Waterproof, LED Ring/Power Light, Latching/Momentary Reset, for Car Modification & Industrial Control

Product Description

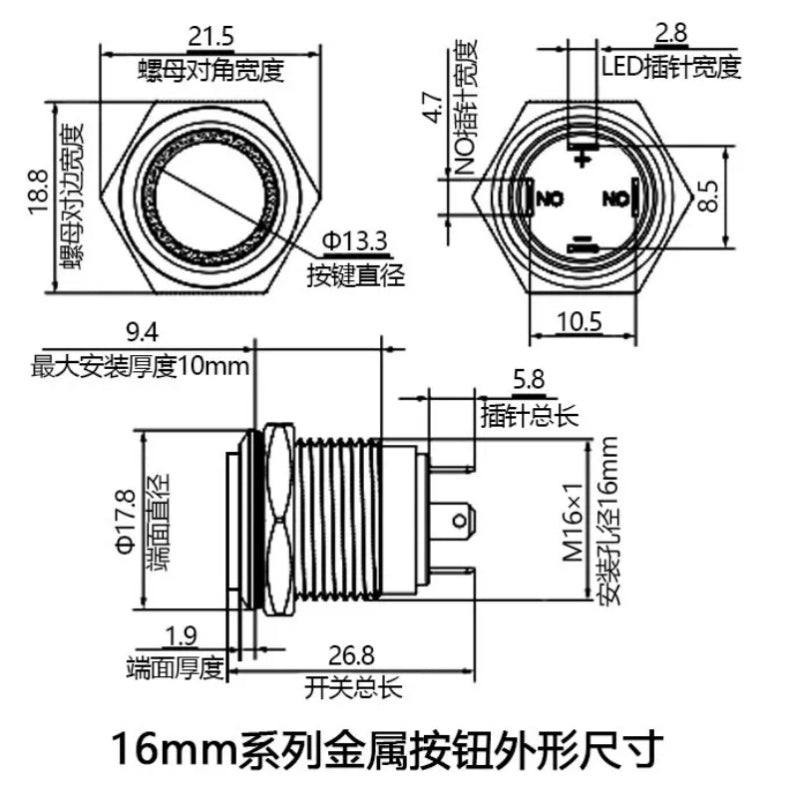

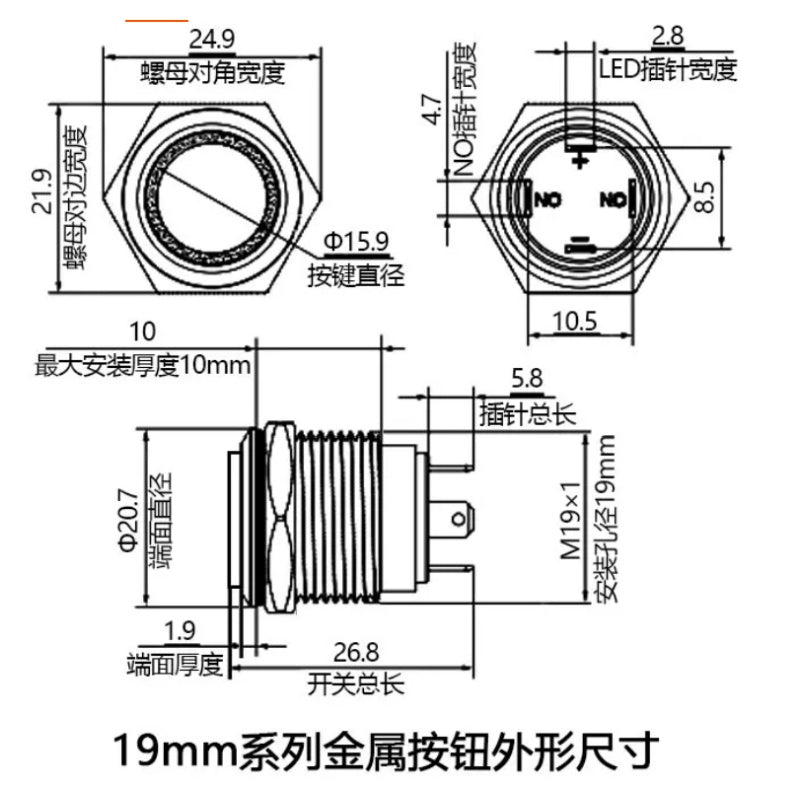

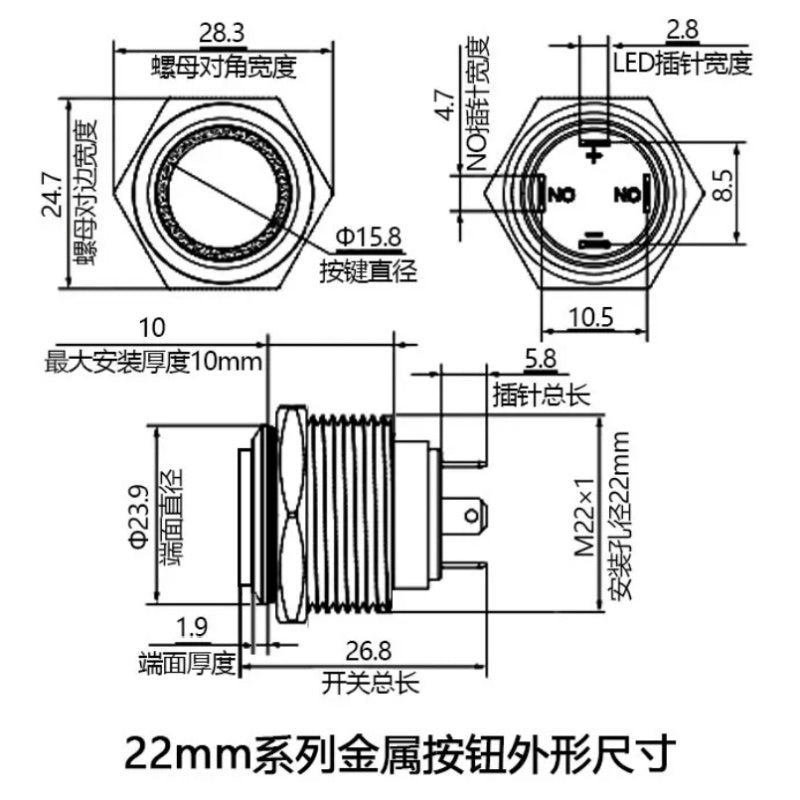

This short high-head metal push button switch is designed for heavy-duty applications, featuring a compact 26.8mm total length, 20A high-current capacity, and IP67 waterproof rating. Ideal for car modification, industrial equipment, and DIY projects, it offers both latching (self-locking) and momentary (self-resetting) functions, with optional LED lighting for clear status indication.

Key Features

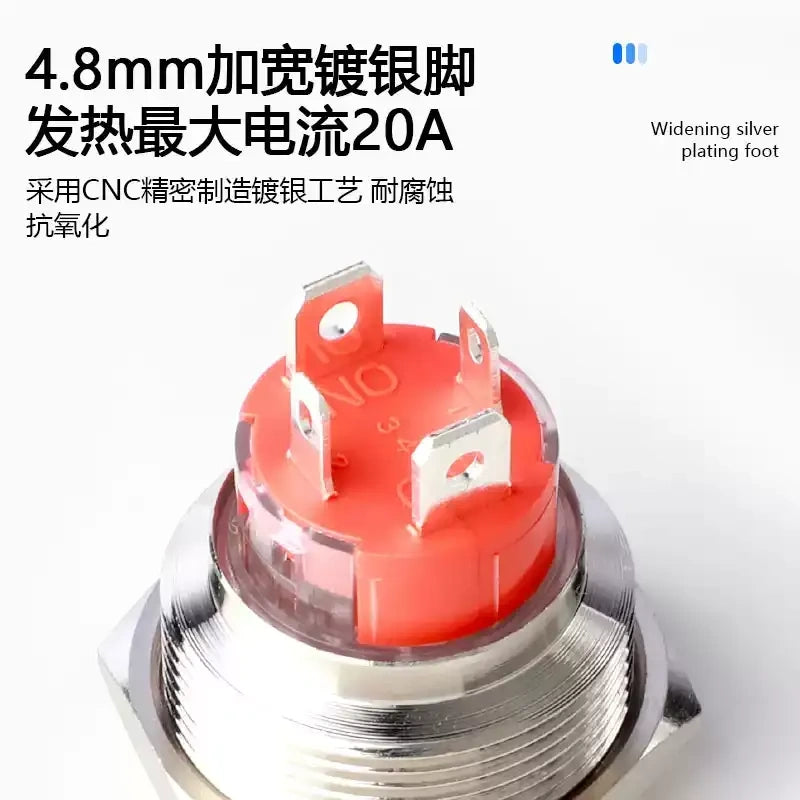

✅ High-Current Performance: 4.8mm widened silver-plated pins support up to 20A continuous current, with CNC silver-plating for corrosion and oxidation resistance.

✅ IP67 Waterproof & Dustproof: Rigorously tested for water splash resistance, suitable for outdoor, marine, and humid environments.

✅ Flexible Operation Modes: Choose latching (press once ON, press again OFF) or momentary (press ON, release OFF) for different control needs.

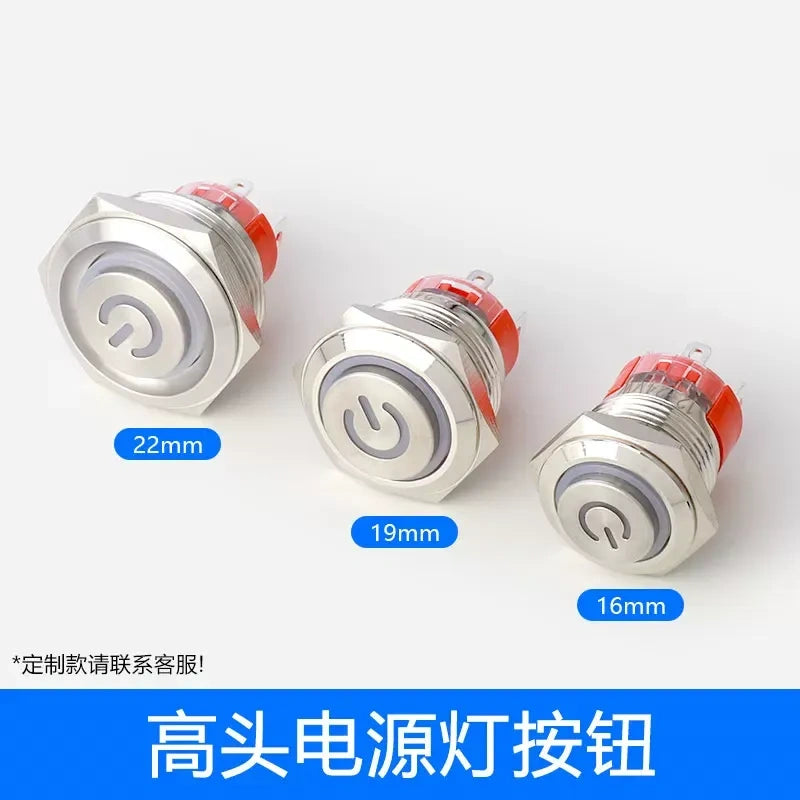

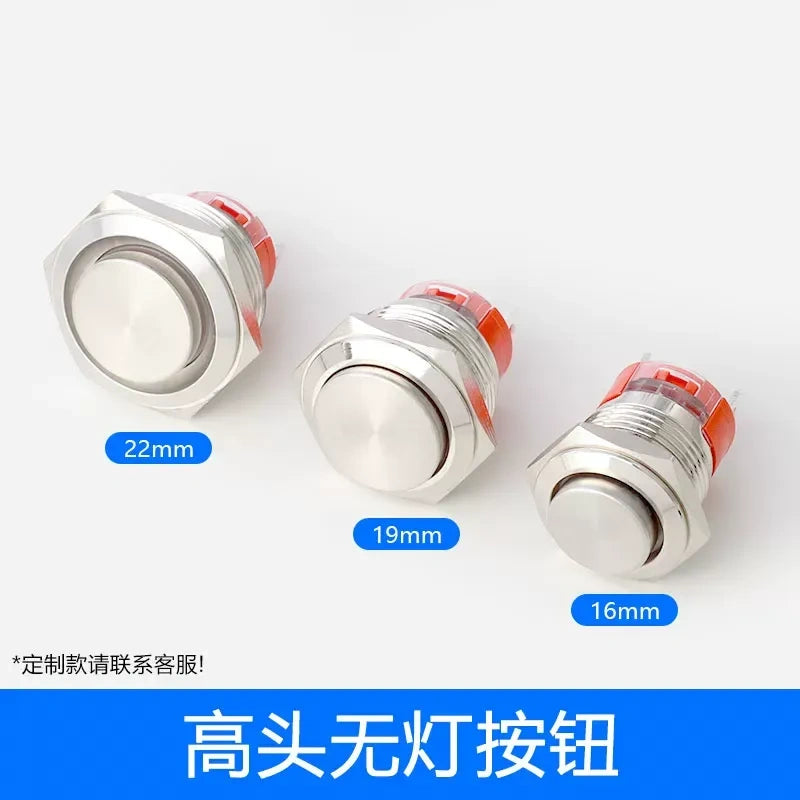

✅ Illuminated LED Options: Available with no light, power light, or ring light in red/green/yellow/blue/white for clear visibility.

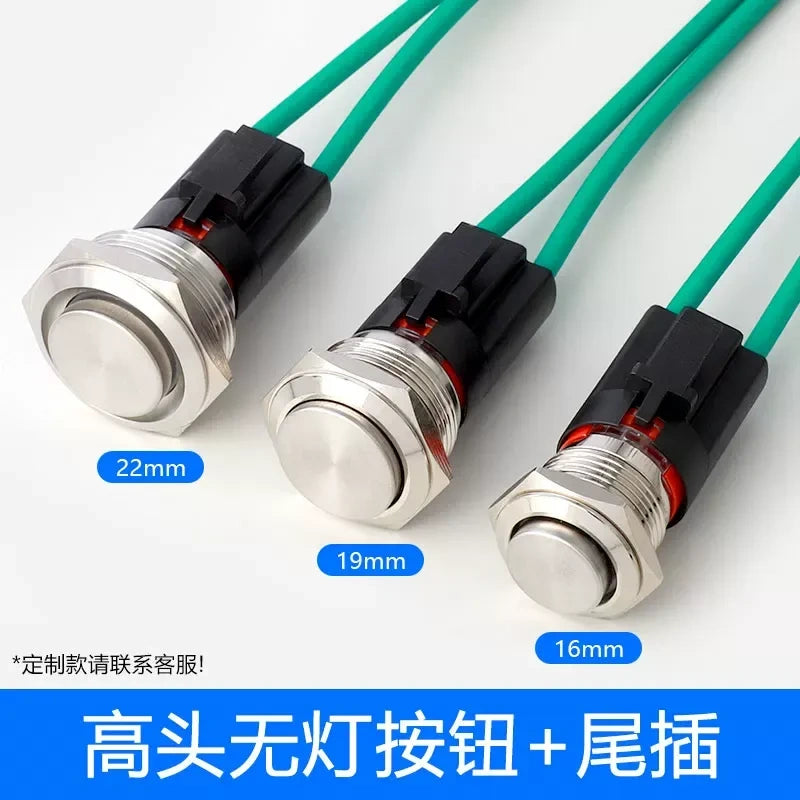

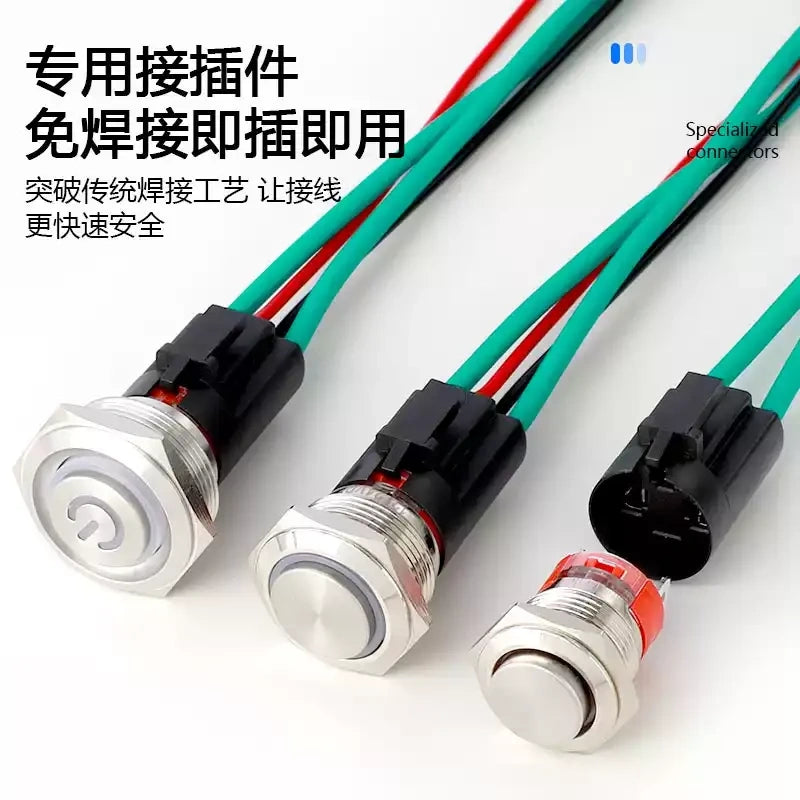

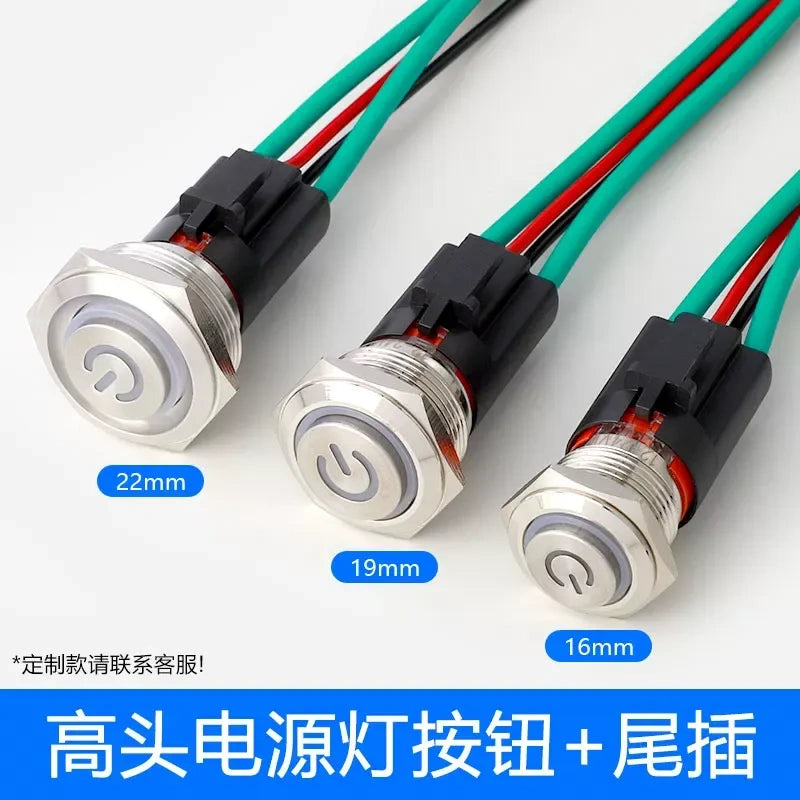

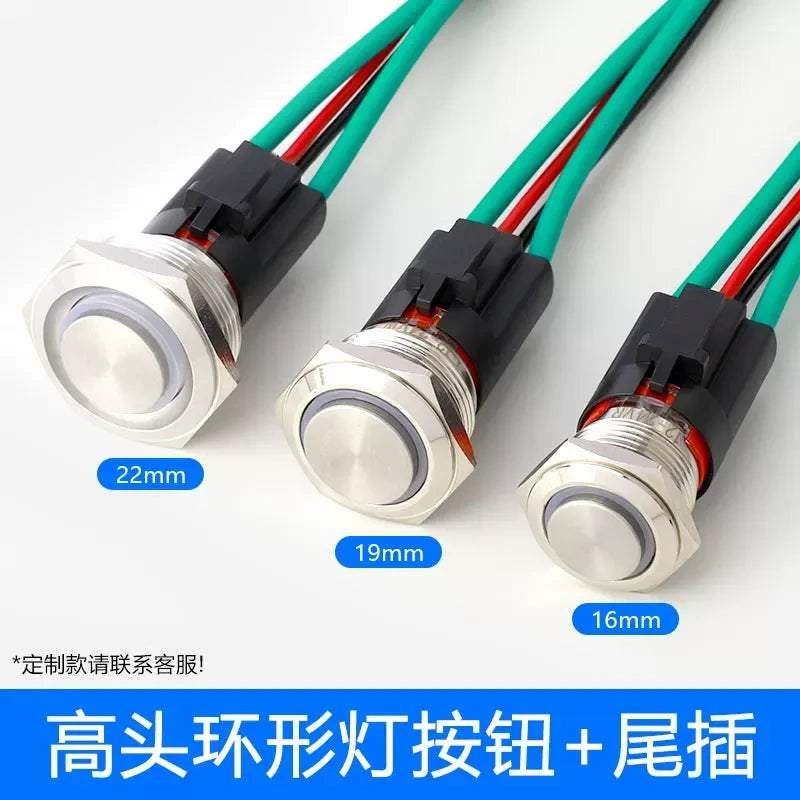

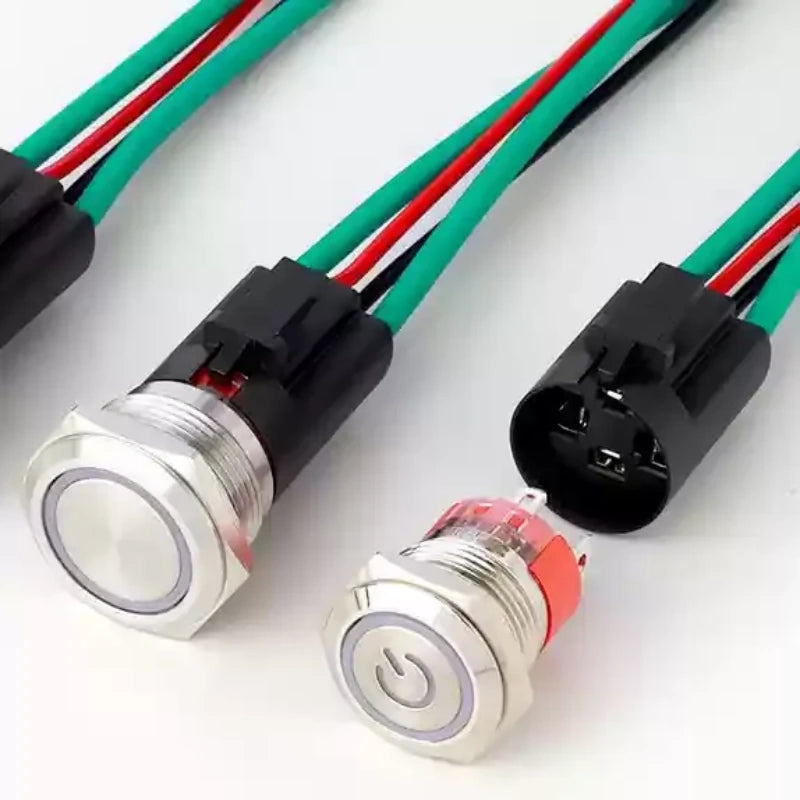

✅ Quick Installation: Optional no-solder tail plug for fast, safe wiring without soldering.

✅ Durable Build: Stainless steel/nickel-plated brass body with silver tin oxide contacts, rated for -25°C to 55°C operation.

Specifications

DATA SHEET

Attribute English Value
Product Type Push Button Switch
Material Metal (Stainless Steel/Brass)
Head Style Short High-Head

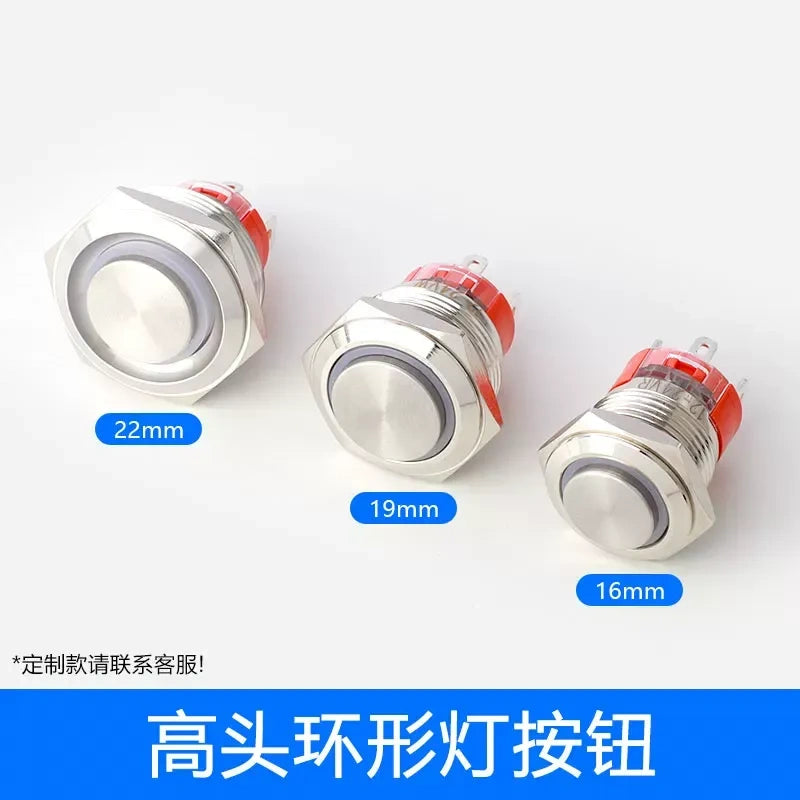

Mounting Size 16mm, 19mm, 22mm
Rated Current 20A Max
Rated Voltage 12-24V / 220V
Waterproof Rating IP67
Function Mode Latching / Momentary Reset
LED Type No Light / Power Light / Ring Light
LED Color Red, Green, Yellow, Blue, White
Connector Optional No-Solder Tail Plug
Application Car Modification, Industrial Control, Marine, DIY
Condition Brand New
