Schneider RPM12/22/32/42 Power Relay
Regular price
$31.00 NZD
Regular price
Sale price
$31.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

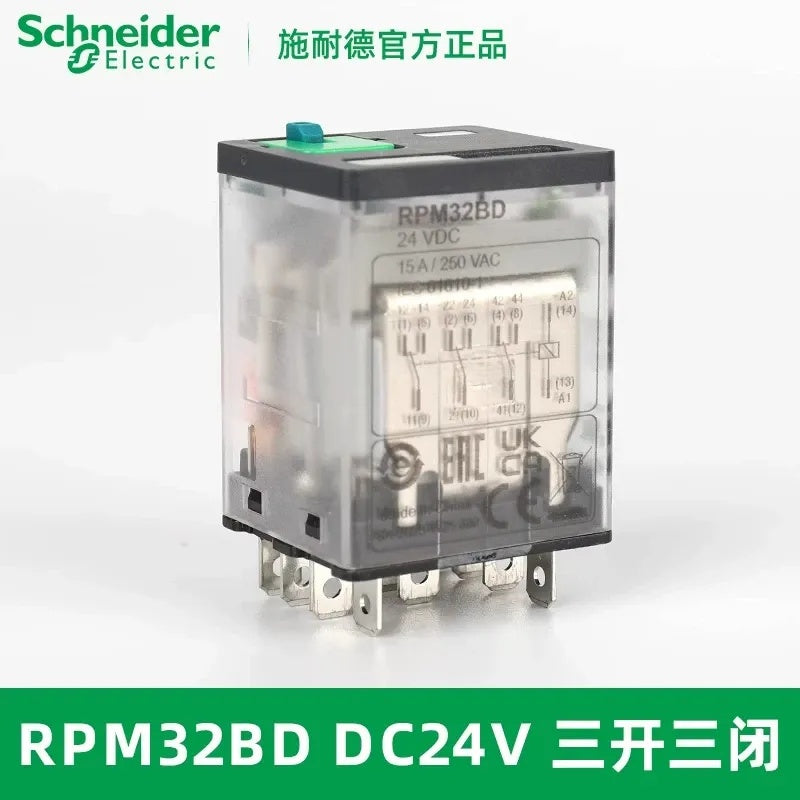

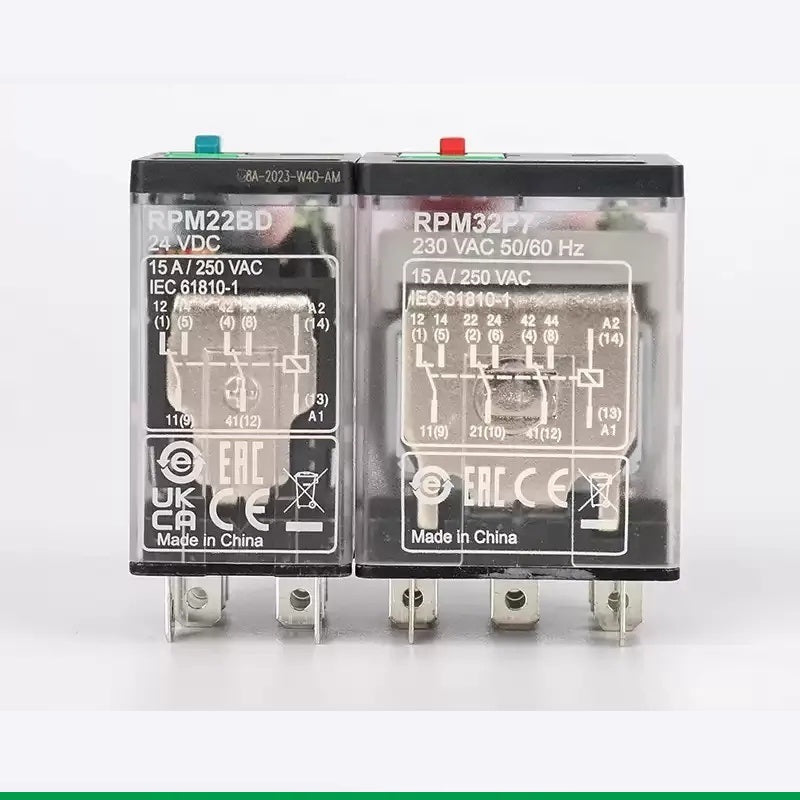

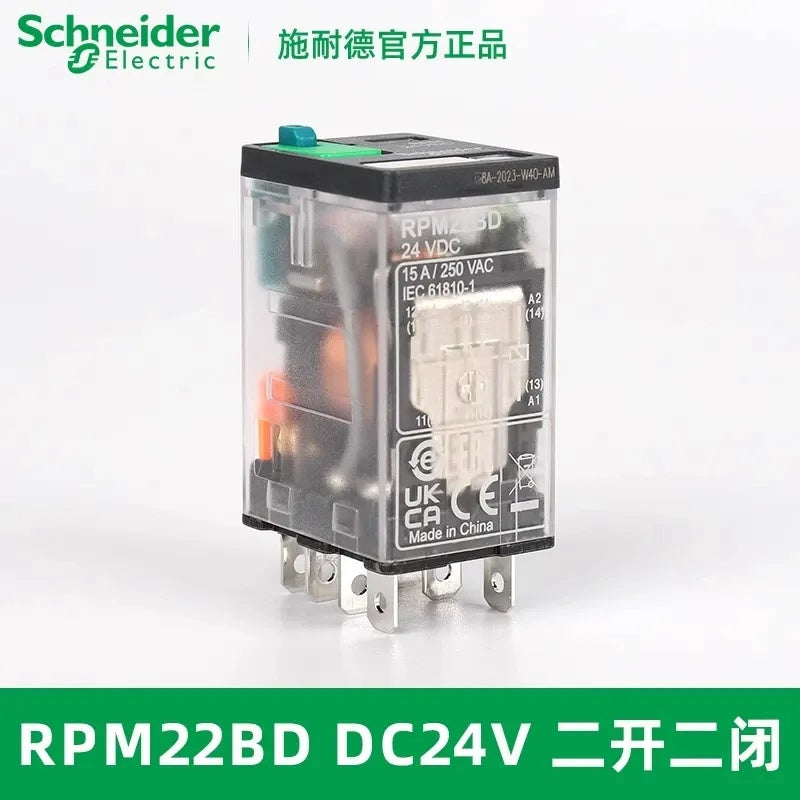

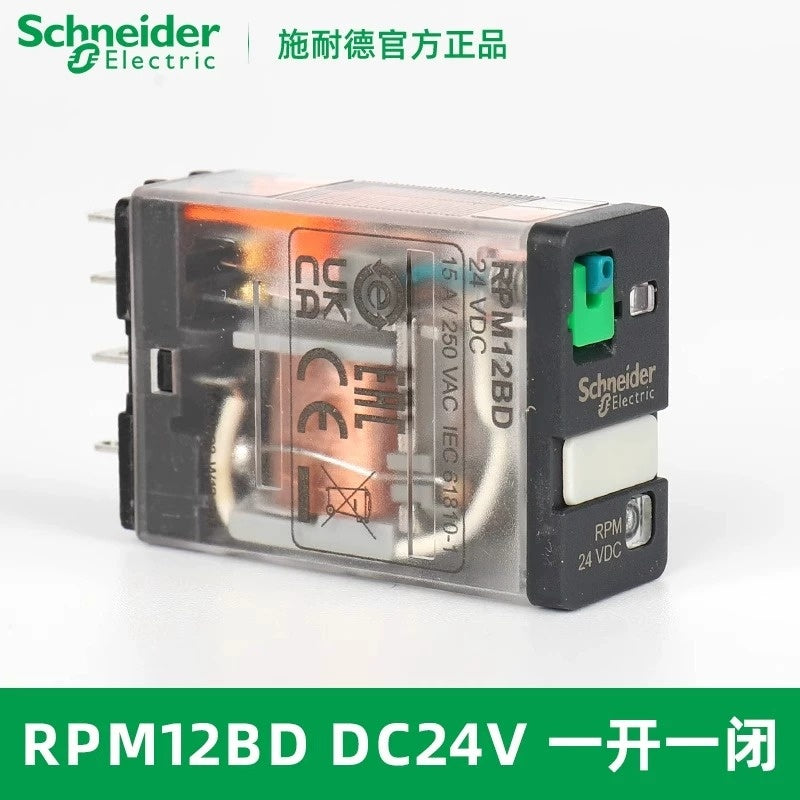

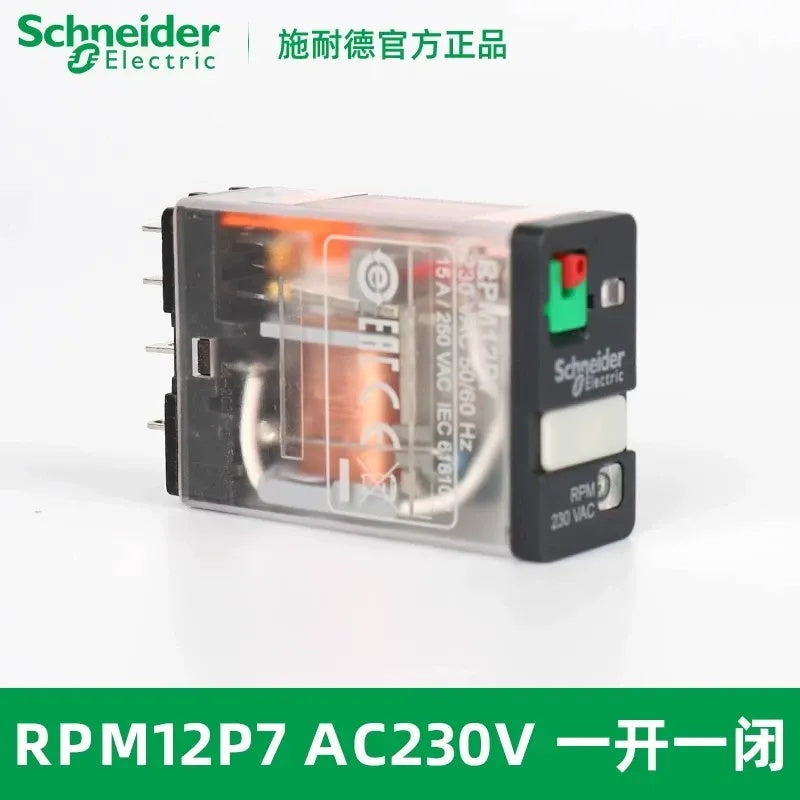

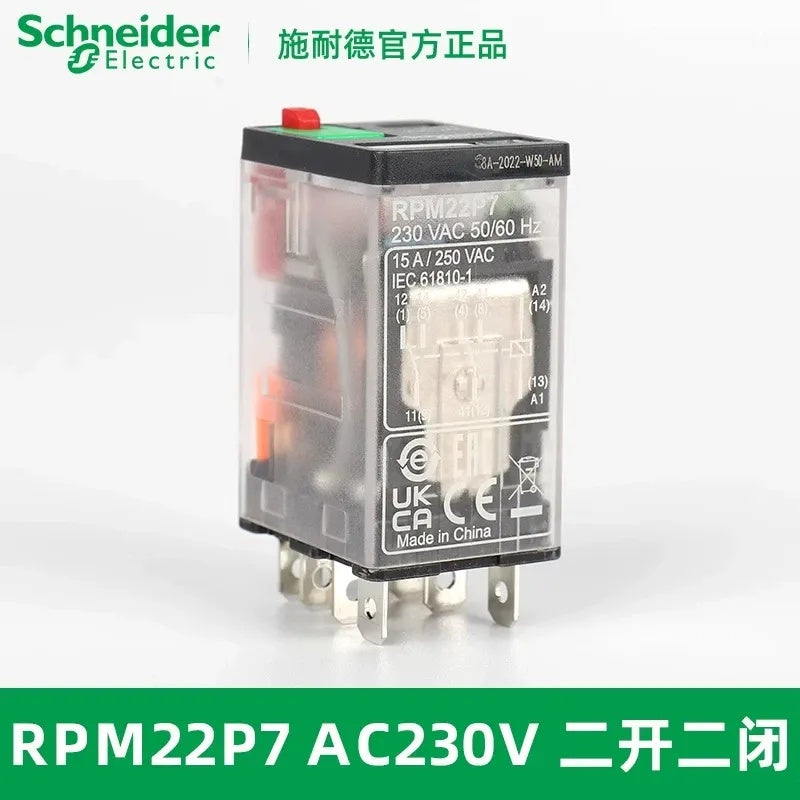

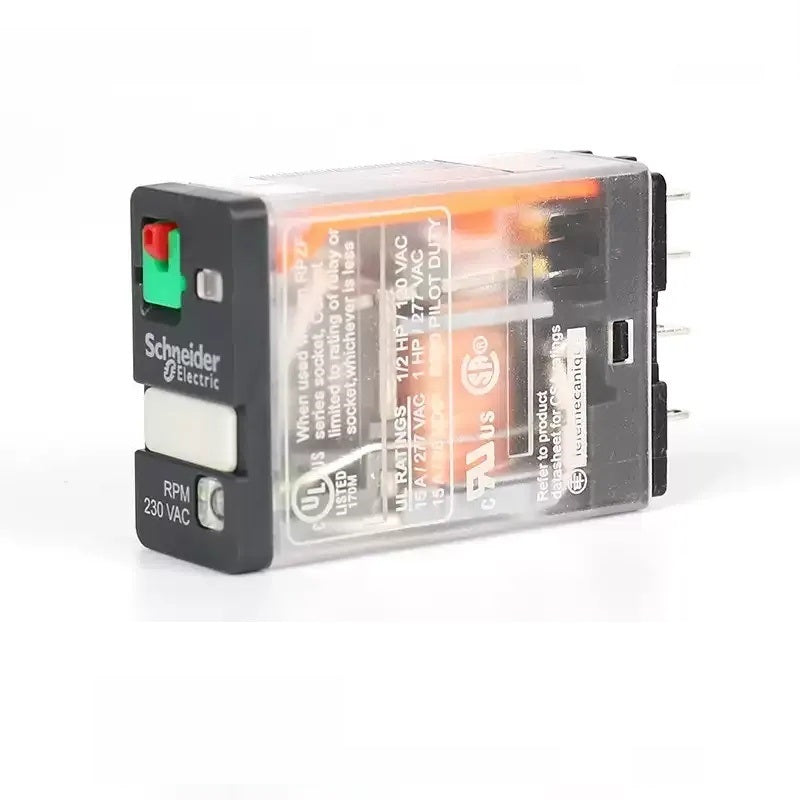

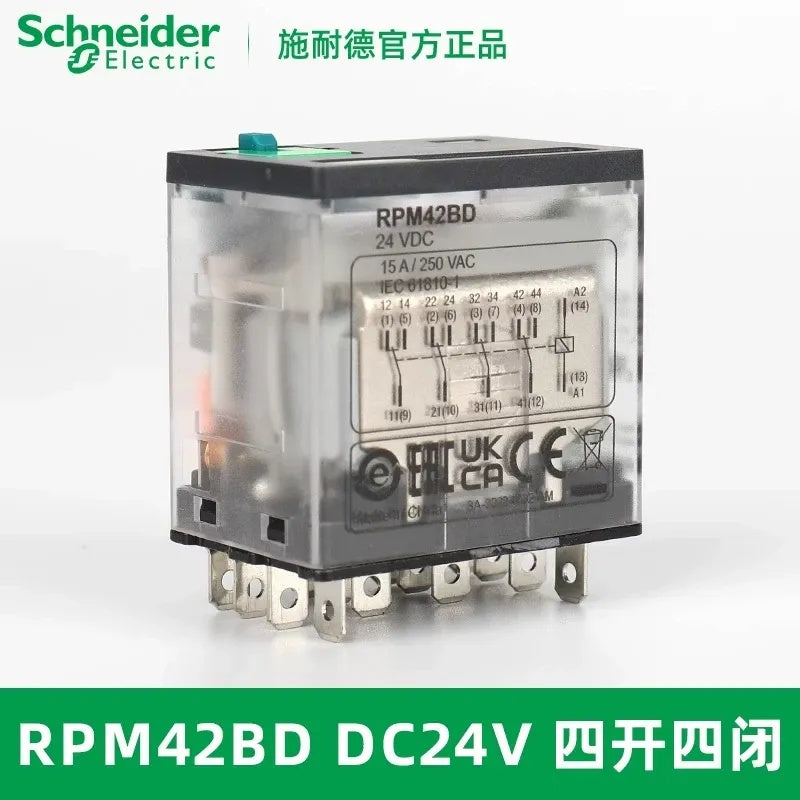

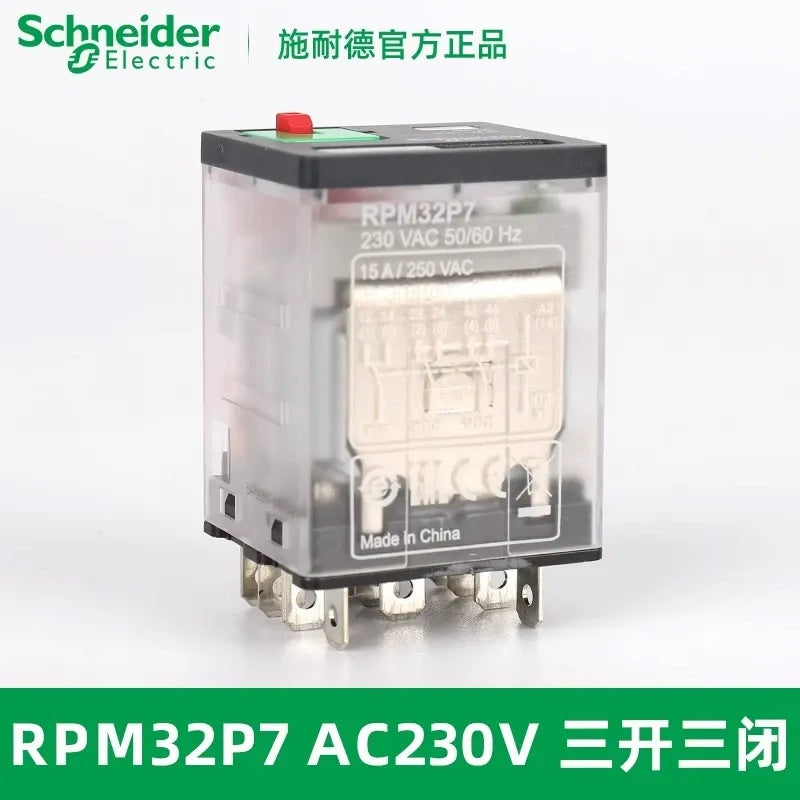

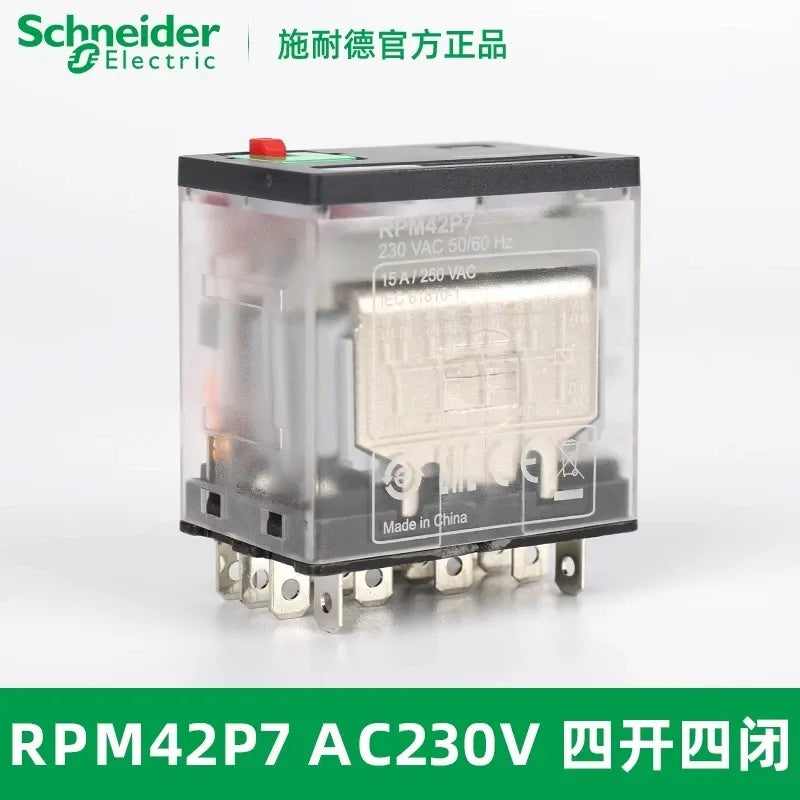

Schneider RPM12BD/RPM22P7/RPM32BD/RPM42P7 Power Relay, 15A, 1NO1NC to 4NO4NC, DC24V/AC230V, with RPZF1/RPZF2/RPZF3/RPZF4 Socket
Product Description
The Schneider RPM Series Power Relay is a high-performance industrial relay designed for heavy-duty control applications. With a 15A rated current, multiple contact configurations, and a robust plug-in design, it delivers reliable switching performance for motor control, power distribution, and automation systems.
✅ Core Features
- High Power Rating: 15A contact rating, suitable for high-current industrial control circuits.

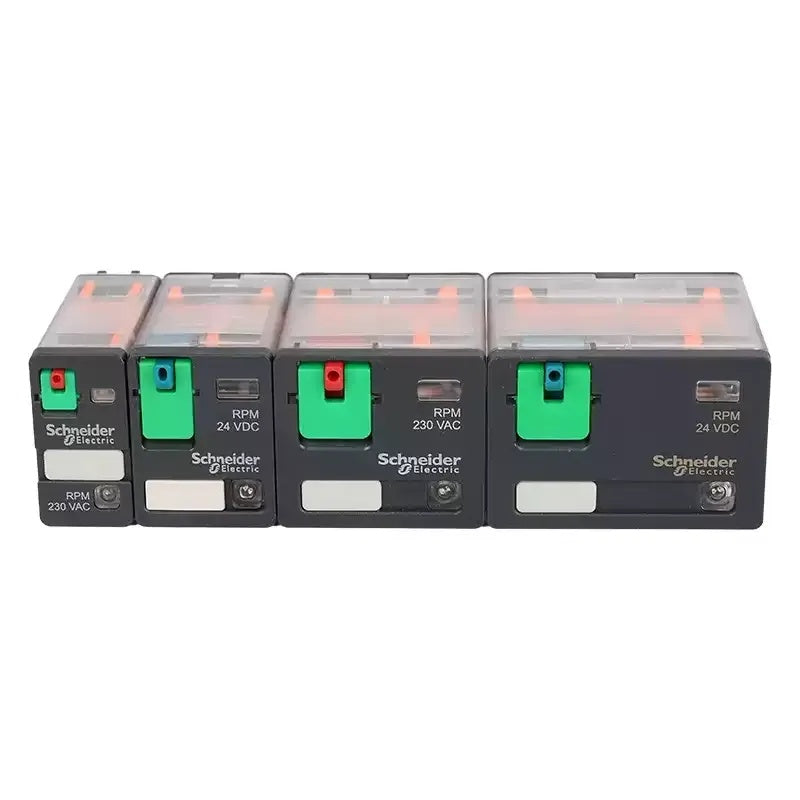

- Multiple Contact Configurations: 1NO1NC, 2NO2NC, 3NO3NC, and 4NO4NC options to match different application needs.
- Dual Coil Voltage Options: Available in DC24V (BD) and AC230V (P7) coil versions.
-
User-Friendly Design:
- Test button for manual operation testing
- Mechanical status indicator window
- Lockable test button for maintenance safety
- Optional LED status indicator (model-dependent)
- Modular Compatibility: Works seamlessly with RPZF series sockets (RPZF1/RPZF2/RPZF3/RPZF4) and optional protection/timer modules.
- Durable Construction: Designed for long-term use in industrial environments, with anti-interference capability and reliable contact performance.
✅ Technical Specifications
| Model Series | RPM12** | RPM22** | RPM32** | RPM42** |
|---|---|---|---|---|
| Contact Configuration | 1NO1NC | 2NO2NC | 3NO3NC | 4NO4NC |
| Rated Current | 15A | 15A | 15A | 15A |
| Coil Voltage | DC24V/AC230V | DC24V/AC230V | DC24V/AC230V | DC24V/AC230V |
| Compatible Socket | RPZF1 | RPZF2 | RPZF3 | RPZF4 |
| Features | Test button, mechanical indicator | Test button, mechanical indicator | Test button, mechanical indicator | Test button, mechanical indicator |
| Mounting Type | Plug-in (DIN rail/panel mount via socket) | Plug-in (DIN rail/panel mount via socket) | Plug-in (DIN rail/panel mount via socket) | Plug-in (DIN rail/panel mount via socket) |

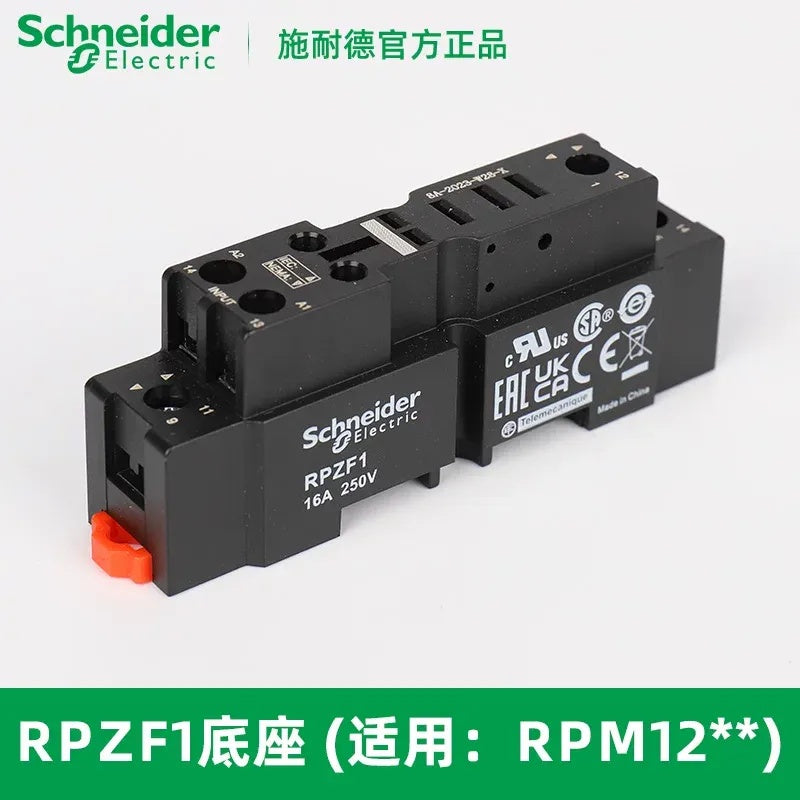

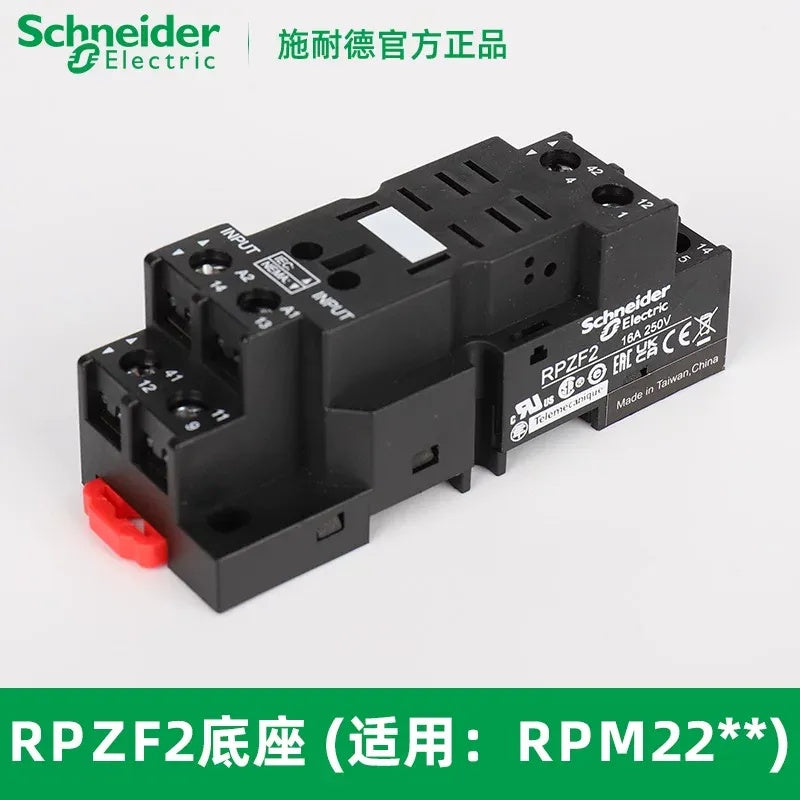

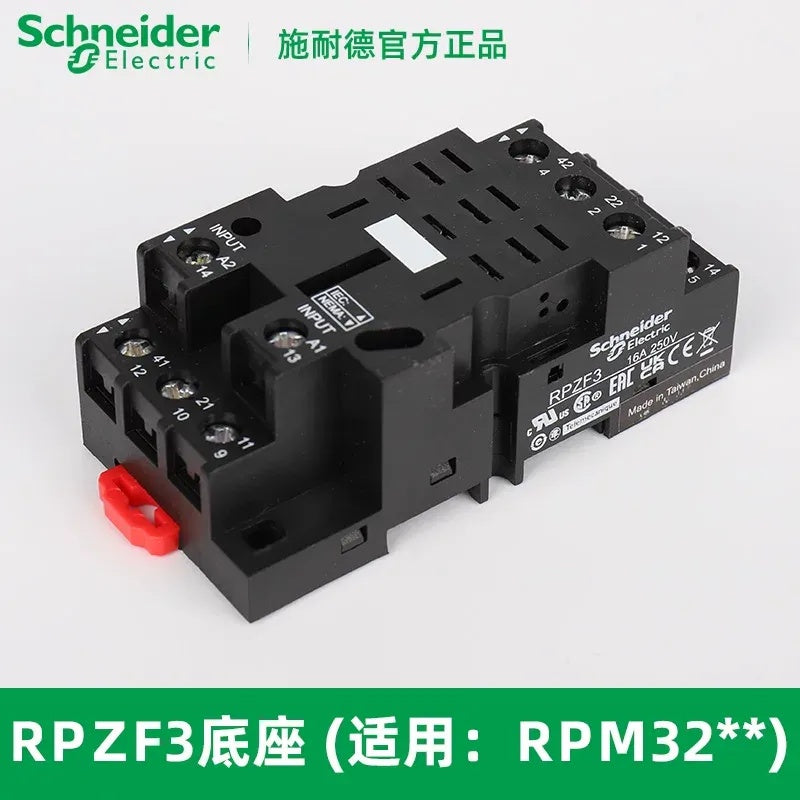

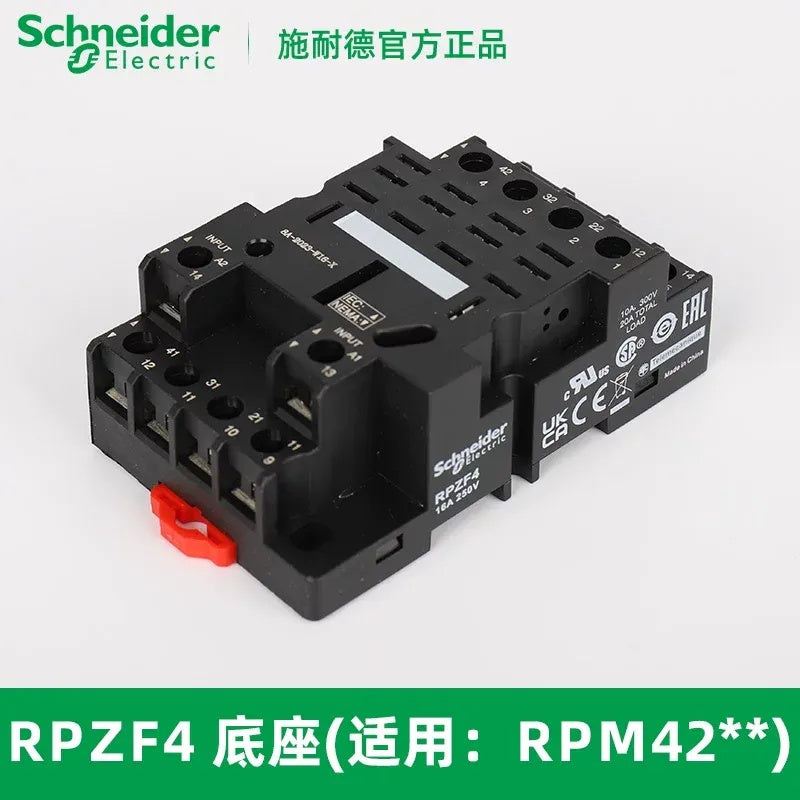

✅ RPZF Socket Features
- Mixed Terminal Design: Combines coil and contact wiring terminals for flexible installation.
- Screw Terminal Connection: Secure wiring with screw-type terminals.
- DIN Rail Mounting: Compatible with standard DIN rails for control cabinet installation.
- Module Compatibility: Supports additional protection modules (diode, RC circuit) and timer modules.
✅ Wide Applications
Ideal for motor control, lighting control, power distribution cabinets, industrial automation equipment, PLC systems, and other high-current switching applications.
DATA SHEET
| 字段 | 英文属性值 |
|---|---|
| Product Type | Power Relay / Plug-in Electromagnetic Relay / Industrial Control Relay |
| Brand | Schneider Electric |
| Series | RPM Series |
| Models | RPM12BD/RPM12P7, RPM22BD/RPM22P7, RPM32BD/RPM32P7, RPM42BD/RPM42P7 |
| Contact Configuration | 1NO1NC, 2NO2NC, 3NO3NC, 4NO4NC |
| Rated Current | 15A |
| Coil Voltage | DC24V, AC230V |
| Compatible Sockets | RPZF1, RPZF2, RPZF3, RPZF4 |
| Features | Test Button, Mechanical Status Indicator, Lockable Test Function, Optional LED Indicator |
| Mounting Type | Plug-in (DIN Rail / Panel Mount via Socket) |
| Socket Type | Mixed Terminal Socket with Screw Connections |
| Application Scenarios | Motor Control, Lighting Control, Industrial Automation, PLC Control, Power Distribution |
