electrical center b2c

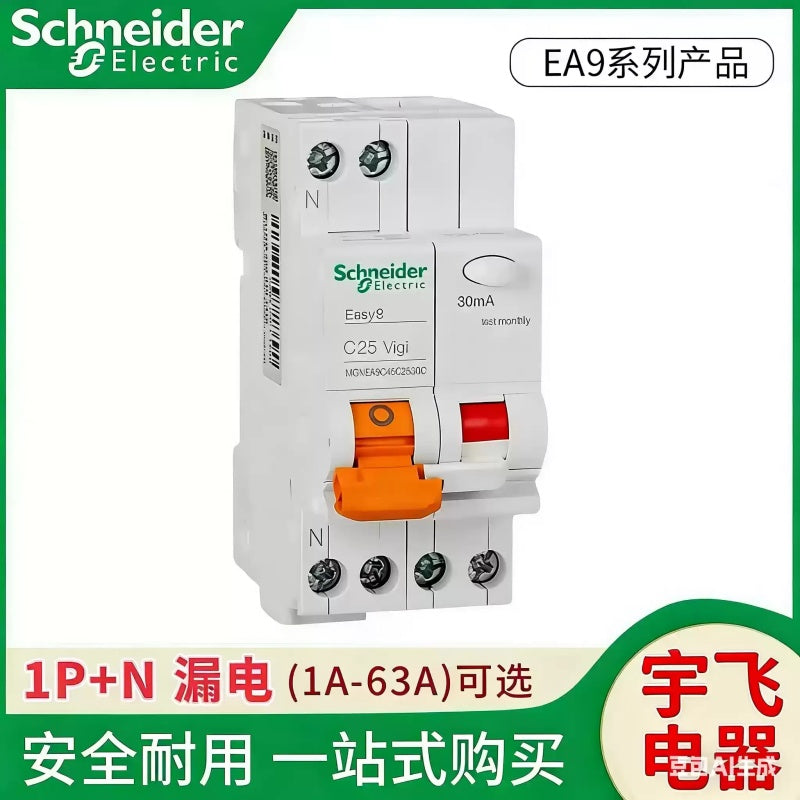

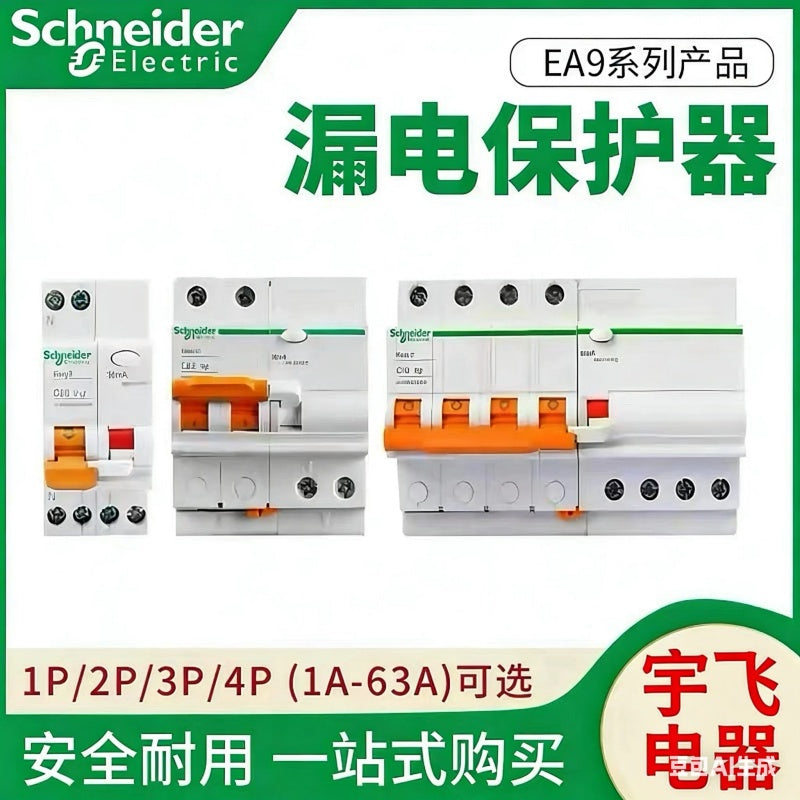

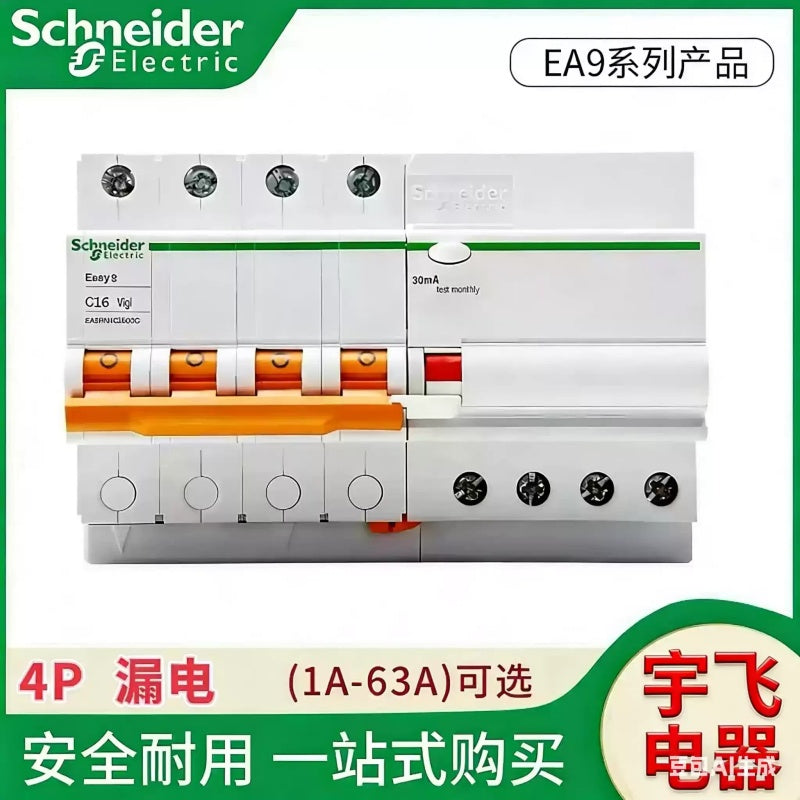

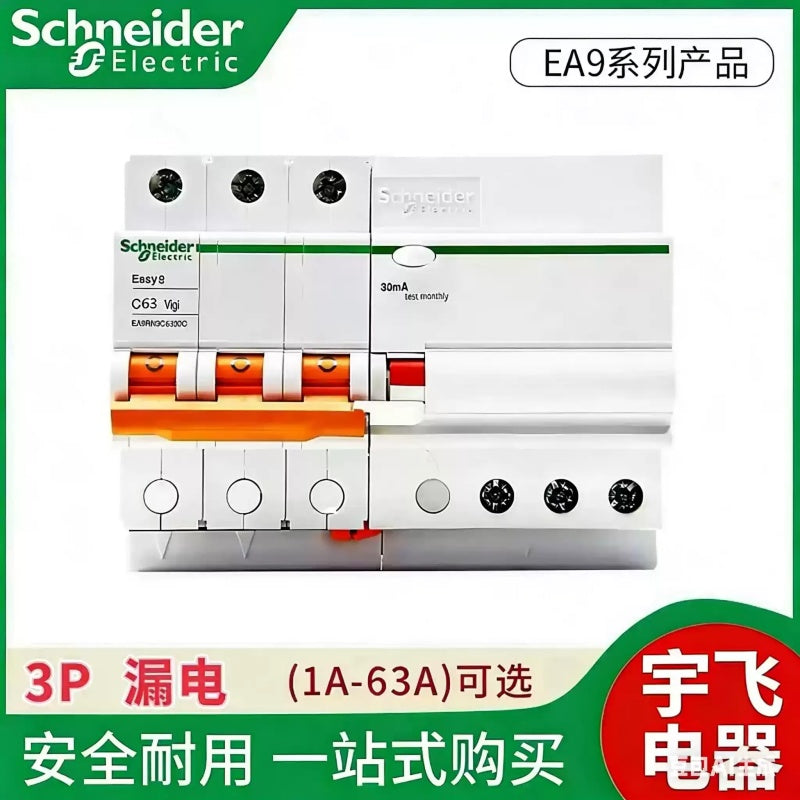

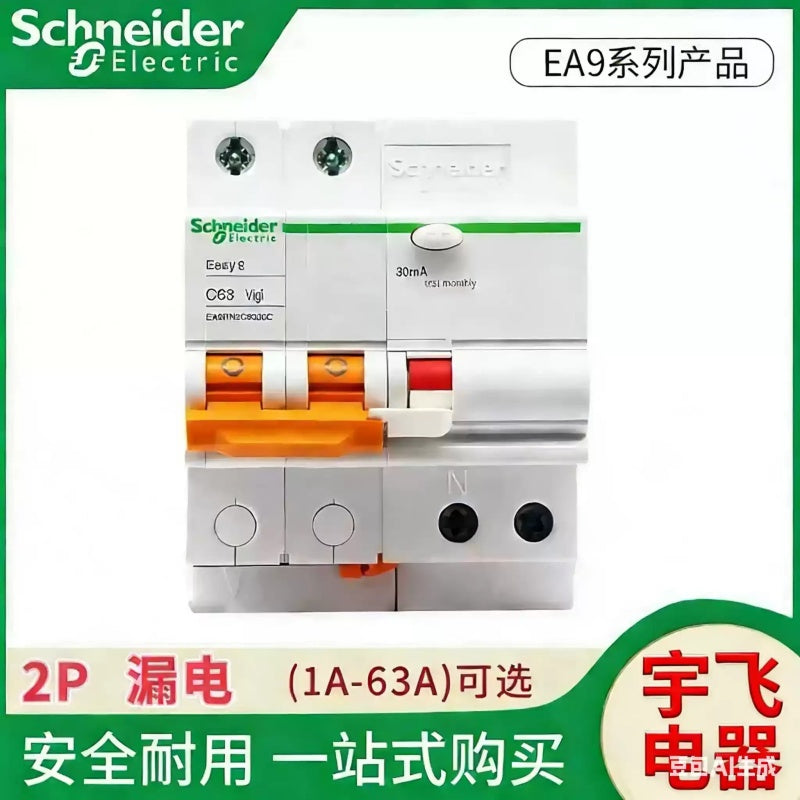

Schneider EA9RN Vigi Leakage Protection Circuit Breaker

$51.00 NZD
$111.00 NZD $51.00 NZD
Sale Sold out
Shipping calculated at checkout.
Pole Number
Rated Current

Schneider EA9RN Vigi RCBO, 1P+N 20A C Curve, 2P/3P/4P 1-63A, Residual Current Circuit Breaker with Overload Protection

Product Description


The Schneider EA9RN Vigi Series RCBO (Residual Current Circuit Breaker with Overcurrent Protection) combines residual current (leakage) protection with overload and short-circuit protection in a single compact unit. Designed for AC power distribution systems, it provides comprehensive safety for residential, commercial, and industrial applications.

✅ Core Features

  • Multi-Pole Configurations: Available in 1P+N, 2P, 3P, and 4P versions to suit single-phase and three-phase systems.
  • Wide Current Range: Rated currents from 1A to 63A, covering diverse load requirements from lighting circuits to heavy machinery.
  • C and D Trip Curves:
    • C Curve: Ideal for general resistive and inductive loads (lighting, home appliances).
    • D Curve: Designed for high inrush current loads (motors, transformers, industrial equipment).

  • Dual Protection: Integrates residual current protection (leakage) with overload and short-circuit protection.
  • DIN Rail Mount: Compact form factor for installation in standard 35mm distribution boards.
  • Reliable Safety Compliance: Meets IEC/EN 61009-1 standards, with certifications for global use.

✅ Applications

  • Residential electrical distribution panels
  • Commercial building power systems
  • Industrial machinery and equipment control
  • Lighting circuits, HVAC systems, and motor circuits
  • Offices, retail spaces, and public facilities

DATA SHEET

字段 英文属性值
Product Type RCBO (Residual Current Circuit Breaker with Overcurrent Protection) / Leakage Protection Circuit Breaker
Brand Schneider Electric
Series EA9RN Vigi Series
Pole Configurations 1P+N, 2P, 3P, 4P
Rated Current Range 1A, 2A, 3A, 4A, 6A, 8A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60A, 63A
Trip Curves C Curve, D Curve
Protection Functions Residual Current (Leakage), Overload, Short-Circuit
Mounting Type DIN Rail Mount (35mm)
Standards IEC/EN 61009-1
Application Scenarios Residential, Commercial, Industrial Power Distribution, Lighting Circuits, Motor Control

Care Instructions
