Schneider Electric GV2ME14C 07C 08C GV2-ME Motor Thermal Magnetic Circuit Breaker
Couldn't load pickup availability
Schneider Electric GV2ME14C 07C 08C GV2-ME Motor Thermal Magnetic Circuit Breaker
Origin: Mainland China
Model Number: GV2ME
Certification: NONE
Voltage: 380V
Control type: Push button control
Welcome to our store!
-
If you have any questions or requests, please do not hesitate to contact us!
-
Product Name: Motor protection Breaker
-
Model:GV2ME
-
Condition: New and genuine

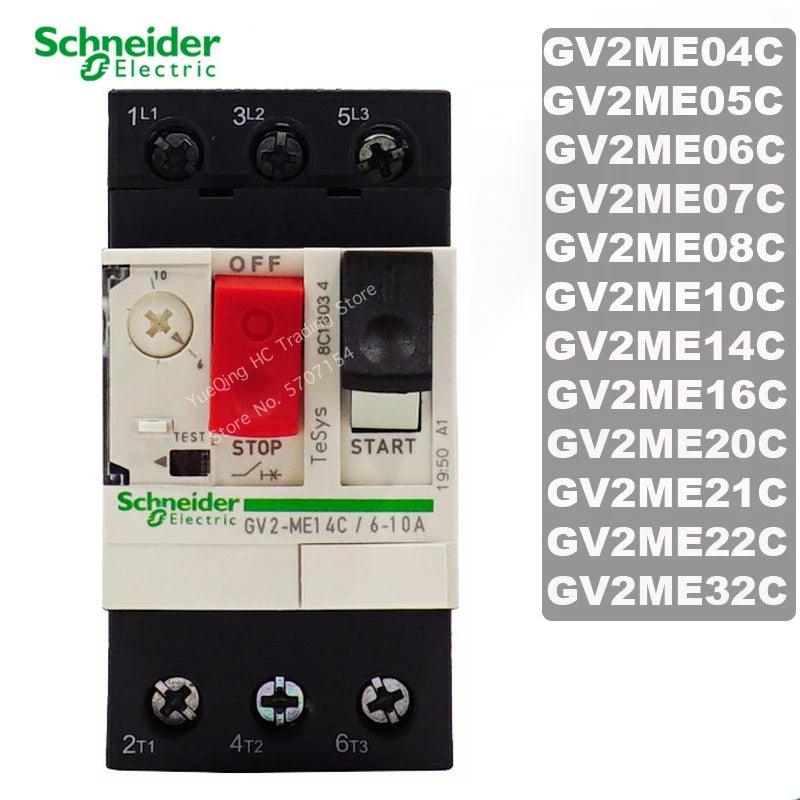

Schneider Electric GV2ME14C 04C 05C 06C 07C 08C 10C 16C 20C 21C 22C 32C Motor Thermal Magnetic Circuit Breaker Button 3P Protection Switch
parameter
GV2ME01C 0.1-0.16A
GV2ME02C 0.16-0.25A
GV2ME03C 0.25-0.4A

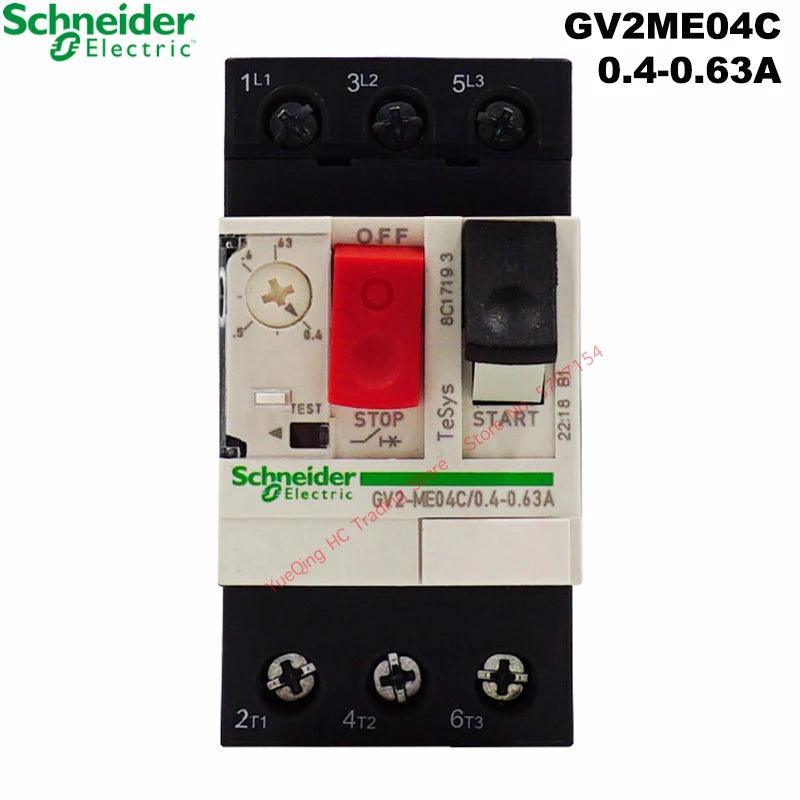

GV2ME04C 0.4-0.63A

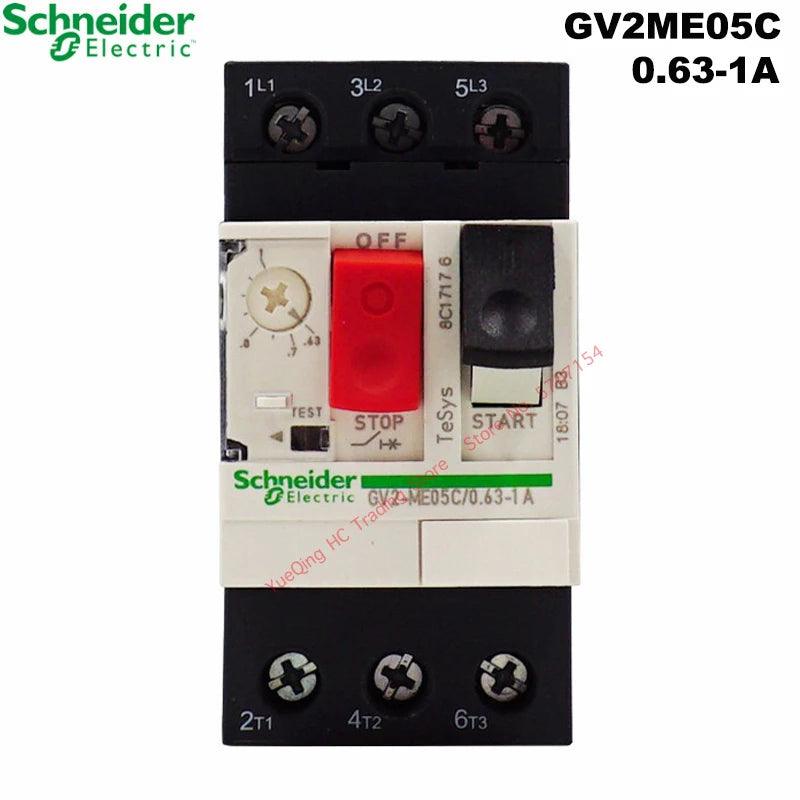

GV2ME05C 0.63-1A

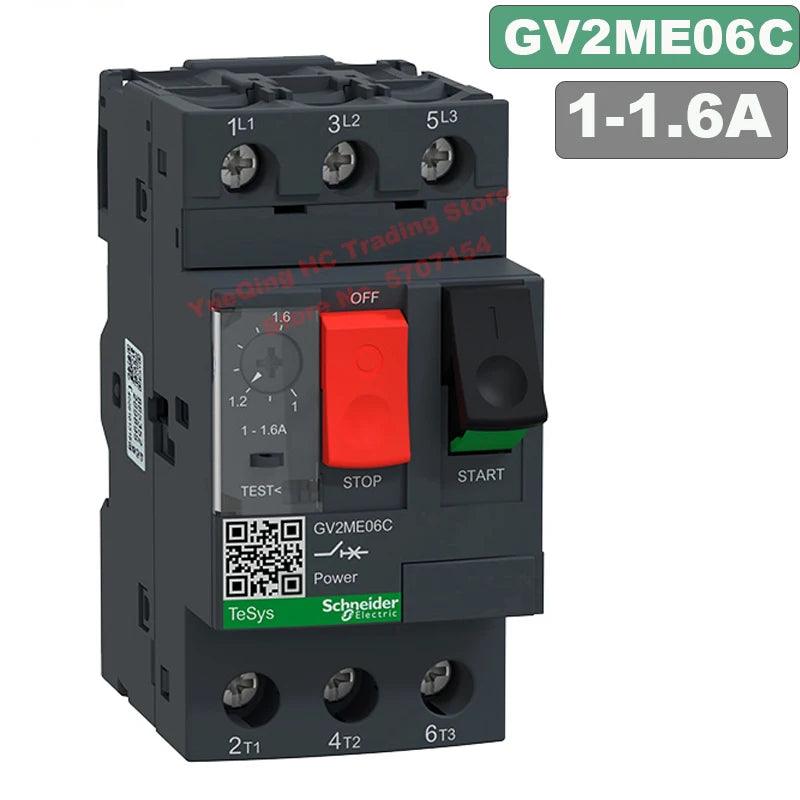

GV2ME06C 1-1.6A

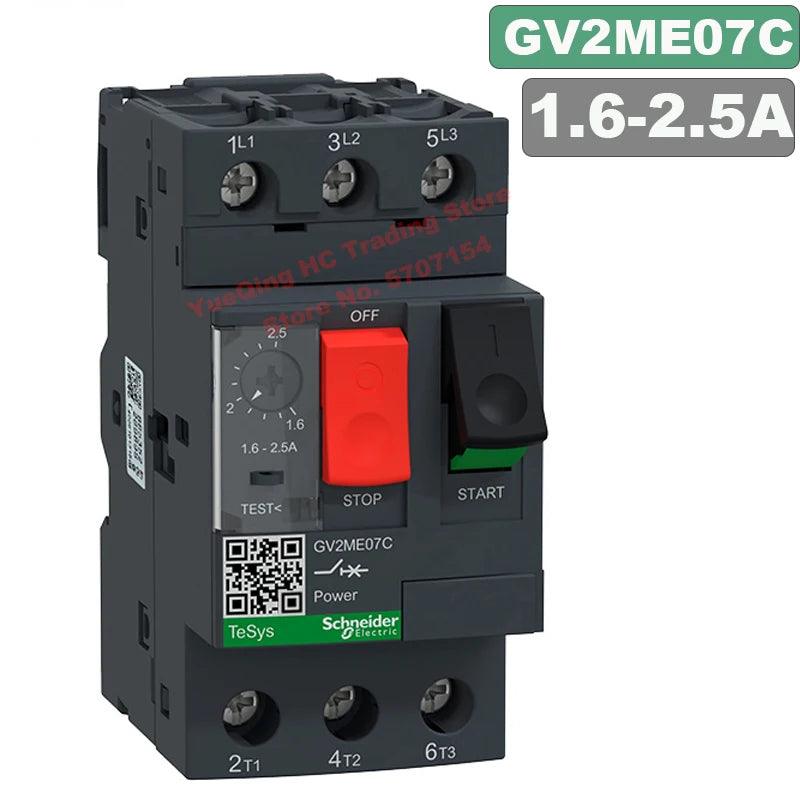

GV2ME07C 1.6-2.5A

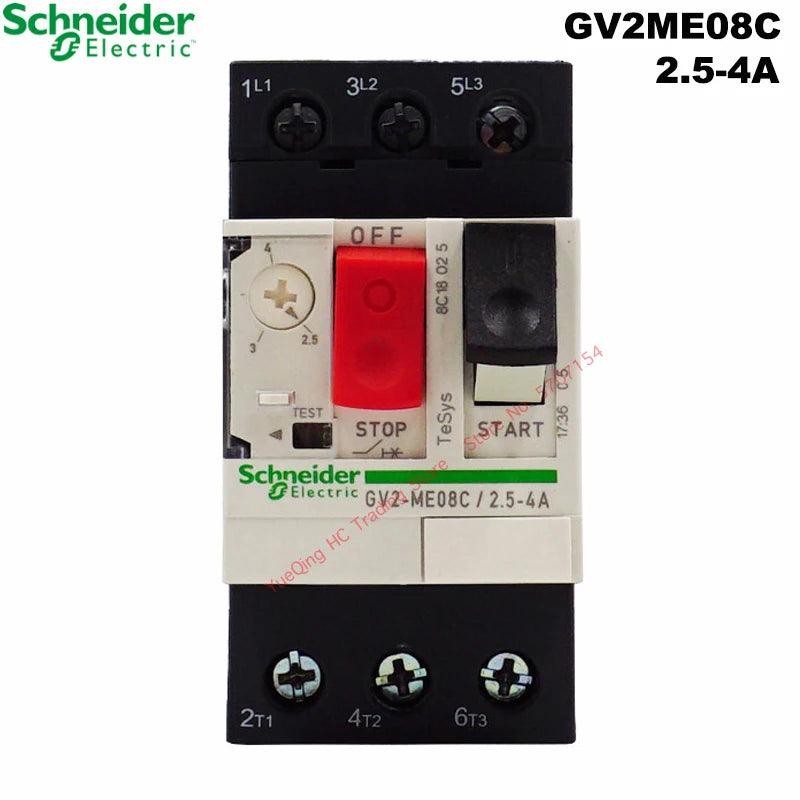

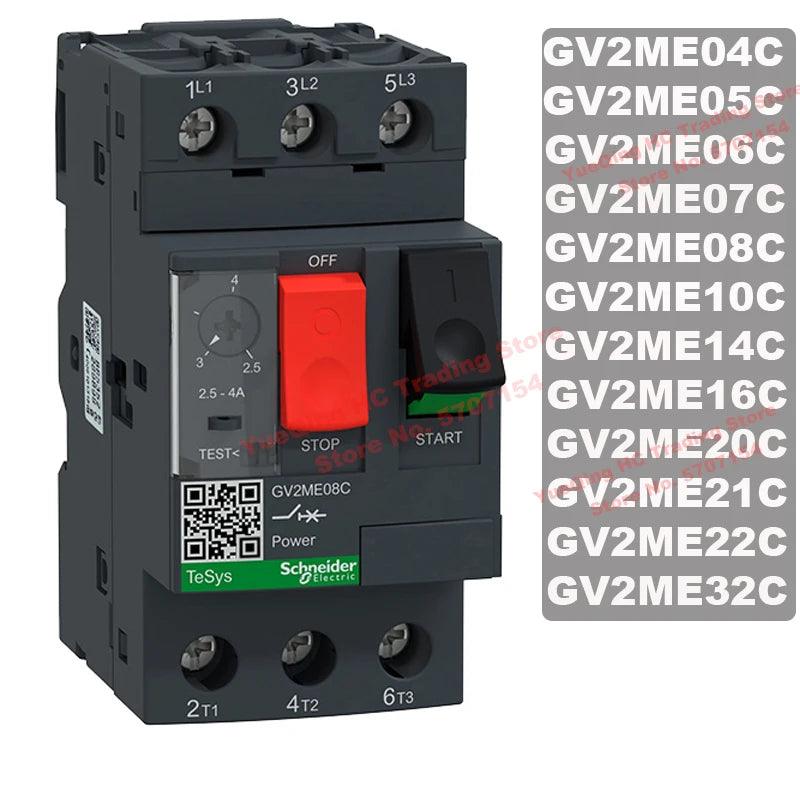

GV2ME08C 2.5-4A

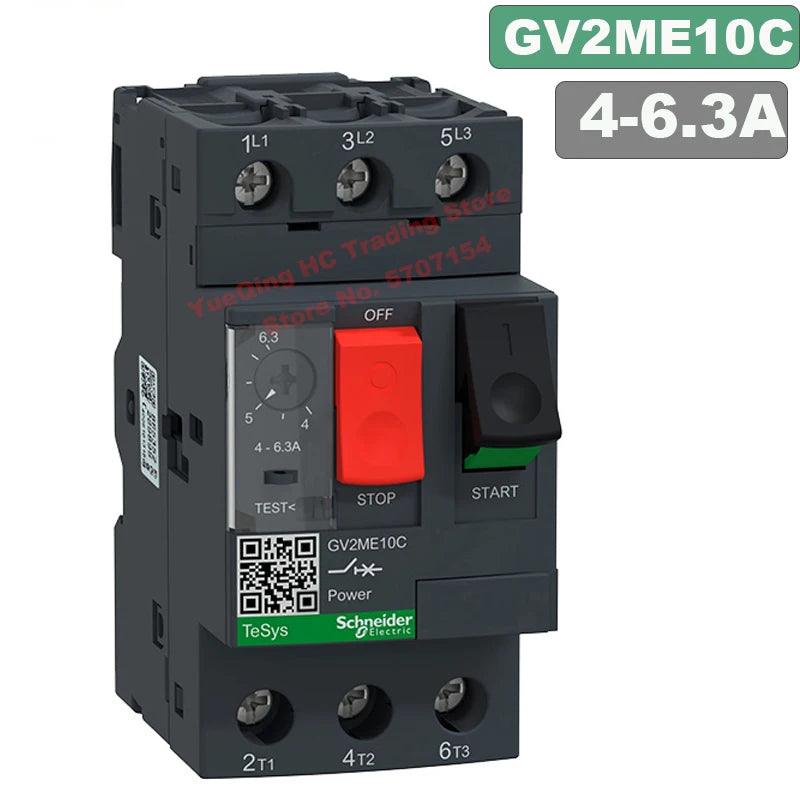

GV2ME10C 4-6.3A

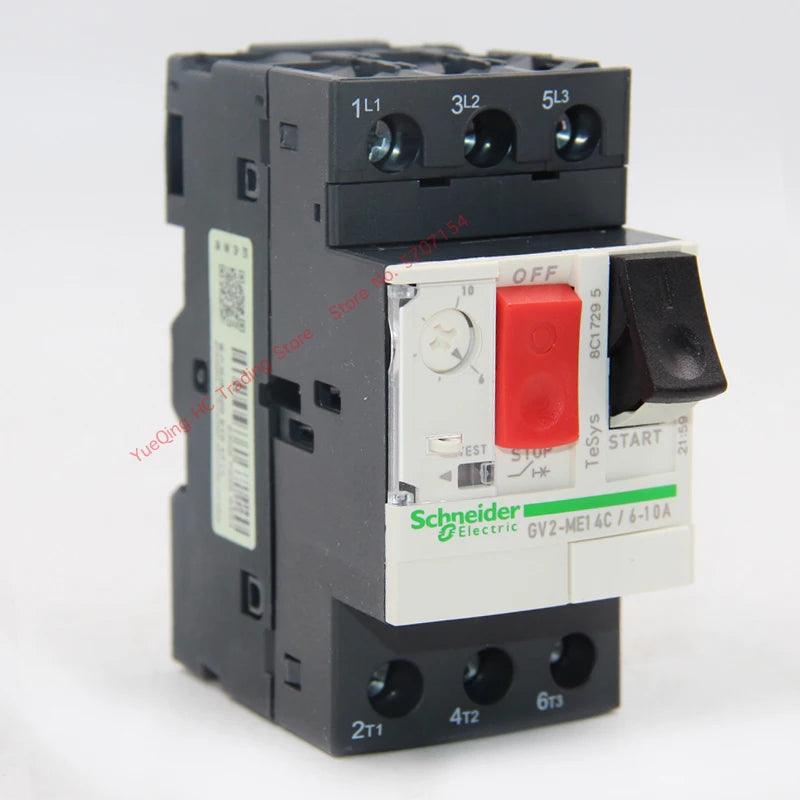

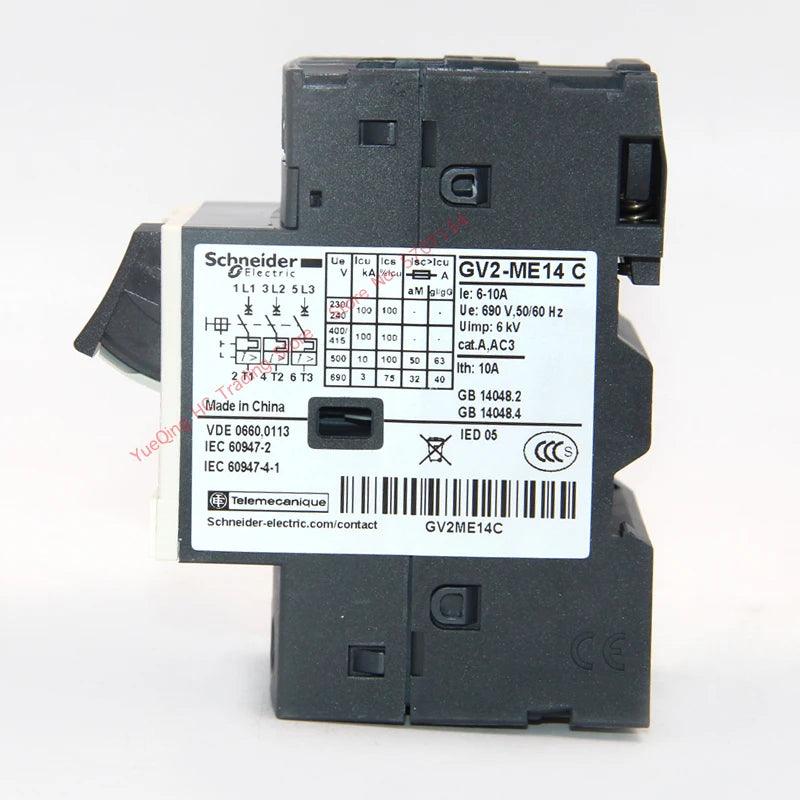

GV2ME14C 6-10A

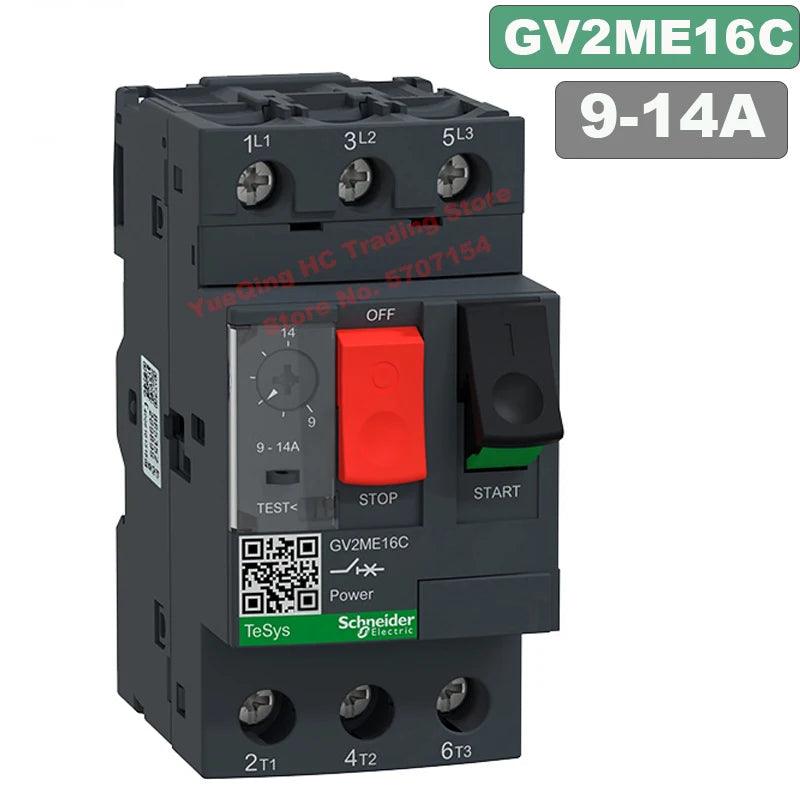

GV2ME16C 9-14A

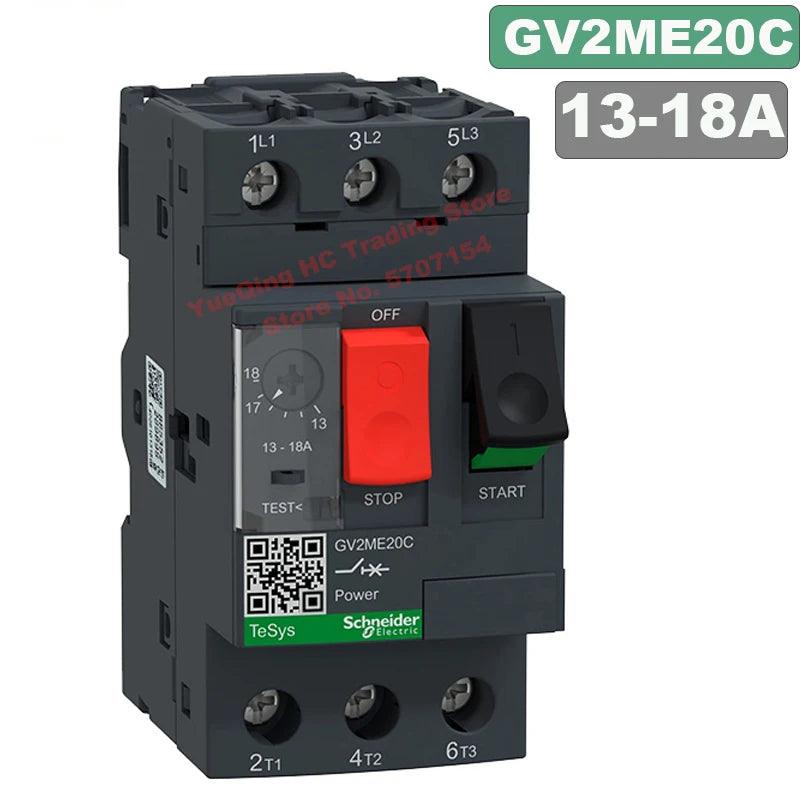

GV2ME20C 13-18A
GV2ME21C 17-23A
GV2ME22C 20-25A

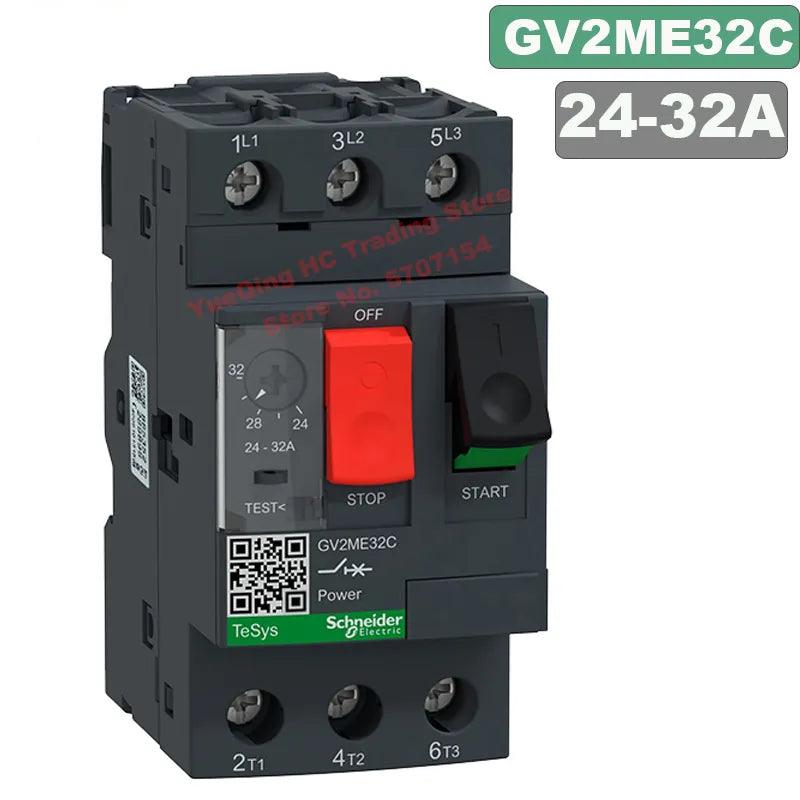

GV2ME32C 24-32A
|
Product Series |
TeSys
|
|
|
Product name |
GV2
|
|
|
Product short name |
GV2ME
|
|
|
Product Type |
Breaker
|
|
|
Applications |
Motor protection
|
|
|
Number of poles |
3P
|
|
Network Type |
AC
|
|
|
Network frequency |
50/60 Hz conforming to IEC 60947-2
|
|
|
Control type |
(Press type) button
|
|
|
Installation method |
Rail installation
|
|
|
Installation location |
Horizontal direction
Vertical |
|
|
Type of release |
Thermal magnetic
|
|
|
Electromagnetic trip current |
138 A
|
|
|
Isolation function |
Yes conforming to IEC 60947-1 § 7-1-6
|
|
|
Mechanical shock resistance |
0.5 J IK04
|
|
|
Phase lack sensitivity |
Yes conforming to IEC 60947-4-1 § 7-2-1-5-2
|
|
|
Use category |
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2 |
|
|
Rated working voltage [Ue] |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
|
Rated insulation voltage [Ui] |
600 V AC 50/60 Hz conforming to UL 508
690 V AC 50/60 Hz conforming to IEC 60947-2 600 V AC 50/60 Hz conforming to CSA C22.2 No 14 |
|
|
Rated impulse withstand voltage [Uimp] |
6 kV conforming to IEC 947-2
|
|
|
Mechanical life |
100000 cycles
|
|
|
Electrical life |
100000 cycles for AC-3 at 440 V In
100000 cycles for AC-3 at 440 V In/2 |
|
|
Maximum number of conversions |
25 cyc/h
|
|
|
Specified load |
Continuous conforming to IEC 60947-4-1
|
|
|
Tightening torque |
1.7 N.m - on screw clamp terminal - cable 1…4 mm²
1.7 N.m - on screw clamp terminal - cable 1…6 mm² 1.7 N.m - on screw clamp terminal - cable 1.5…6 mm² |
|
|
Rated use short-circuit breaking capacity [Ics] |
75% at 690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
|
|
|
