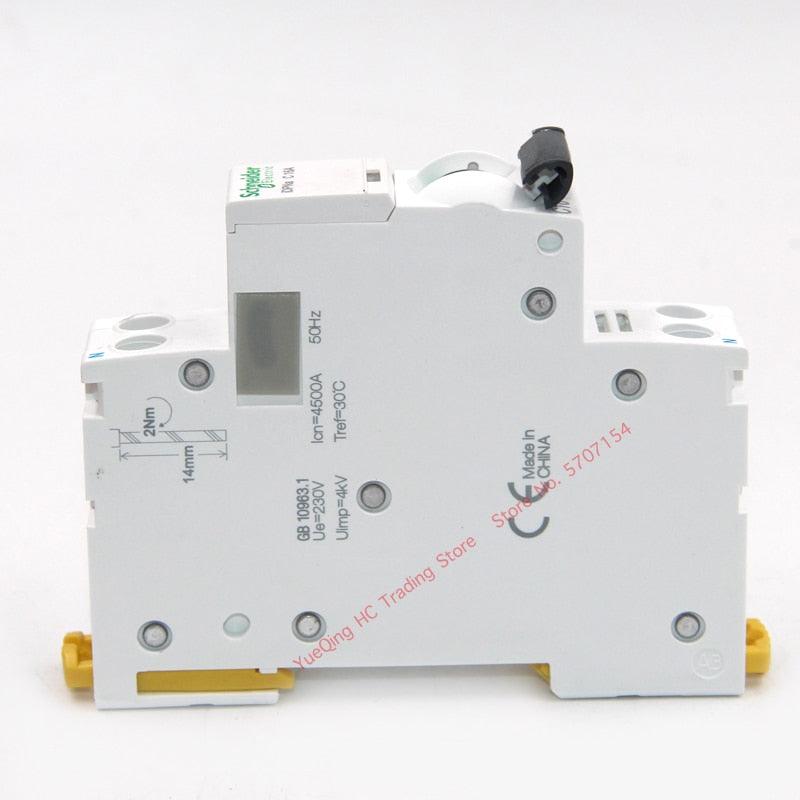

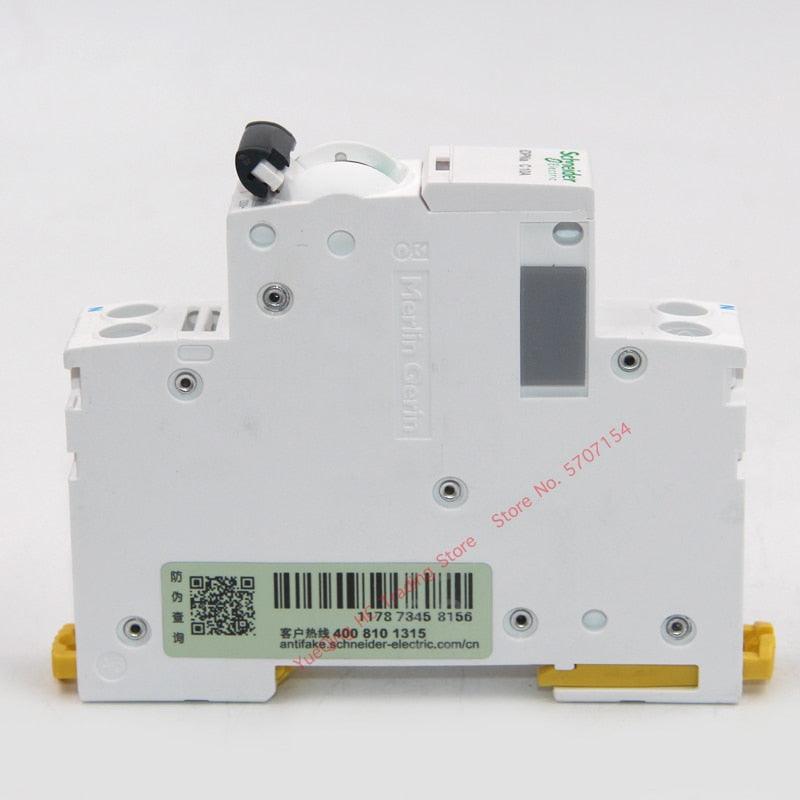

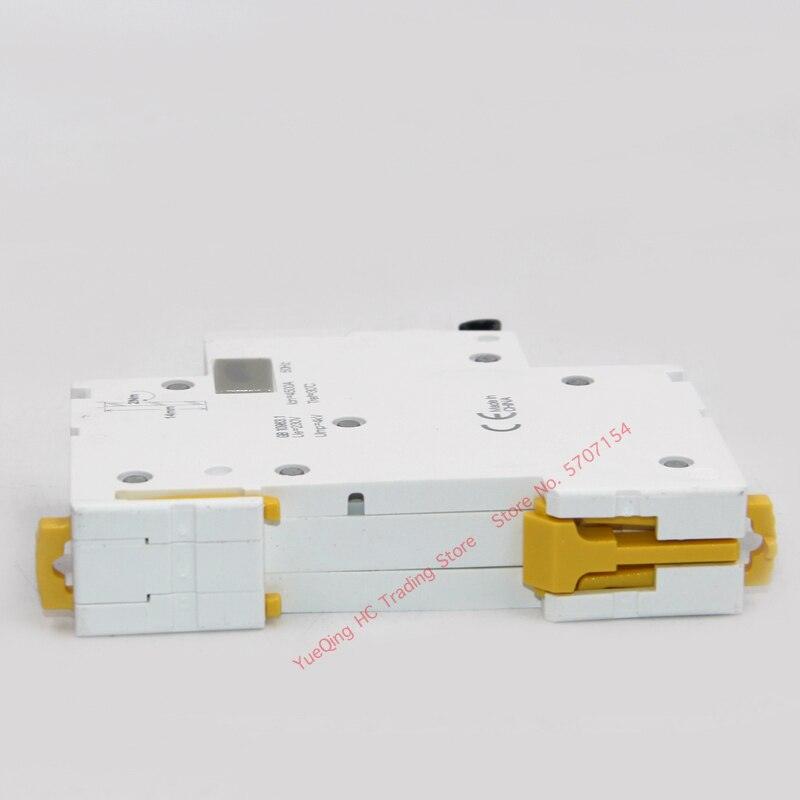

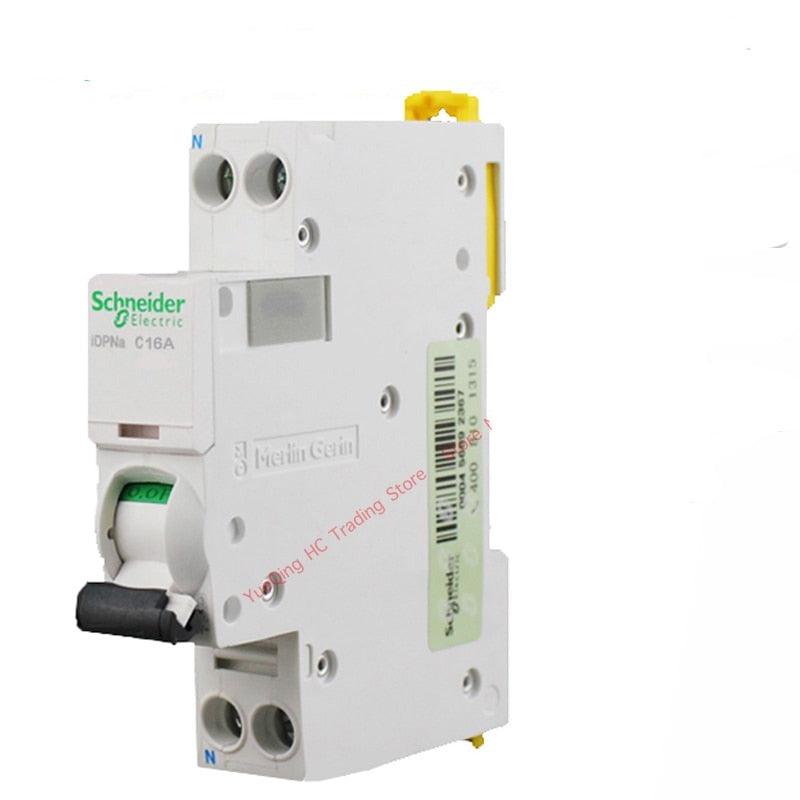

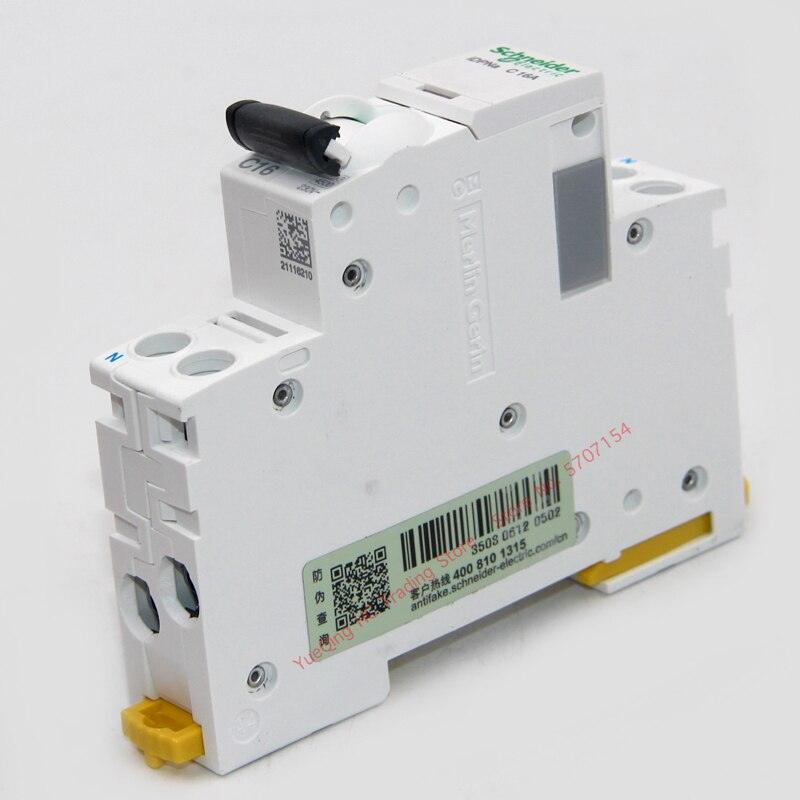

Schneider- MCB Circuit Breaker IDPNa 1P+N/ 6A-40A

$34.00 NZD
$36.00 NZD $34.00 NZD
Sale Sold out
Shipping calculated at checkout.
Poles Number
Rated Current

Schneider-  MCB Circuit Breaker IDPNa 1P+N AC

Air Switch 18mm Small MINI 4.5KA

6 10A 16A 20A 25A 32A 40A/ Optional

Specification

Key Value
Brand Schneider Electric
Series Acti9
Model iDPNa
Type Miniature Circuit Breaker (MCB)
Pole 1P+N (1 protected pole + neutral)
Rated Voltage 230V AC, 50/60Hz
Insulation Voltage 400V AC
Impulse Withstand Voltage 4kV
Rated Current 6A / 10A / 16A / 20A / 25A / 32A / 40A (optional)
Tripping Curve C Curve (5–10 In magnetic trip)
Breaking Capacity 4.5kA (Icn, 230V AC)
Width 18mm (2×9mm pitch)
Dimension (W×H×D) 18mm × 94mm × 78mm
Weight ~115gSchneider Electric
Mounting DIN rail, snap-on
Connection 1–16mm² flexible/rigid wire
Protection Overload, Short circuitSchneider Electric
Indication ON/OFF contact position indicator
Endurance Electrical 20,000 cycles; Mechanical 20,000 cyclesSchneider Electric
Standard IEC 60898-1, IEC 60947-2, GB 10963.1
Certification CE, CCC
Color White (RAL9003)Schneider Electric
Protection Degree IP20 (front), IP40 (in enclosure)
Ambient Temperature -25°C to +60°C



Part Number

Rated Current Part Number Full Description
6A A9P08606 iDPNa 1P+N C6A 4.5kA AC
10A A9P08610 iDPNa 1P+N C10A 4.5kA AC
16A A9P08616 iDPNa 1P+N C16A 4.5kA AC
20A A9P08620 iDPNa 1P+N C20A 4.5kA AC
25A A9P08625 iDPNa 1P+N C25A 4.5kA AC
32A A9P08632 iDPNa 1P+N C32A 4.5kA AC
40A A9P08640 iDPNa 1P+N C40A 4.5kA AC
