Schneider GV2 Auxiliary Contact Block
Regular price
$28.00 NZD
Regular price
Sale price
$28.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

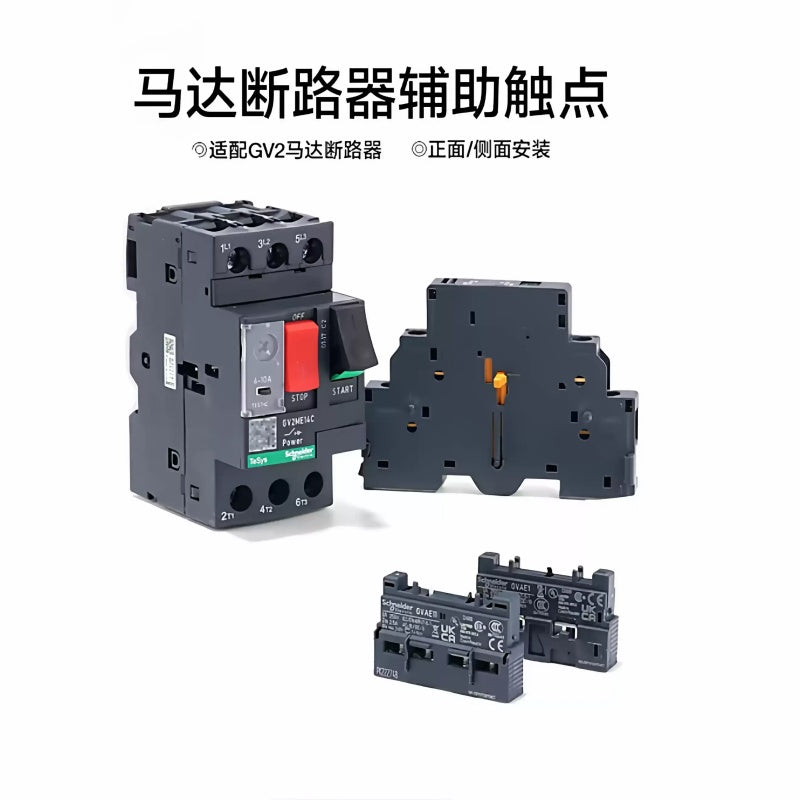

GVAE1/GVAE11/GVAN11 Auxiliary Contact Block for Schneider GV2, 1NO/1NC/1NO+1NC, Front/Side Mount
1. 核心概述 (Overview)
The Schneider GV Series Auxiliary Contact Blocks are modular accessories designed for GV2 series motor circuit breakers (MCB). These contact blocks expand the control and signaling capabilities of the breaker, providing normally open (NO) and normally closed (NC) contacts for status feedback, fault indication, and interlocking in motor control and automation systems. Available in front-mount (GVAE series) and side-mount (GVAN series) configurations, they enable integration with PLCs, relays, and control panels for enhanced motor protection monitoring.
2. 关键特性 (Key Features)
-
Versatile Contact Configurations:
-

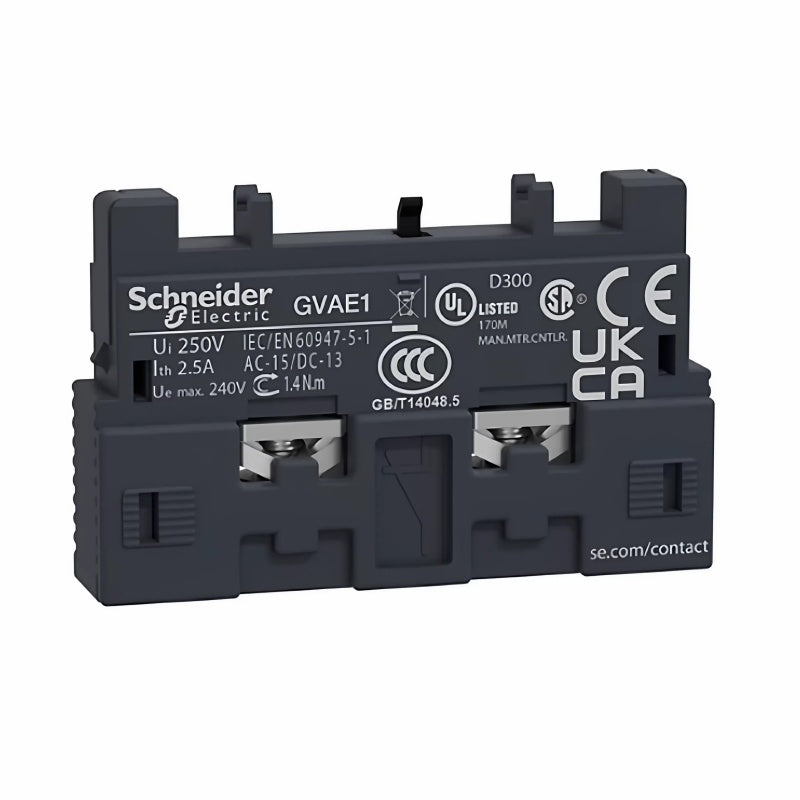

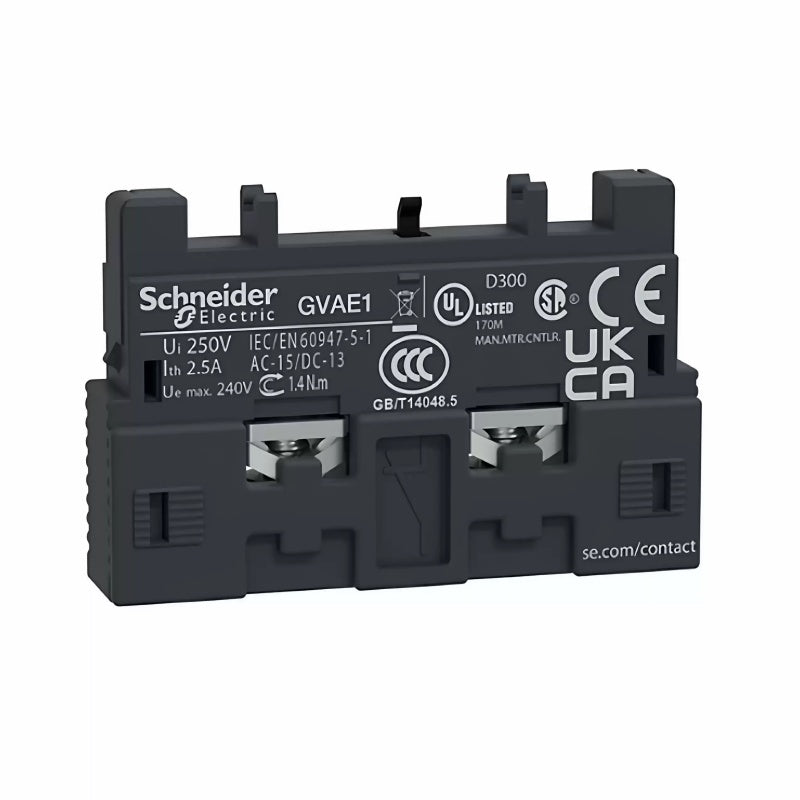

GVAE1: 1NO or 1NC (adjustable single contact) -
GVAE11: 1NO + 1NC (standard auxiliary contact) -

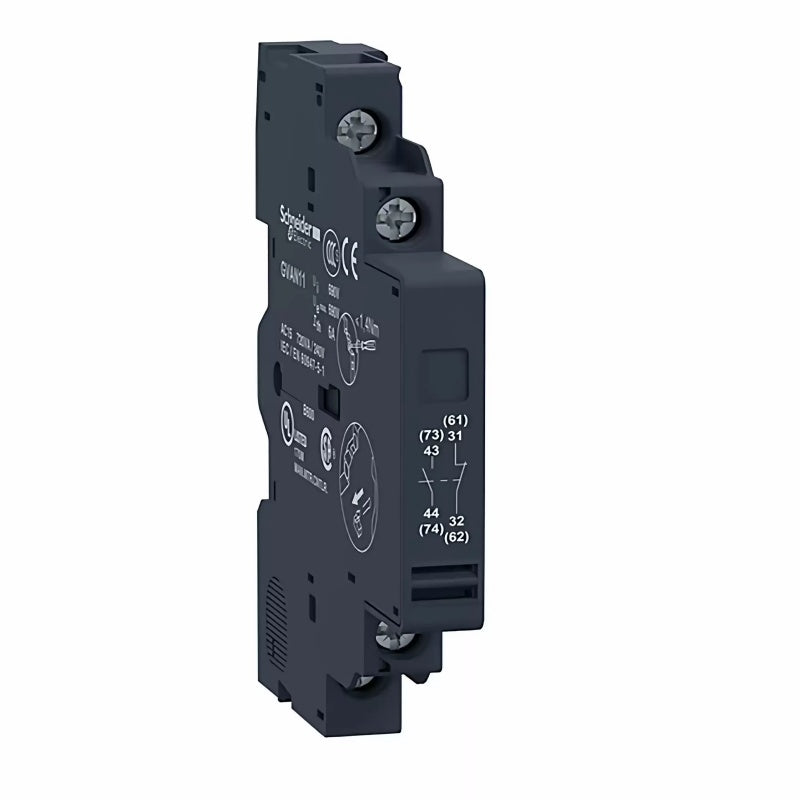

GVAN11: 1NO + 1NC (side-mount version)
-
-

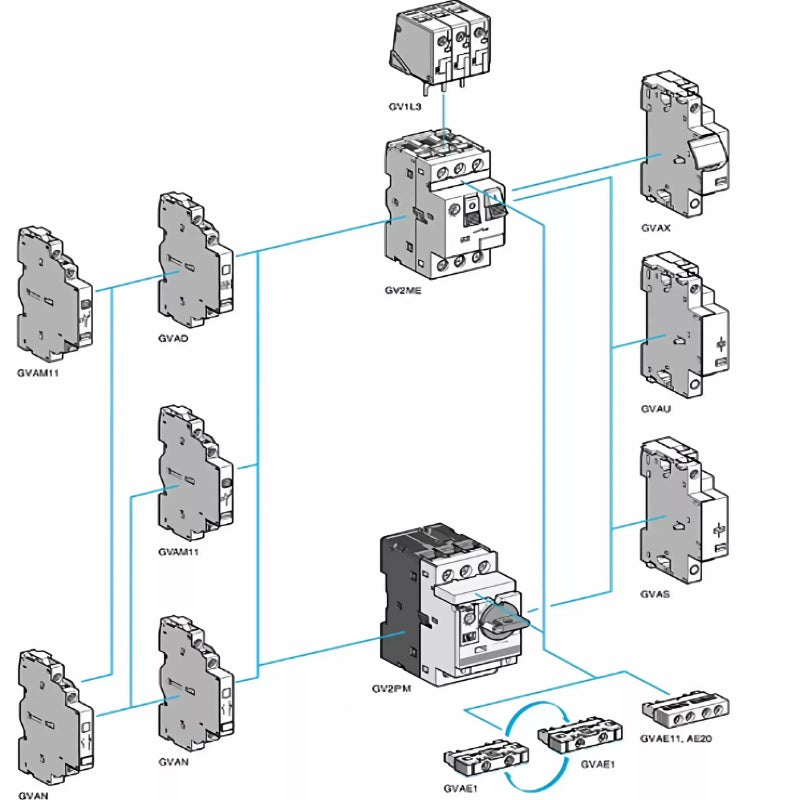

Flexible Mounting Options:
- GVAE Series: Front-mounted for easy access and wiring
- GVAN Series: Side-mounted for compact panel layouts
- Dual Functionality: Provides both operational status feedback and fault signaling (on/off, tripped status) for the GV2 motor breaker.
- IEC/GB Certified: Compliant with IEC 60947-5-1 and GB 14048.5 standards for low-voltage control circuit components.
- Quick Snap-In Installation: Tool-free design for fast mounting to compatible GV2 breakers, simplifying panel assembly.
- Reliable Performance: Silver alloy contacts ensure stable signal transmission and long service life in industrial environments.
3. 型号解析 (Model Decoding)
表格
| Model Code | Core Interpretation |
|---|---|
GVAE1 |
Front-mount auxiliary contact, 1NO or 1NC (adjustable) |
GVAE11 |
Front-mount auxiliary contact, 1NO + 1NC (dual contact) |
GVAN11 |
Side-mount auxiliary contact, 1NO + 1NC (dual contact) |
Compatible Breakers |
Schneider GV2 series motor circuit breakers (GV2ME/GV2P) |
4. 典型应用 (Applications)
- Motor control status feedback to PLCs and automation systems
- Fault tripping indication for motor protection circuits
- Interlocking with contactors and control devices in motor control centers
- HVAC, pump, and conveyor motor protection panels
- Industrial machinery and machine tool control circuits
DATA SHEET
| Attribute | Value |
|---|---|
| Brand | Schneider Electric |
| Series | GV Series Auxiliary Contact Block |
| Product Type | Auxiliary Contact Block for Motor Circuit Breakers |
| Models | GVAE1, GVAE11, GVAN11 |
| Mounting Type | Front Mount (GVAE), Side Mount (GVAN) |
| Contact Configurations | 1NO/1NC (GVAE1), 1NO+1NC (GVAE11/GVAN11) |
| Compatible Breakers | Schneider GV2 Series Motor Circuit Breakers (GV2ME/GV2P) |
| Rated Control Voltage | AC 230V/400V, DC 24V/110V/220V |
| Rated Operational Current | 6A (AC-15), 1A (DC-13) |
| Standards Compliance | IEC 60947-5-1, GB 14048.5, EN 60947-5-1 |
| Certifications | CE, CCC, RoHS |
| Application | Motor Control Feedback, Fault Indication, PLC Signaling, Industrial Automation, HVAC Control |
