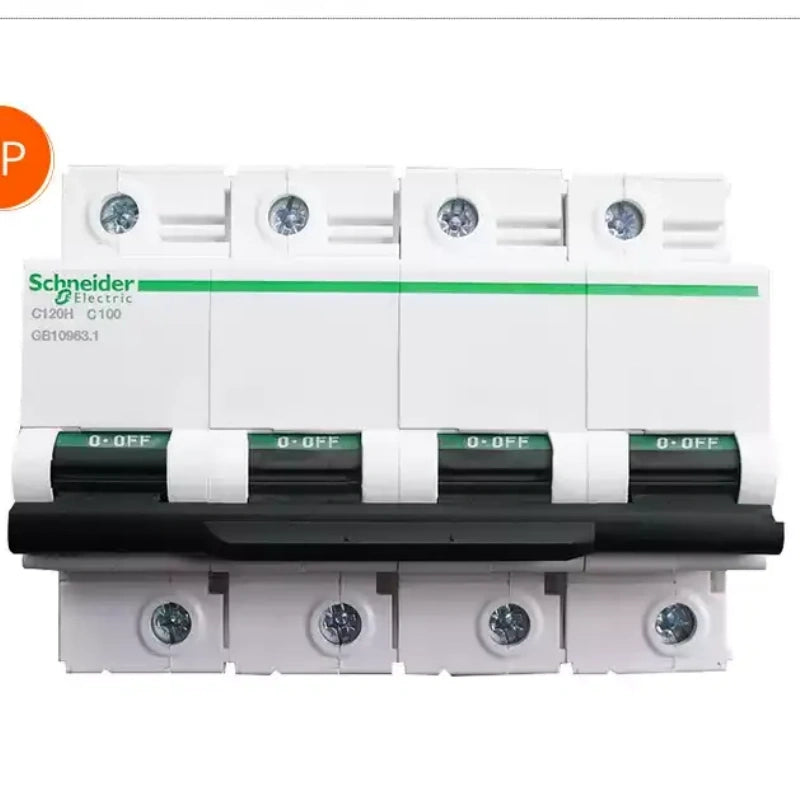

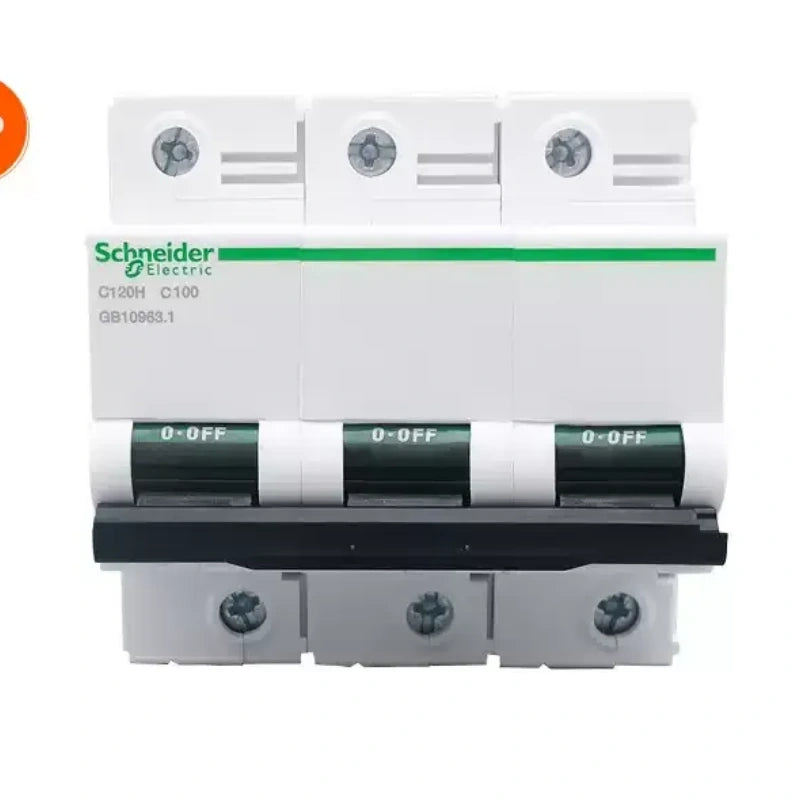

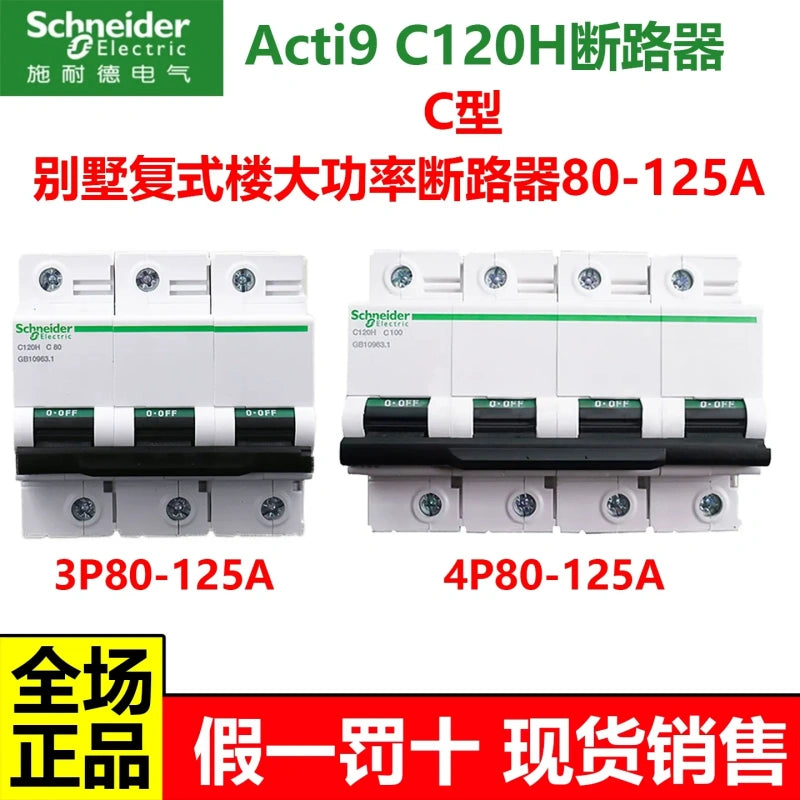

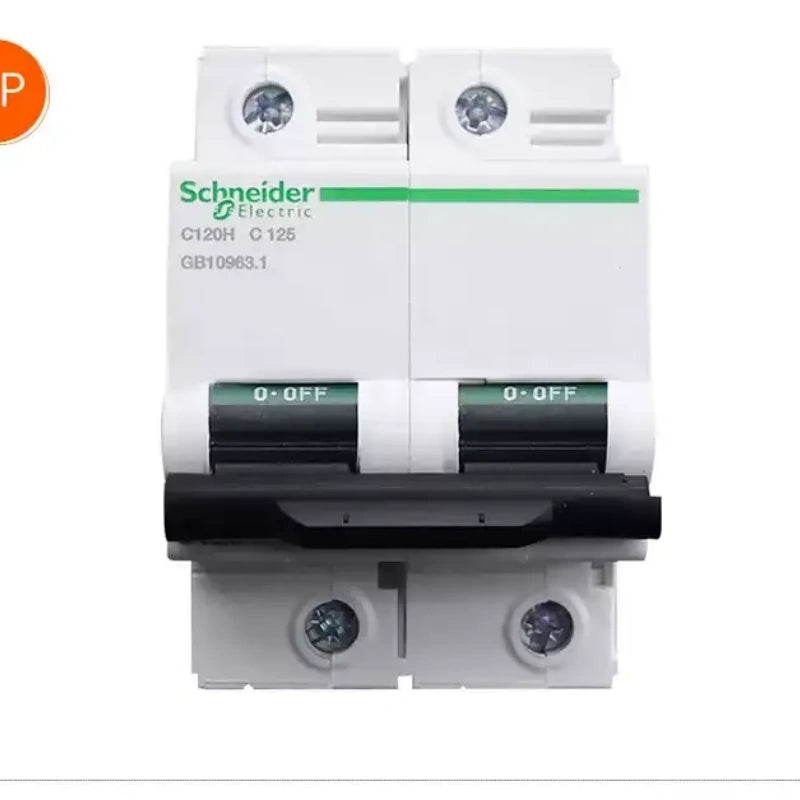

Schneider Electric Acti 9 C120 2P/3P/4P AC Miniature Circuit Breaker 80A 100A 125A
Regular price
$117.00 NZD
Regular price
Sale price
$117.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
schneider breakers

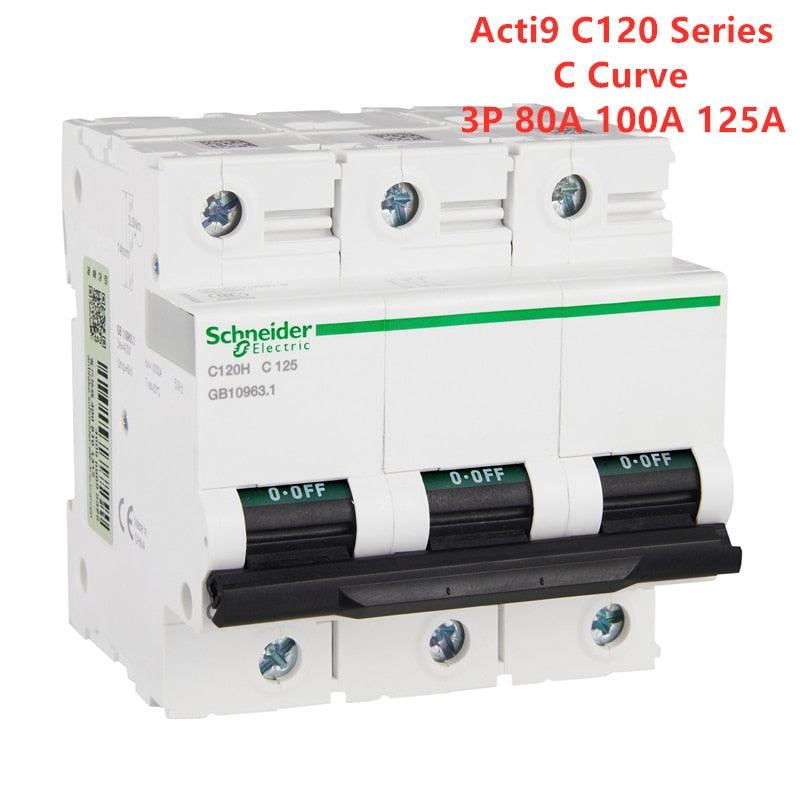

Schneider Electric Acti 9 C120 3P AC Miniature Circuit Breaker C Curve 80A 100A 125A
Product Basic Info
- Brand: Schneider Electric
- Series: Acti9 C120
- Model: C120N / C120H (A9N18xxx)
- Product Type: Miniature Circuit Breaker (MCB)
- Poles: 2P / 3P / 4P
- Rated Current (In): 80A / 100A / 125A
- Rated Voltage (Ue): 230/400V AC, 50/60Hz
- Tripping Curve: C Curve (5–10 In magnetic trip)
- Color: White (RAL9003)
Ratings & Breaking Capacity
- Breaking Capacity (Icn):
- C120N: 10kA (EN/IEC 60898-1)
- C120H: 15kA (EN/IEC 60898-1)
- Insulation Voltage (Ui): 500V AC
- Impulse Withstand (Uimp): 6kV
- Mechanical Endurance: 20,000 cycles
- Electrical Endurance: 5,000 cycles
Protection & Tripping
- Protection: Overload, short-circuit
- Trip Technology: Thermal-magnetic
- Trip Speed: Instantaneous
- Indicator: VisiSafe green strip (contact open indication)
Construction & Installation
- Mounting: 35mm DIN Rail (clip-on)
- Module Width:
- 2P: 4 modules (≈36mm)
- 3P: 6 modules (≈54mm)
- 4P: 8 modules (≈72mm)
- Dimensions (H×W×D): 81 × (36/54/72) × 73 mm
- Protection Degree: IP20
- Terminals: Tunnel type (rigid: 1–50mm²; flexible: 1.5–35mm²)
- Operating Temperature: -5°C ~ +60°C
Standards & Approvals
- Compliance: EN/IEC 60898-1, EN/IEC 60947-2
- Certifications: RoHS, REACH, EAC
Part Number List (C Curve, AC)
-
C120N (10kA)
- 2P 80A: A9N18361
- 2P 100A: A9N18362
- 2P 125A: A9N18363
- 3P 80A: A9N18364
- 3P 100A: A9N18365
- 3P 125A: A9N18366
- 4P 80A: A9N18367
- 4P 100A: A9N18368
- 4P 125A: A9N18369
-
C120H (15kA)
- 3P 125A: A9N18470
