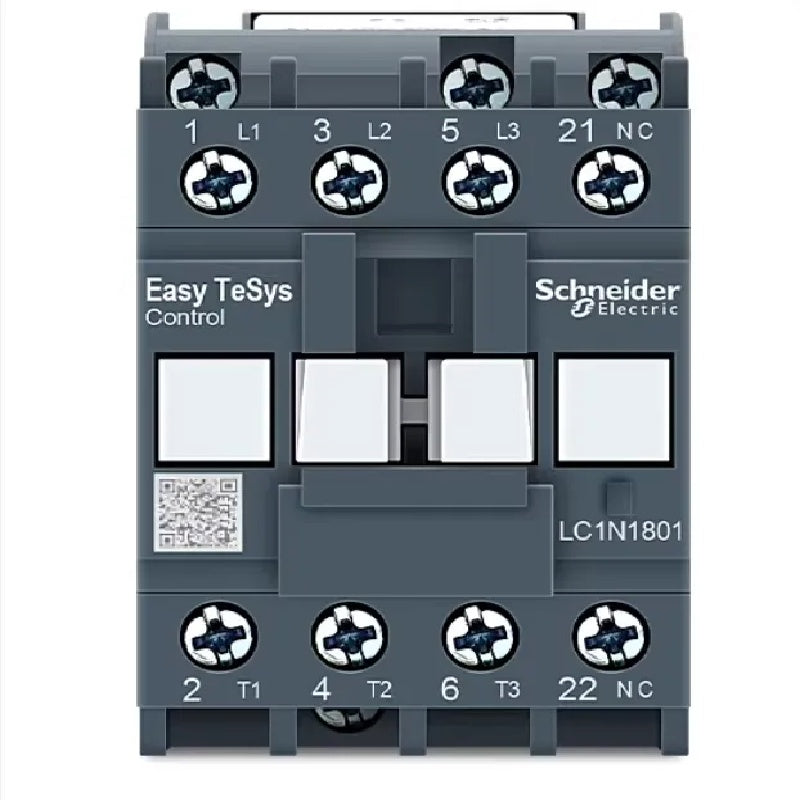

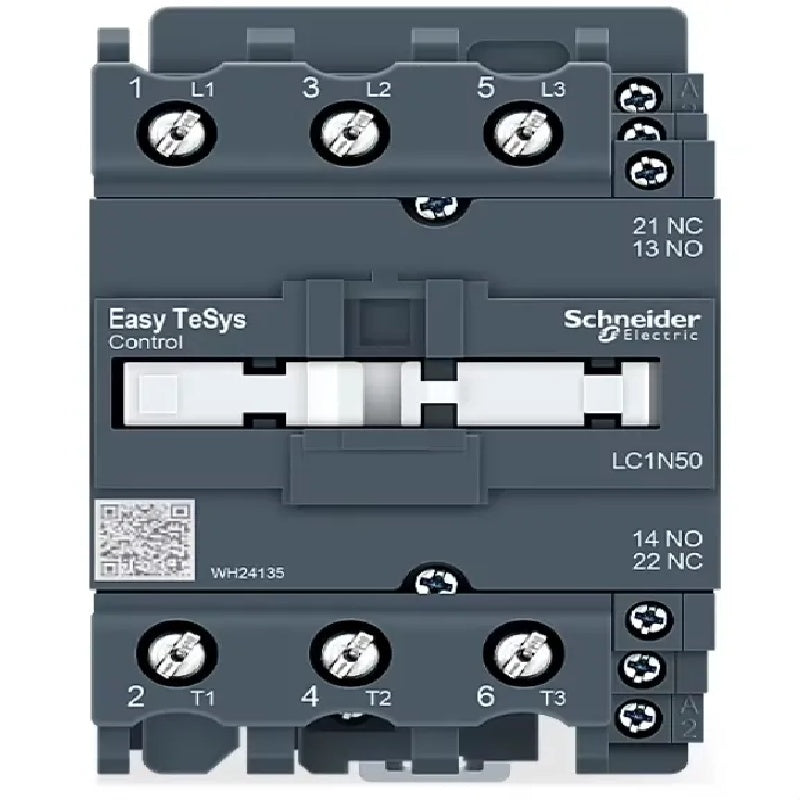

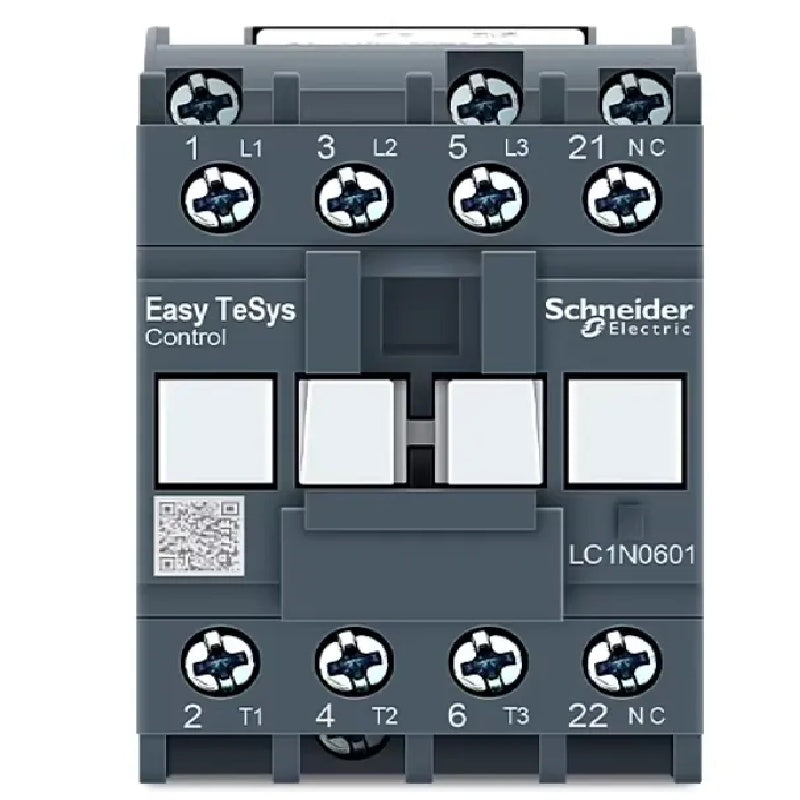

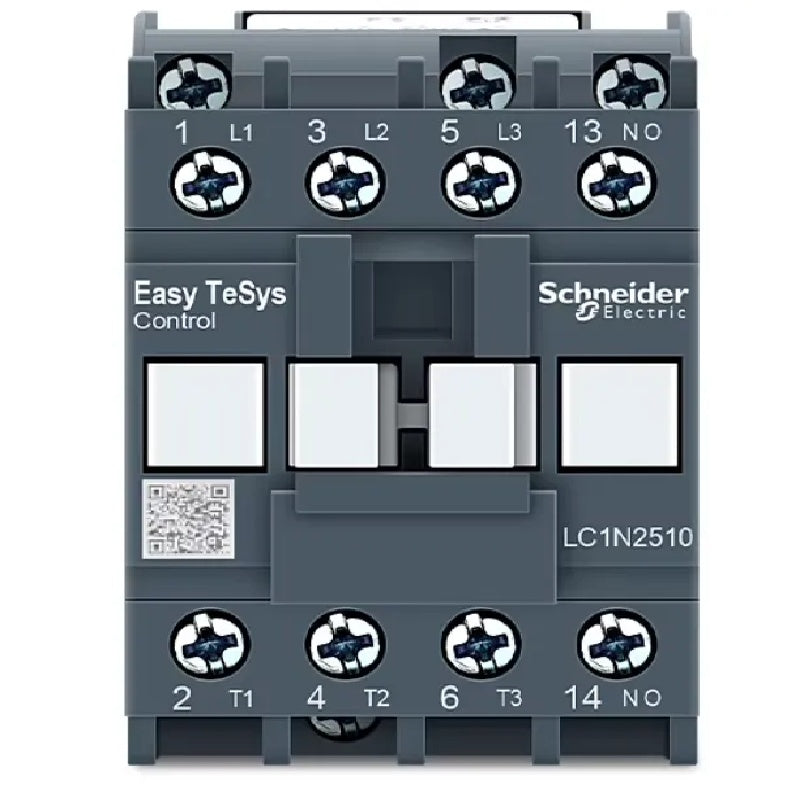

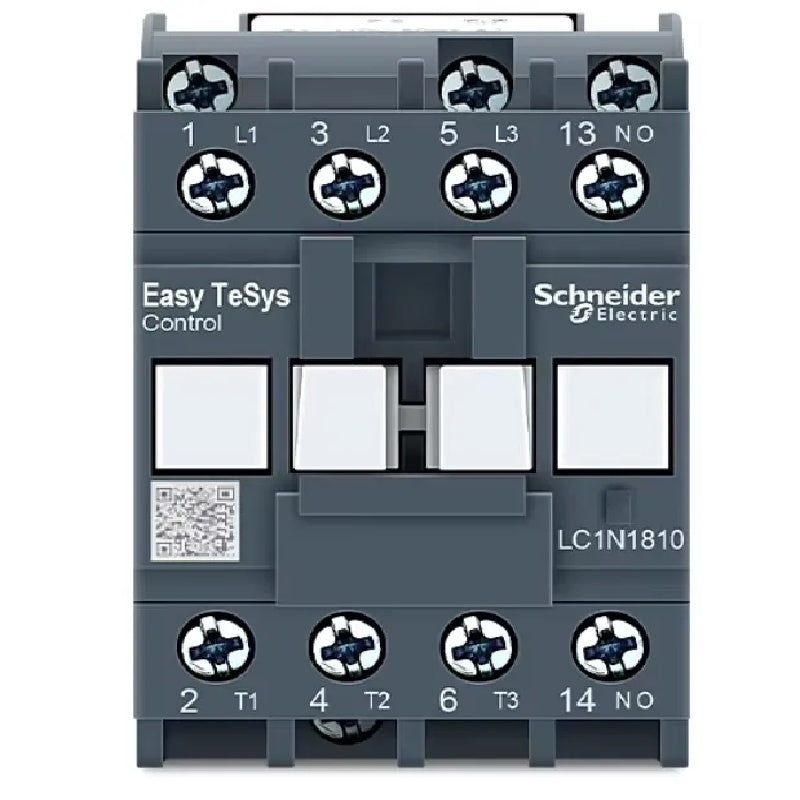

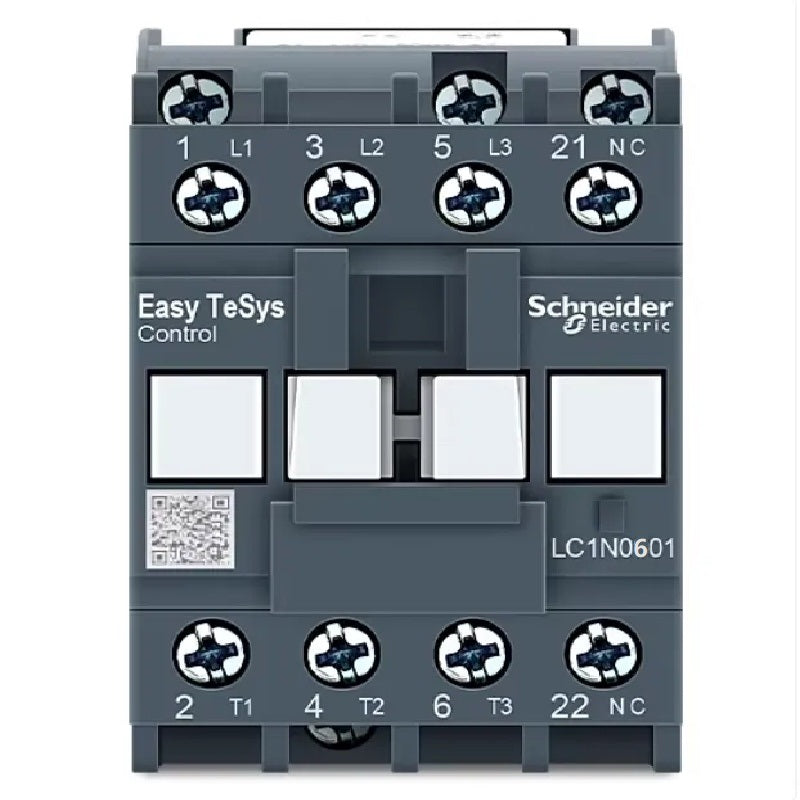

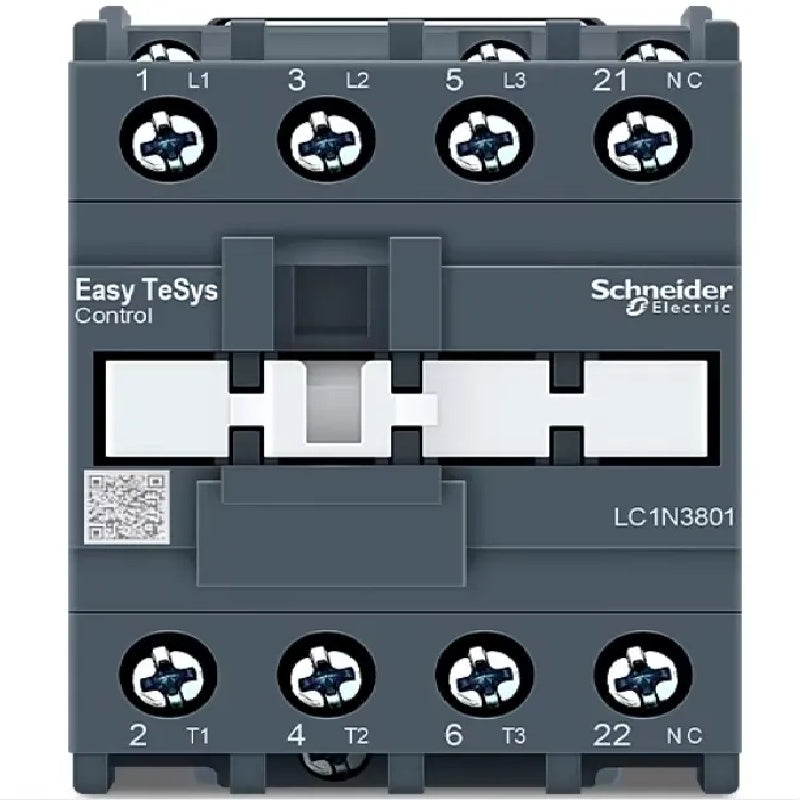

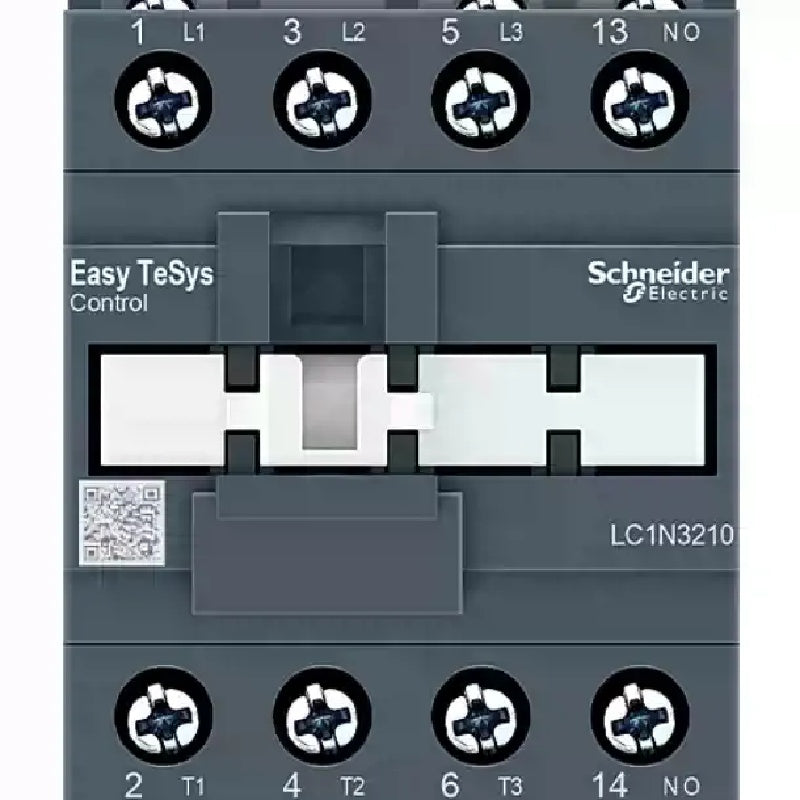

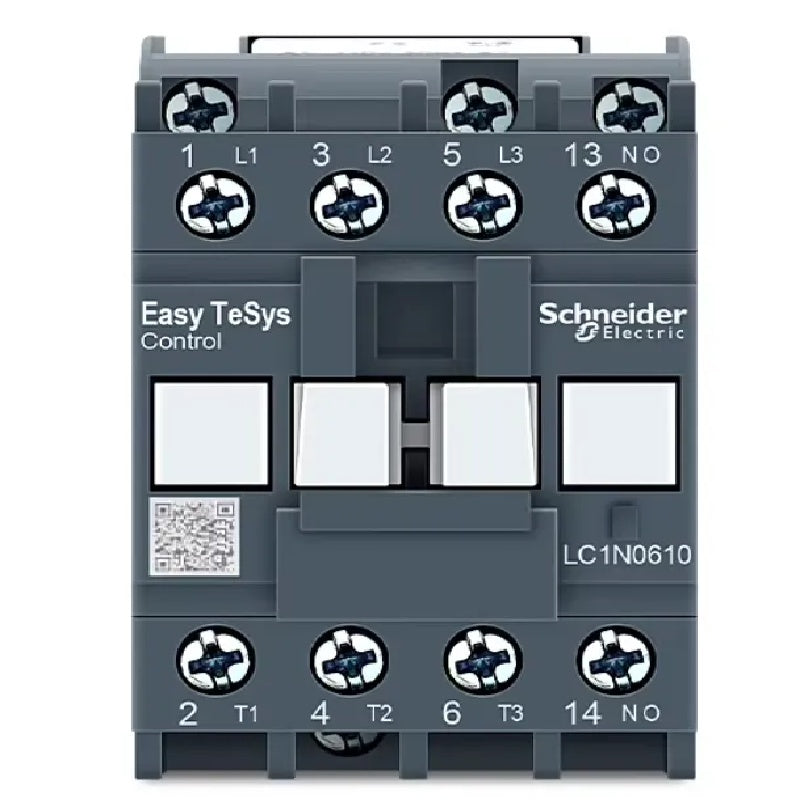

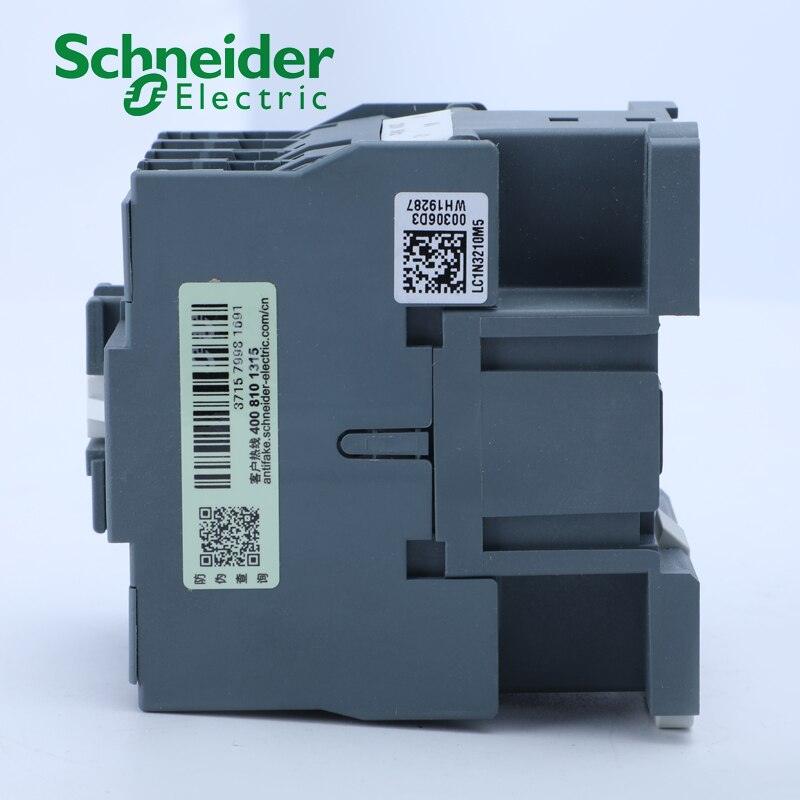

Schneider LC1N Series Contactor (6A-95A)
Regular price
$47.00 NZD
Regular price
Sale price
$47.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Schneider Electric LC1N Series AC Contactor | LC1N06/09/12/18/25/32/38/40/50/65/80/95, 3-Pole, AC24V/36V/110V/220V/380V Coil
1. 核心概述 (Overview)
The Schneider Electric LC1N Series AC contactors are cost-effective, reliable electromagnetic contactors designed for basic motor control and load switching applications. With rated currents spanning 6A to 95A, these contactors are available in both 1 normally open (1NO) and 1 normally closed (1NC) auxiliary contact configurations, and support multiple AC coil voltages including 24V, 36V, 110V, 220V, and 380V. Ideal for use in commercial, residential, and light industrial systems, the LC1N series provides simple, dependable control for pumps, fans, compressors, and other common electrical loads.
2. 关键特性 (Key Features)

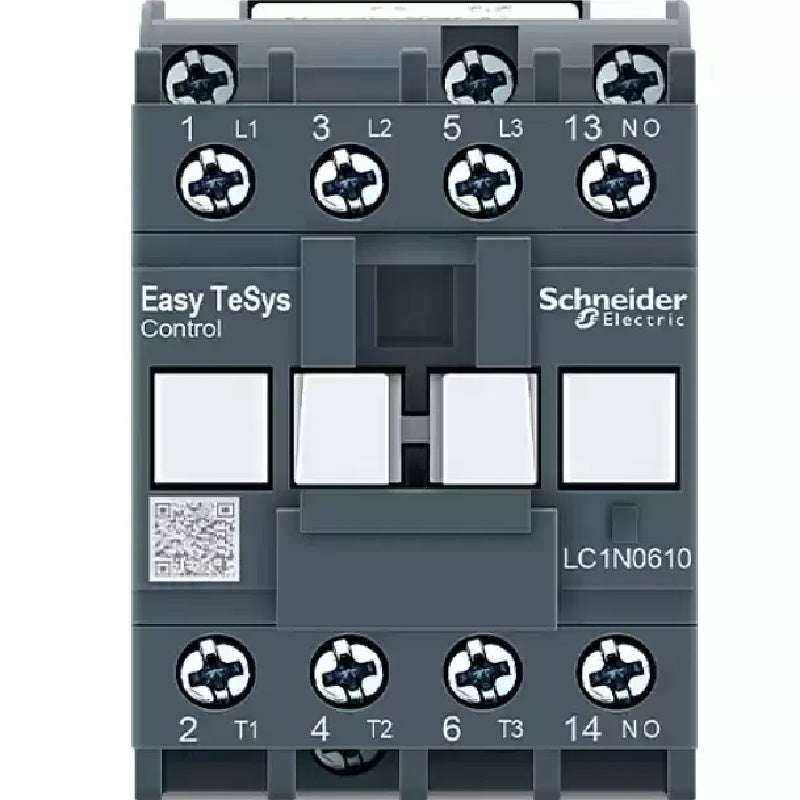

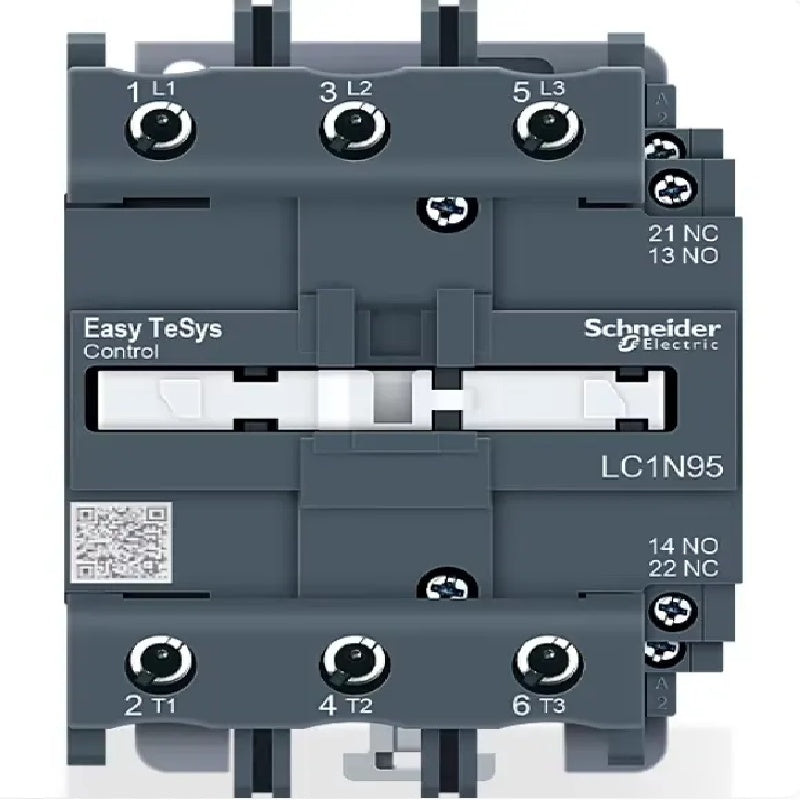

- Wide Current Range: Models from LC1N06 (6A) to LC1N95 (95A), covering basic to medium-duty motor and load control requirements.
-

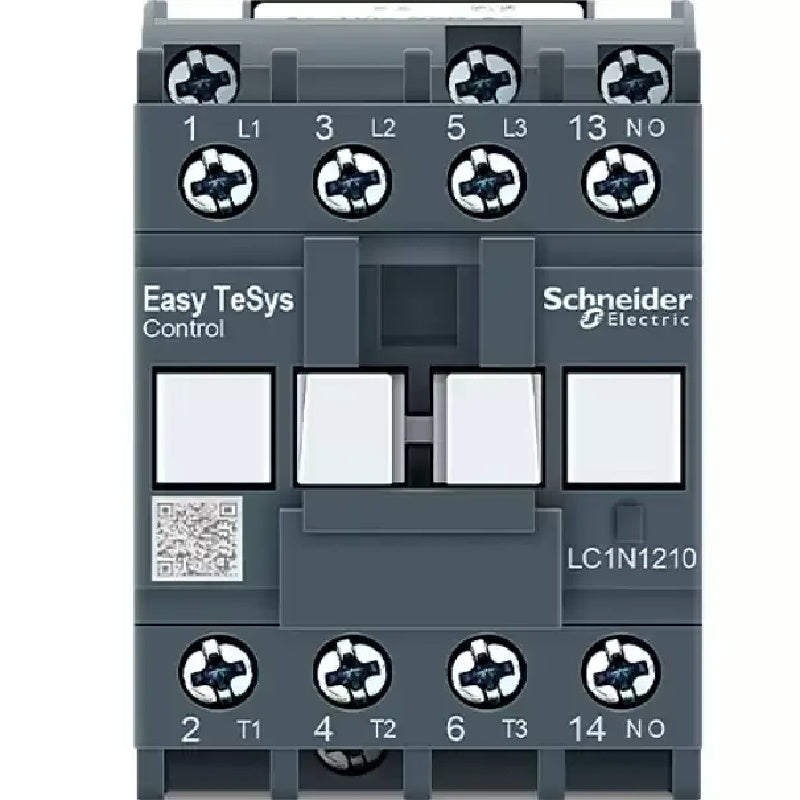

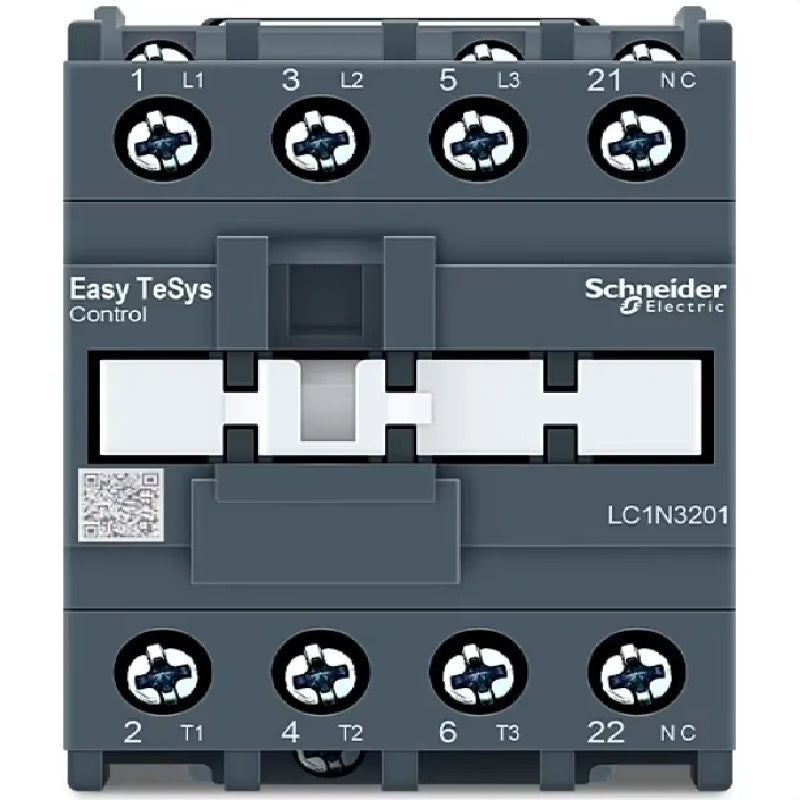

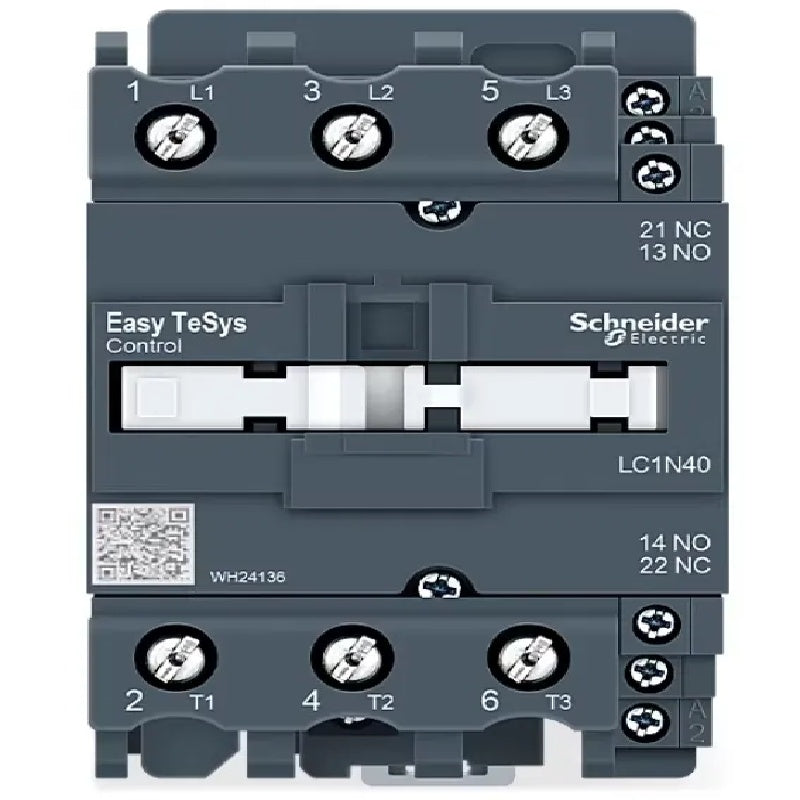

Flexible Auxiliary Contact Configurations: Choose between

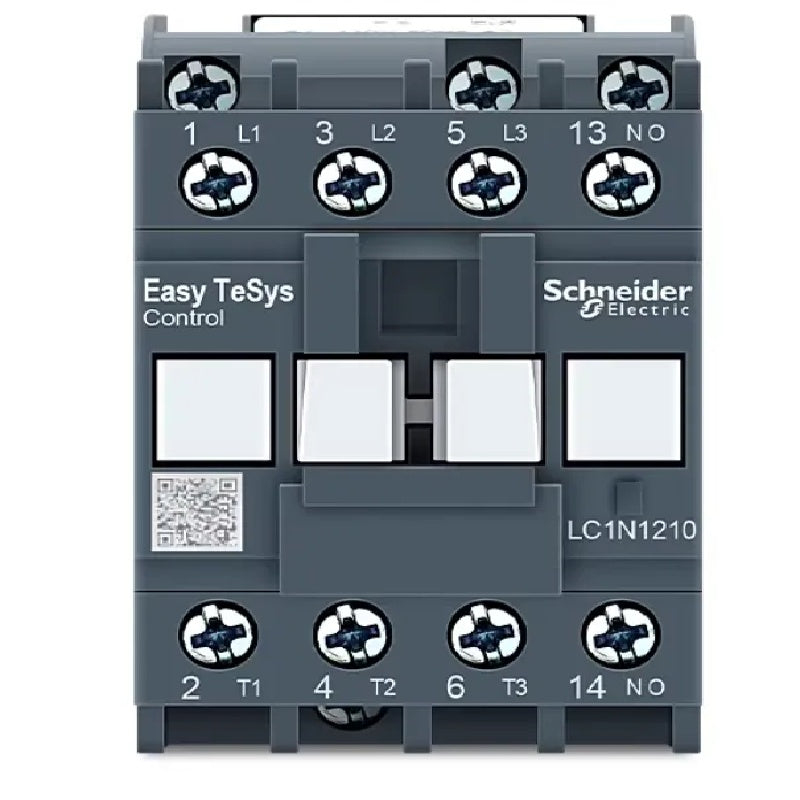

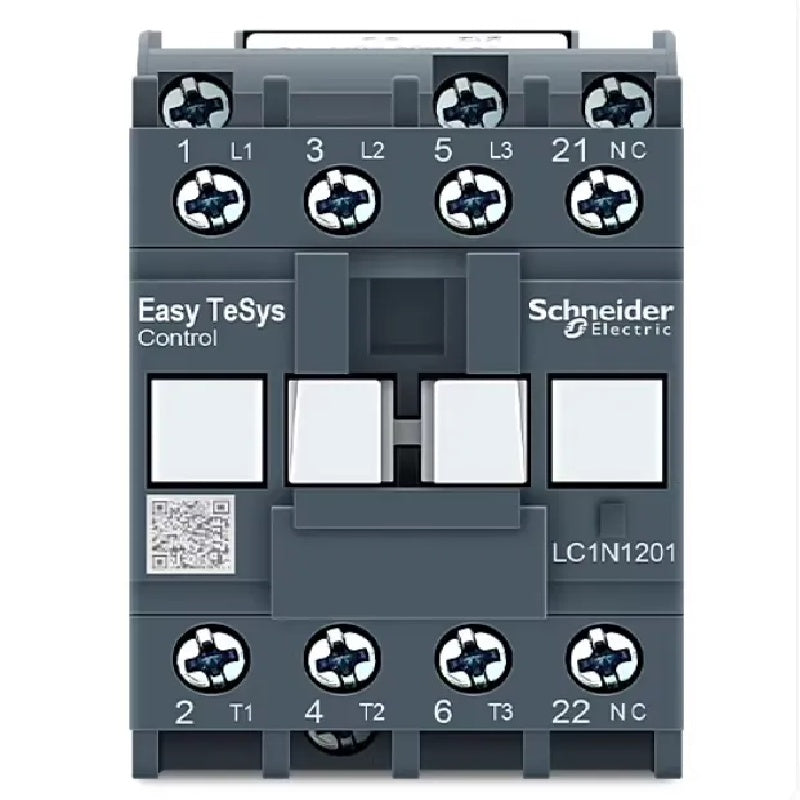

13NO(1 normally open auxiliary contact) or21NC(1 normally closed auxiliary contact) to match your control circuit needs. - Multi-Voltage Coil Options: AC coil voltages include B5N (24V), CC5N (36V), F5N (110V), M5N (220V), and Q5N (380V), compatible with standard control systems.
- High-Reliability Contacts: Silver alloy main contacts offer excellent arc resistance and long service life, suitable for AC-1 (resistive) and AC-3 (motor) load categories.
- IEC/GB Certified: Compliant with IEC 60947-4-1 and GB 14048.4 standards, meeting global safety and performance benchmarks.
- Compact DIN Rail Design: Standard modular form factor with tool-free DIN rail mounting, simplifying installation in control panels and distribution boards.
- Low Power Consumption: Optimized coil design reduces energy use and heat generation, ensuring stable performance in continuous operation.
3. 型号解析 (Model Decoding)
表格
| Model Code | Core Interpretation |
|---|---|
LC1N |
Schneider TeSys LC1N Economy AC Contactor Series |

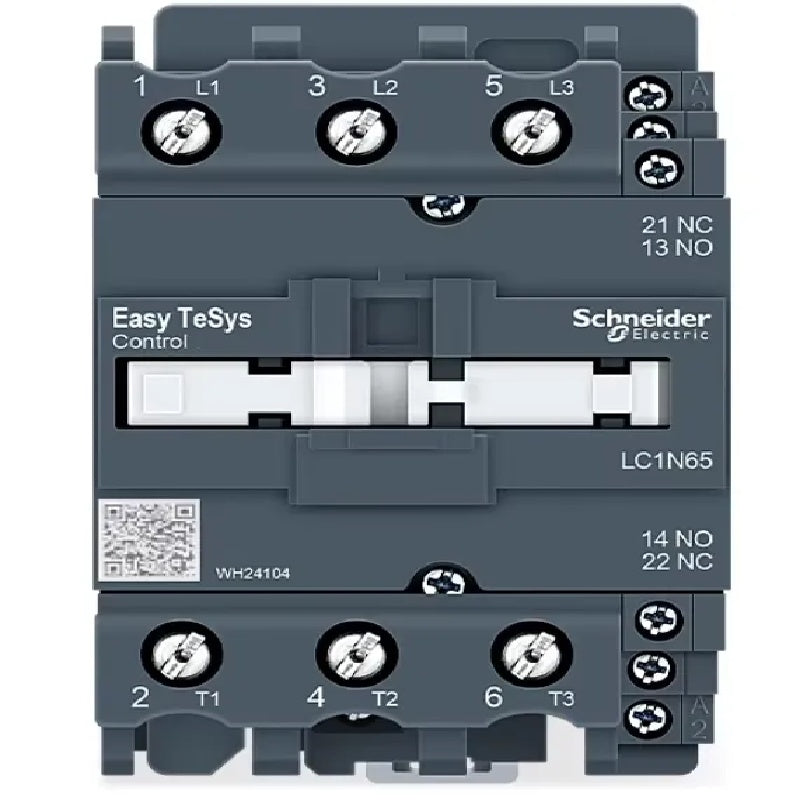

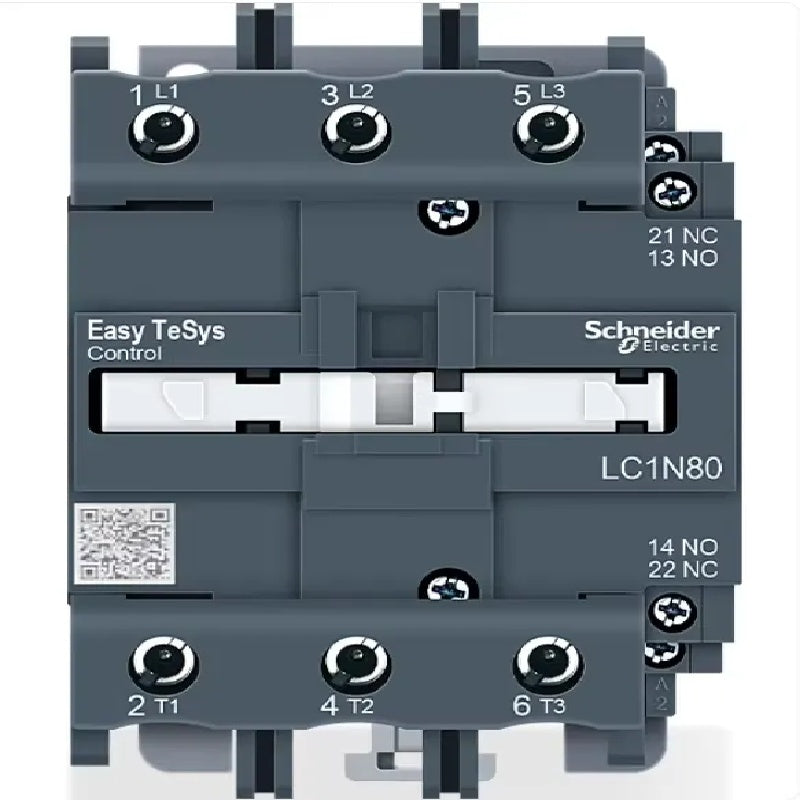

06/09/12/18/25/32/38/40/50/65/80/95 |
Rated operational current (AC-3 category) |
10/01 |

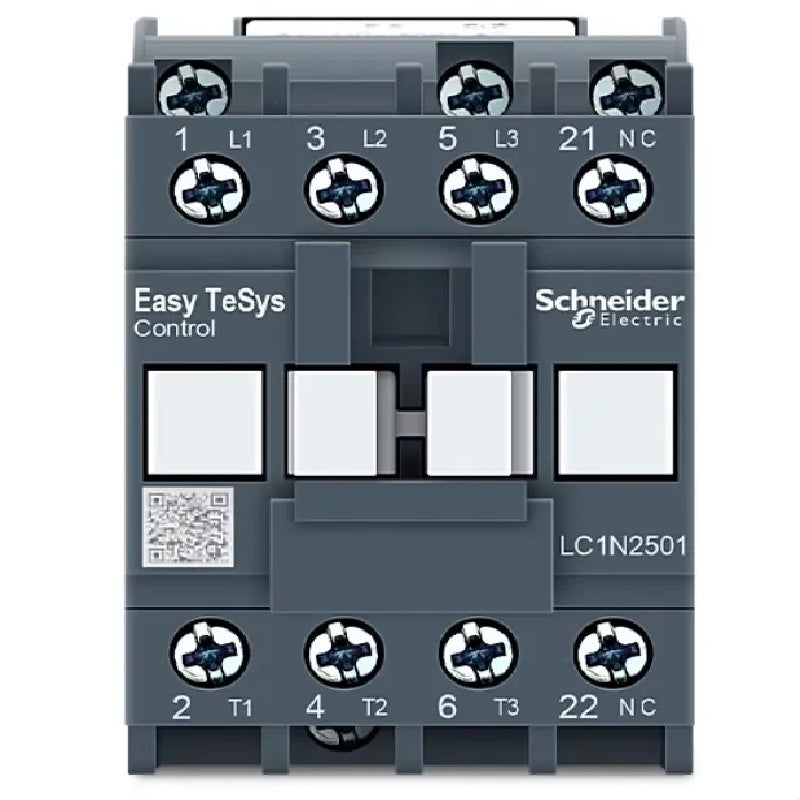

Auxiliary contact configuration: 10 = 1NO, 01 = 1NC |
B5N/CC5N/F5N/M5N/Q5N |
AC coil voltage (e.g., M5N = AC220V, F5N = AC110V) |
4. 典型应用 (Applications)
- Small to medium motor control (pumps, fans, compressors, conveyor belts)
- Commercial building HVAC systems and lighting control
- Residential power distribution and appliance control
- Automation control panels and PLC-based systems
- Water treatment and agricultural equipment
DATA SHEET
| Attribute | Value |
|---|---|
| Brand | Schneider Electric |
| Series | TeSys LC1N Series |
| Product Type | AC Contactor / Electromagnetic Contactor |
| Rated Current (AC-3) | 6A, 9A, 12A, 18A, 25A, 32A, 38A, 40A, 50A, 65A, 80A, 95A |
| Coil Voltage (AC) | 24V (B5N), 36V (CC5N), 110V (F5N), 220V (M5N), 380V (Q5N) |
| Main Contacts | 3-Pole Normally Open (3NO) |
| Auxiliary Contacts | 1NO (10) / 1NC (01) |
| Rated Operational Voltage (Ue) | AC 400V/690V |
| Utilization Category | AC-1 (Resistive Load), AC-3 (Induction Motor) |
| Mounting Type | DIN Rail / Panel Mount |
| Standards Compliance | IEC 60947-4-1, GB 14048.4, EN 60947-4-1 |
| Certifications | CE, CCC, RoHS |
| Contact Material | Silver Alloy |
| Application | Motor Control, Power Switching, Industrial Automation, HVAC, Pump & Fan Control, Commercial & Residential Power Distribution |
