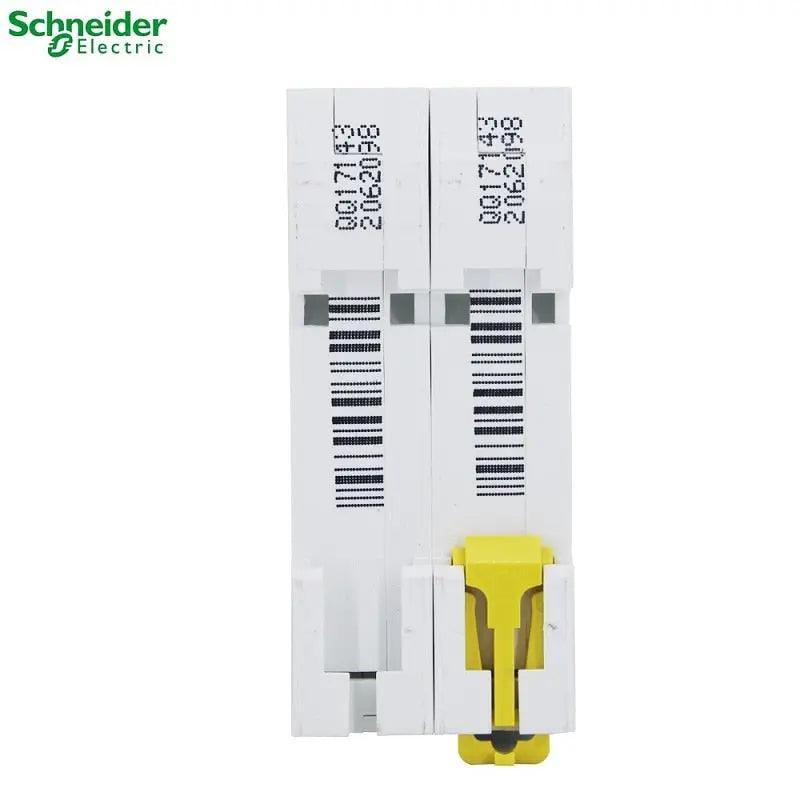

Schneider IC65N-DC / C65N-DC DC Circuit Breaker

Original Schneider IC65N-DC / C65N-DC series DC miniature circuit breakers, available in 1P (0-60V) and 2P (0-125V) configurations with rated currents from 1A to 63A. These breakers provide reliable overload and short-circuit protection for DC circuits, ideal for solar power systems, battery banks, telecommunications equipment, and industrial DC applications. They feature compact DIN rail mounting and robust construction for long-term use.

• Wide Voltage & Current Range: Choose from 1P (0-60V) or 2P (0-125V) versions with currents from 1A to 63A, suitable for various DC applications.
• Dual Protection: Provides both overload and short-circuit protection, safeguarding DC circuits and equipment.
• Compact DIN Rail Mounting: Designed for standard 35mm DIN rail installation, saving space in control panels.
• Schneider Quality: Reliable construction and performance, meeting industry standards for DC circuit protection.
• Versatile Applications: Ideal for solar power systems, battery banks, telecommunications equipment, and industrial DC circuits.

Specification

Attribute	Parameter Details
Brand	Schneider Electric
Series	IC65N-DC / C65N-DC
Poles	1P / 2P
Rated Voltage	1P: 0-60VDC 2P: 0-125VDC
Rated Current Options	1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Protection Type	Overload and short-circuit protection
Mounting	35mm DIN rail
Application	Solar power systems, battery banks, telecommunications, industrial DC circuits



ITEM NO.

Rated Current (In)	Curve C (2 modules / 18 mm)	Curve C (4 modules / 36 mm)
1 A	A9N22400	A9N22420
2 A	A9N22401	A9N22421
4 A	A9N22402	A9N22422
6 A	A9N22403	A9N22423
10 A	A9N22404	A9N22424
16 A	A9N22405	A9N22425
20 A	A9N22406	A9N22426
25 A	A9N22407	A9N22427
32 A	A9N22408	A9N22428
40 A	A9N22409	A9N22429
50 A	A9N22410	A9N22430
63 A	A9N22411	A9N22431
Width (multiple of 9 mm)	2	4
