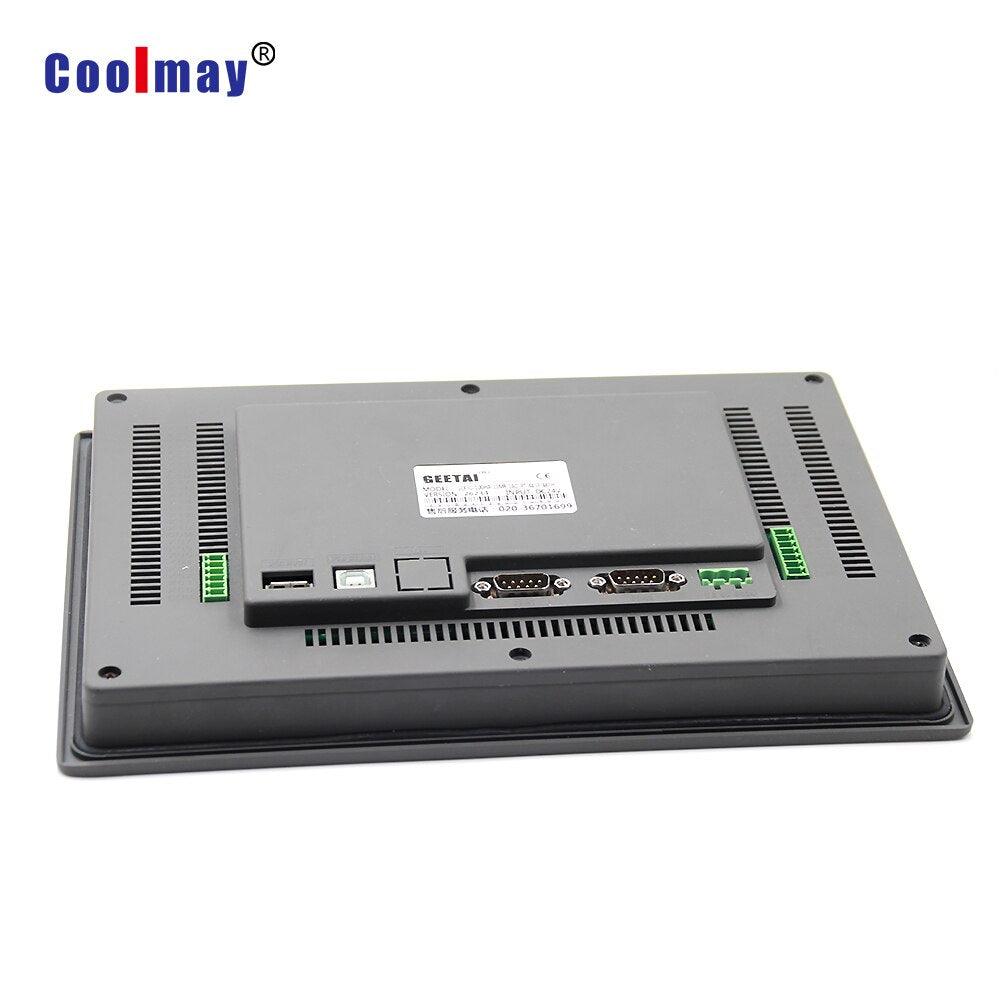

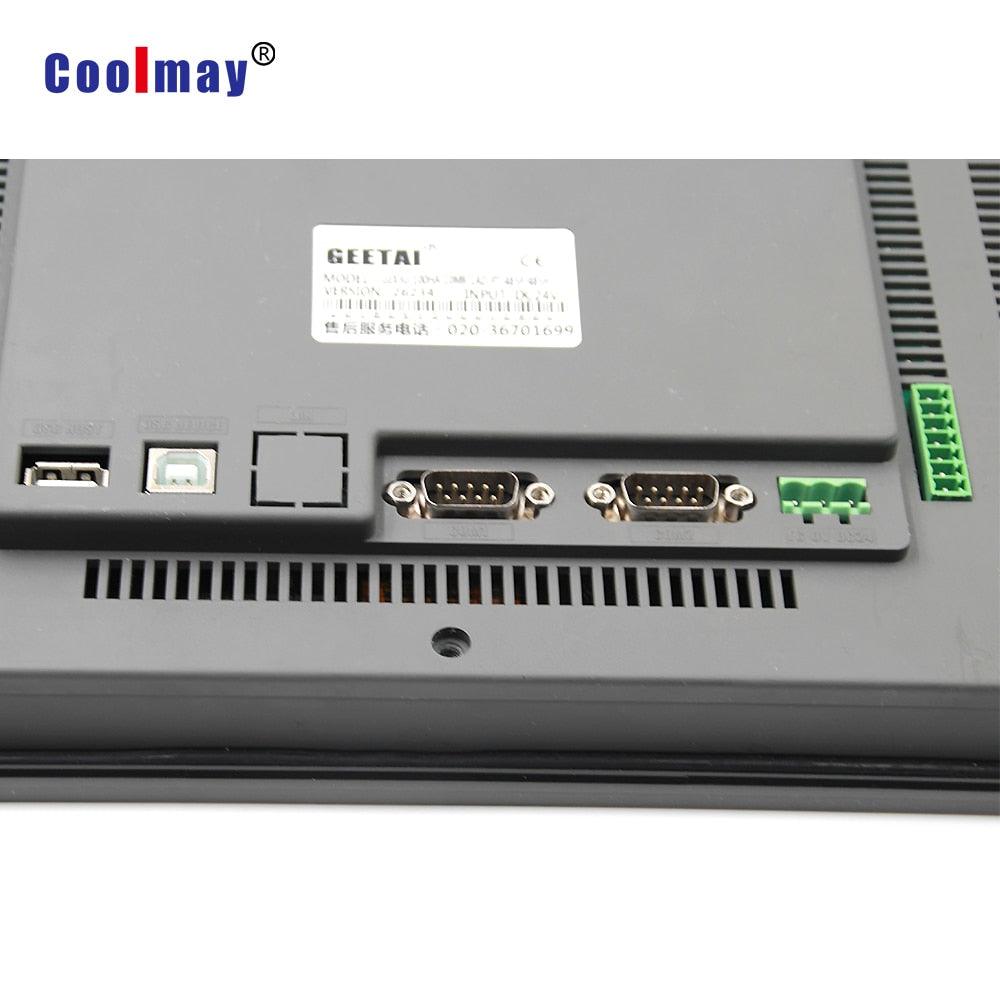

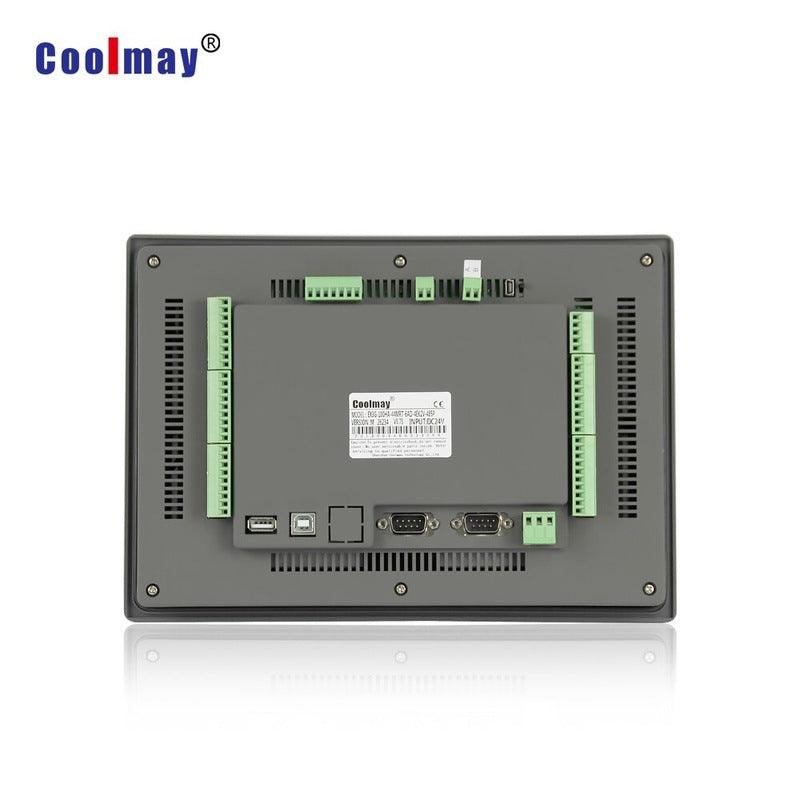

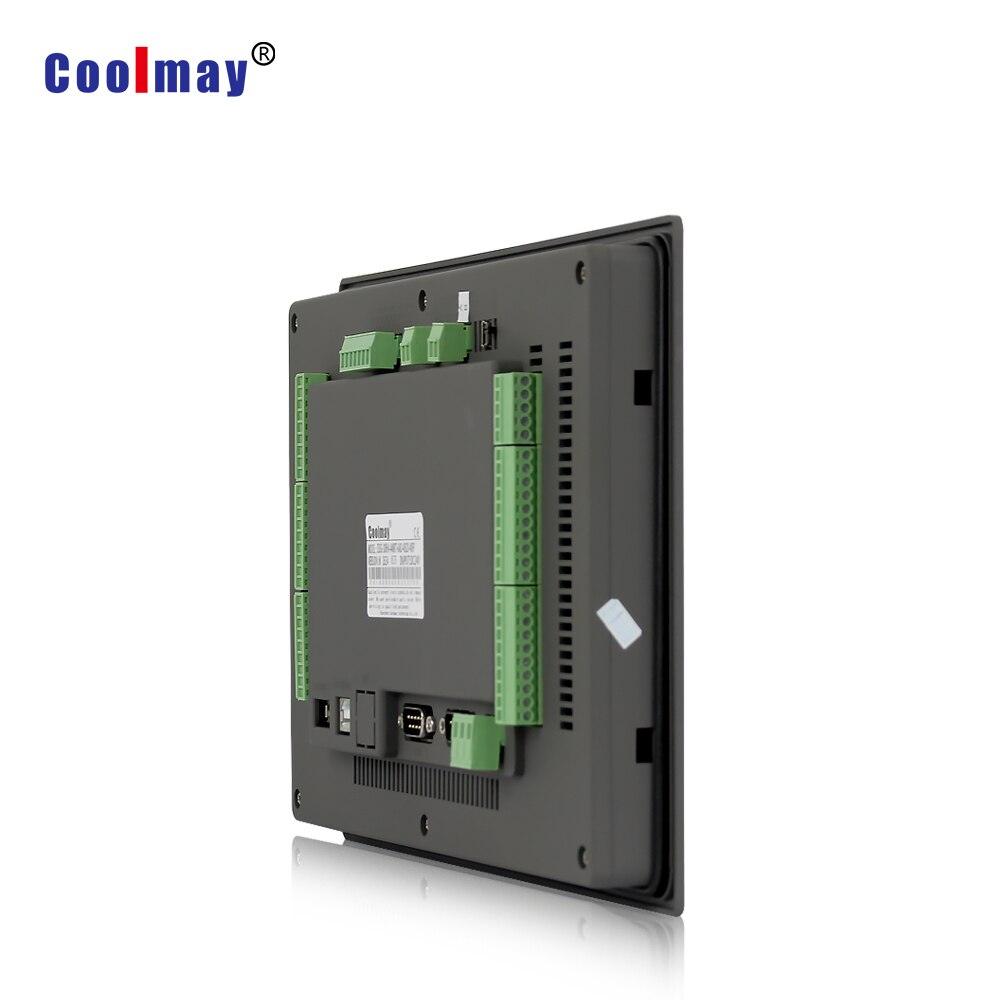

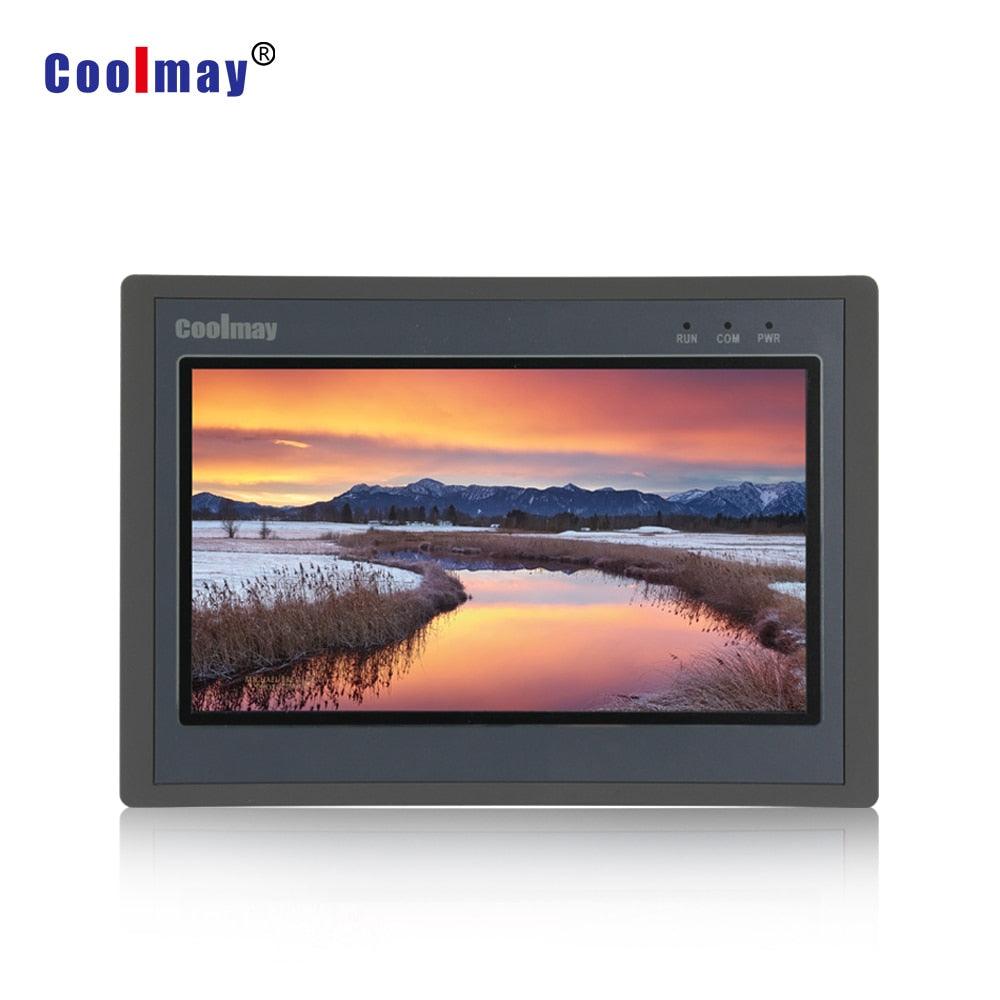

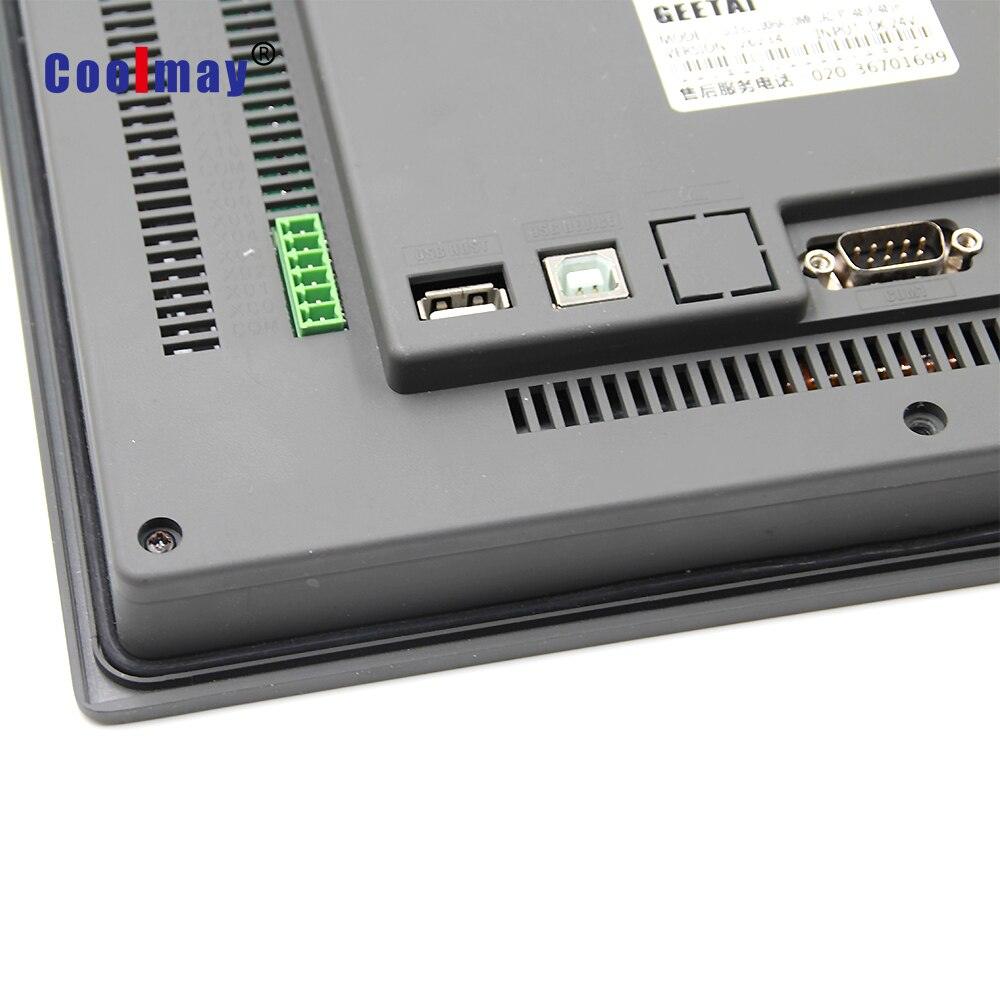

MT6100HA 10 inch TFT display 1024*600 high resolution true color touch panal HMI

$512.00 NZD
$607.00 NZD $512.00 NZD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Coolmay MT6100HA 10 inch TFT display 1024*600 high resolution true color touch panal HMI for industrial automation

Touch type: 4-wire precision resistance network

Resolution: 1024*600

ROM: 128MB

RAM: 128MB

Place of Origin: Guangdong, China (Mainland)

Origin: CN(Origin)

Model Number: MT6100HA

Input: 24vdc

Cutout size: 261*180mm

Consumption: 280mA*24V

Brand Name: Coolmay

Application: Lathe and Turning Center

The package will include

* 1 set of device (grey color) and cables

* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.



Note:

(1) The device includes functions below

  • 10 inch color touchscreen
  • RS232, RS485 port
  • Support modbus, free port and common PLC communication protocol

(2) 1 set of cables is free of charge. Please order in our store for additional cables.

​

Specifications of MT6100HA

Dimension

275*194*36mm

Cutout size

261*180mm

Display size

222*125mm

Weight(kg)

Appox.t 0.7 kg

Display

10.1” TFT

Resolution

(pixels)

1024*600

Brightness

300cd/m²

Contrast ratio

400:1

Backlight

LED

Backlight time

60,000 h

Display color

65536 true colors

Touch type

4-wire resistive panel

ROM

128MB

RAM

128MB

CPU

CORTEX A8 720MHz-1GHz

Operating system

WINCE 7.0

USB port

USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.）

Download port

Yes (Type B male port cable for program download)

Ethernet port

Optional

COM port

1 RS232 and 1 RS485

Protocol

Support MODBUS, free port and common PLC communication Protocol

Audio

Optional

Calendar

Yes

Input Voltage

Default as DC12~24±10%V

Consumption

280mA*24V

Protection Class

IP65 (front panel)

Temperature

Ambient environment: 0～50℃ | Storage environment: -20～70℃

Humidity

20%～90% RH

Certification

CE

Software

CoolMay HMI programming software
