MT6070H-W 7 Inch TFT True Color 800*480 Pixels HMI Touch Panel with Ethernet Port

$375.00 NZD
$464.00 NZD $375.00 NZD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Coolmay MT6070H-W 7 Inch TFT True Color 800*480 Pixels HMI Touch Panel with Ethernet Port

cut-out size: 194*138mm

USB: Yes

Touch: resistive panel

Resolution: 800*480

ROM: 128MB

RAM: 64MB

Origin: CN(Origin)

Model Number: MT6070H-W

Ethernet port: yes

Dimension: 212*148*40mm

Concumption: 200mA*24V

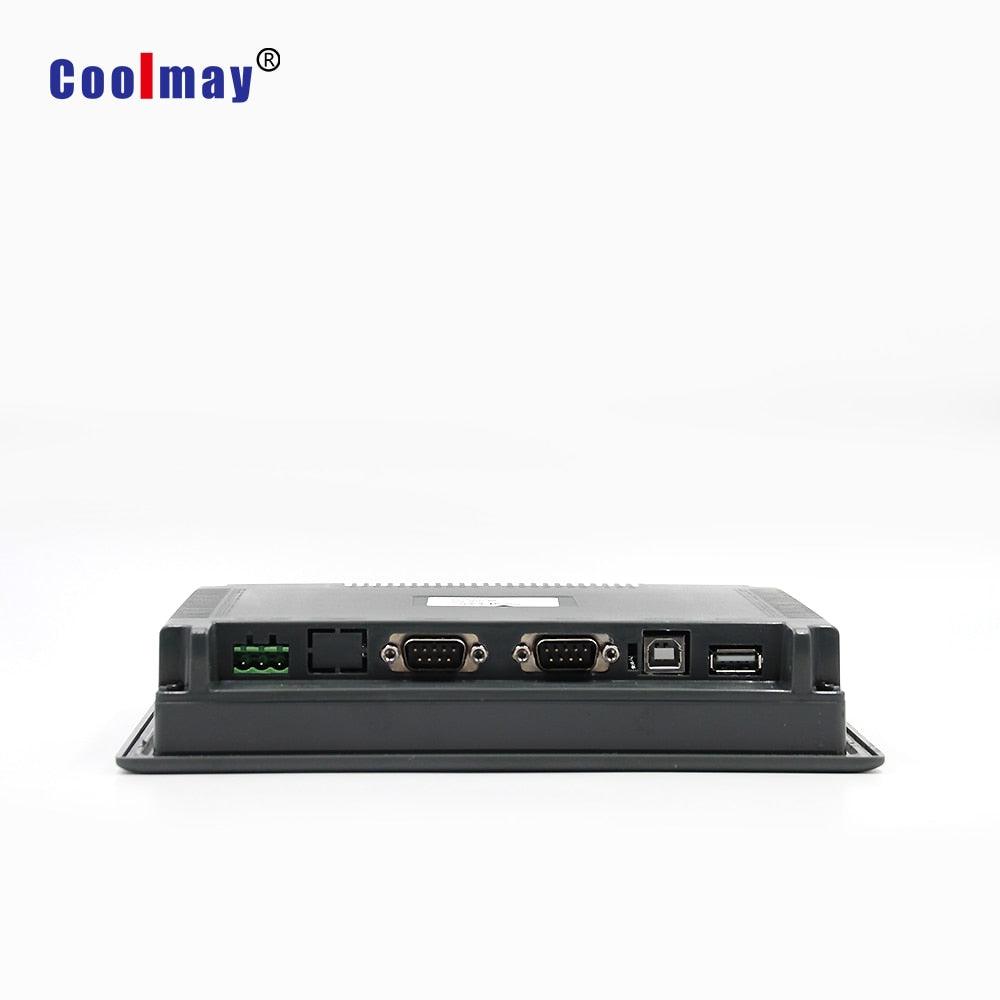

Com Port: RS232+RS485

Brand Name: Coolmay

Application: Milling Machine

The package will include

* 1 set of device (grey color) and cables

* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.

Note:

(1) The device includes functions below

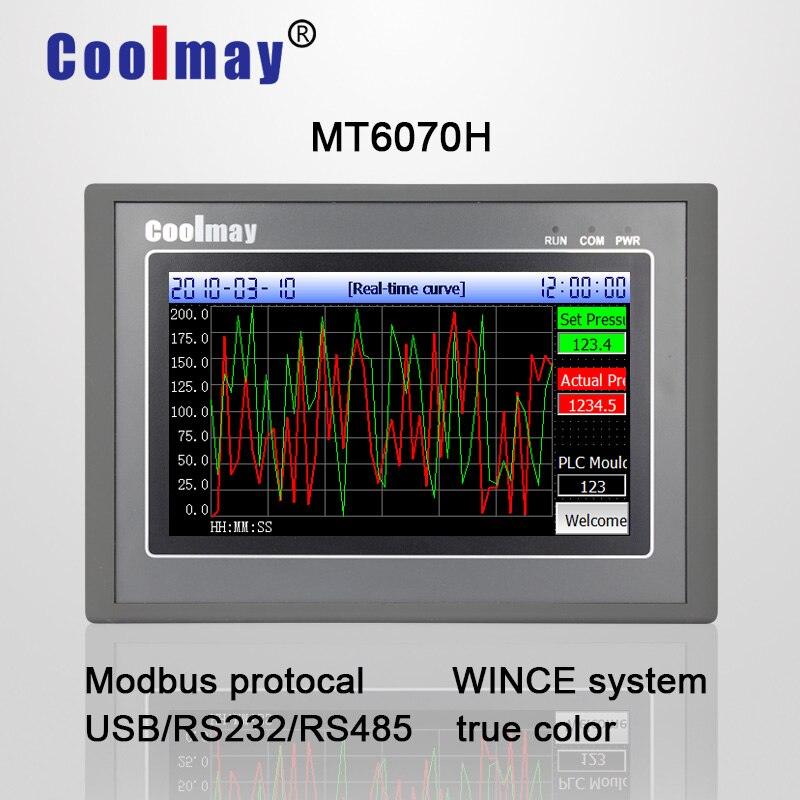

· 7 inch color touchscreen with Ethernet port

· RS232, RS485 port

· Support modbus, free port and common PLC communication protocol

(2) 1 set of cables is free of charge. Please order in our store for additional cables.



Specifications of MT6070H



Dimension

212*148*40mm

Cutout size

194*138mm

Display size

154*87mm

Weight(kg)

Appox. 0.54 kg

Display

7” TFT

Resolution (pixels)

800*480

Brightness

300cd/m²

Contrast ratio

400:1

Backlight

LED

Backlight time

60,000 h

Display color

65536 true colors

Touch type

4-wire resistive panel

ROM

128MB

RAM

64MB

CPU

ARM9 core 400MHz

Operating system

WINCE 5.0

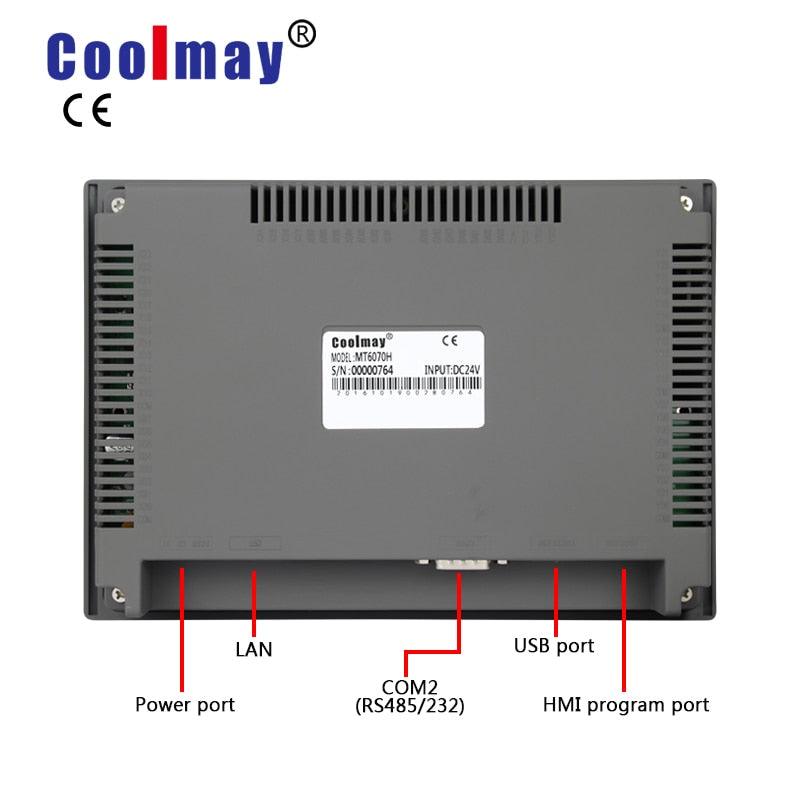

USB port

USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.）

Download port

Yes (Type B male port cable for program download)

Ethernet port

Optional

COM port

1 RS232 and 1 RS485

Protocol

Support MODBUS, free port and common PLC communication Protocol

Audio

Optional

Calendar

Yes

Input Voltage

Default as DC12~24±10%V

Consumption

200mA*24V

Protection Class

IP65 (front panel)

Temperature

Ambient environment: 0～50℃ | Storage environment: -20～70℃

Humidity

20%～90% RH

Certification

CE
