electrical center b2c

MPPT Solar Charge Controller Dual USB LCD Auto Solar Cell Panel Charger Regulator MPPT 60A 30A 40A 50A 100A 12V/24V Auto Adapt

Regular price $40.00 NZD
Regular price $47.00 NZD Sale price $40.00 NZD
Sale Sold out
Shipping calculated at checkout.
Current
Controller Type

SPECIFICATIONS

MPPT Solar Charge Controller Dual USB LCD Auto Solar Cell Panel Charger Regulator MPPT 60A 30A 40A 50A 100A 12V/24V Auto Adapt

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: YCX-30/40/50/60/100

Maximum Current: 30A/40A/50A/60A/100A

is_customized: Yes

Certification: CE

Application: Charger Controller

Application: Lighting Controller

Application: Solar System Controller

44V photovoltaic panels should be connected to 24V batteries or 2 *12V batteries
19-volt photovoltaic panel use 12-volt battery

Note:only for lead/gel batteries and not for Lion batteries

Optimized version of MPPT, only suitable for 12/24V system, does not have buck-boost wide-voltage function




MPPT Solar Charge Controller Dual USB LCD Auto Solar Cell Panel Charger Regulator MPPT 60A 30A 40A 50A 100A 12V/24V Auto adapt



As the most high-end and advanced solar charge controller, it charges the battery with the max power, MPPT tracking efficiency is 99%, and the whole system has a high power generation efficiency of 97%.


Function:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during
nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the controller will
automatically cut off the load from the system. If the voltage of
battery is back to normal and the load will restart working.
8. Thunder protection
9. According to the battery voltage grade, the controller can
automatically set charge-off voltage, the load-off voltage, the
load- restore voltage. (The parameter is default under 25℃
condition, locked by the CPU procedure, cannot adjust.)
10. The controller will automatically compensate the temperature of
the charging voltage according to the changes of ambient temperature.

Features:
1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,
discharge current accurate real-time display, power generation at a glance.
2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection
during charging, bidirectional focusing tracking.
3. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge
and discharge adjustable, as long as you understand the characteristics of the battery set its
corresponding charging parameters, you can charge a battery. When the output is off, the time
can be adjusted, which is more convenient. (on the market, there is no point adjustment)
4. Acomplete three-phase charge management, effectively protect the battery, the battery is more
durable.
5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection
protection,when the fault is eliminated, the controller automatically recovers, does not damage
the device.
6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.
7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.

Specifications
1. Rated voltage: 12/24V
2. Rated current: 30/40/50/60/100A
3. Max. PV voltage: 50V
4. Max. PV input power: 1200W(12V) / 1200W(24V)

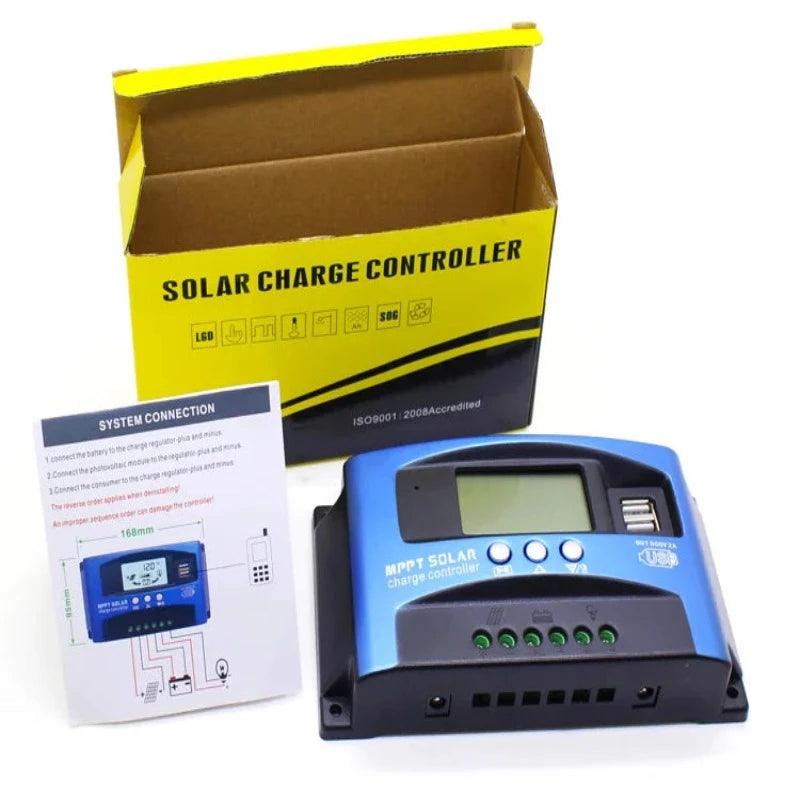

Package Includes:
1 x Solar Panels Battery Charge Controller   1 x User Manual
1.Make sure your battery has enough voltagefor the controller to recognize the battery type before first installation.



2. The battery cable should be as short as possible , in case the voltage will be lower because of the cable is too long.

3. The controller is applicable to various lead-acid batteries (including openings, seals, gels,etc.) If you charge other batteries, you must be familiar with the battery characteristics and set the appropriate charging parameters.

For example: charge 12V lithium battery, inhibit the output protection settling 9.5V, full of protection 12.2V, start charging voltage 11.5V when the battery drops.



4. The charge regulator is only suitable for, regulationg solar modulesNeverconnect another charging source to the charge regulator.

Package list:
Item size: 170 * 95 * 40 mm / 6.69 * 3.74 * 1.57 in
Item weight: 260 g / 9.17 ounce
Package size: 175 * 100 * 45 mm / 6.89 * 3.94 * 1.77 in
Package weight: 295 g / 10.41 ounce

Notes:

1.What is MPPT?
Automatic load tracking aggregation.
2.Why "Only works with the battery connected, turn on the solar panel charges the battery, charge does not work"?Why is it less than 100A?
We are a current-focus MPPT with two constantan wires designed to detect current and maximum open-load when more 1A.This technology is our patent practice, and has been recognized by the state, with a special patent certificate of invention.There is no such technology on the market.
Compared with other MPPT MPPT-inductive buck-boost type, the same solar charging condition, our current-focusing MPPT current tracking efficiency is higher, because of the power loss caused by the booster and the step by step down.
In fact, the effectiveness of very low light charging is very low because the input power is very small.And our MPPT can also increase the load under relatively low illumination.Our MPPT is straight-through type.When the current is greater than 1A, it will not be tested.The chain will be charged directly.Only when it is charged to 95% of the battery, will it slow down and protect the battery.

Note:only for lead/gel batteries and not for Lion batteries

Optimized version of MPPT, only suitable for 12/24V system, does not have buck-boost wide-voltage function
