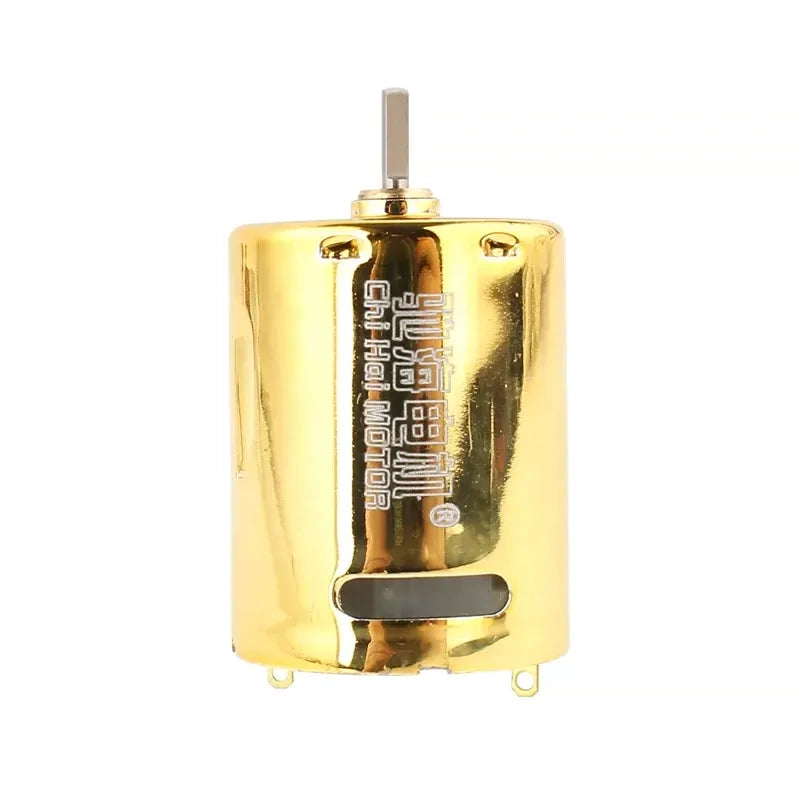

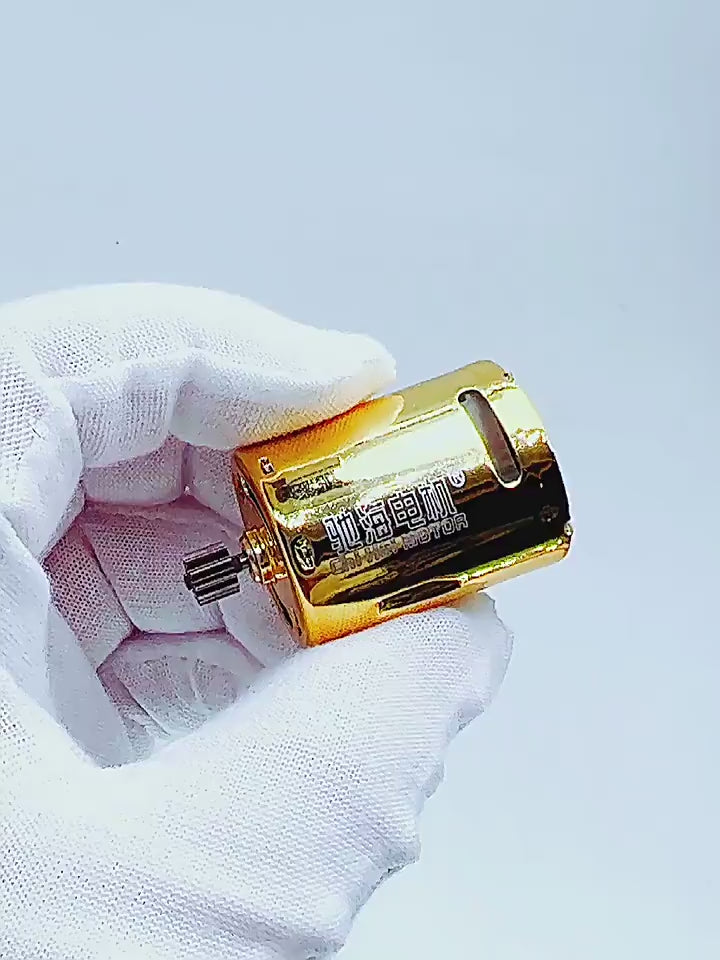

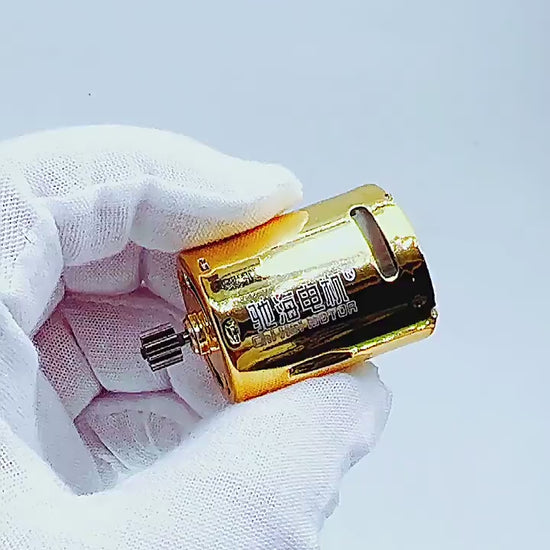

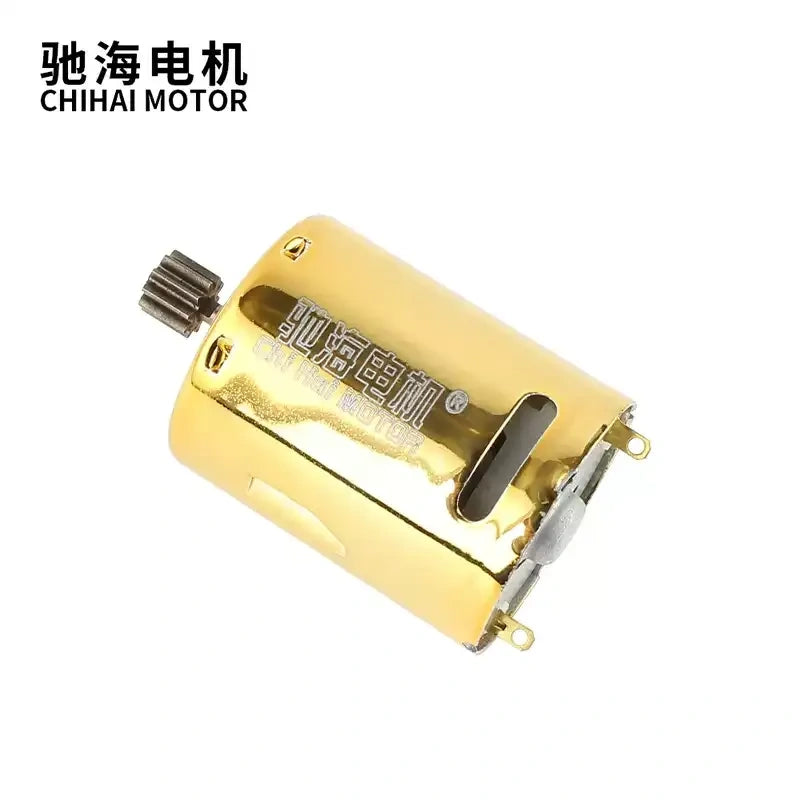

MP9-370 High-Speed High-Torque DC Motor

MP9-370 Golden High-Speed DC Motor, 7.4V/11.1V High Torque Sintered NdFeB Motor for Hobby Toys

• High-Performance Magnetic System: Equipped with N35SH sintered neodymium iron boron (NdFeB) magnets, ensuring stable torque output, high durability, and resistance to demagnetization even under high temperatures.
• Durable Construction:
  • Metal Output Gear: D-shaped hole imported powder metallurgy cast metal gear (Module 0.5, 10 teeth), pre-installed to avoid assembly damage.
  • Ball Bearing Structure: Reduces friction, improves efficiency, and extends motor life.
  • Heat-Dissipating Housing: Golden baked paint shell with cooling holes for better heat dissipation during continuous operation.
  • High-Quality Components: Imported wear-resistant carbon brushes and armature dynamic balancing treatment for smooth, low-vibration operation.


• Dual Speed Options:
  • 7.4V: 33000 RPM
  • 11.1V: 50000 RPM (for max speed and torque boost)


• Beginner-Friendly: Comes with a pair of plug-in wiring to eliminate soldering risks; pre-assembled with MP9 pinion gear for direct drop-in use.

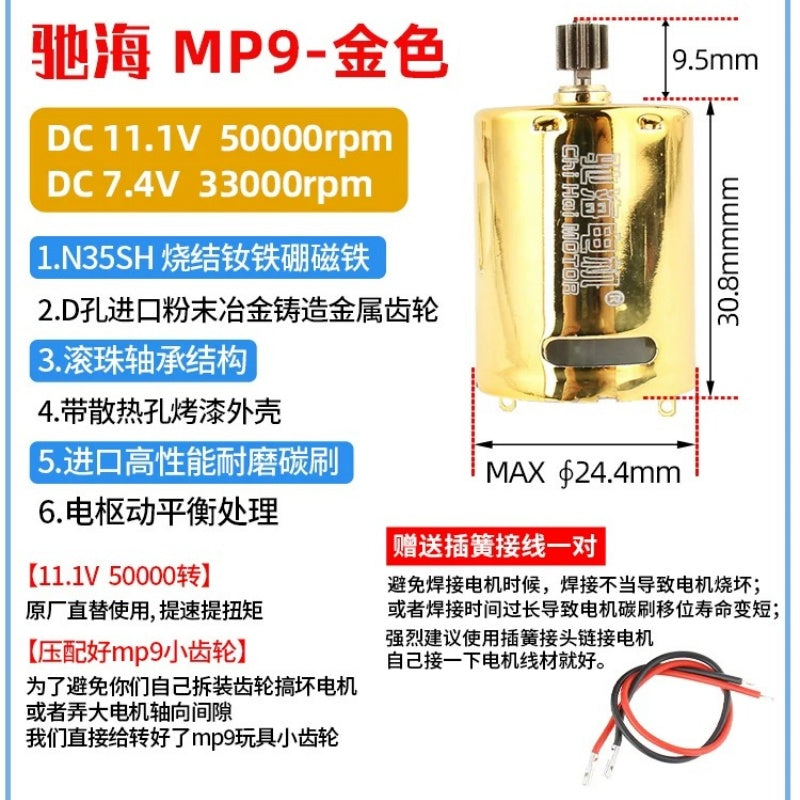

• Model: MP9-370
• Brand: ChiHai Motor
• Rated Voltage: DC 7.4V / DC 11.1V
• No-Load Speed: 33000 RPM (7.4V) / 50000 RPM (11.1V)
• Magnetic Material: N35SH Sintered NdFeB Magnet
• Output Gear: Module 0.5, 10 teeth, D-hole powder metallurgy metal gear
• Structure: Ball bearing type
• Housing: Golden baked paint with cooling holes
• Dimensions: 30.8 × 24.4 × 9.5mm
• Weight: Approx. 52g

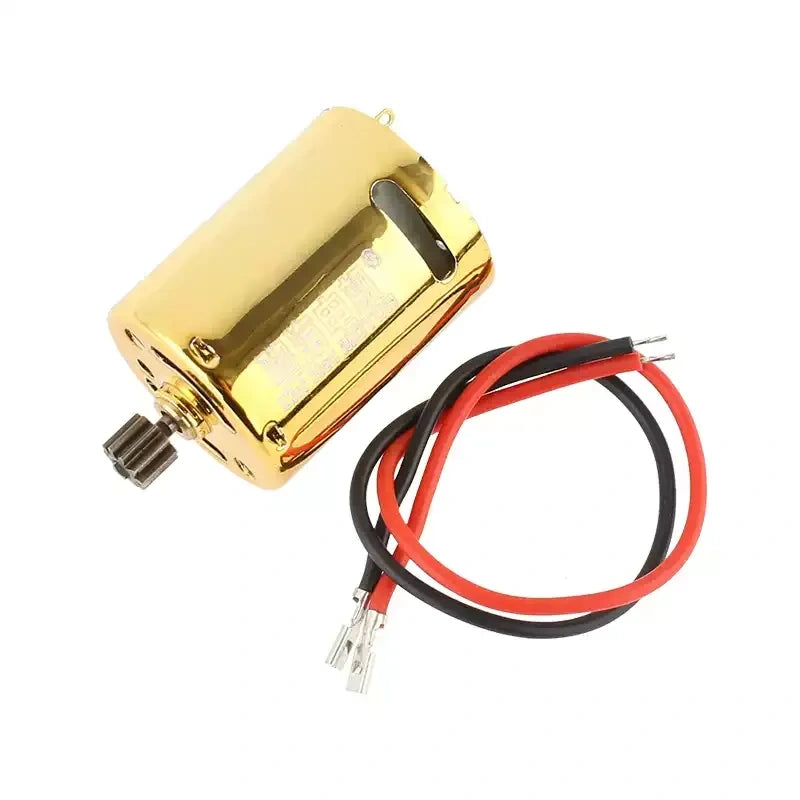

• Included Accessories: 1 pair of plug-in wiring
