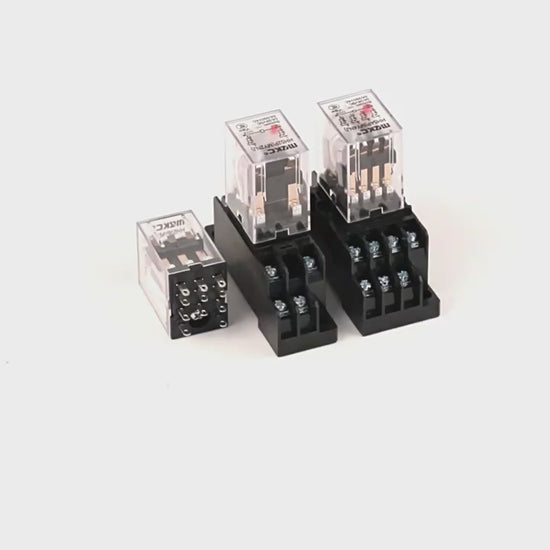

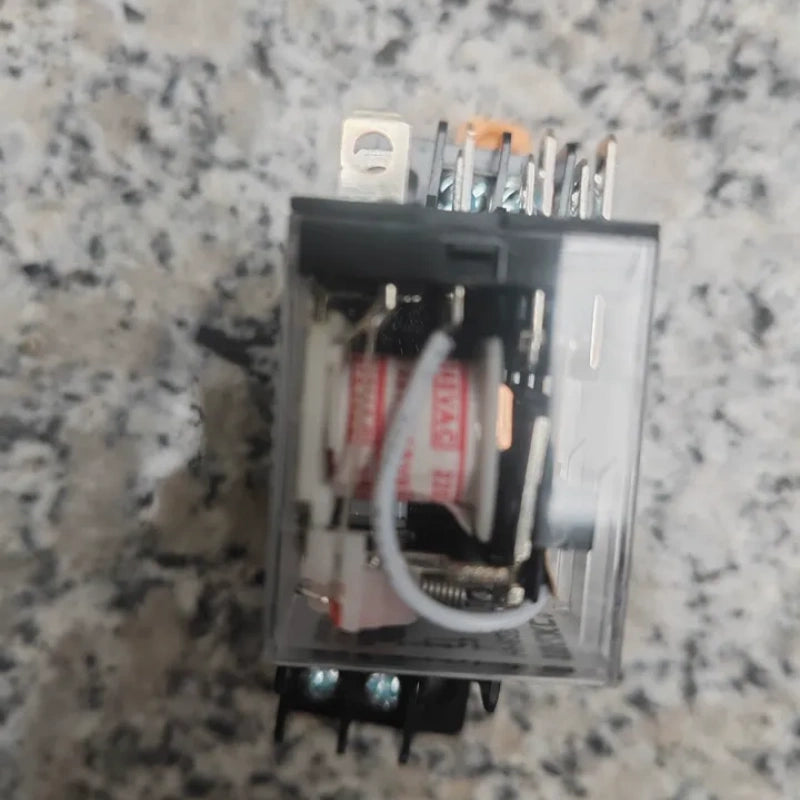

HH52P HH53P HH54P HH62P HH63P HH64P Miniature Intermediate Relay With LED Indicator, MY2NJ MY3NJ MY4NJ LY3NJ Equivalent
Couldn't load pickup availability
miniature electromagnetic relays
Description
This LED indicator miniature electromagnetic intermediate relay is widely used in PLC control cabinets, automation equipment, solenoid valve, lighting and pump circuit control for signal switching and isolation.

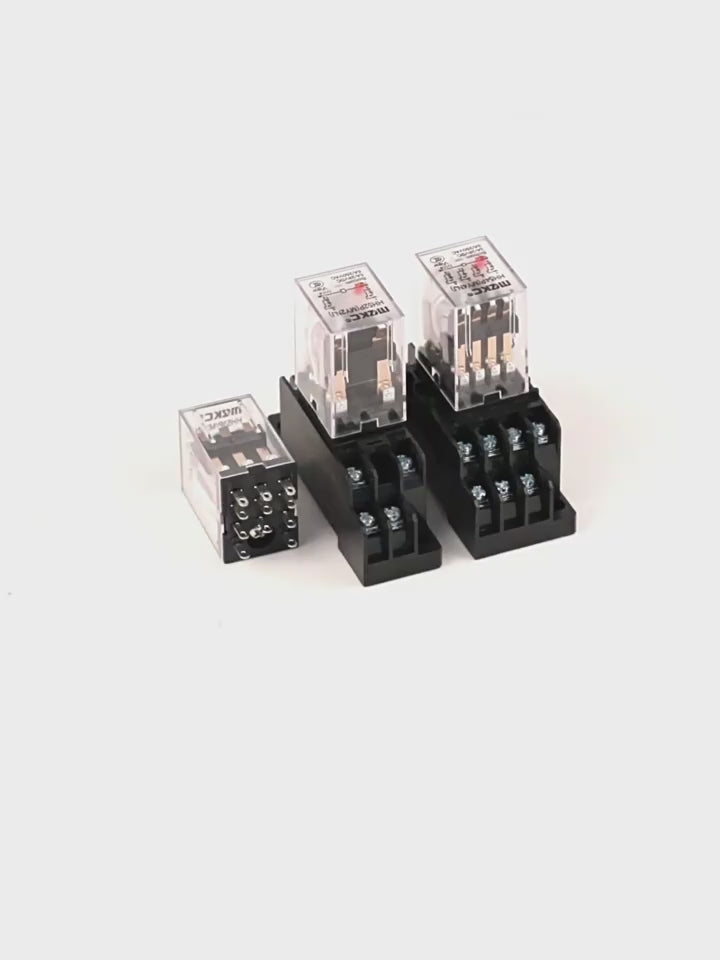

Available Models & Specs:

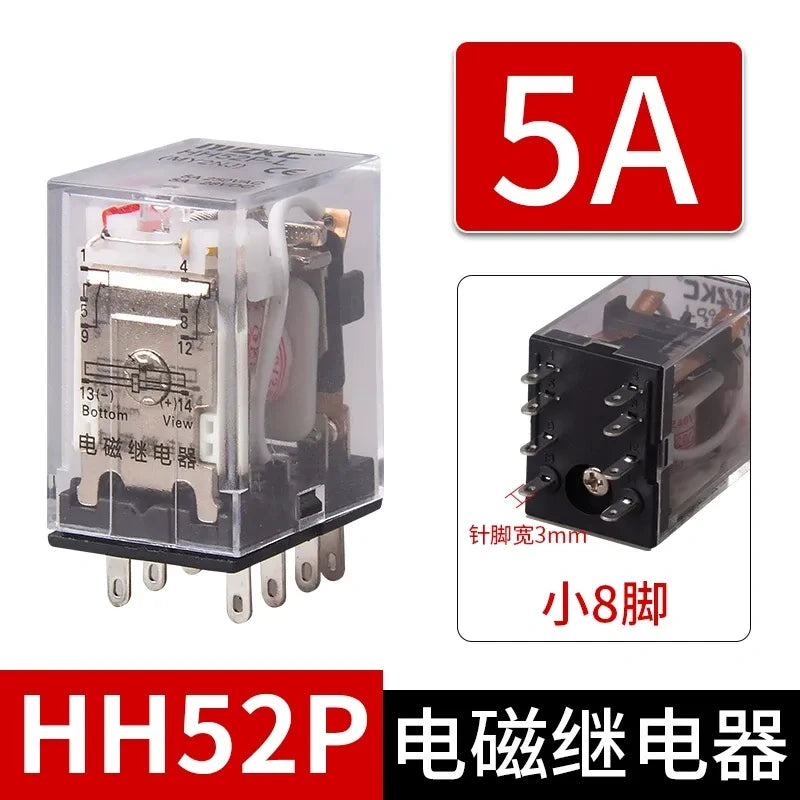

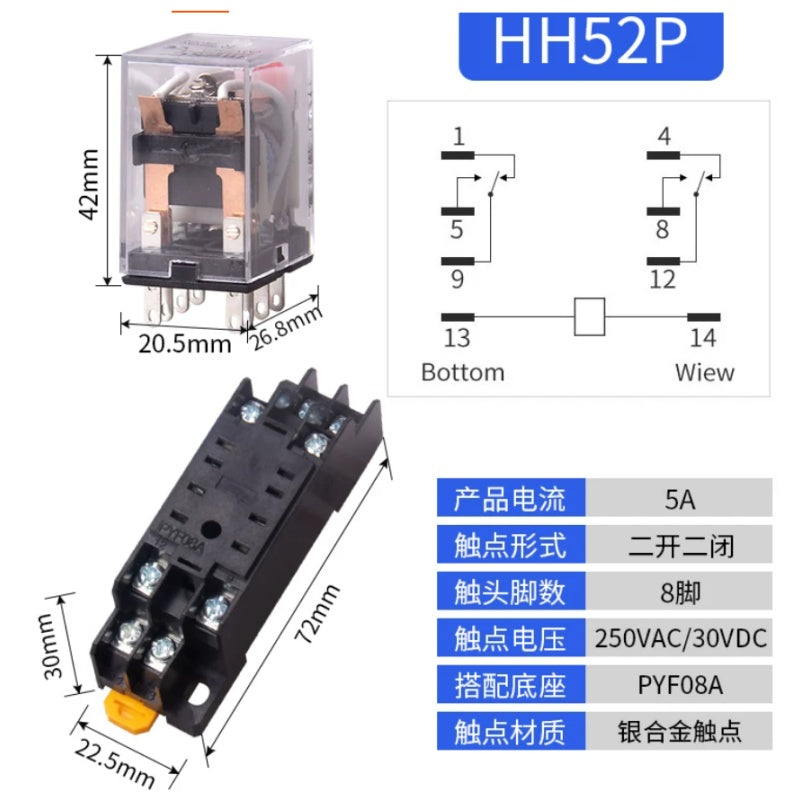

- HH52P (MY2NJ): 5A, 2NO+2NC, 8-pin, match PYF08A base

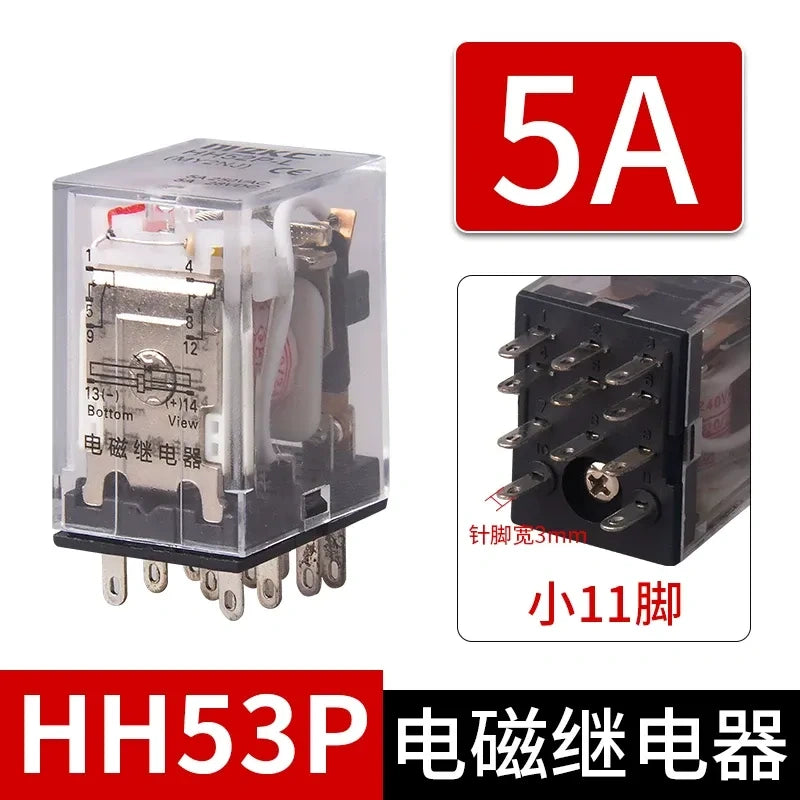

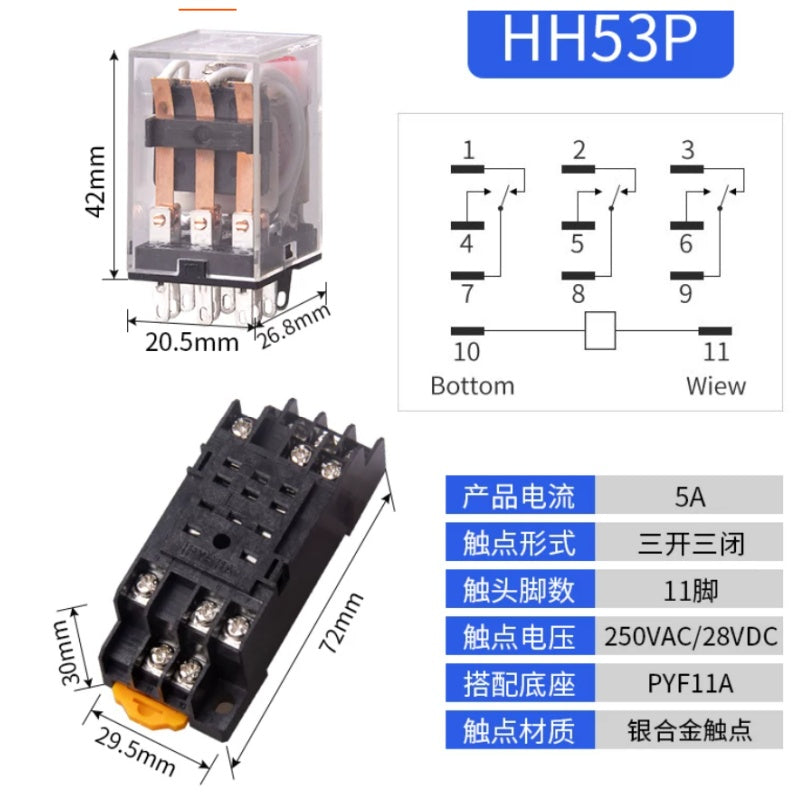

- HH53P (MY3NJ): 5A, 3NO+3NC, 11-pin, match PYF11A base

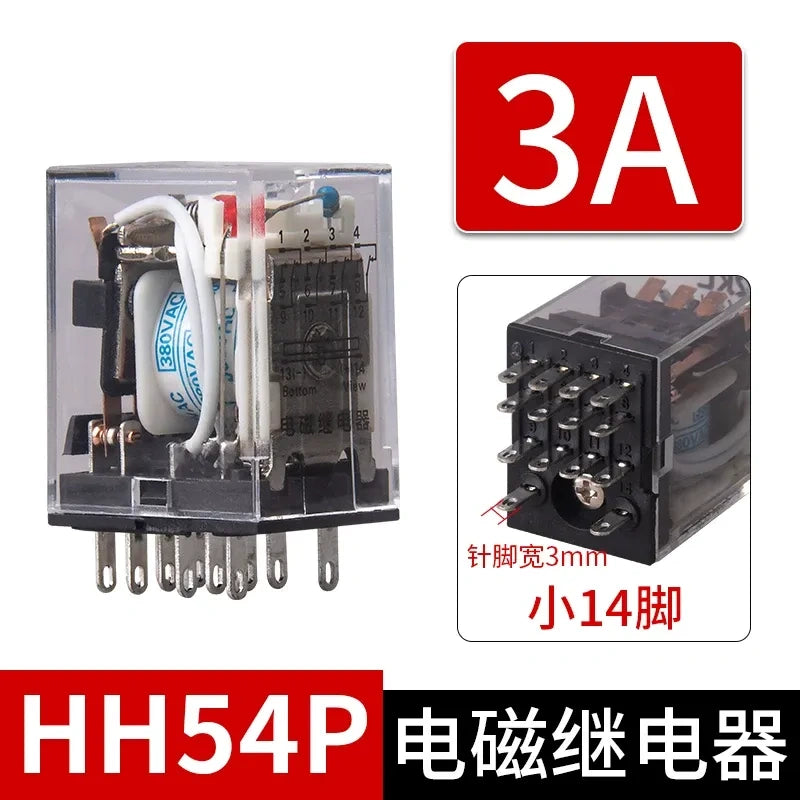

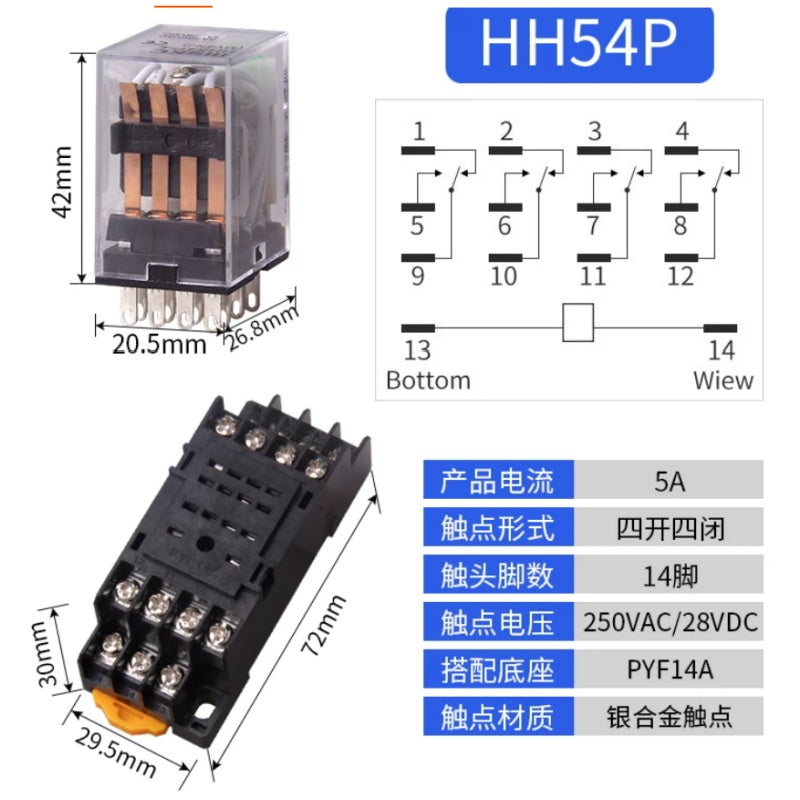

- HH54P (MY4NJ): 3A, 4NO+4NC,14-pin, match PYF14A base

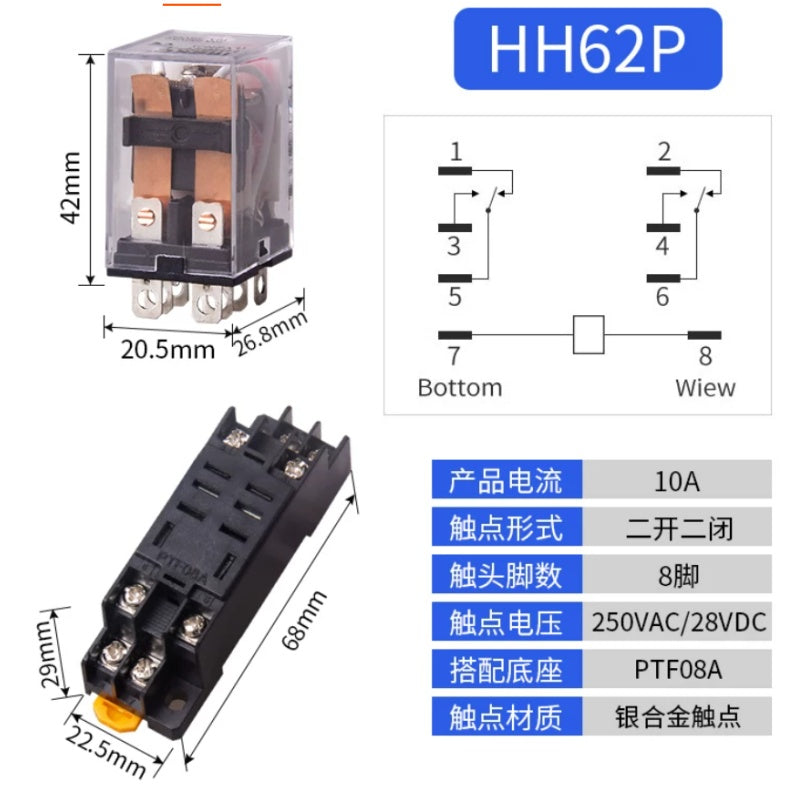

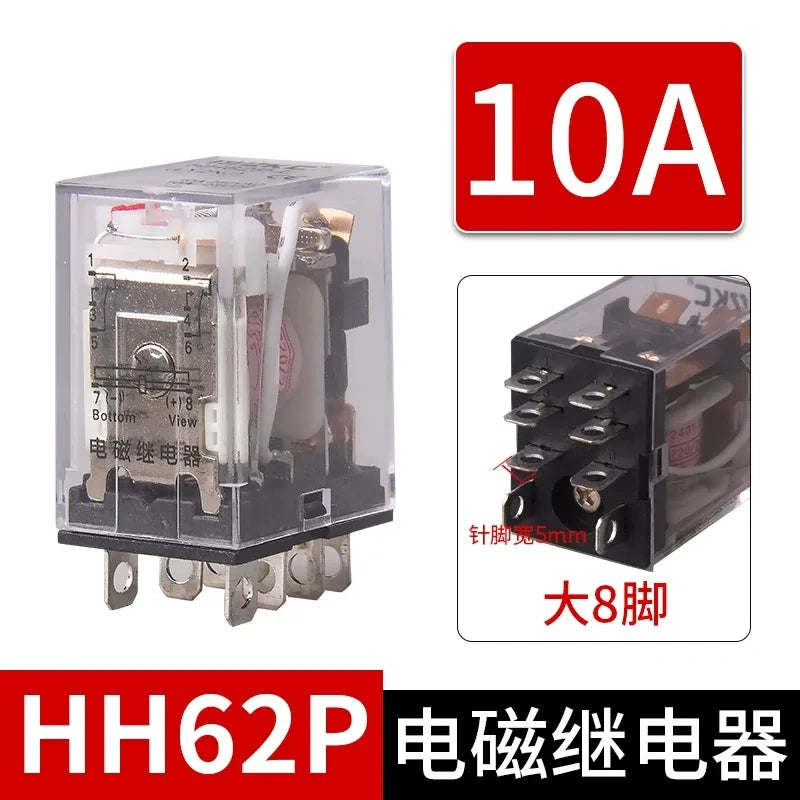

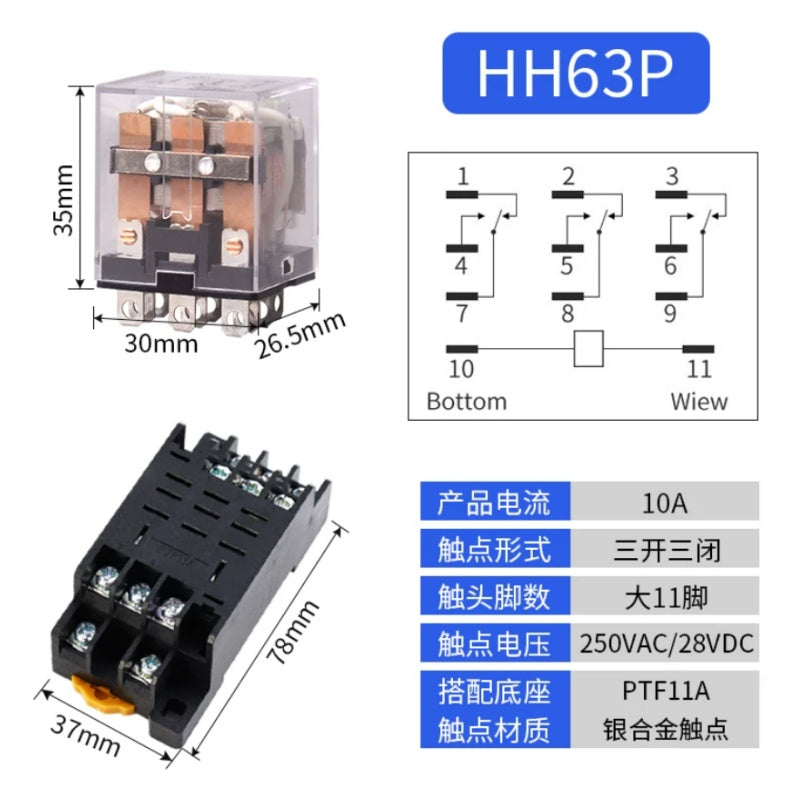

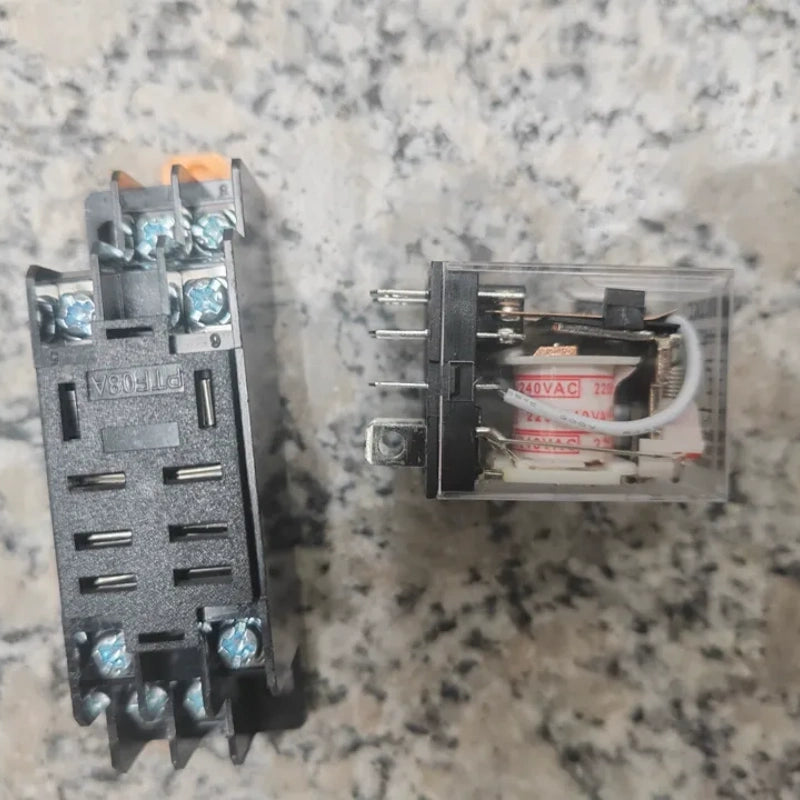

- HH62P (JQX-13F):10A,2NO+2NC,8-pin, match PTF08A base

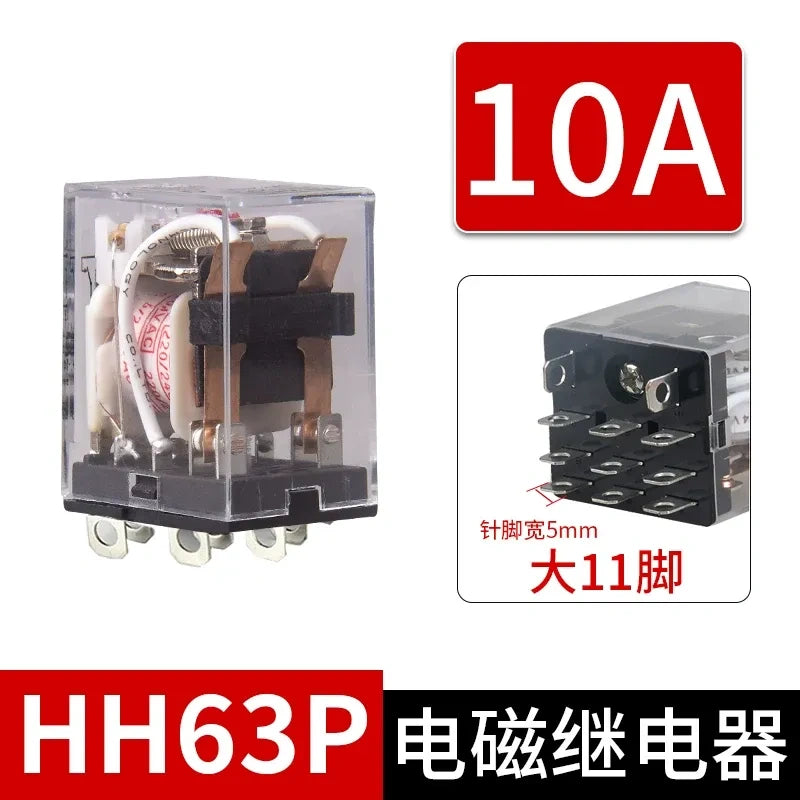

- HH63P (LY3NJ):10A,3NO+3NC,11-pin, match PTF11A base

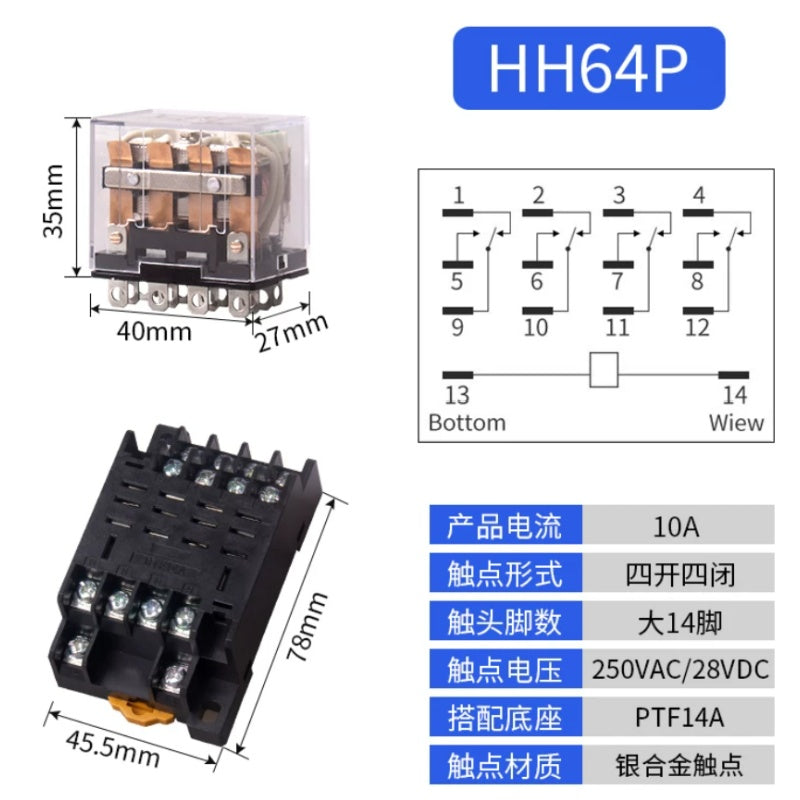

- HH64P (LY4NJ):10A,4NO+4NC,14-pin, match PTF14A base

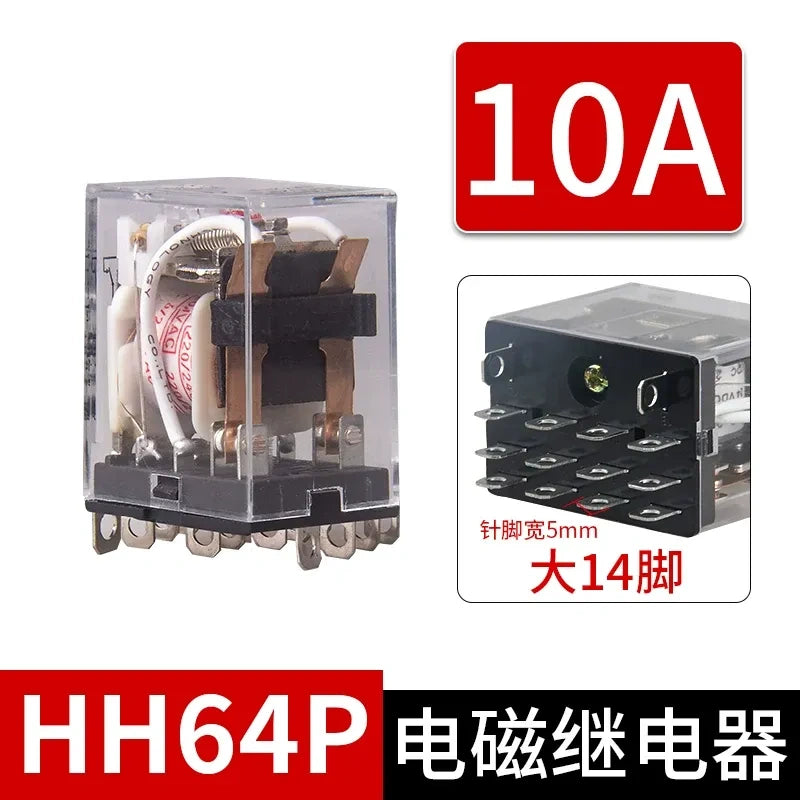

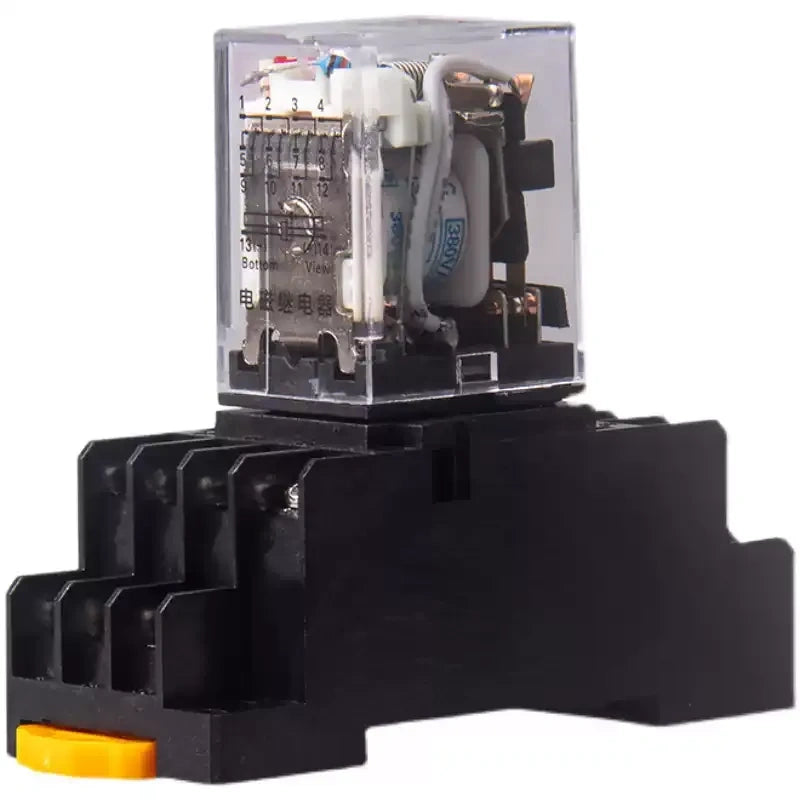

Core Features ✅ Full copper wound coil: stable pull-in performance, reliable operation and safe load bearing ✅ Silver alloy large contacts: excellent conductivity, big current load, long service life & stable contact ✅ Built-in LED indicator: Red LED for AC coil, Green LED for DC coil, easily check working status ✅ Transparent cover: direct visual inspection of internal structure ✅ Wide coil voltage selection: AC220V, AC110V, AC380V, AC24V, AC12V, AC36V, DC24V, DC12V, DC6V, custom voltage available upon request ✅ Base optional: relay only or relay + DIN rail socket base
Ideal for machinery control, industrial panel, HVAC, automatic gate and other electrical control systems.
Specification
| Attribute | Value |
|---|---|
| Product Name | Miniature Electromagnetic Intermediate Relay With LED Indicator |
| Available Models | HH52P(MY2NJ), HH53P(MY3NJ), HH54P(MY4NJ), HH62P(JQX-13F), HH63P(LY3NJ), HH64P(LY4NJ) |
| Rated Current | HH52P/HH53P:5A; HH54P:3A; HH62P/HH63P/HH64P:10A |
| Contact Form | HH52P/HH62P:2NO+2NC; HH53P/HH63P:3NO+3NC; HH54P/HH64P:4NO+4NC |
| Pin Count | HH52P:8Pin; HH53P:11Pin; HH54P:14Pin; HH62P:8Pin; HH63P:11Pin; HH64P:14Pin |
| Matching Base | PYF08A,PYF11A,PYF14A,PTF08A,PTF11A,PTF14A |
| Coil Voltage | AC220V,AC110V,AC380V,AC24V,AC12V,AC36V,DC24V,DC12V,DC6V,Custom Voltage |
| Contact Material | Silver Alloy Contact |

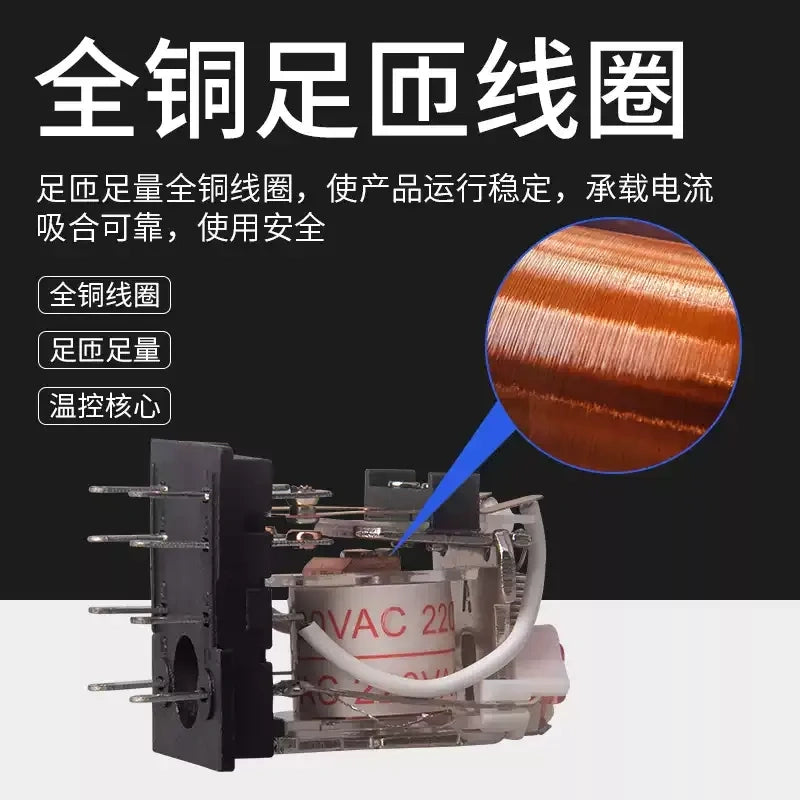

| Coil Material | Full Copper Wound Coil |

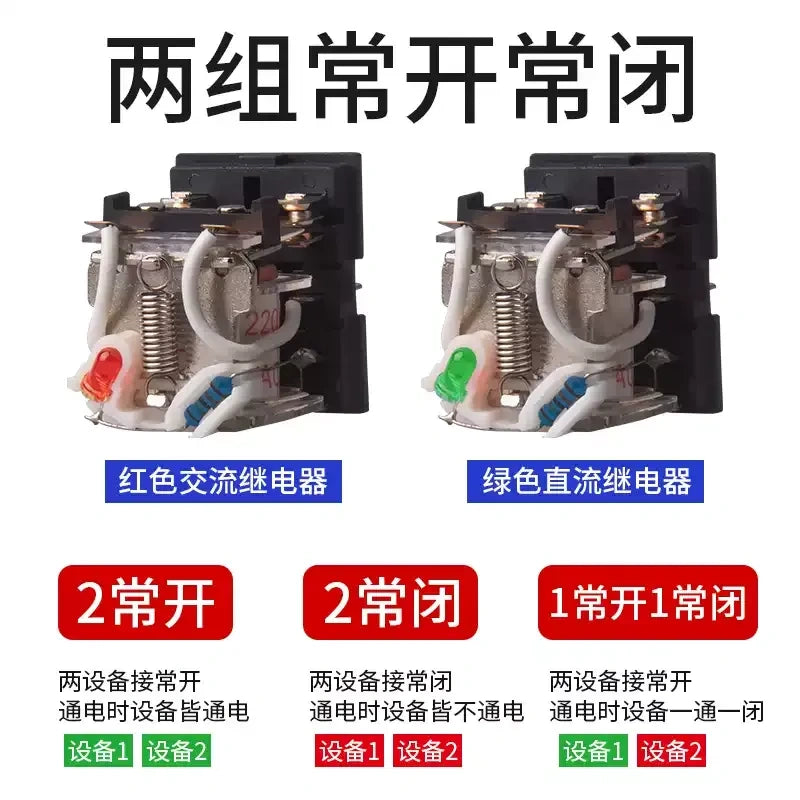

| Indicator Light | Built-in LED, Red for AC, Green for DC |
| Housing | Transparent Plastic Shell |

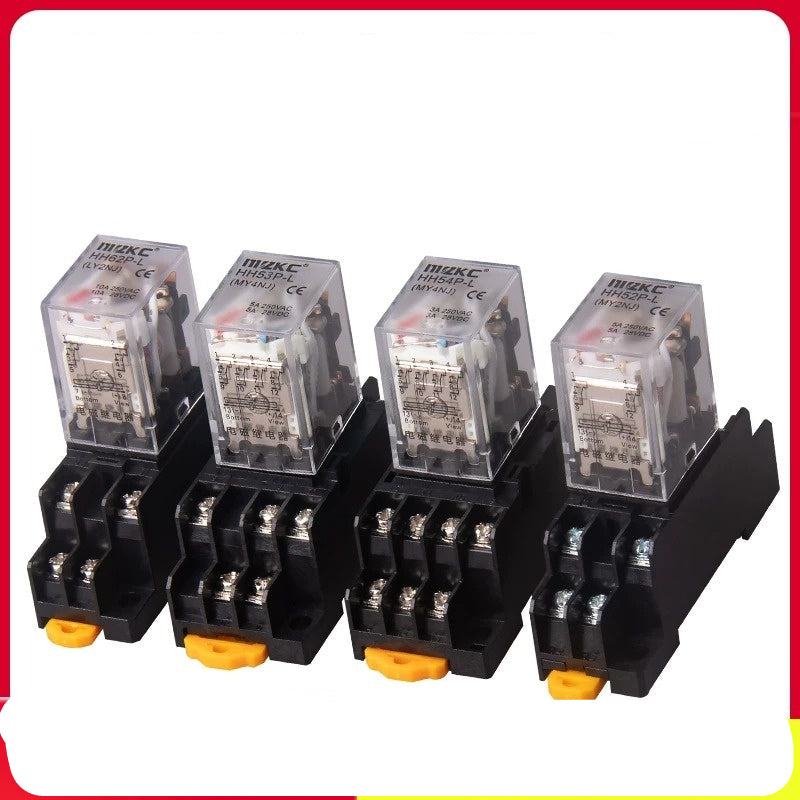

| Base Option | Optional: With DIN Rail Base / Without Base |
| Application | Industrial Automation, PLC Cabinet, Solenoid Valve, Pump & Lighting Circuit Control, Signal Isolation |
FAQs
Q1: What models are available for this LED intermediate relay?
A1: HH52P(MY2NJ), HH53P(MY3NJ), HH54P(MY4NJ), HH62P(JQX-13F), HH63P(LY3NJ), HH64P(LY4NJ).
Q2: What is the difference between AC and DC indicator lights?
A2: AC coil relays come with red LED indicator; DC coil relays use green LED, easy to identify working status.
Q3: What are the rated currents for each model?
A3: HH52P/HH53P:5A; HH54P:3A; HH62P/HH63P/HH64P:10A.
Q4: What coil voltages can I select?
A4: AC220V, AC110V, AC380V, AC24V, AC12V, AC36V, DC24V, DC12V, DC6V. Other voltages available by contact.
Q5: Are the contacts silver alloy?
A5: Yes, silver alloy contacts, strong conductivity, large current carrying capacity and long service life.
Q6: Is the coil full copper?
A6: Full copper coil with enough turns, stable pull-in and reliable performance.
Q7: Does it include base?
A7: Two options: relay only (without base) or relay with matching DIN rail base.
Q8: What base fits each relay model?
A8: HH52P-PYF08A; HH53P-PYF11A; HH54P-PYF14A; HH62P-PTF08A; HH63P-PTF11A; HH64P-PTF14A.
Q9: What are contact configurations?
A9: HH52P/HH62P: 2NO 2NC; HH53P/HH63P:3NO 3NC; HH54P/HH64P:4NO 4NC.
Q10: Where can this relay be applied?
A10: Industrial control cabinet, PLC automation, solenoid valve, water pump, lighting control, machine tool circuit switching and signal isolation.
