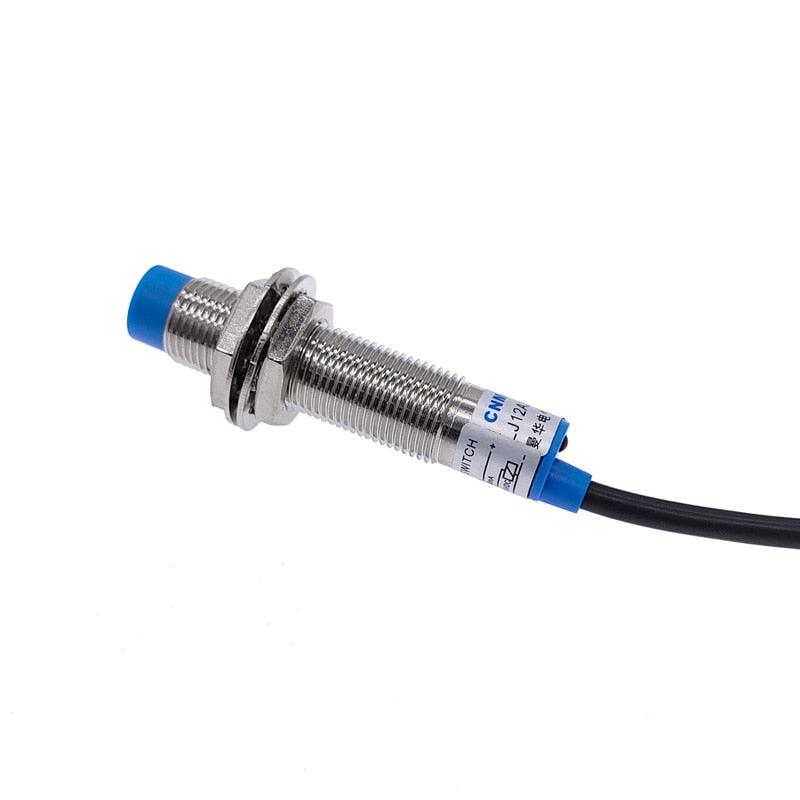

M12 Metal Detection Sensor 4mm Distance Waterproof NPN PNP 3-wire Proximity Switch
Couldn't load pickup availability
SPECIFICATIONS
M12 Metal Detection Sensor 4mm Distance Waterproof Normally Open NO Normally Closed NC NPN PNP 3-wire Proximity Switch
Warranty: 1 YEAR
Switch Type: Proximity Switch
Origin: CN(Origin)
Model Number: LJ12A3-4-Z/AY
Material: Alloy
Item Type: Switches
Is Smart Device: No
Features: Proximity Switch
Current: 300mA
Certification: CCC
[Main Parameter]
Detection distance :4mm ± 10%
Set distance:0~3.6mm
Current: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 15*15*1mm
Response frequency:DC:0.5kHz
Supply voltage:DC type:DC12V DC24V DC36V(5~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
Protection influence:IP67(IEC specification)
This product can be applied to control relays, counters,PLC, etc.!
