LS Electric
LS UA/AU-100 Auxiliary Contact Block (1a1b)
Regular price
$33.00 NZD
Regular price
Sale price
$33.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

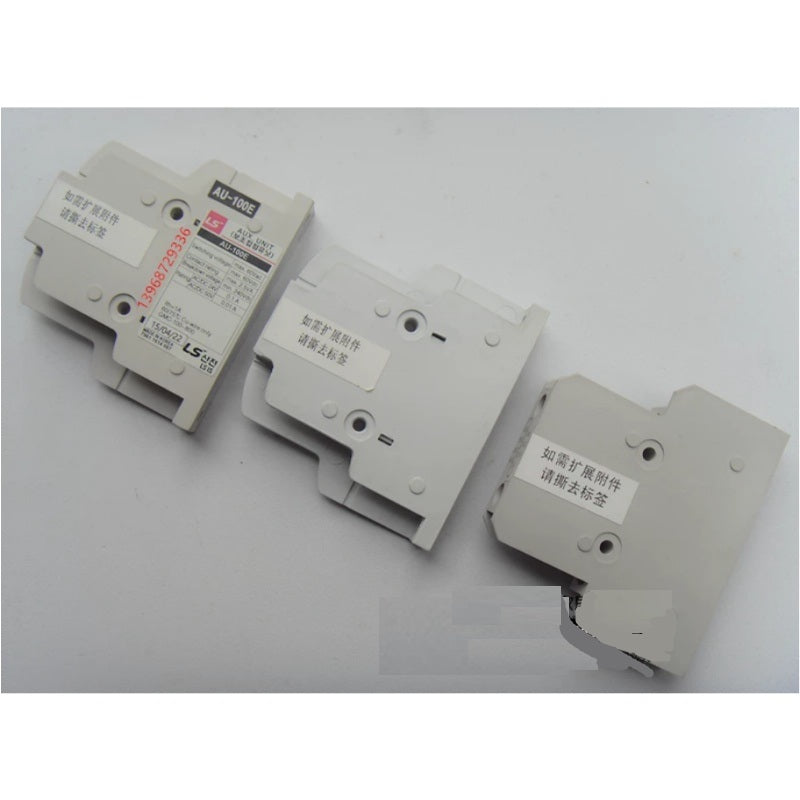

LS UA-100 / AU-100 / AU-100E Auxiliary Contact Block (1a1b), Side Mount for Large Frame MC/GMC Contactors
1. 核心概述 (Overview)
The LS Electric UA-100 / AU-100 / AU-100E Auxiliary Contact Blocks are specialized side-mount accessories designed for large-frame LS MC/GMC series contactors (GMC-125, GMC-150, up to GMC-600). These contact blocks provide a 1 normally open (NO) + 1 normally closed (NC) (1a1b) configuration to expand control circuit capabilities, enabling status feedback, interlocking, and PLC signal transmission for high-power motor control and industrial automation systems.
2. 关键特性 (Key Features)
- 1a1b Contact Configuration: Standard 1NO + 1NC auxiliary contacts for dual signal output, suitable for control and feedback circuits.
- Side-Mount Design: Optimized for side installation on large contactors, preserving front-panel wiring space while expanding control functions.
-
Multi-Generation Compatibility:
-

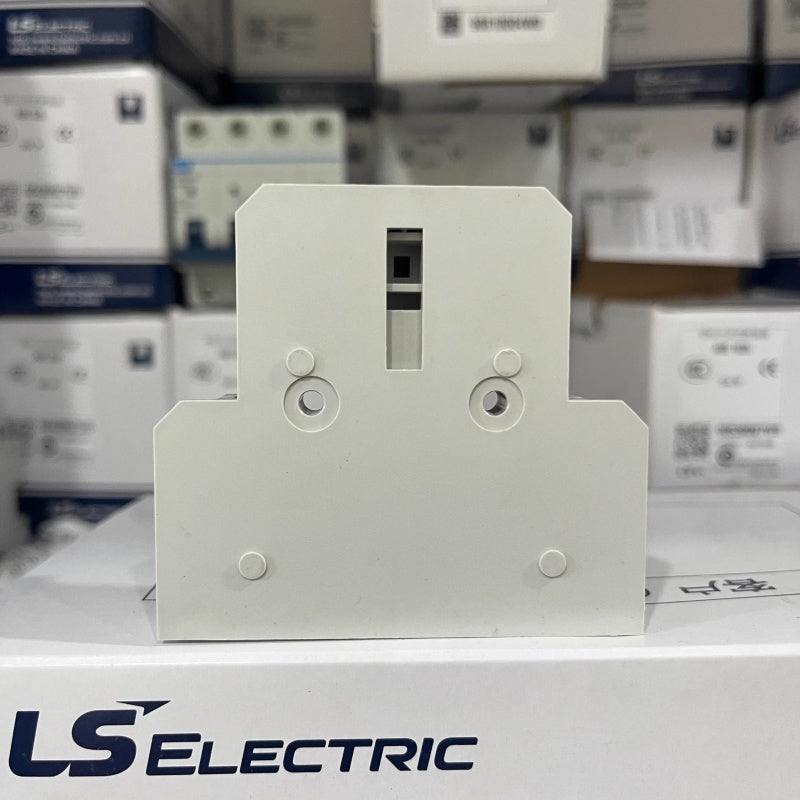

UA-100: New version for modern large-frame contactors -

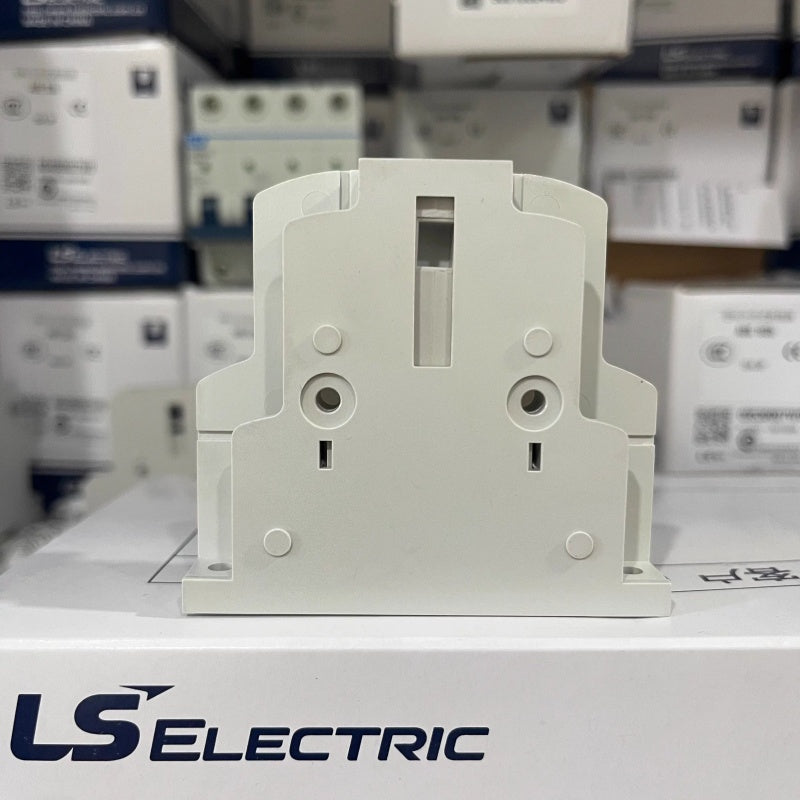

AU-100: Original legacy version for older GMC series contactors -

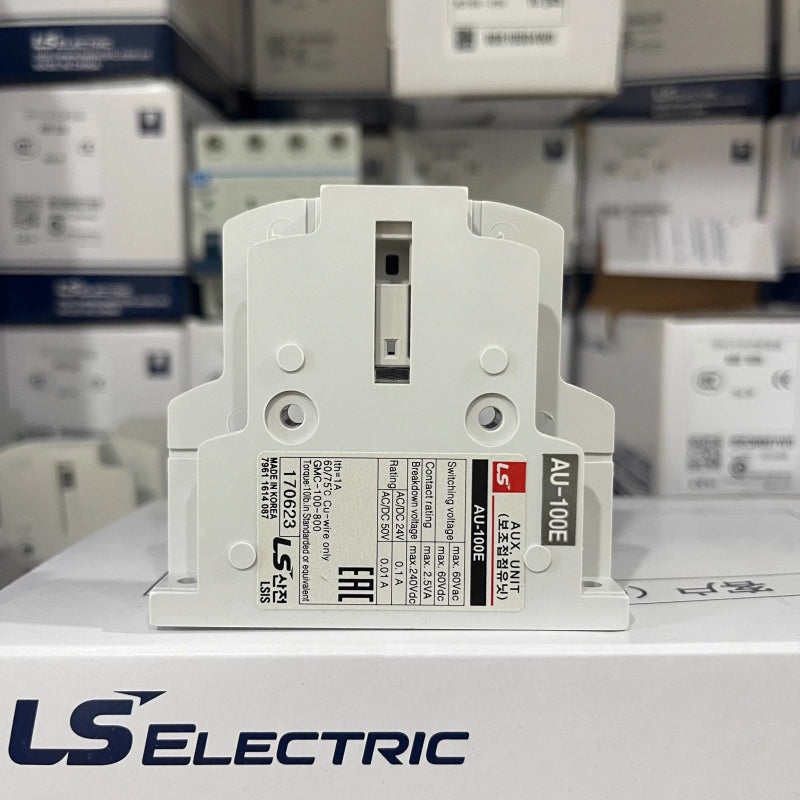

AU-100E: Enhanced version with improved contact performance and durability
-
- High-Current Rated Contacts: Silver alloy contacts with stable performance under industrial control circuit conditions, suitable for long-term use in high-cycle applications.
- IEC/GB Compliant: Meets IEC 60947-5-1 and GB 14048.5 standards for low-voltage control components.
- Quick Snap-In Installation: Tool-free mounting for fast assembly on compatible contactors, reducing panel wiring time.
3. 型号解析 (Model Decoding)
表格
| Model Code | Core Interpretation |
|---|---|
UA-100 |
New-generation auxiliary contact block (1a1b) |
AU-100 |
Legacy auxiliary contact block (1a1b) |
AU-100E |
Enhanced auxiliary contact block (1a1b) |
1a1b |
Contact configuration: 1 Normally Open (NO) + 1 Normally Closed (NC) |
Compatible Contactors |
LS GMC/MC series large-frame contactors (GMC-125, GMC-150, GMC-600, etc.) |
4. 典型应用 (Applications)
- High-power motor control (pumps, compressors, industrial machinery)
- Forward/reverse and star-delta control circuits for large motors
- PLC feedback and status indication in industrial automation systems
- Building automation and power distribution control panels
- Heavy-duty conveyor and crane control system.
DATA SHEET
| Attribute | Value |
|---|---|
| Brand | LS Electric / LS 产电 |
| Series | UA/AU-100 Series Auxiliary Contact Block |
| Product Type | Contactor Auxiliary Contact Block |
| Models | UA-100 (New), AU-100 (Legacy), AU-100E (Enhanced) |
| Contact Configuration | 1a1b (1NO + 1NC) |
| Mounting Type | Side Mount (for large-frame contactors) |
| Compatible Contactors | LS GMC/MC Series Large-Frame Contactors (GMC-125, GMC-150, GMC-600, etc.) |
| Rated Control Voltage | AC 230V/400V, DC 24V/110V/220V |
| Rated Operational Current | 6A (AC-15), 1A (DC-13) |
| Standards Compliance | IEC 60947-5-1, GB 14048.5, EN 60947-5-1 |
| Certifications | CE, CCC, RoHS |
| Application | Large Motor Control, Industrial Automation, PLC Feedback, Power Distribution Control |
