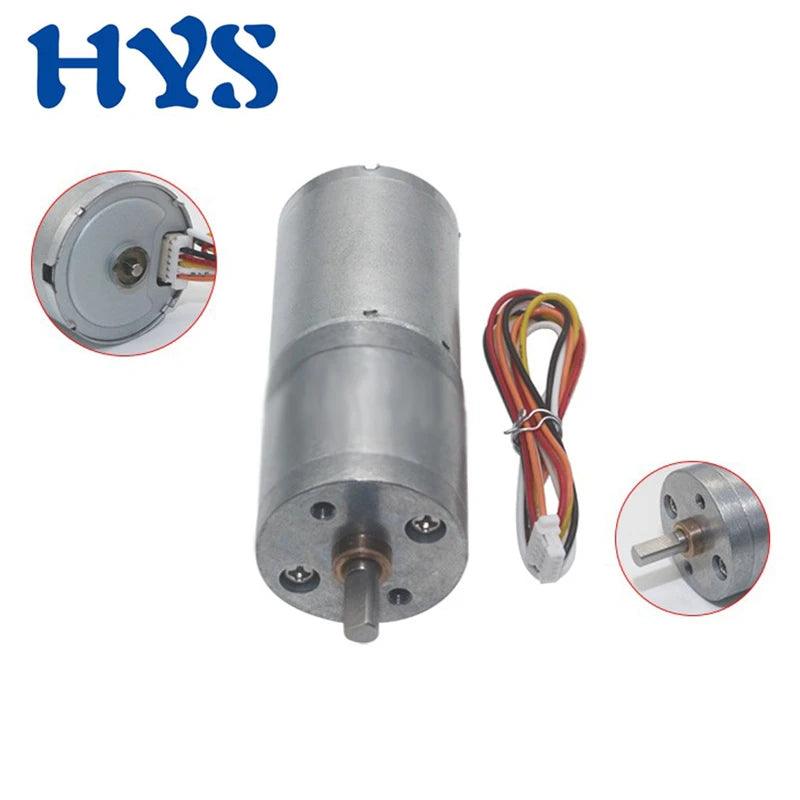

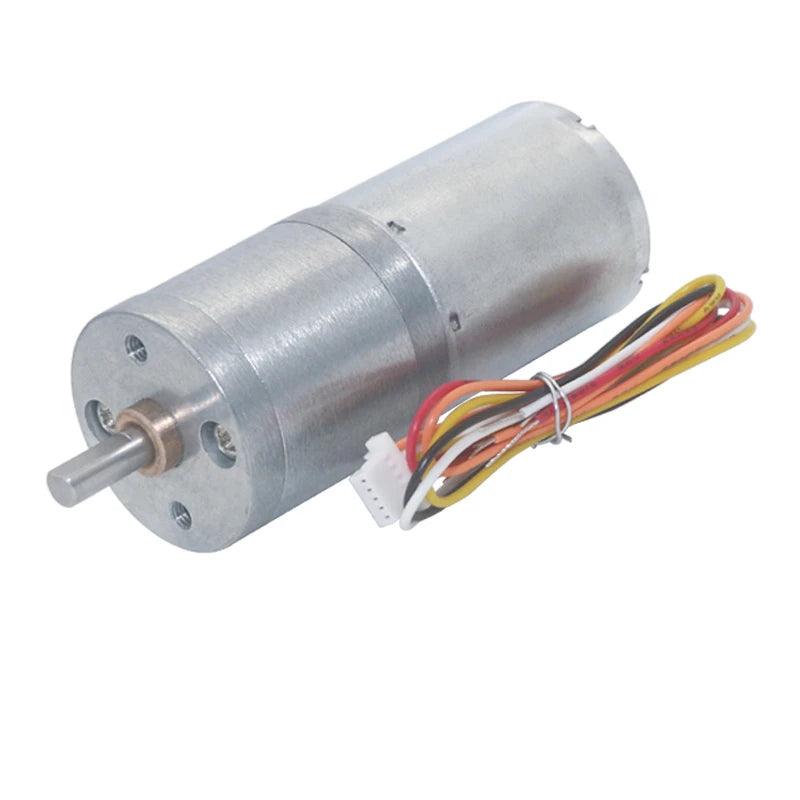

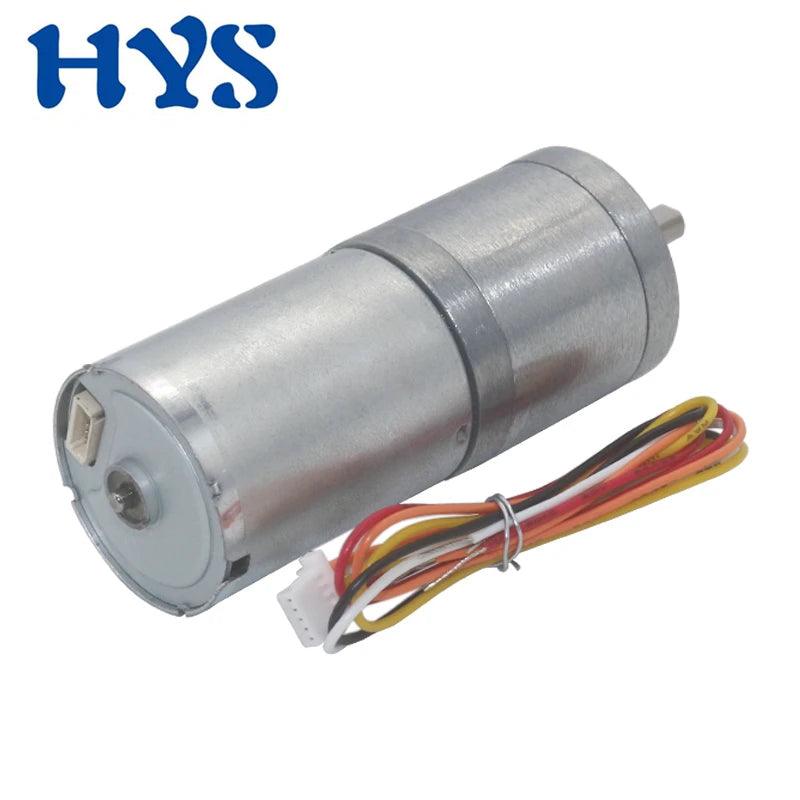

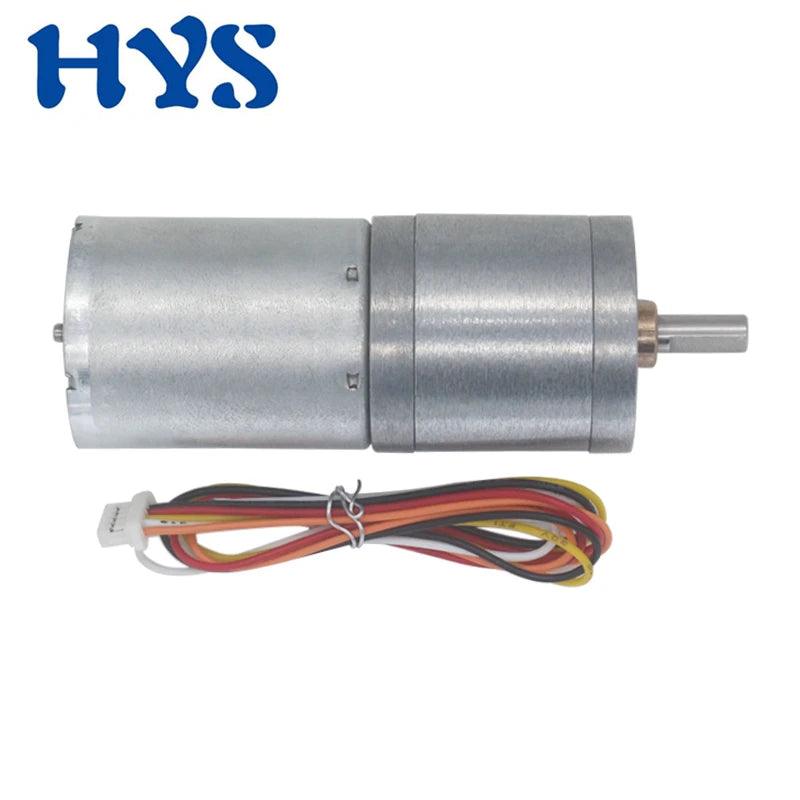

Long Life 12V 24V Mini Brushless Electric DC Geared Motor With Brake Reversed FG Signal 14 To 1550RPM BLDC Motor 24V In DC Motor

SPECIFICATIONS

Long Life 12V 24V Mini Brushless Electric DC Geared Motor With Brake Reversed FG Signal 14 To 1550RPM BLDC Motor 24V In DC Motor

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brushless

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

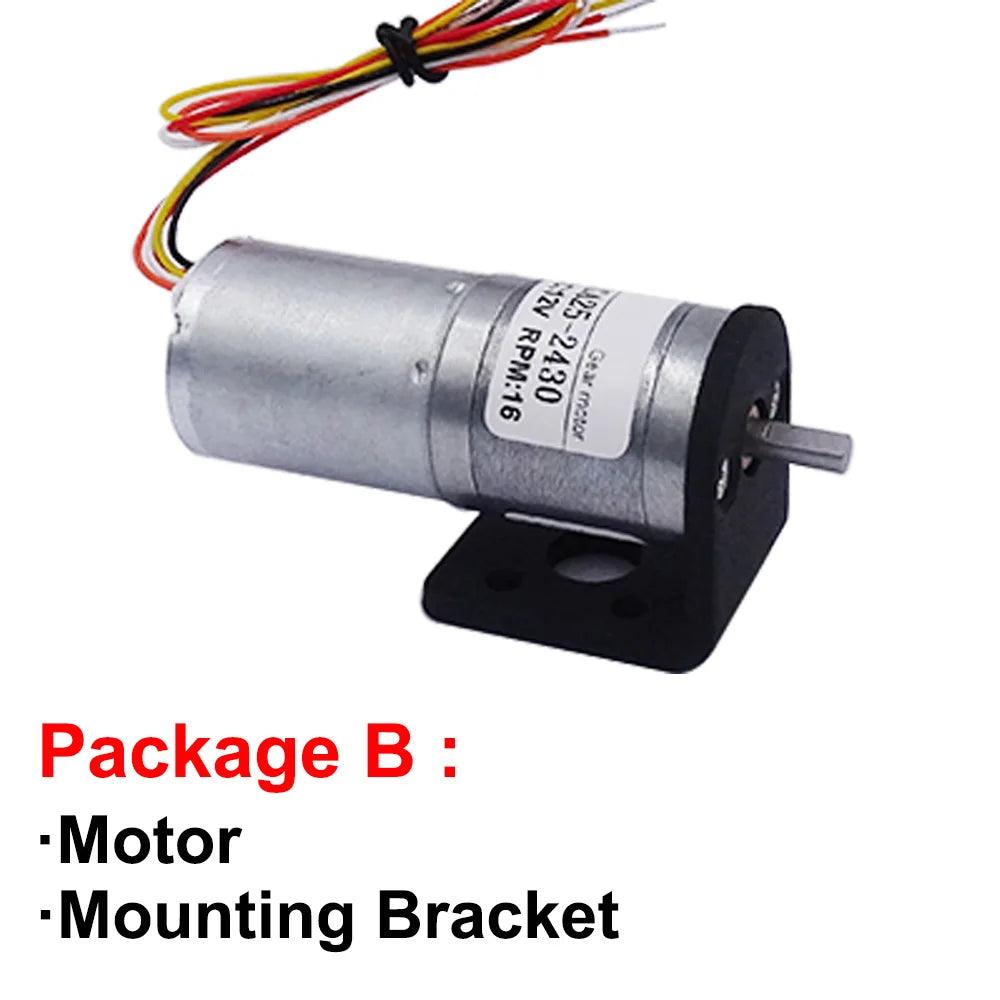

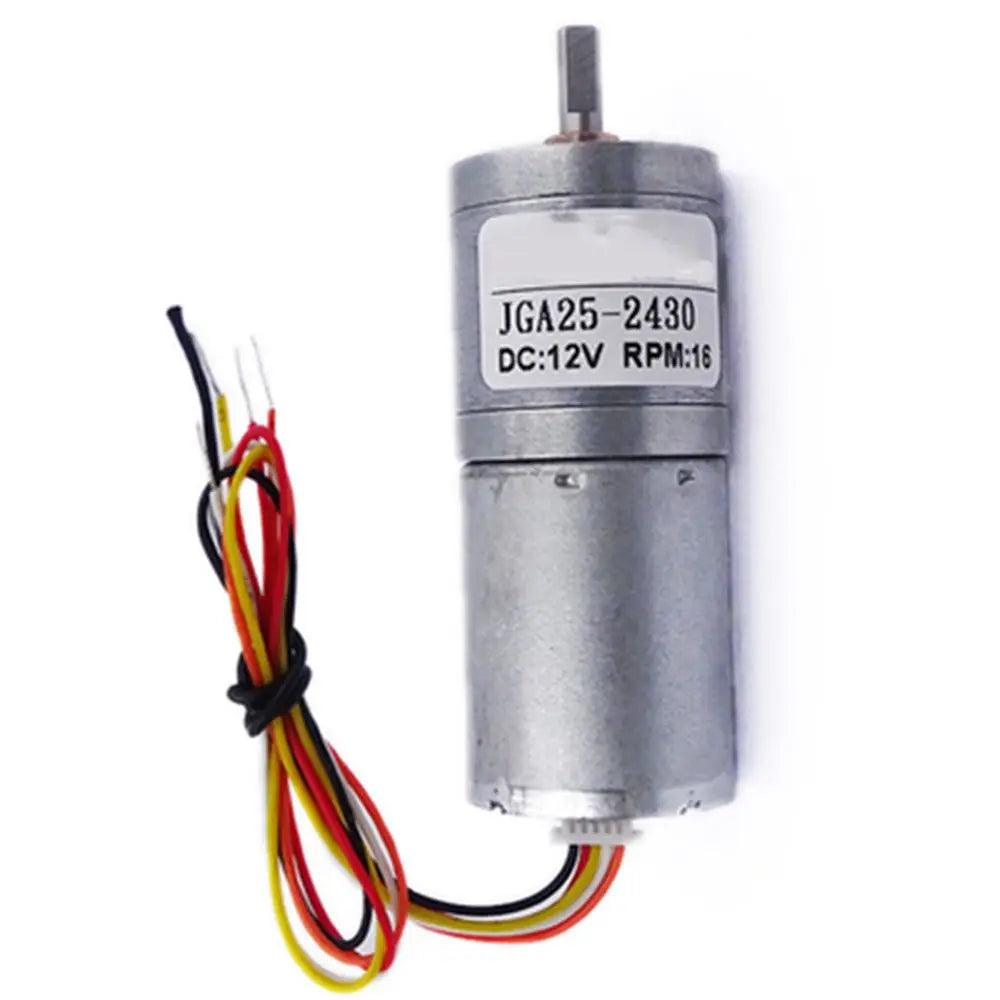

Model Number: JGA25-2430 Speed Motor

Wiring Method:

Black line:  power supply  negative -  ( Not connected wrong)

Red line:   power supply  positive +  ( Not connected wrong)

Orange Line:  CW / CCW commutation line, the orange line to the black line change turned.

Yellow Line:  FG output signal line, Hall signal

White line: Duty ratio, pulse width speed 15~25 kHz
