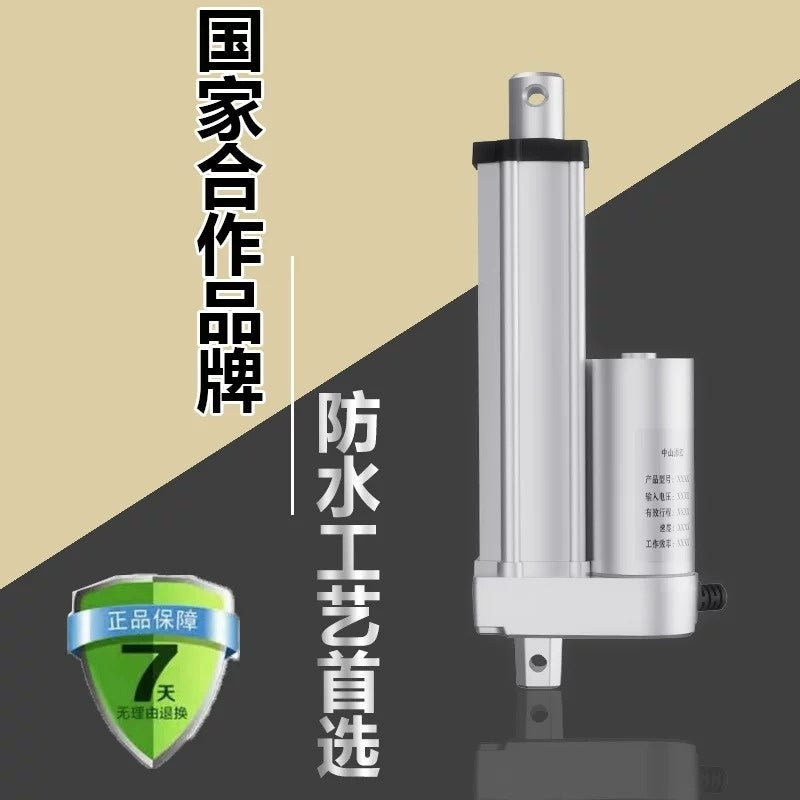

Waterproof Linear Actuator 12V/24V Stroke 50mm/150mm/250mm/350mm~850mm/950mm/1000mm /500N(50kg)-2000N(200kg)

dc electric actuators, Heavy-Duty Waterproof Linear Actuator

50mm/150mm/250mm/350mm~850mm/950mm/1000mm

12V/24V, 50-1000mm Stroke, High Thrust for Industrial & Automation

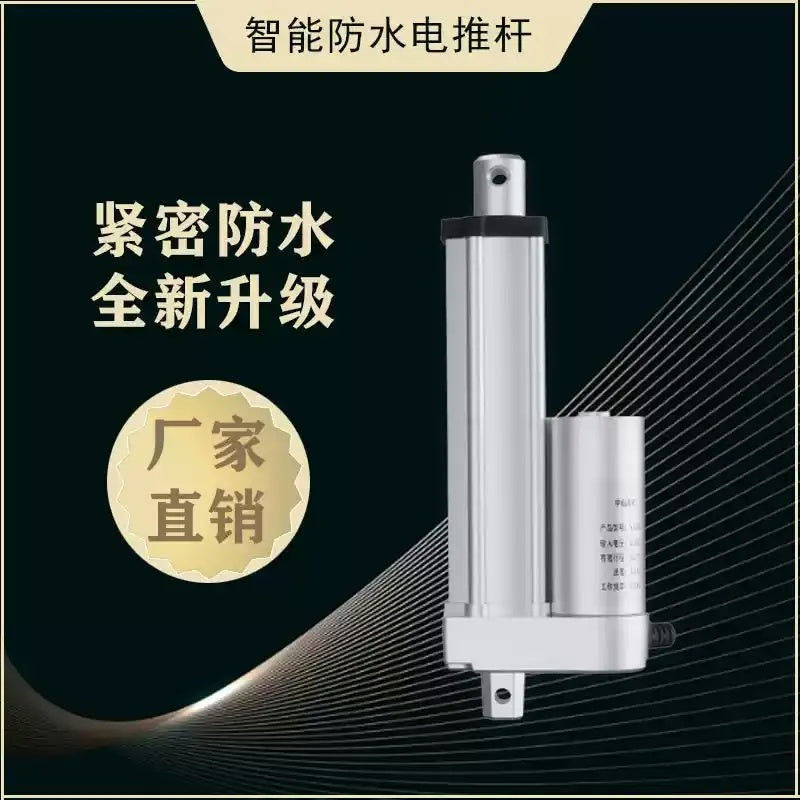

Waterproof Linear Actuator 24V, Customizable Stroke Electric Window Opener with High Thrust DC Motor

🔹 Overview 产品概述

🔹 Key Features 核心特性

• Customizable Design: Available in strokes from 50mm to 1000mm, with options for 12V/24V power, variable speeds, and high thrust up to 2000N.
• Waterproof Construction: Enhanced water-resistant housing for reliable use in damp, outdoor, or industrial environments.
• High Thrust & Variable Speed: Multiple force-speed combinations (2000N@3mm/s to 500N@45mm/s) to match heavy load requirements.
• Built-In Safety Limit Switches: Automatically stops at full extension/retraction to prevent over-travel damage.
• Reversible Control: Extend/retract by switching positive/negative polarity, or use a separate control switch for operation.
• Robust Industrial Build: High-precision metal gears, durable aluminum housing, and long service life for heavy-duty use.
• Versatile Applications: Perfect for window openers, industrial machinery, outdoor gates, automation equipment, and DIY projects.

🔹 Technical Specifications 技术参数

🔹 Applications 应用场景

• Electric window openers, skylights, and ventilation systems
• Industrial automation machinery, lifting equipment, and robotics
• Outdoor gates, awnings, and solar tracking systems
• Heavy-duty DIY projects, home automation, and agricultural equipment

FAQs | Waterproof DC Heavy-Duty Linear Actuator

Q1: What voltage options are available for this waterproof linear actuator?

A1: It supports DC12V and DC24V power supply for selection.

Q2: What is the maximum thrust of this linear actuator?

A2: Max thrust reaches 2000N (200kg). Other optional thrust ratings: 500N,900N,1200N,1500N,1800N.

Q3: What stroke lengths can I choose?

A3: Standard stroke from 50mm up to 1000mm, available in 50mm incremental sizes.

Q4: What speed options are there and how does speed relate to thrust?

A4: Multiple speed & thrust combinations: 3mm/s @2000N, 6mm/s @1800N,12mm/s @1500N,17mm/s @1200N,20mm/s @900N,45mm/s @500N. Higher thrust comes with slower speed.

Q5: What waterproof rating does this actuator have?

A5: IP54+ enhanced waterproof housing, suitable for damp, outdoor and industrial environments.

Q6: What safety protections are built in?

A6: Built-in limit switches and overload protection. It will automatically stop at fully extended/retracted positions to avoid damage.

Q7: How do I control this linear actuator?

A7: It works by polarity reversal. External control switch needs to be purchased separately.

Q8: What are the main application scenarios?

A8: Widely used for electric window openers, skylights, ventilation systems, industrial automation, lifting equipment, robotics, outdoor gates, awnings, solar trackers, heavy-duty DIY, home automation and agricultural machinery.

Q9: Can this actuator work continuously 24 hours nonstop?

A9: It is designed for intermittent operation. Continuous long-running will shorten the service life of the motor.

Q10: Can I customize the specifications?

A10: Yes, customizable design. You can select stroke, voltage, speed and thrust according to your project requirements.

Q11: Can this actuator be used exposed outdoors in rainy weather?

A11: IP54+ protects against splashing water and dust. It can be used outdoors, but avoid long-term immersion in standing water.

Q12: Is the control switch included in the package?

A12: No, the external control switch is sold separately.
