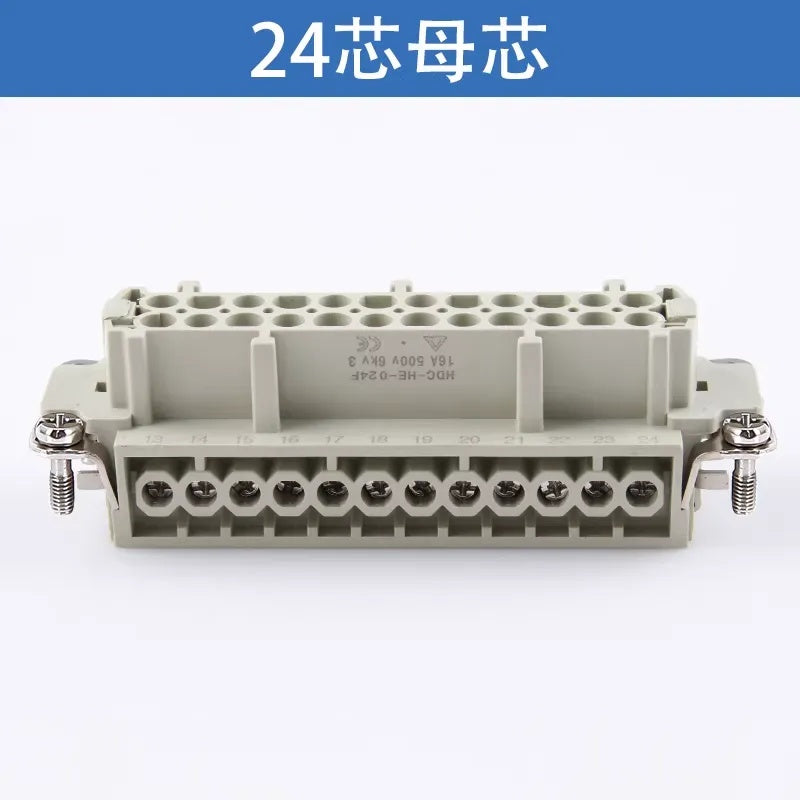

Heavy Duty Connector HDC-HE-024-1/2/3/4-F/M 24 Pin Aviation Plug Socket 16A Industrial Rectangular Connector

$68.00 NZD
$37.00 NZD $68.00 NZD
Sale Sold out
Shipping calculated at checkout.
Connector Specification

SPECIFICATIONS

Heavy Duty Connectors HDC-HE-024-1/2/3/4 F/M 24pin Industrial rectangular Aviation connector plug  16A 500V Screw connection,hdc connector

This heavy duty industrial connector (aviation plug & socket) follows the HDC-HE series standard, featuring 24 pins and a rated current of 16A. It is designed for stable electrical transmission, with excellent waterproof, dustproof, and anti-vibration performance.

Key features:

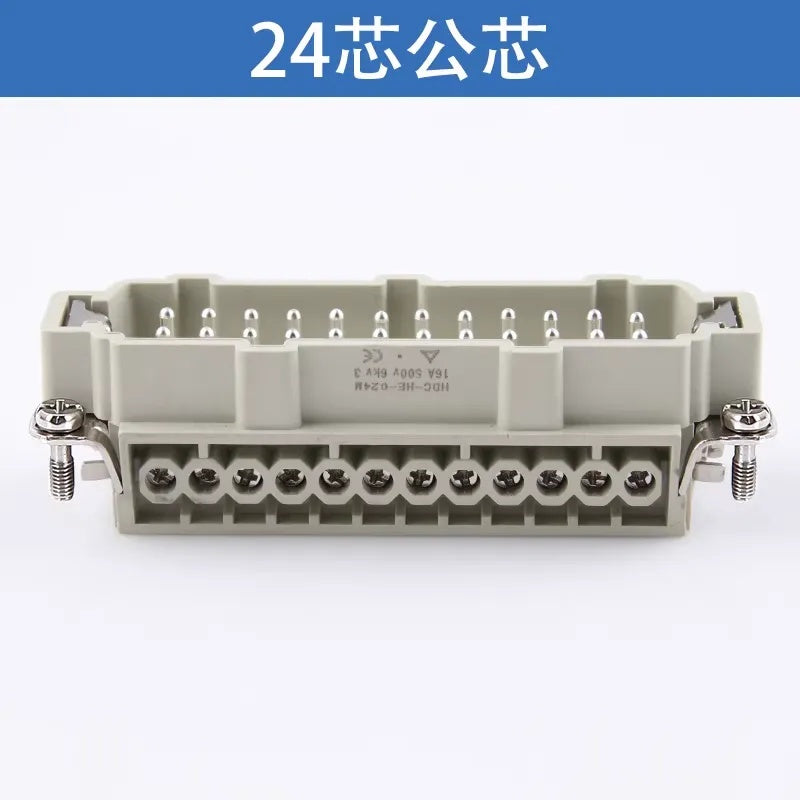

  • Reliable Connection: Screw crimping terminal design ensures secure wiring and low contact resistance.
  • Durable Materials: The core insert is made of high-grade flame-retardant plastic reinforced with glass fiber, while the pins are crafted from pure brass with silver plating for optimal conductivity.
  • Versatile Applications: Widely used in automation equipment, machinery, electrical cabinets, power distribution systems, and other industrial scenarios.

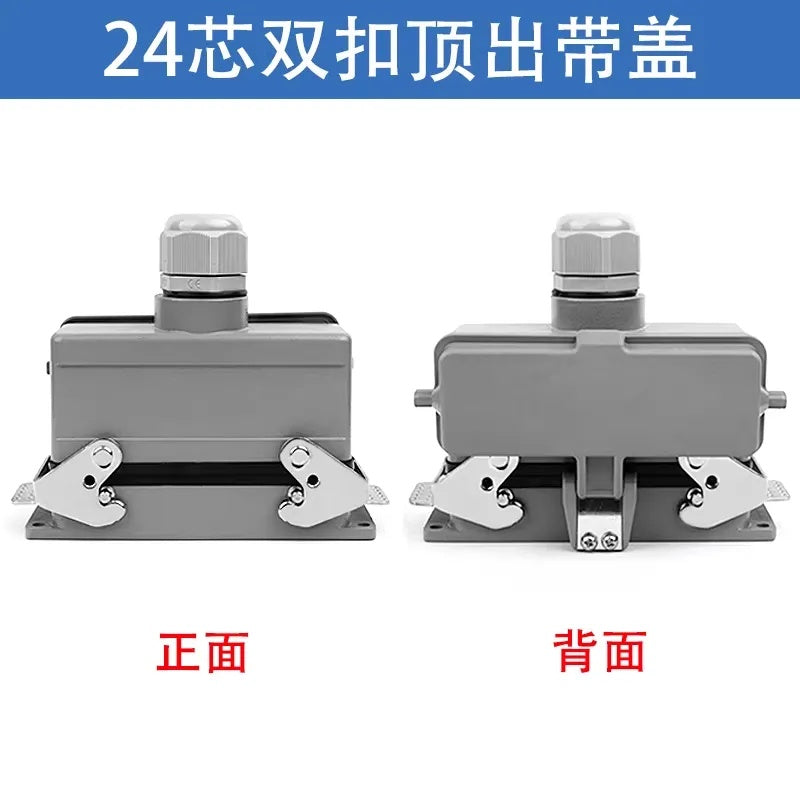

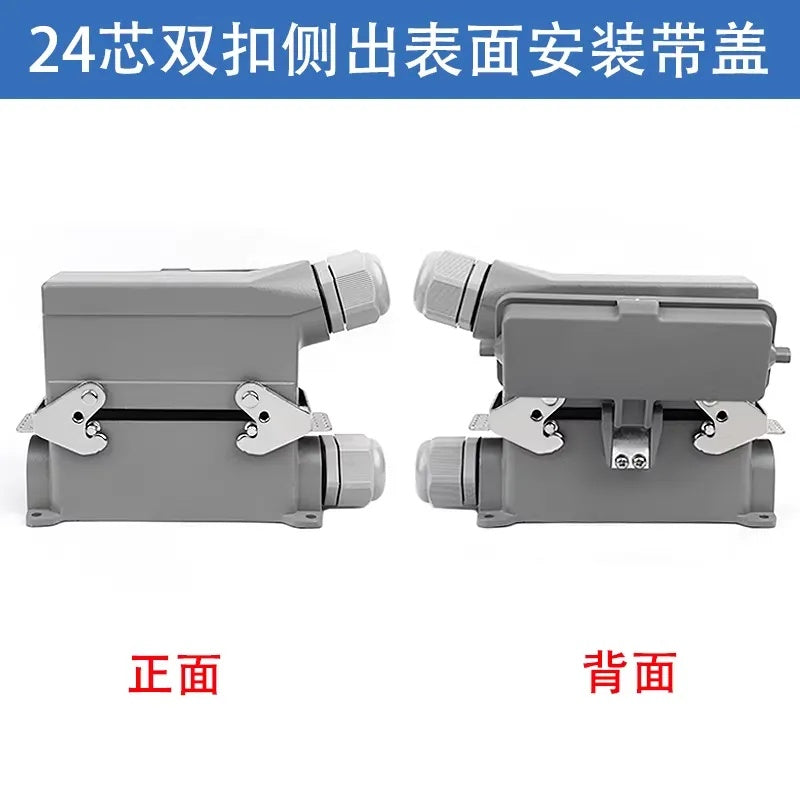

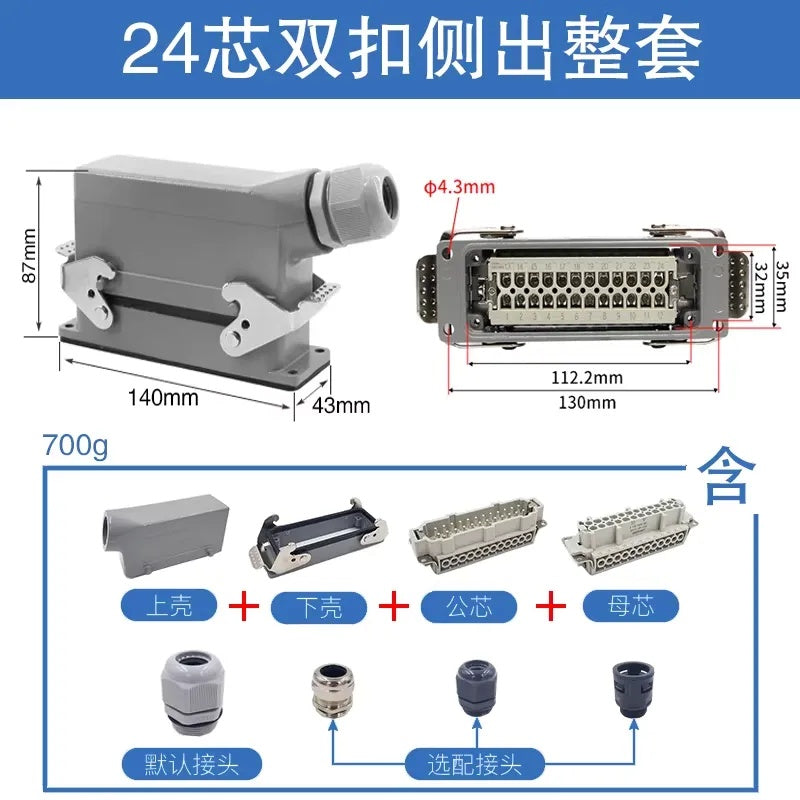

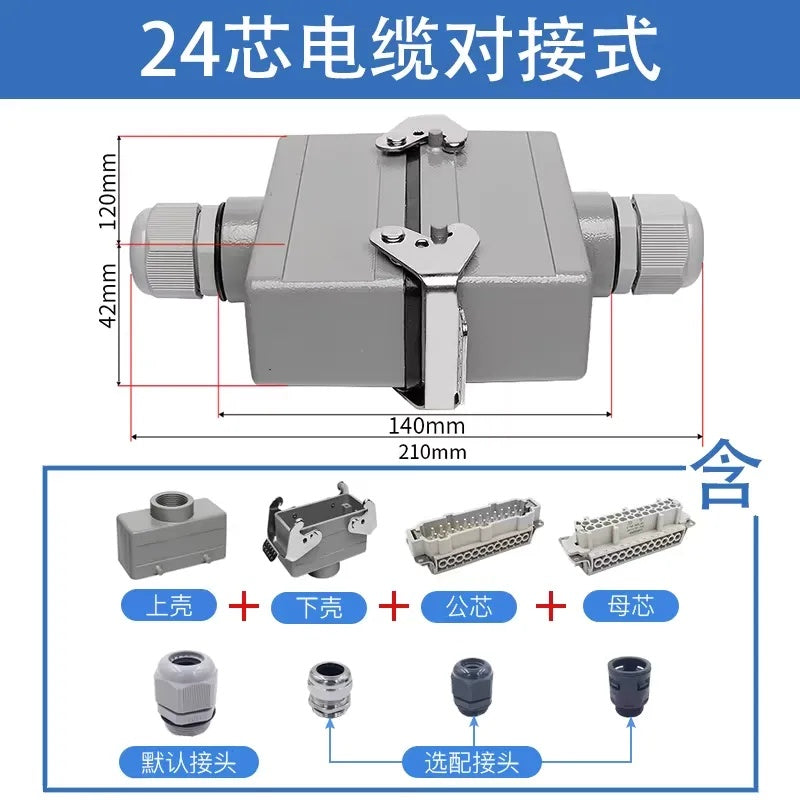

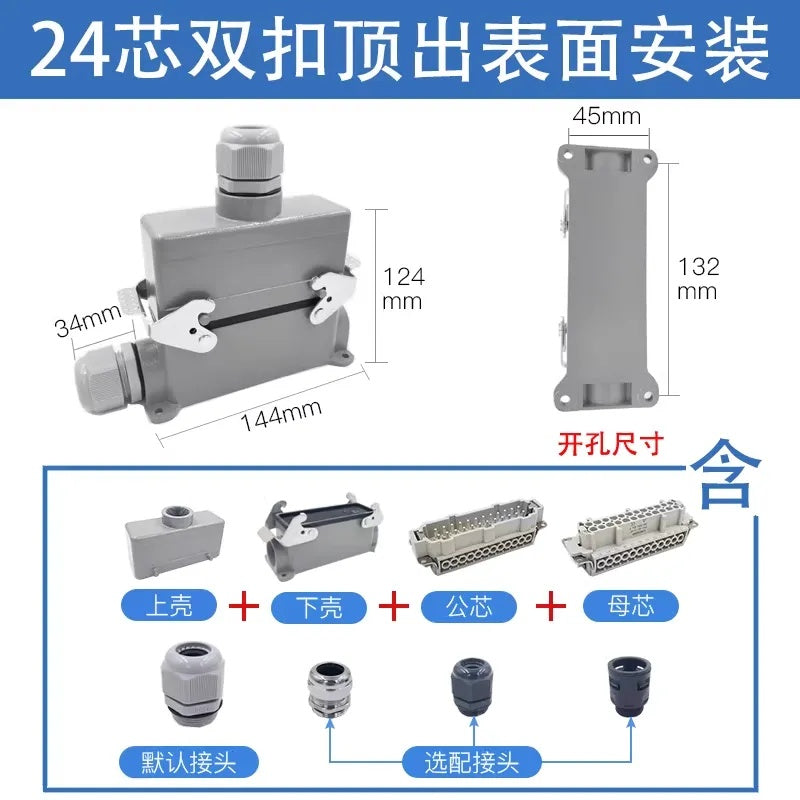

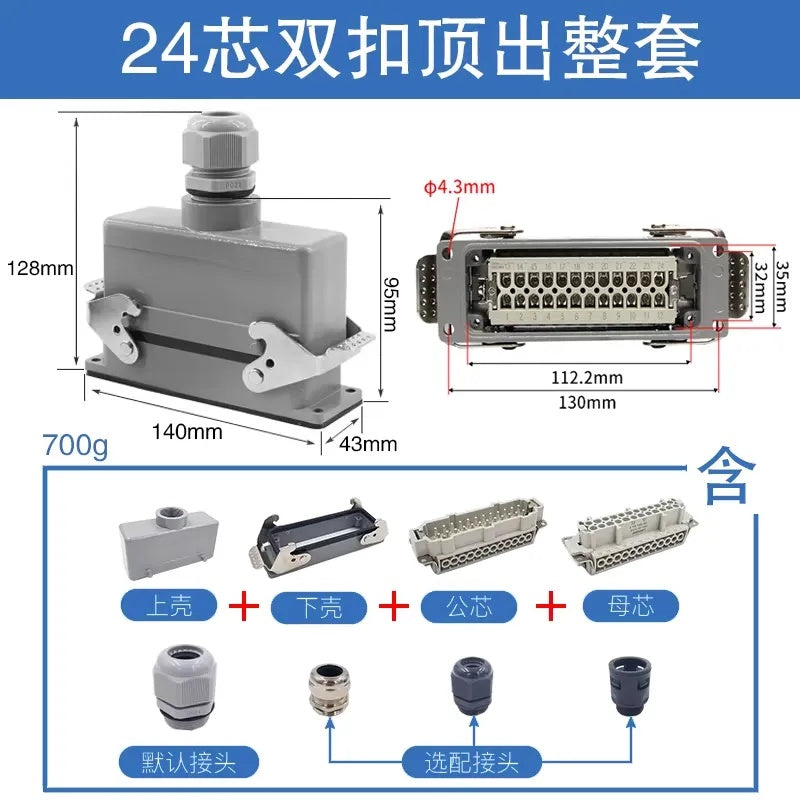

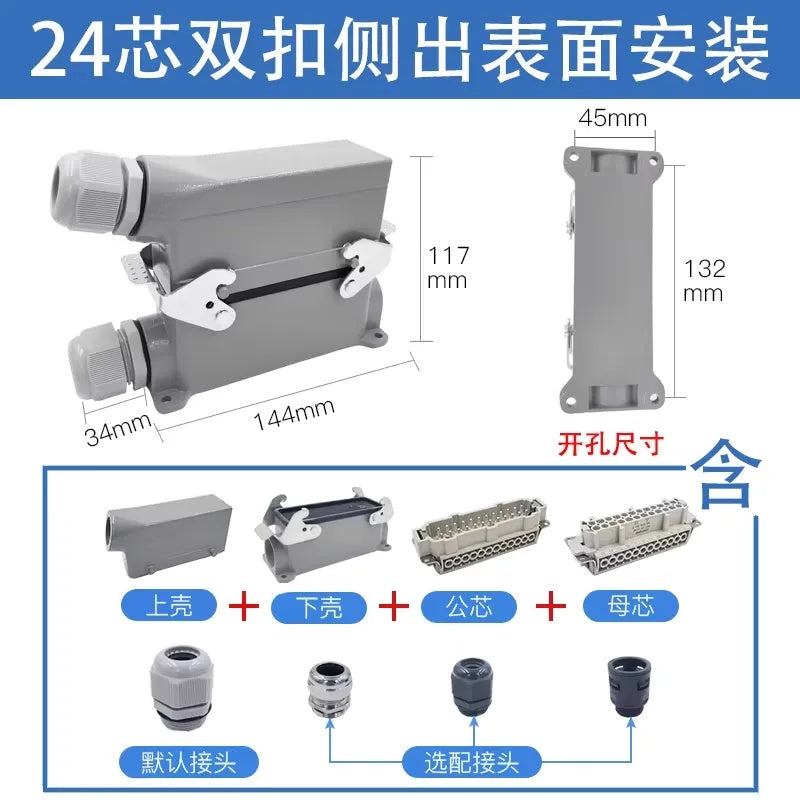

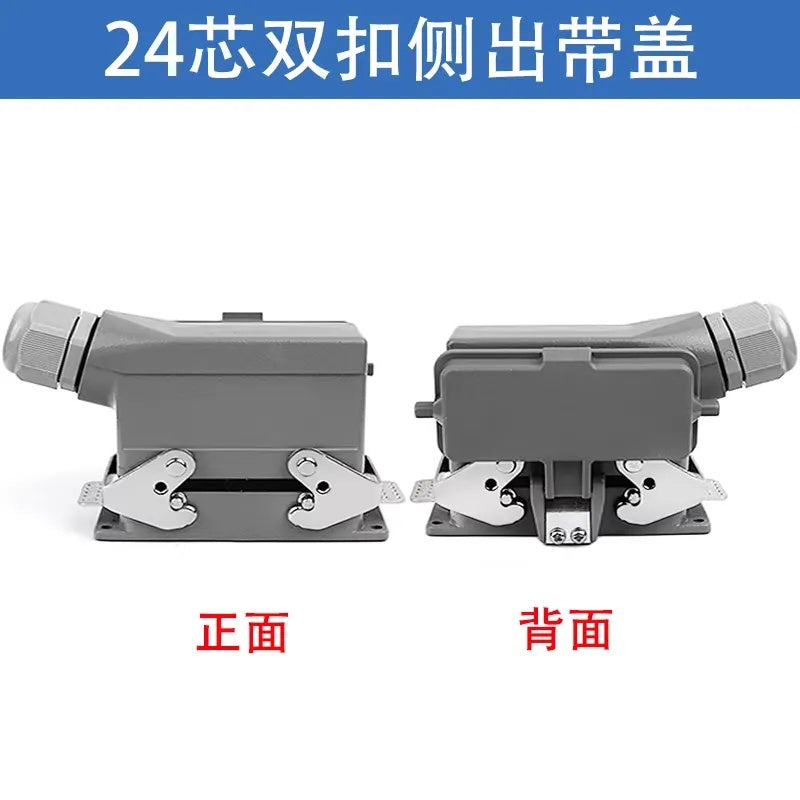

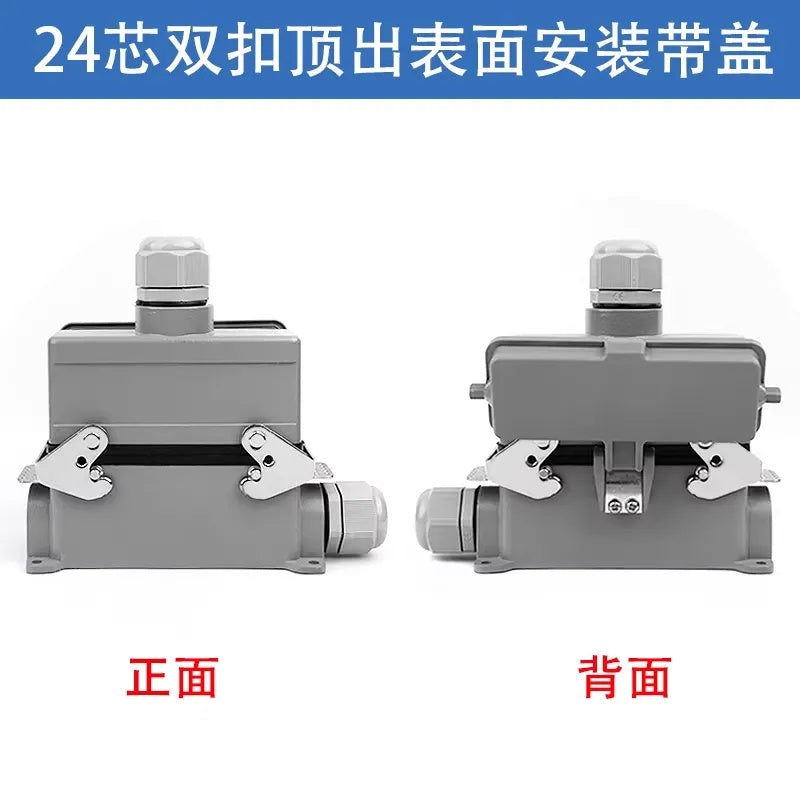

  • Flexible Installation: Available in multiple housing options (top entry, side entry, surface mount, etc.) to meet different installation needs.

The product set includes both male and female connectors for quick assembly and reliable performance in harsh industrial environments.

Working current: 16A

Working voltage: 400/500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~+125℃

Flame retardant grade (according to UL94): V0

Conductor section: 0.5- 6mm²

Installation method: hole installation

Connectors Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm+

Wiring forms: screw fixing

Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~+125℃

Protection class: IP65
