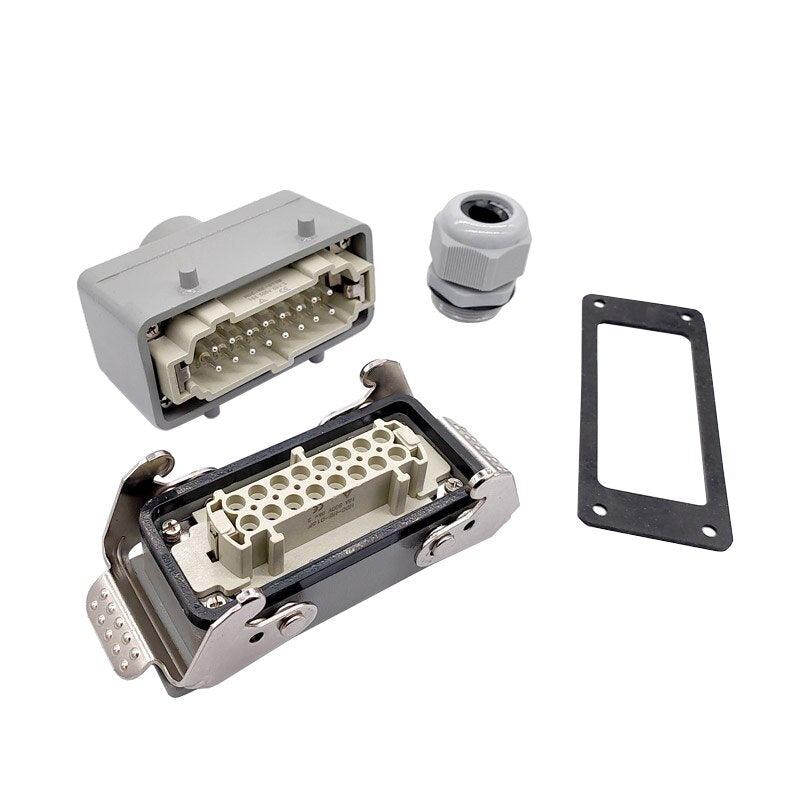

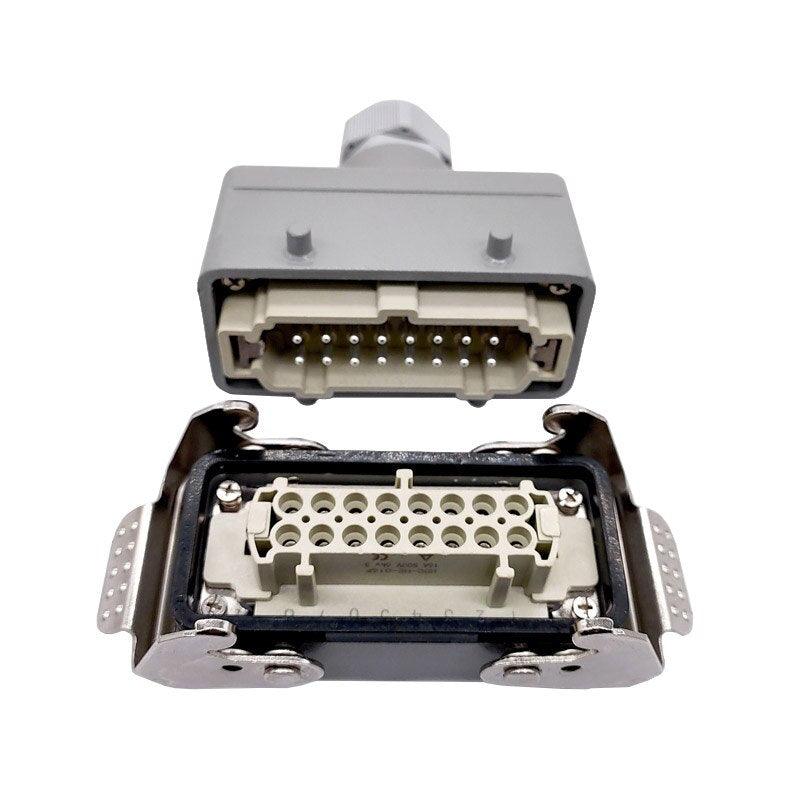

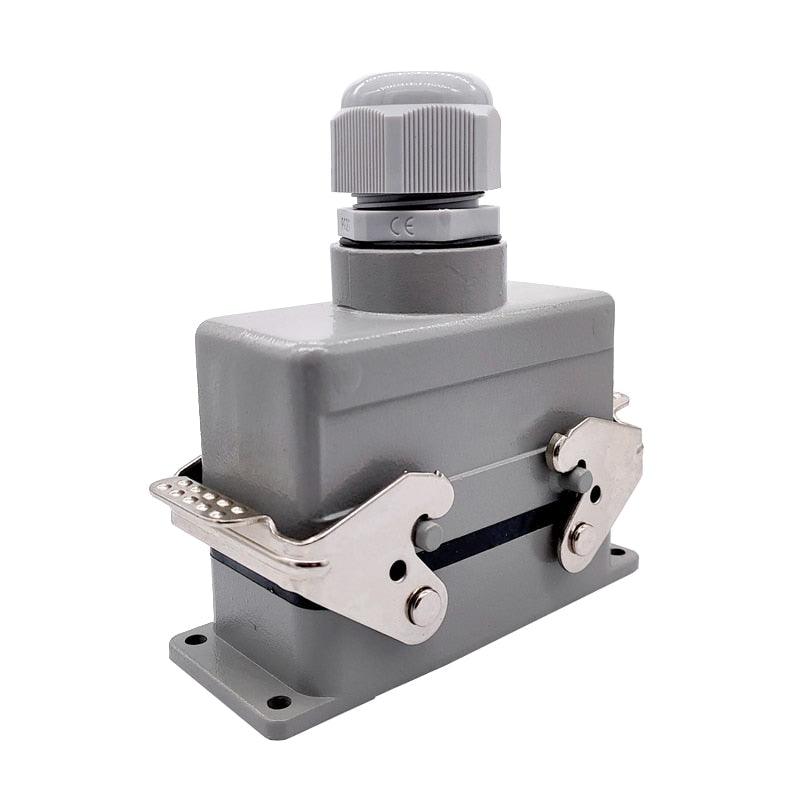

Heavy Duty Connectors HDC-HE-016-1/2/3/4 F/M 16pin 16A 500V

Regular price $58.00 NZD
Regular price $28.00 NZD Sale price $58.00 NZD
Sale Sold out
Shipping calculated at checkout.


Heavy Duty Connectors HDC-HE-016-1/2/3/4 F/M 16pin 16A 500V Industrial rectangular Aviation connector plug Screw connection

Voltage: 24V

Origin: Mainland China

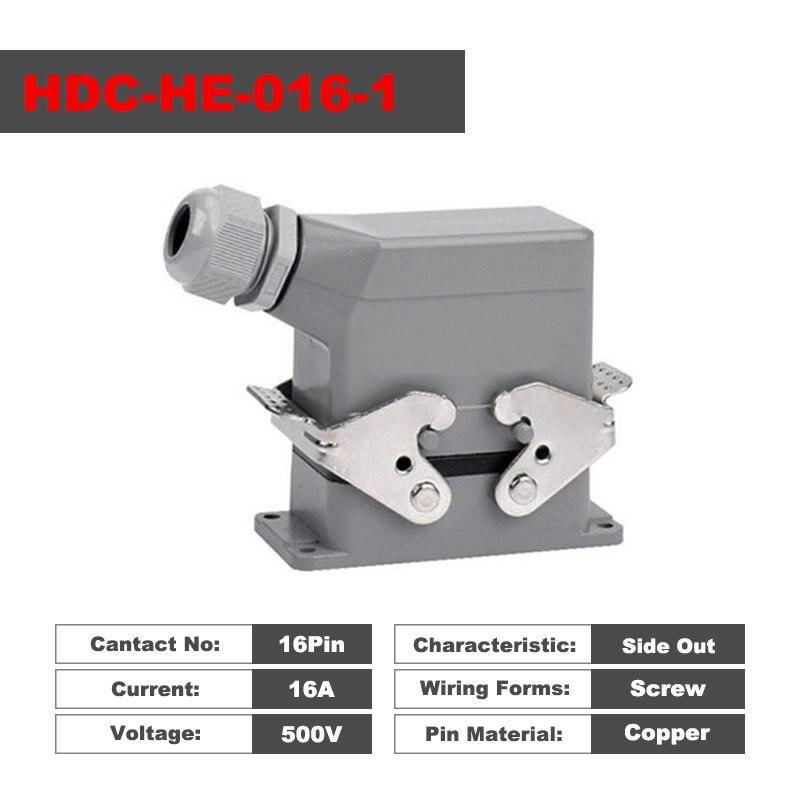

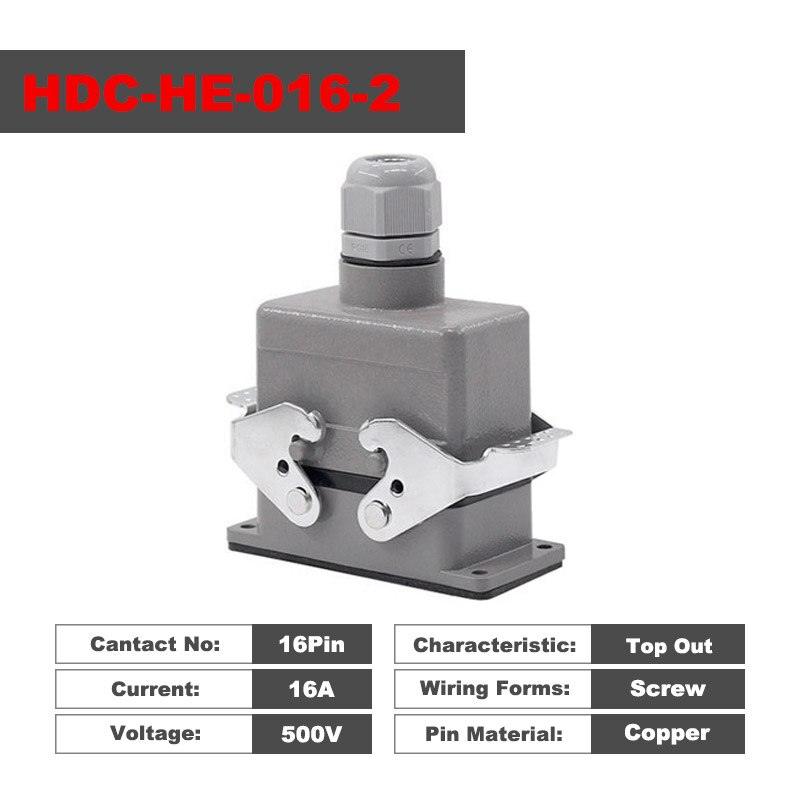

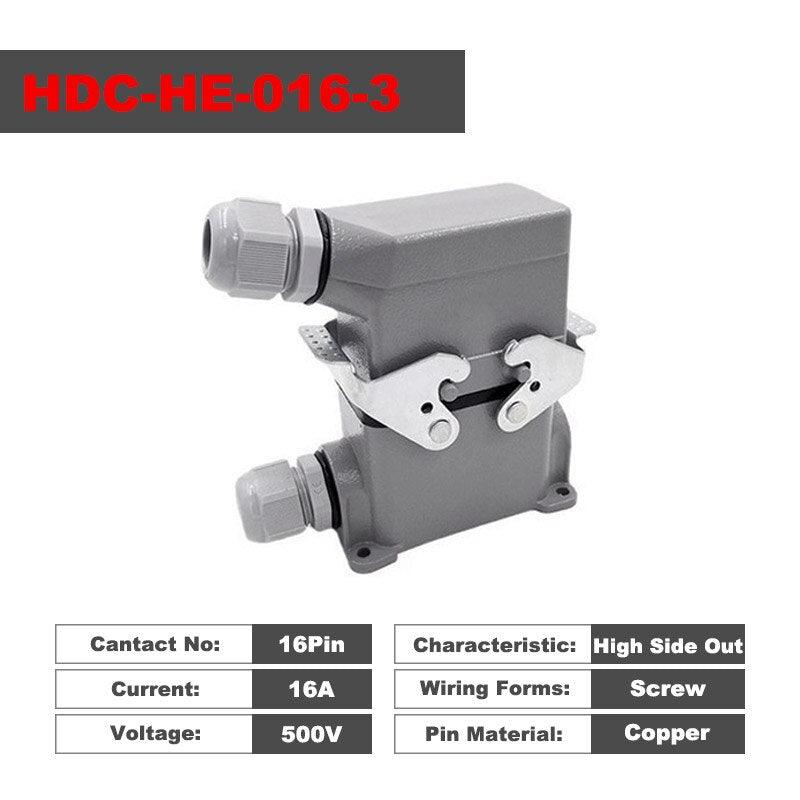

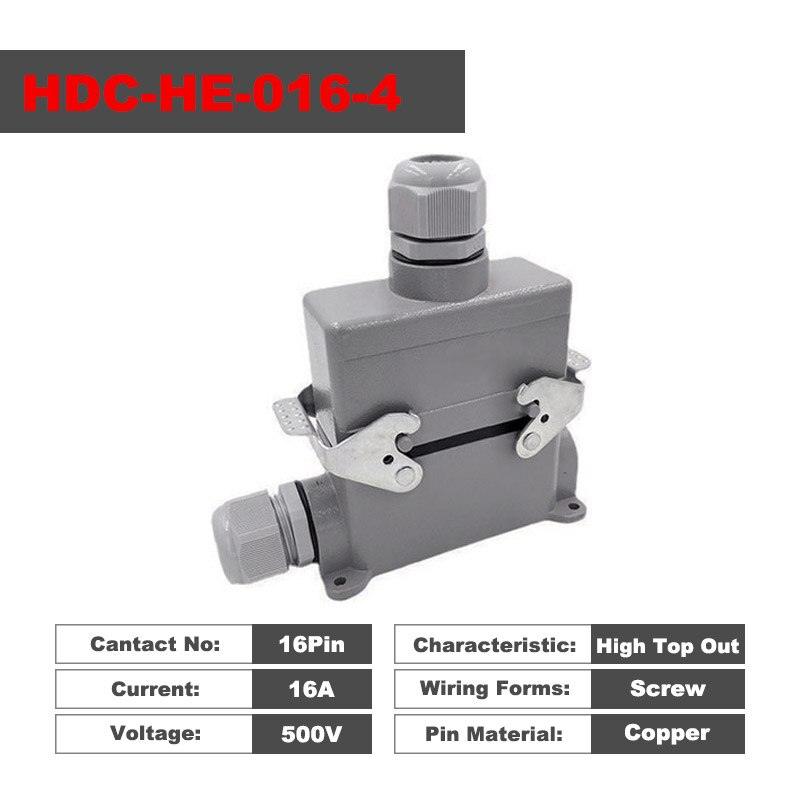

Model Number: HDC-HE-016-1/2/3/4

Certification: CE

Brand Name: CNMAWAY


Plug body

Working current: 16A

Working voltage: 500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~+125℃

Flame retardant grade (according to UL94): V0

Conductor section: 0.37- 2.55mm²

Installation method: hole installation


Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm+

Wiring forms: screw fixing

Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~+125℃

Protection class: IP65
