GW4058 Worm Gear DC Motor Kit with 80mm Tires

$139.00 NZD
$148.00 NZD $139.00 NZD
Sale Sold out
Shipping calculated at checkout.
Motor Config.
Motor Reduction Ratio
Motor Voltage Type

12V 40 型：12V Worm Gear Motor Kit, 80mm Blue Tires, 1:36 Ratio, for Smart Balance Cars

24V 80 型：24V High-Torque Worm Gear Motor with Silver 80mm Tires, for Robotics

Product Overview

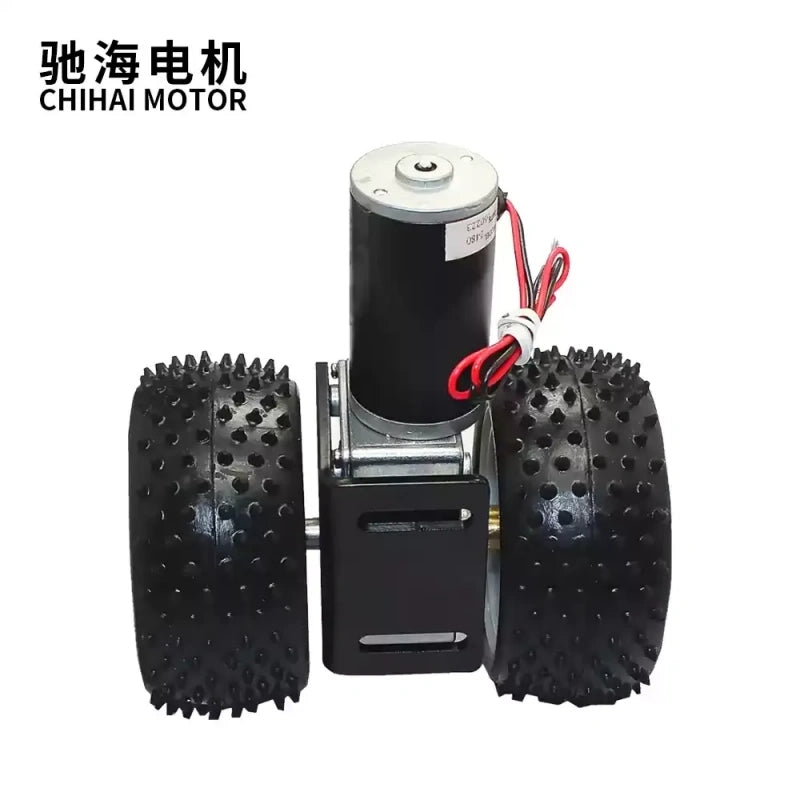

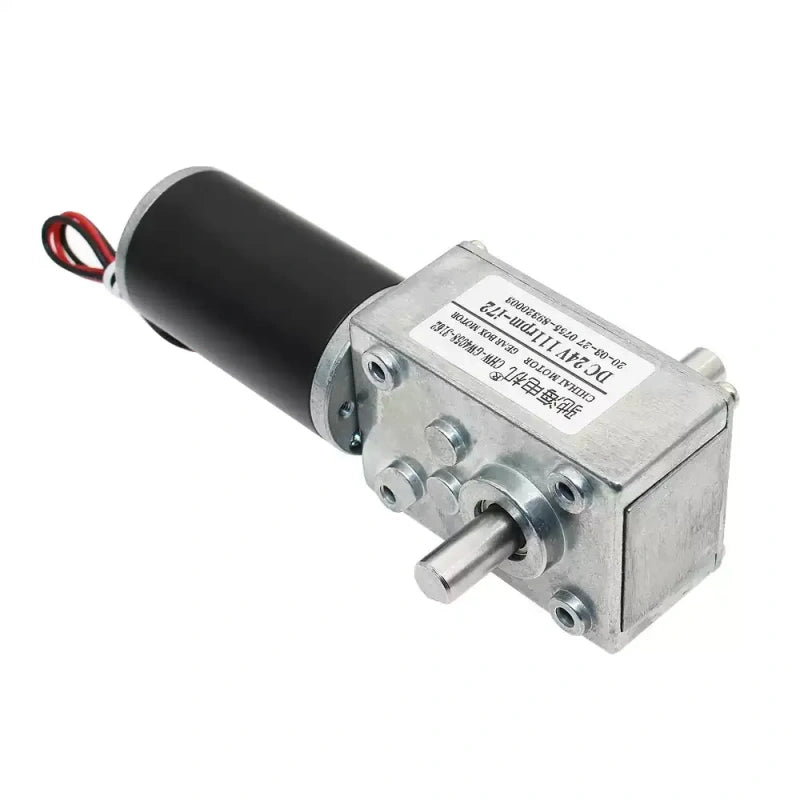

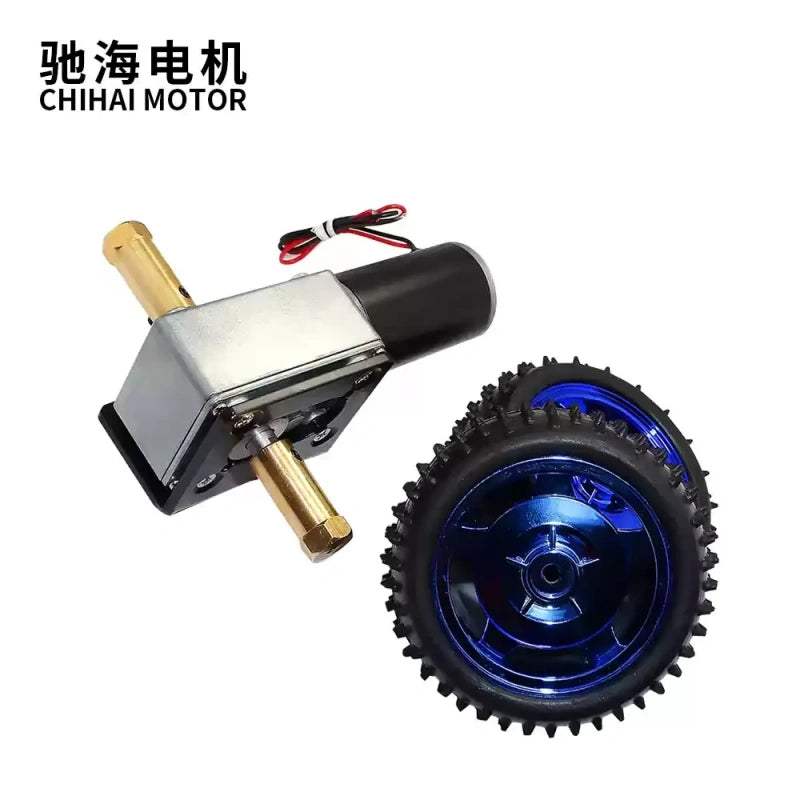

The CHW-GW4058-3162 worm gear DC motor is a high-torque, low-speed motor designed for robotics and automation projects. This complete kit includes the motor, 80mm tires, mounting bracket, and hardware, making it ideal for smart balance cars, line-tracking robots, and camera jib arms.

Key Features

  • High-Torque Worm Gear Design: Self-locking mechanism provides excellent holding torque and prevents back-driving.
  • Dual Output Shaft: 8mm D-shaped shaft (15.0mm length, bidirectional) for flexible mounting options.
  • Wide Voltage Compatibility: Supports DC 6-30V operation, with optimized versions for 12V and 24V.
  • Multiple Gear Ratios: Choose from 1:36 to 1:590 to customize speed and torque for your project.
  • Complete Kit: Includes motor, 80mm tires (blue/silver options), mounting bracket, couplings, and screws for easy installation.

Specifications (CHW-GW4058-3162)

  • Model: CHW-GW4058-3162
  • Brand: ChiHai Motor
  • Motor Type: Worm Gear DC Motor
  • Gear Ratios: 1:36, 1:54, 1:72, 1:106, 1:280, 1:590
  • Output Shaft: 8mm D-shaped shaft, 15.0mm length (bidirectional)

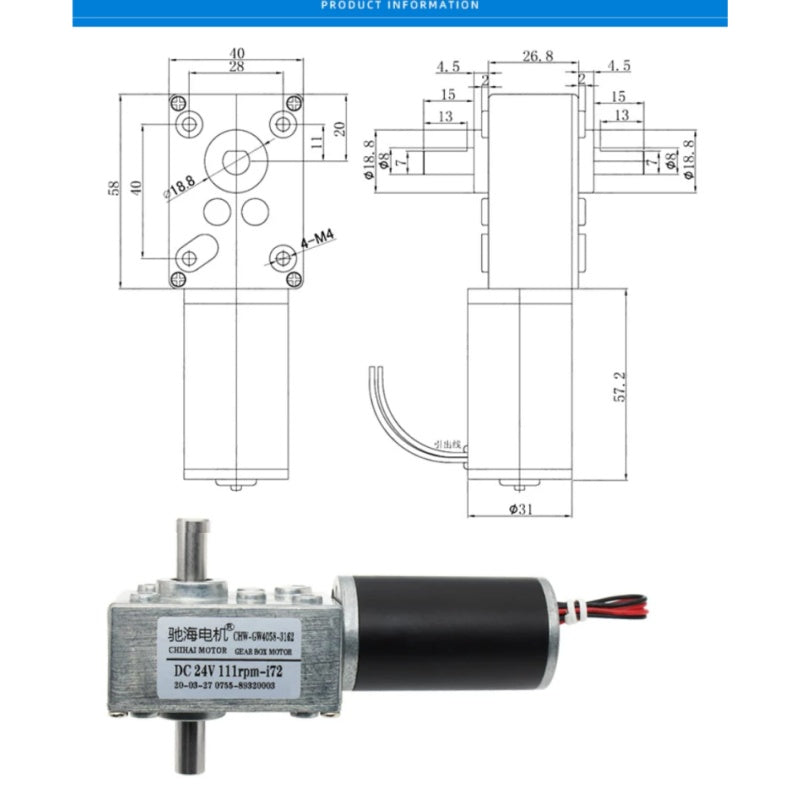

  • Size: 40×36×117mm (excluding shaft and terminals)
  • Weight: ~350g (varies by ratio)
  • Bearing Type: Dual ball bearing positioning structure

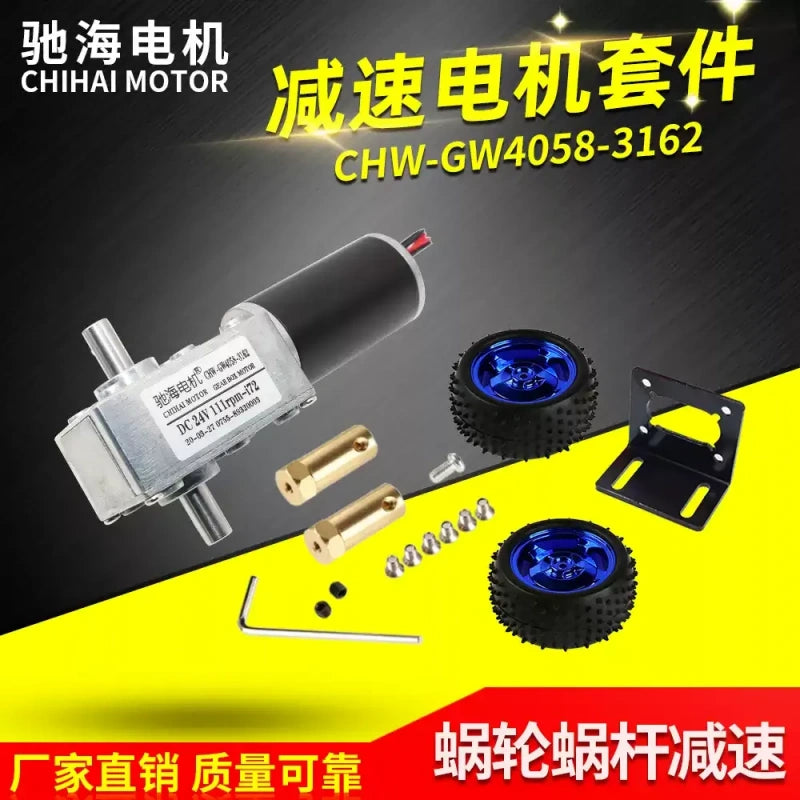

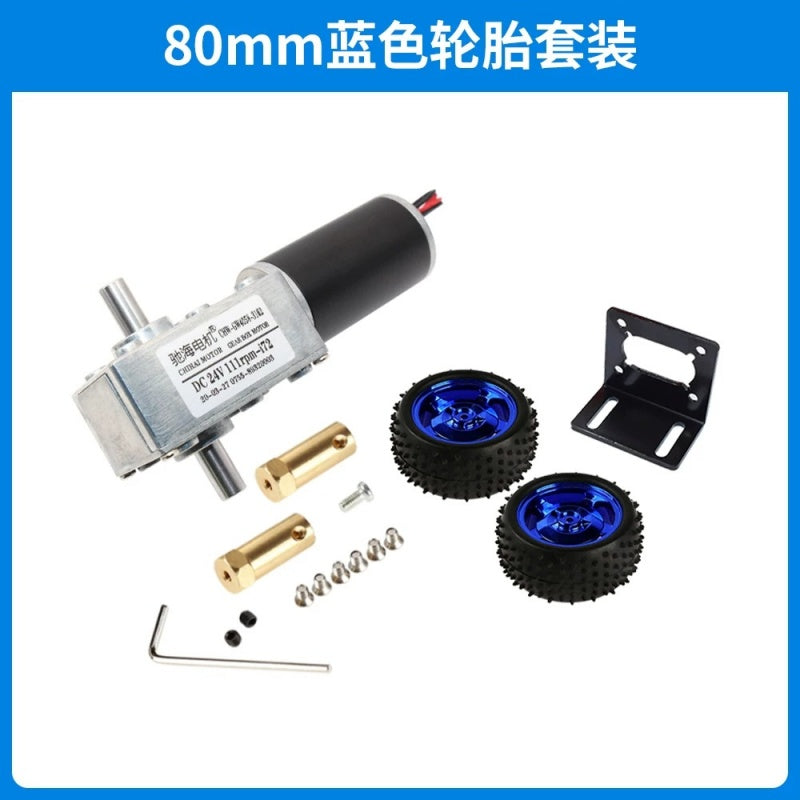

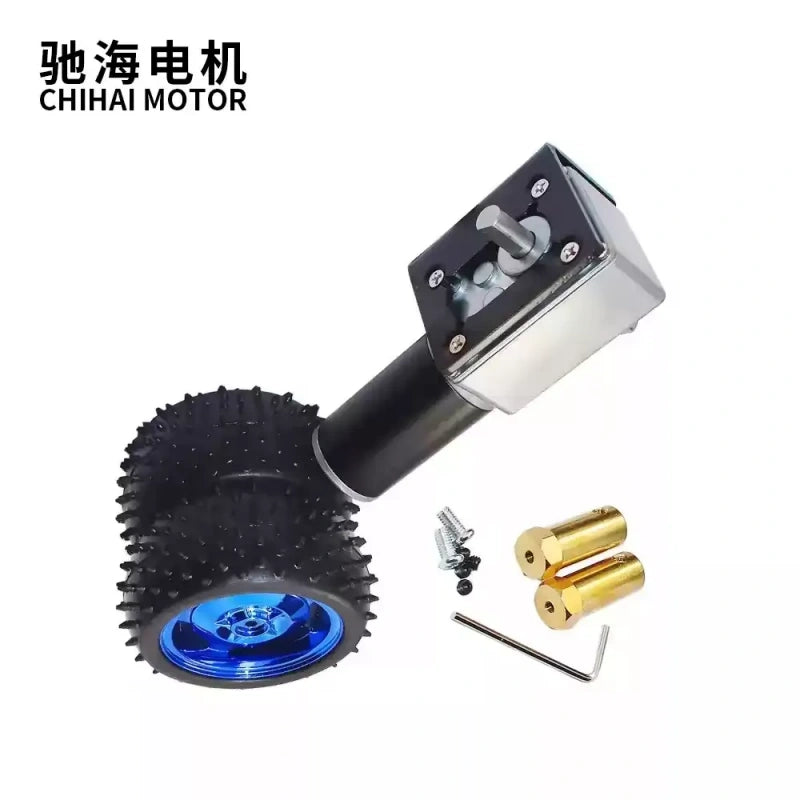

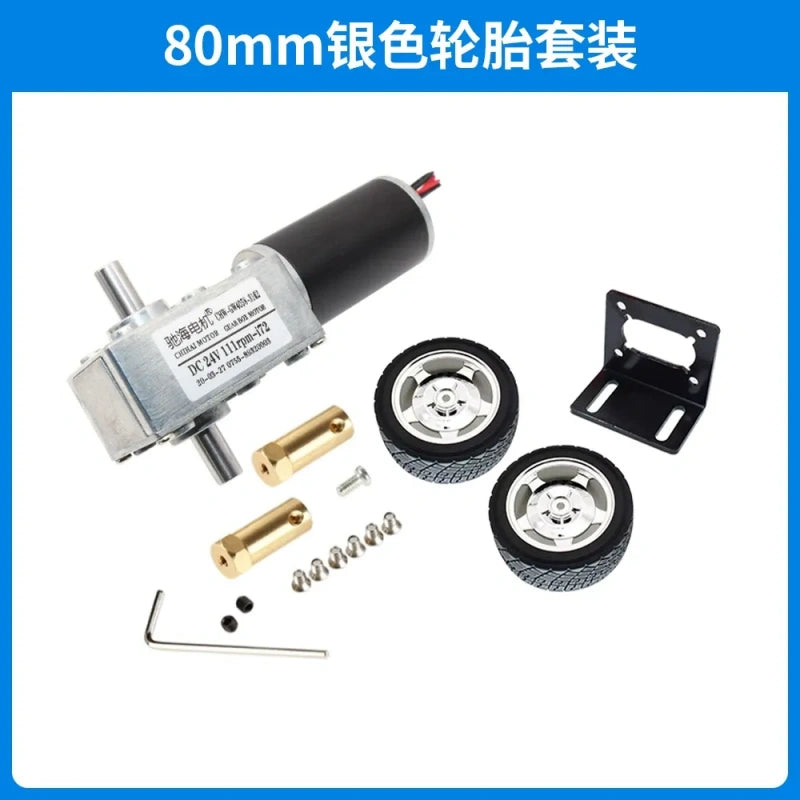

Kit Contents

  1. 1× CHW-GW4058-3162 Motor

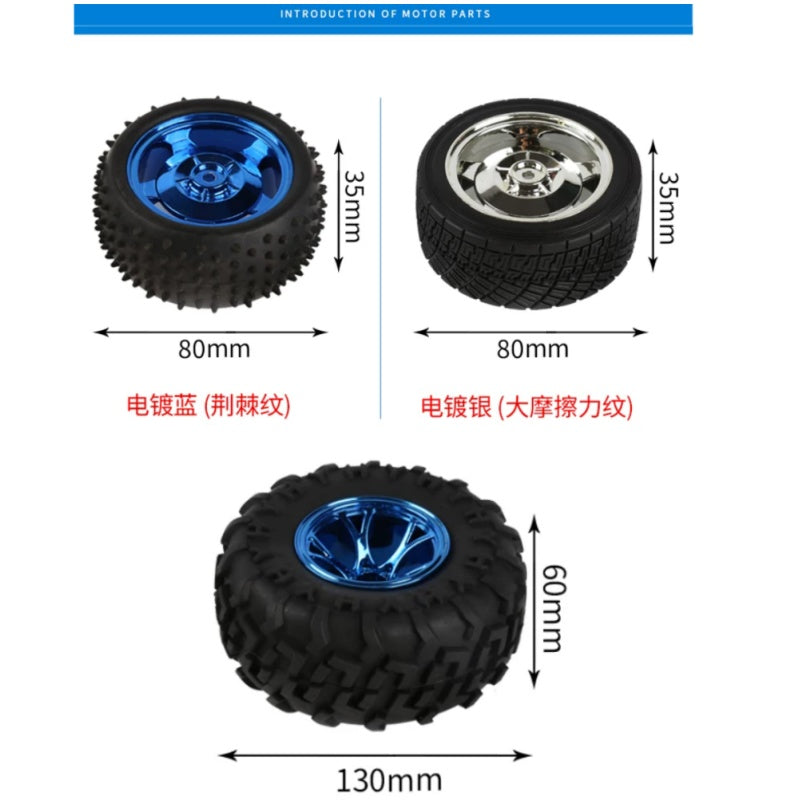

  2. 2× 80mm Tires (blue or silver)

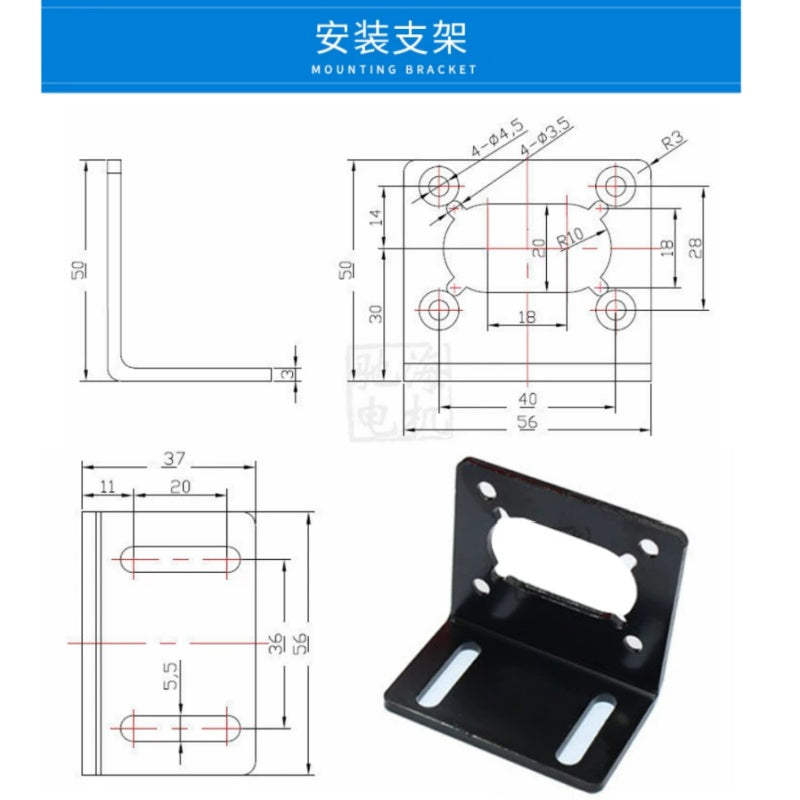

  3. 1× Motor Mounting Bracket

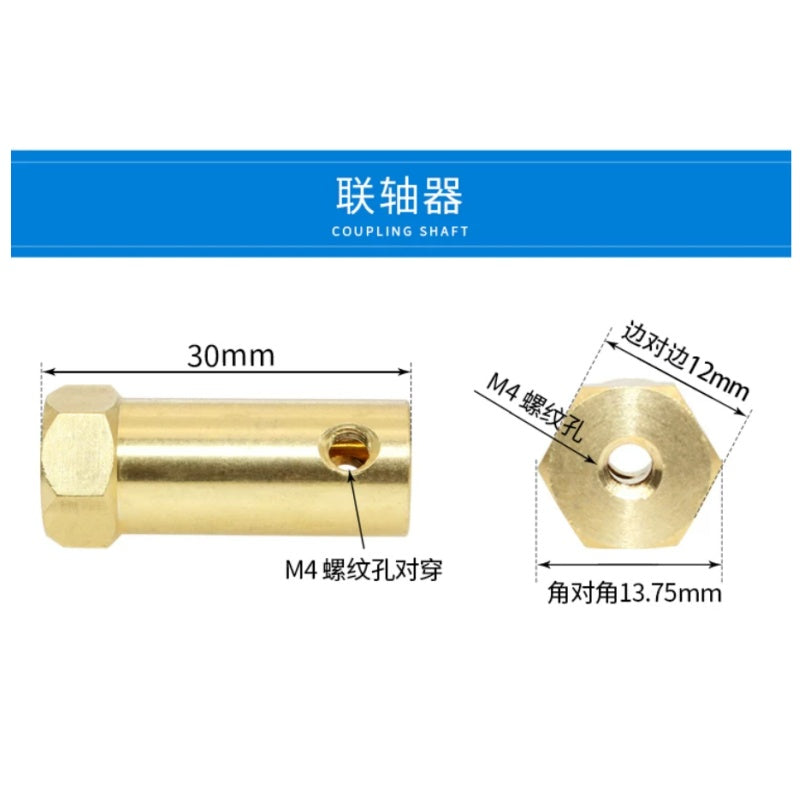

  4. 2× Hex Couplings
  5. Mounting Screws (quantity as needed)

Applications

Perfect for smart balance cars, line-tracking robots, smart home appliances, miniature robotics, camera jib arms, and paper cutting equipment.

DATA SHEET

Attribute Value
Product Type Worm Gear DC Motor Kit
Model CHW-GW4058-3162
Brand ChiHai Motor
Rated Voltage DC 12V / 24V (6-30V compatible)
Motor Type Worm Gear DC Motor
Gear Ratios 1:36 to 1:590
Output Shaft 8mm D-shaped shaft, 15.0mm length (bidirectional)
Kit Contents Motor, 80mm Tires, Bracket, Couplings, Screws
Applications Smart Balance Cars, Robotics, Camera PTZ Arms

CHW-GW4058-3162 (31ZY) Worm Gear DC Motor Specifications


Important Note


The maximum instantaneous allowable load is 40 kg·cm. Do NOT stall the motor; exceeding this torque or repeated stalling will cause severe gear damage.

DC 6.0V (4000 RPM Base Speed, 40-Type, 5W)

Parameter 1:17 1:36 1:54 1:72 1:108 1:212 1:280 1:590
No-Load Current (mA) ≤180 ≤180 ≤180 ≤180 ≤180 ≤180 ≤180 ≤180
No-Load Speed (rpm) 235 111 74 55 37 18 14 7
Rated Torque (kg·cm) 2.0 4.0 6.4 8.5 12.0 25.0 32.0 50.0
Rated Speed (rpm) 180 85 56 42 28 14 11 6
Rated Current (A) ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8
Stall Torque (kg·cm) 8.0 16.0 25.0 34.0 Max 40 Max 40 Max 40 Max 40
Stall Current (A) 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3

DC 12.0V (4000 RPM Base Speed, 40-Type, 6W)

Parameter 1:17 1:36 1:54 1:72 1:108 1:212 1:280 1:590
No-Load Current (mA) ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130
No-Load Speed (rpm) 230 111 74 55 37 18 14 7
Rated Torque (kg·cm) 2.0 4.0 6.4 8.5 12.0 25.0 32.0 50.0
Rated Speed (rpm) 180 85 56 42 28 14 11 6
Rated Current (A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg·cm) 9.0 19.0 28.0 38.0 Max 40 Max 40 Max 40 Max 40
Stall Current (A) 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3

DC 12.0V (8000 RPM Base Speed, 80-Type, 20W)

Parameter 1:17 1:36 1:54 1:72 1:108 1:212 1:280 1:590
No-Load Current (mA) ≤400 ≤400 ≤400 ≤400 ≤400 ≤400 ≤400 ≤400
No-Load Speed (rpm) 470 222 148 111 74 38 28 15
Rated Torque (kg·cm) 4.0 8.0 12.0 16.0 25.0 50.0 50.0 50.0
Rated Speed (rpm) 370 174 116 87 58 29 22 12
Rated Current (A) ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6
Stall Torque (kg·cm) 17.0 36.0 Max 40 Max 40 Max 40 Max 40 Max 40 Max 40
Stall Current (A) 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5

DC 24.0V (5000 RPM Base Speed, 50-Type, 22W)

Parameter 1:17 1:36 1:54 1:72 1:108 1:212 1:280 1:590
No-Load Current (mA) ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130 ≤130
No-Load Speed (rpm) 300 141 94 70 47 24 18 10
Rated Torque (kg·cm) 4.0 8.5 12.0 16.0 25.0 50.0 50.0 50.0
Rated Speed (rpm) 210 99 66 49 33 16 12 7
Rated Current (A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg·cm) 14.0 29.0 Max 40 Max 40 Max 40 Max 40 Max 40 Max 40
Stall Current (A) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
