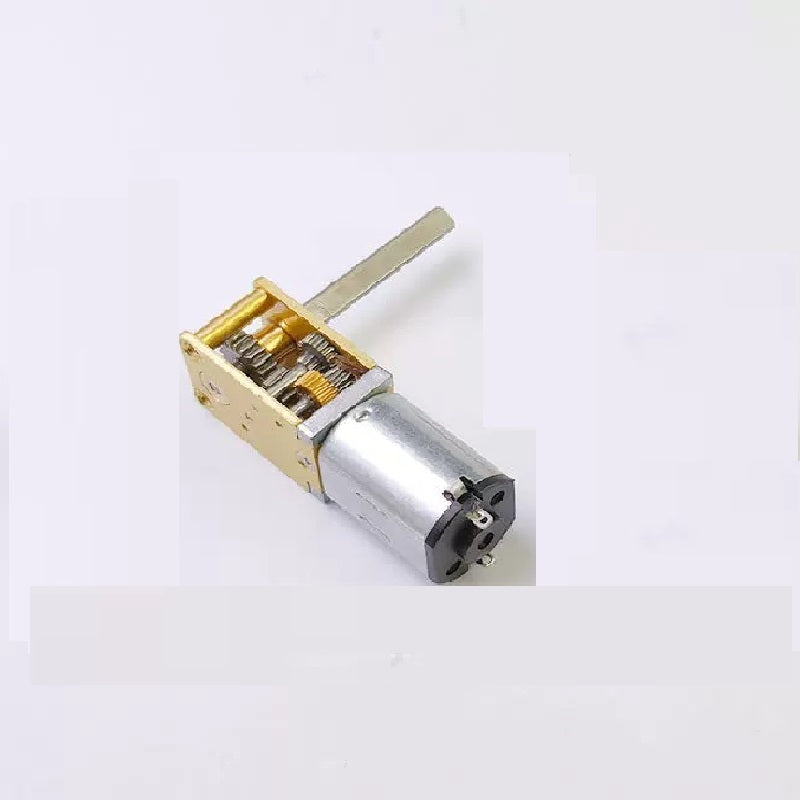

  • long dual shaft dc motor
  • 381rpm dc motor

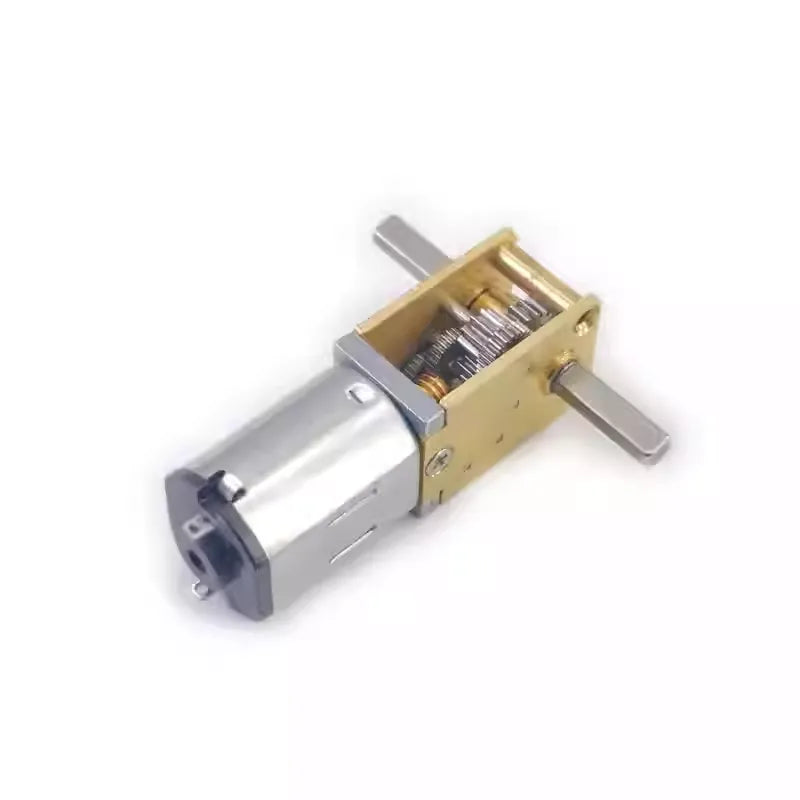

  • dual shaft dc motor
  • dc motor for robot
  • dc motor for electric lock
  • double shaft dc motor
1 8

electrical center b2c

Self-Locking Worm Gear DC Motor | 3V/6V/12V

$27.00 NZD
$31.00 NZD $27.00 NZD
Sale Sold out
Shipping calculated at checkout.
Motor Shaft type
Speed(RPM)

SPECIFICATIONS

DC 12V (to 6V 3V) Micro Metal Slow Speed High Torque Worm Gear DC Motor Long Dual Shaft 16-381RPM Robot Eleltric Lock,n20 dc motor double shaft

N20-1218 Self-Locking Worm Gear DC Motor | 3V/6V/12V Micro Low-Speed Motor for Smart Robots & Cars

Product Overview


The N20-1218 self-locking worm gear DC motor is a compact, high-torque micro motor designed for smart vehicles, robotics, and precision low-speed drive systems. It supports 3V, 6V, and 12V DC power inputs, delivering stable low-speed rotation with reliable self-locking capability.

Key Features

  • Self-Locking Worm Gear Design: Prevents back-driving, holds position when power is off, ideal for robotic arms and smart car steering systems.
  • Wide Voltage Compatibility: Works with 3V, 6V, and 12V DC power supplies, flexible for various small-scale electronic projects.
  • Low-Speed & High Torque: Optimized gear reduction provides steady low-speed output with strong torque, suitable for precise motion control.
  • Compact Size: Miniature N20 form factor, easy to integrate into smart cars, robots, and other space-limited devices.
  • Durable Construction: Sturdy metal gears and high-quality motor core ensure long service life under continuous operation.

Applications

  • Smart robot cars & AGV vehicles
  • Robotic arm joints & precision actuators
  • DIY electronic projects & educational robotics
  • Small mechanical drives & slow-motion mechanisms

DC Gear Motor Specification Table

Voltage (V) Reduction Ratio Motor Speed (rpm) No-load Speed (rpm) No-load Current (mA) Load Current (mA) Load Speed (rpm) Start Voltage (V) Stall Current (mA) Stall Torque (gf·cm) Rated Torque (gf·cm) Power (W)
12 118 16000 136 30 85 119 0.5 700 472 142 1.02
12 236 16000 68 30 85 59 0.5 700 944 283 1.02
12 302 16000 53 30 85 46 0.5 700 1208 362 1.02
12 603 16000 27 30 85 23 0.5 700 1929.6 579 1.02
12 42 16000 381 30 85 333 0.5 700 235.2 71 1.02
12 1030 16000 16 30 85 14 0.5 700 3296 989 1.02
6 118 8000 68 20 60 51 0.5 350 206.5 62 0.36
6 236 8000 34 20 60 25 0.5 350 413 124 0.36
6 302 8000 26 20 60 20 0.5 350 528.5 159 0.36
6 603 8000 13 20 60 10 0.5 350 1055.25 317 0.36
6 42 8000 190 20 60 143 0.5 350 73.5 22 0.36
6 1030 8000 8 20 60 6 0.5 350 1802.5 541 0.36
3 118 4000 34 10 40 21 0.5 150 88.5 27 0.12
3 236 4000 17 10 40 11 0.5 150 177 53 0.12
3 302 4000 13 10 40 8 0.5 150 226.5 68 0.12
3 603 4000 7 10 40 4 0.5 150 452.25 136 0.12
3 42 4000 95 10 40 60 0.5 150 31.5 9 0.12
3 1030 4000 4 10 40 2 0.5 150 772.5 232 0.12
