GP16-1636 16mm Planetary Brushless Coreless DC Motor 12V/24V with Encoder/Driver
Regular price
$122.00 NZD
Regular price
Sale price
$122.00 NZD
Unit price
per
Shipping calculated at checkout.
Added ✓
Couldn't load pickup availability

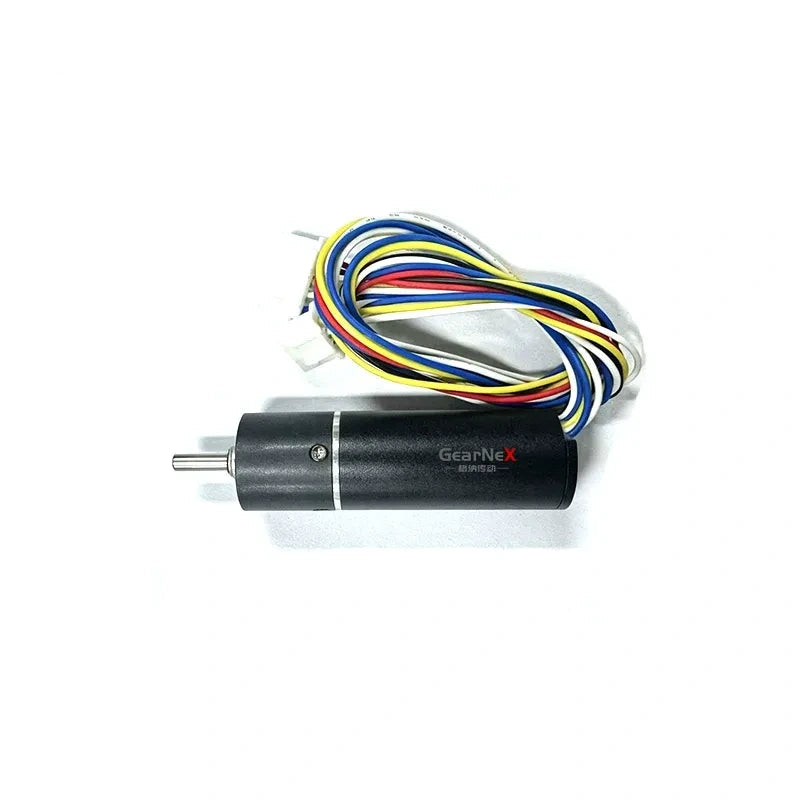

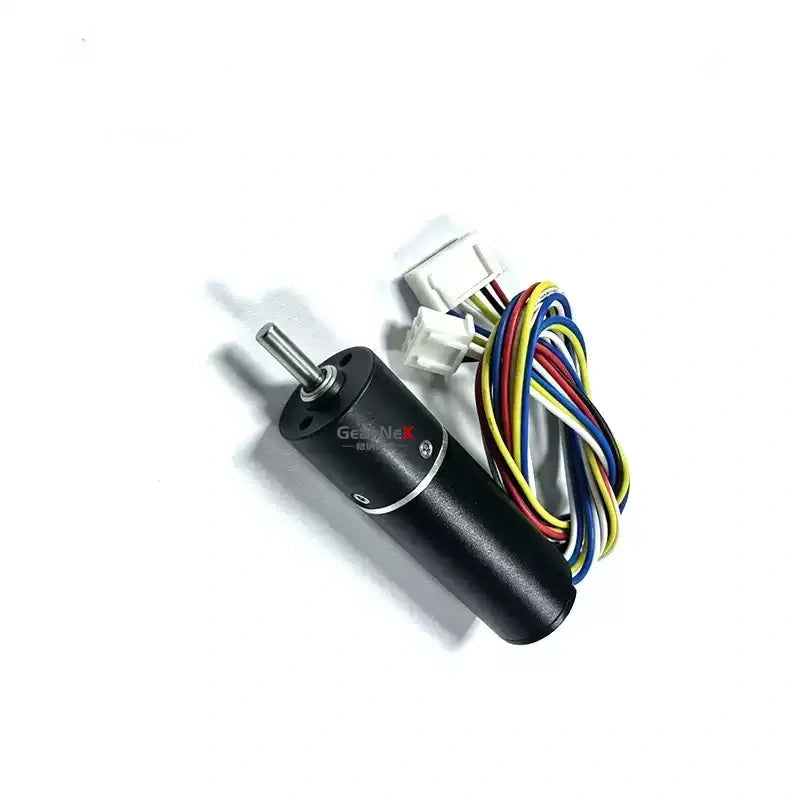

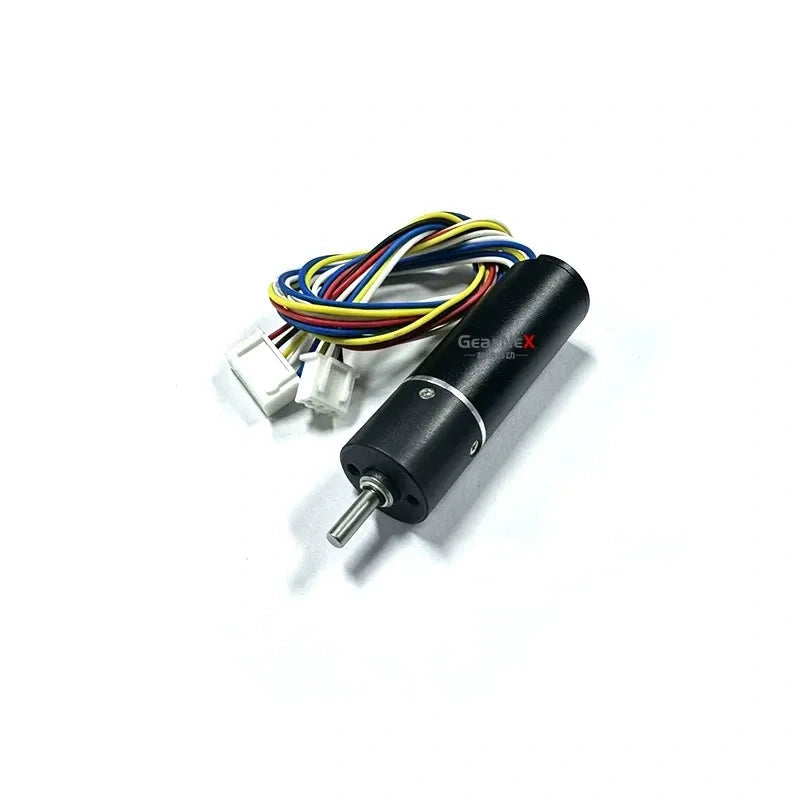

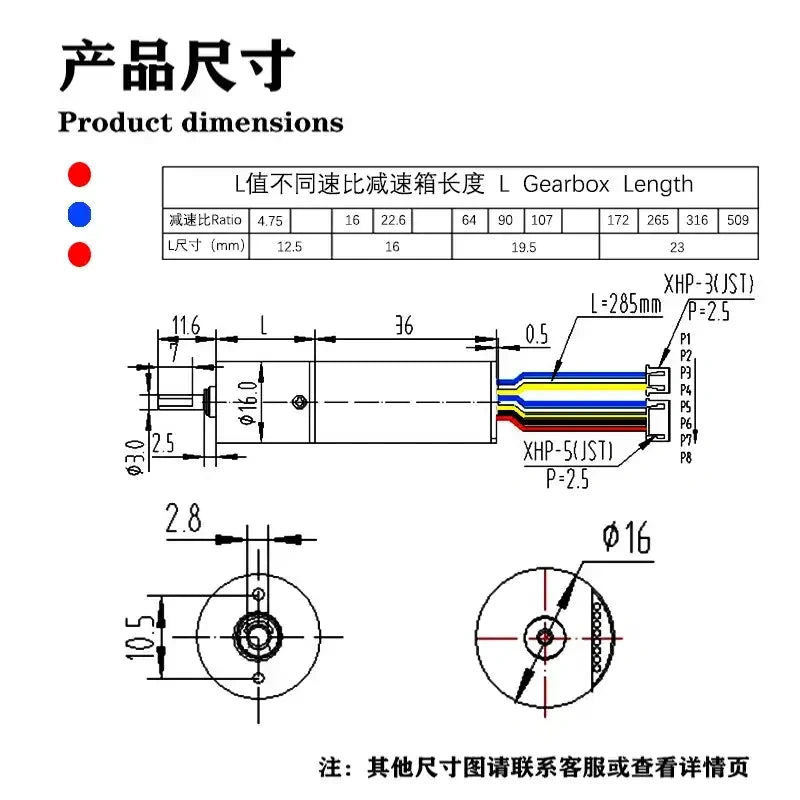

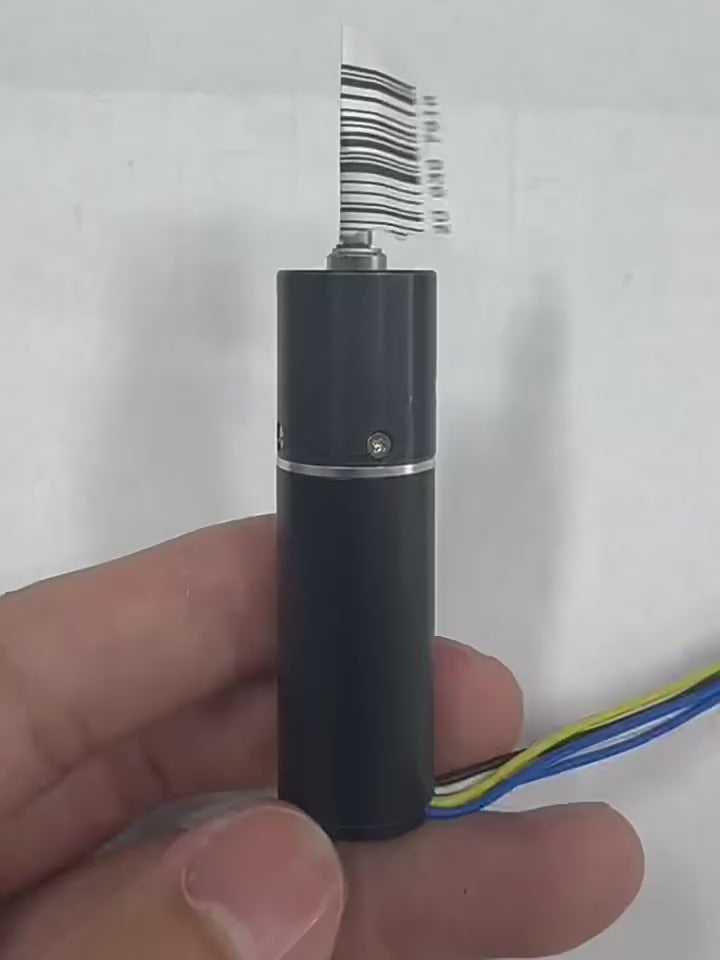

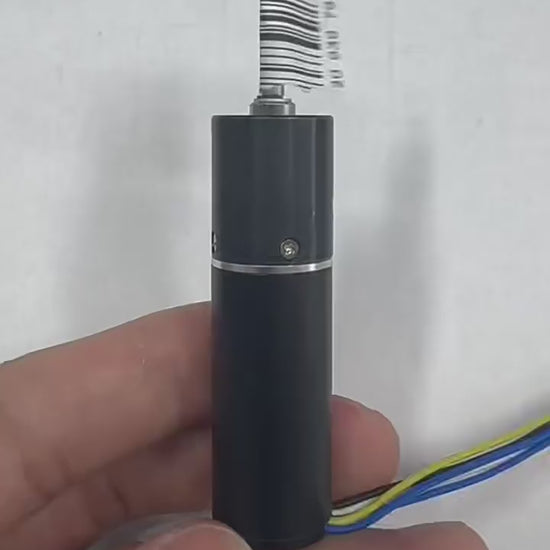

GP16-1636 16mm planetary brushless coreless DC motor,12V 24V micro reduction motor 23-2500 RPM with encoder, ABZ incremental SPL absolute encoder coreless gear motor,16mm mini brushless motor for robot CNC smart agriculture
Product Description
GP16-1636 is a 16mm miniature 3-phase 2-pole brushless coreless planetary gear reduction motor equipped with Hall sensor. Multiple configurable options are available: with or without driver board; encoder choices include no encoder, SPL absolute encoder and ABZ incremental encoder. It supports forward & reverse rotation and PWM speed regulation, working voltage optional 12V / 24V.
Wide speed range: 23,33,46,69,110,130,185,530,750,2500 RPM.
D-type output shaft, shaft diameter D3, shaft length 11.6mm.
Rated power:5W, net weight approx 189–210g.
- Spec: GP16-1636 16mm Planetary Gear Brushless Coreless Reduction Motor; Voltage: 12V/24V; Speed: 23/33/46/69/110/130/185/530/750/2500 RPM; Options: With/Without Driver; No Encoder / ABZ Incremental Encoder / SPL Absolute Encoder.
- Feature: Ultra-compact 16mm coreless brushless design for extreme low noise, high efficiency & long life; planetary gearbox delivers smooth micro-torque; optional integrated driver & precision encoders (ABZ/SPL) for closed-loop control; pairs seamlessly with DM556 & HH/MK/JQX/LC1D control stack.
- Use: Micro-precision automation, robotic joints, medical devices, smart agriculture (mini window opener/coop door), CNC auxiliary, camera/sensor gimbals, tachometer-tested speed loops.
- Pairing: Drive via onboard driver or external DM556/YMS7-B/PWM; power by 3-60V/3-90V PSU; logic switch via HH52P/MK2P → JQX-38F/LC1D for larger loads; wire UL2464/UL2547; test 4mm banana; micro couplers GX/M12; read XD tachometer; clean with cordless washer.
- Note: Smallest in motion lineup (vs GP36-3650 & GP42-4260); coreless rotor = ultra-responsive; pick 12V or 24V; encoder choice: ABZ incremental for speed, SPL absolute for position; driver-included simplifies integration; ideal micro-motion core.
Core Advantages
✅ 16mm compact coreless brushless planetary gearbox, large torque, low backlash
✅ Multi-options: driver board / no driver; 3 encoder versions for selection
✅ Built-in Hall sensor, reliable startup & smooth running
✅ D-type output shaft, anti-slip for stable power transmission
✅ PWM speed adjustable and forward/reverse rotation supported
✅ Dual voltage:12V & 24V, multiple reduction ratios & output speeds
✅ Low noise, durable planetary gear set, wear-resistant & rust-proof
Wire Sequence & Function Description
Please read carefully before using the product
Green Wire: Motor Brake Signal Input Control (Brake triggered at low level, max 0.6V)
⚠️ WARNING: Never reverse positive and negative power supply. Signal wires must NOT connect to power. Warranty void if miswired!
Specification
| Attribute | Value |
|---|---|
| Product Model | GP16-1636 |
| Motor Type | 16mm 3 Phase 2-Pole Brushless Coreless Planetary Reduction Motor with Hall Sensor |
| Rated Voltage | 12V / 24V |
| Rated Power | 5W |
| Output Speed | 23~2500 RPM optional |
| Output Shaft | D-type, D3, shaft length 11.6mm |
| Driver | Optional: With Driver Board / Without Driver Board |
| Encoder | Optional: No Encoder, SPL Absolute Encoder, ABZ Incremental Encoder |
| Function | PWM Speed Control, Forward & Reverse Rotation |
| Gear Structure | Planetary Sun Gear & Ring Gear, Low Backlash |
| Material | Coreless rotor, Pure Copper Coil, Alloy Planetary Gears, Carbon Steel Shaft |
| Net Weight | 189–210g |
| Feature | Compact size, high torque, low noise, anti-slip D shaft, configurable encoder |
| Application | Medical equipment, robotic arm, automation, precision instrument |
FAQ
Q1: What is the motor model and size?
A: Model GP16-1636, 16mm diameter miniature coreless brushless planetary reduction motor.
Q2: Can I select driver and encoder options?
A: Yes. Driver: with driver board or without driver board. Encoder: no encoder, SPL absolute encoder or ABZ incremental encoder.
Q3: What voltage options are available?
A: 12V and 24V.
Q4: What is the output shaft specification?
A: D-type D3 shaft, shaft length 11.6mm, anti-slip design.
Q5: What are the wire definitions?
A: XHP-3PIN power phase: Blue=U, Yellow=V, White=W.
XHP-5PIN Hall sensor: Blue=Hall U, Yellow=Hall V, White=Hall W, Black=Hall GND, Red=Hall VCC (3.3-5V).
Improper wiring may damage the motor and driver.
Q6: Where is GP16-1636 commonly used?
A: Mainly applied in medical devices, robotic arms, precision automation, measuring instruments and small industrial equipment.
