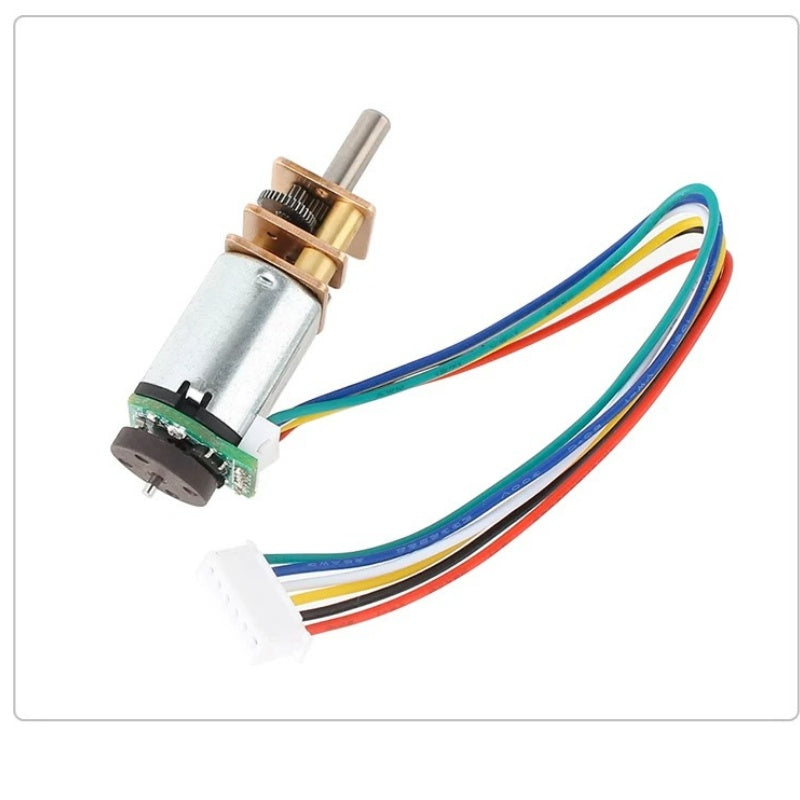

GM12-N20 3-Wire Hall Encoder Gear Motor| 3-12V

Name: GM12-N20 3-Wire Hall Encoder Gear Motor| 3-12V
Brand: electrical center b2c
SKU: N20 Motor with Encoder / DC3V/ A06 Type / Reduction Ratio 1:10 SKU for N20 Motor with Encoder / DC3V/ A06 Type / Reduction Ratio 1:10
Price: 43.0 NZD
Availability: InStock

$43.00 NZD

Sale Sold out

Shipping calculated at checkout.

Motor Config. N20 Motor with Encoder N20 Motor with Encoder + Mounting Bracket

Motor Voltage type DC3V/ A06 Type DC6V/ A06 Type DC6V/ A12 Type DC12V/ A12 Type

Reduction Ratio Reduction Ratio 1:10 Reduction Ratio 1:20 Reduction Ratio 1:30 Reduction Ratio 1:50 Reduction Ratio 1:100 Reduction Ratio 1:150 Reduction Ratio 1:200 Reduction Ratio 1:298 Reduction Ratio 1:380

Product variants

Quantity

`3V N20 DC Gear Motor with Hall Encoder, 1:50 Ratio, for Smart Balance Cars`

`12V N20 Micro Encoder Motor, 3-Wire AB Phase, for Camera Jib Arms`

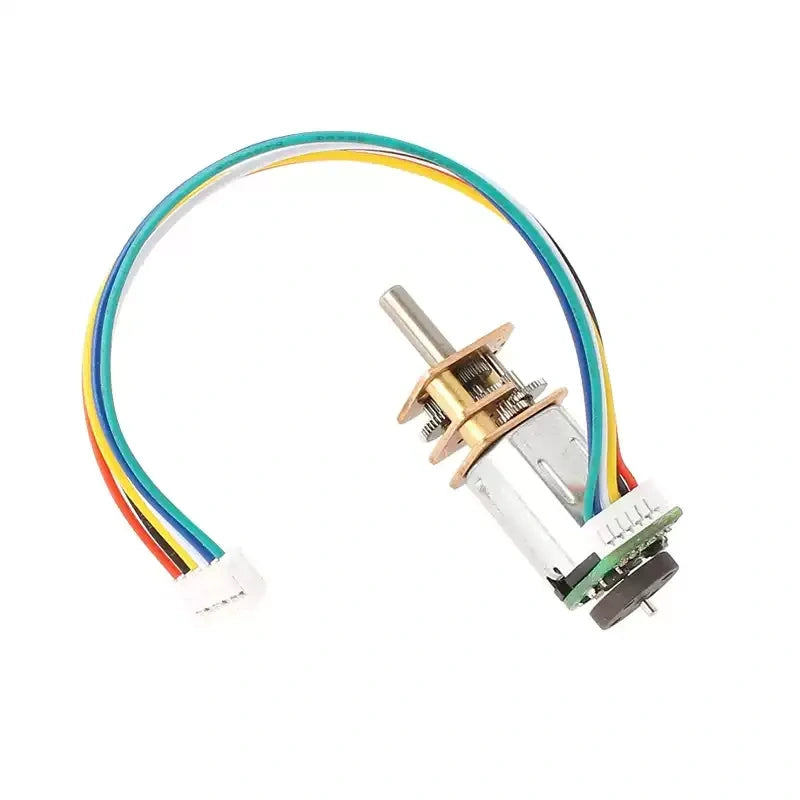

Product Overview

The CHF-GM12-N20 ABHL DC Hall Encoder Gear Motor is a compact, lightweight motor designed for small-scale robotics and automation projects. Featuring an AB-phase Hall encoder for closed-loop speed/position feedback, it’s ideal for smart balance cars, line-tracking robots, and camera pan-tilt systems.

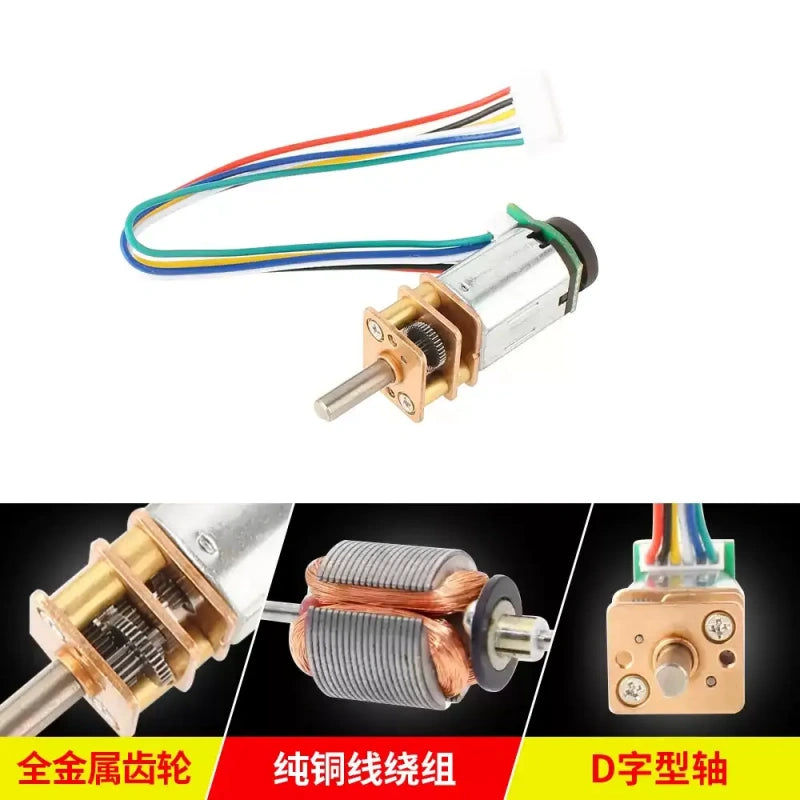

Key Features

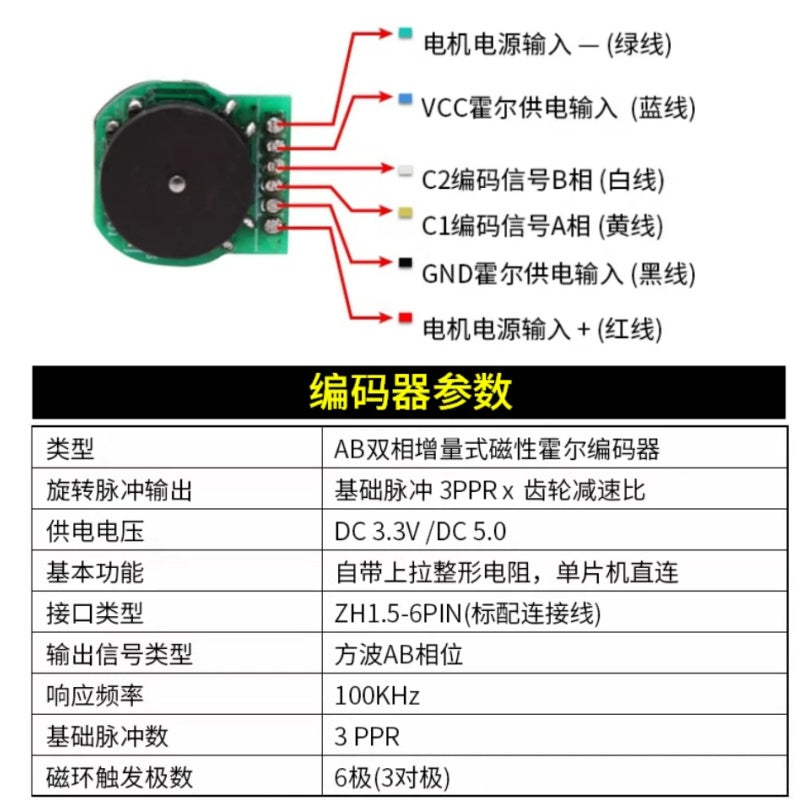

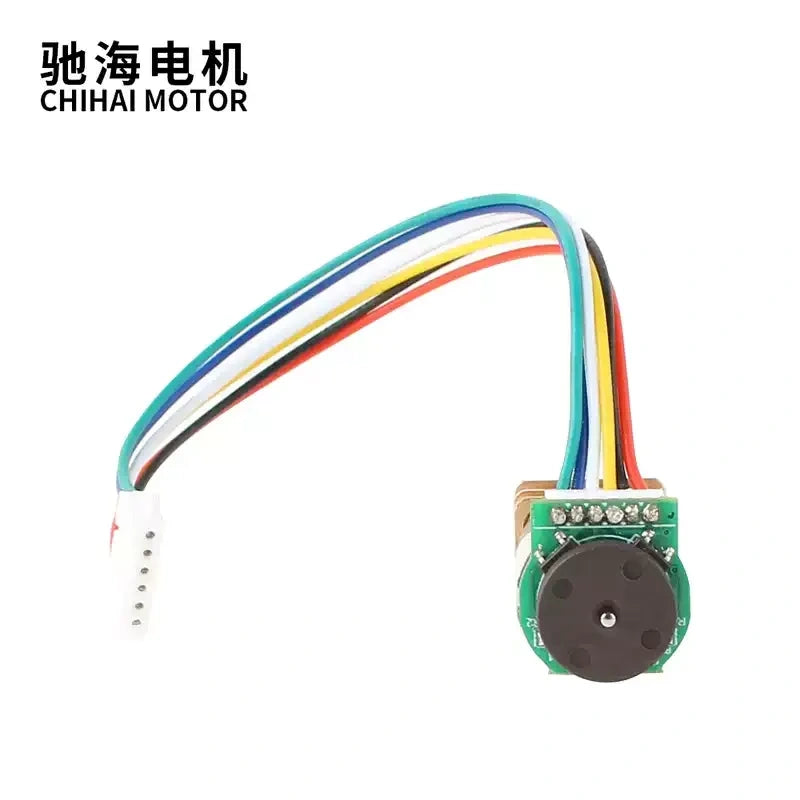

Built-in Hall Encoder: AB dual-phase incremental encoder provides precise speed/position feedback (3-wire, 3.3V/5.0V signal compatible).

Wide Voltage Compatibility: Supports DC 3-12V operation, with options for 3V/6V/12V rated versions.

Multiple Gear Ratios: Choose from 1:10 to 1:380 to customize speed and torque for your project.

Compact & Lightweight: Only ~13g, with a 3mm D-shaped shaft (10mm length) for space-constrained applications.

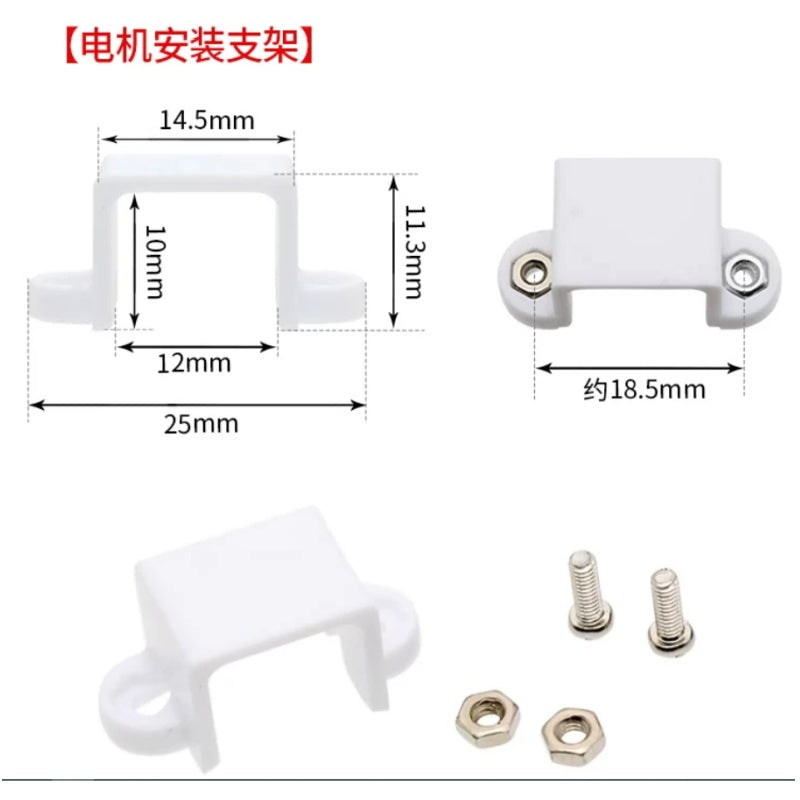

Optional Mounting Bracket: Available with a bracket for easy installation in fixed setups.

Specifications (CHF-GM12-N20 ABHL)

Model: CHF-GM12-N20 ABHL

Brand: ChiHai Motor

Rated Voltage: DC 3V / 6V / 12V (3-12V compatible)

Motor Type: DC Gear Motor with Hall Encoder

Encoder Type: AB Dual-Phase Hall Encoder (3-wire, 3.3V/5.0V signal)

Gear Ratios: 1:10, 1:20, 1:30, 1:50, 1:100, 1:150, 1:210, 1:298, 1:380

Output Shaft: 3mm D-shaped shaft, 10mm length

Weight: Approx. 13g (varies by gear ratio)

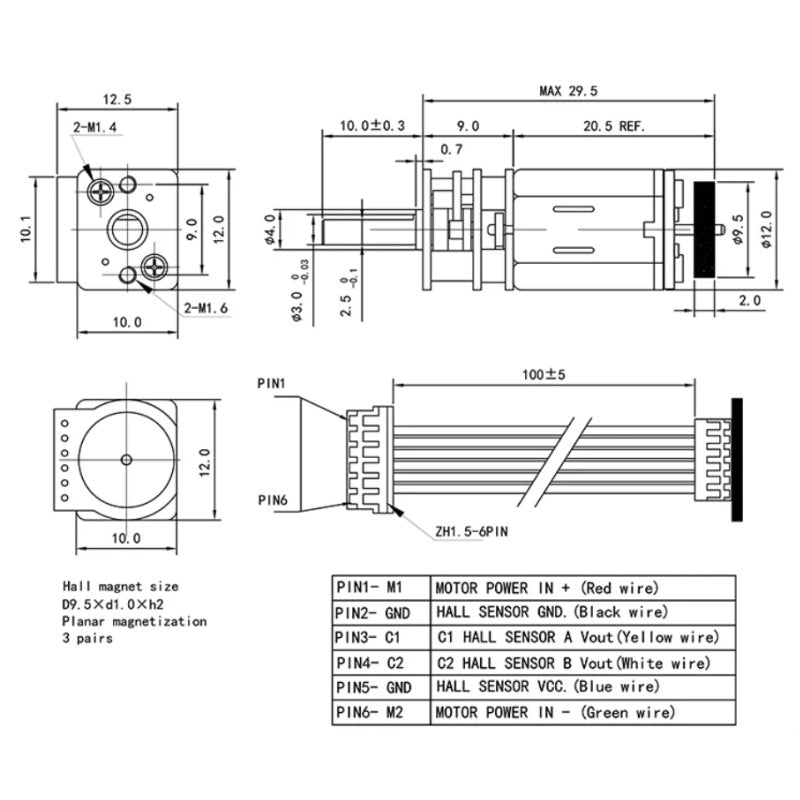

Connector Type: ZH1.5-6PIN Terminal Connector

Available Configurations

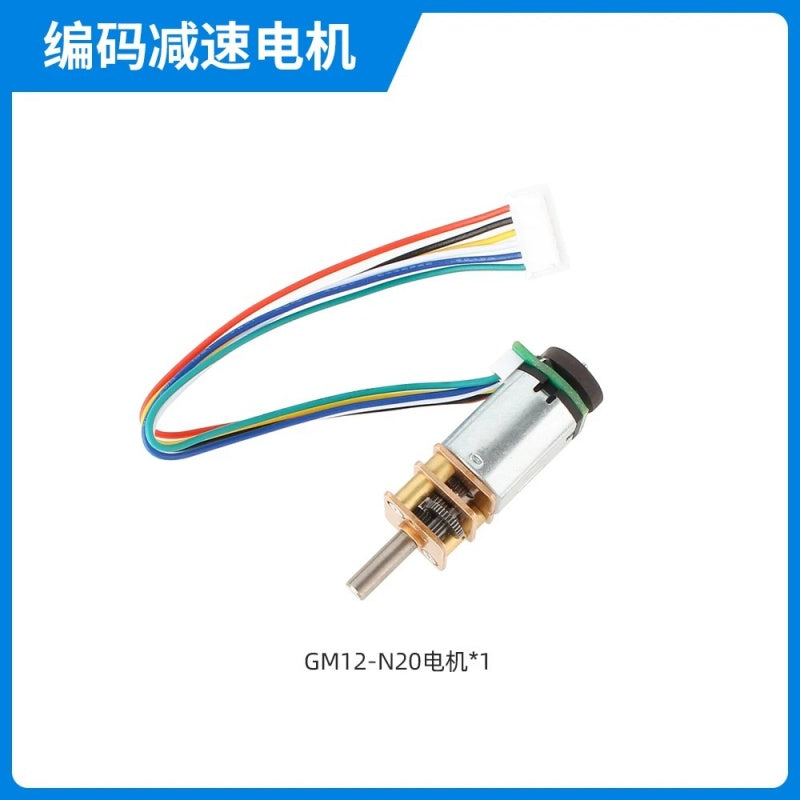

3-Wire Encoder Motor Only

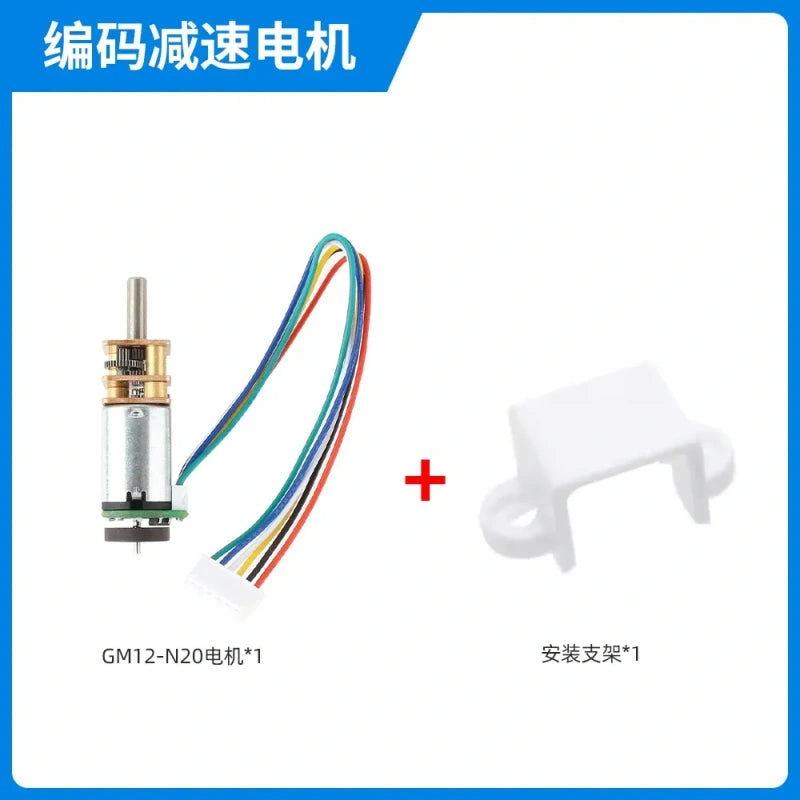

3-Wire Encoder Motor + Mounting Bracket

Applications

Perfect for smart balance cars, line-tracking robots, smart home appliances, miniature robotics, camera jib arms, and other projects requiring precise motion control in small spaces.

DATA SHEET

Attribute	Value
Product Type	DC Gear Motor with Hall Encoder
Model	CHF-GM12-N20 ABHL
Brand	ChiHai Motor
Rated Voltage	DC 3V / 6V / 12V
Encoder Type	AB Dual-Phase Hall Encoder (3-wire)
Gear Ratios	1:10 to 1:380
Output Shaft	3mm D-shaped shaft, 10mm length
Weight	Approx. 13g
Optional Accessories	Mounting Bracket
Applications	Smart Balance Cars, Robotics, Camera PTZ Arms

CHR-GM12-N20 ABHL Hall Encoder Gear Motor Specifications

Model Overview

Model: CHR-GM12-N20 ABHL Permanent Magnet Hall Encoder Gear Motor

DC 12.0V (A12 Type, Max 0.9W)

Parameter 1:10 1:20 1:30 1:50 1:100 1:150 1:210 1:298 1:380

No-Load Current (mA) ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60

No-Load Speed (rpm) 2200 1100 730 440 220 145 105 73 58

Rated Torque (kg·cm) 0.10 0.15 0.20 0.40 0.80 1.20 1.60 2.30 3.00

Rated Torque (mN·m) 9.8 14.7 19.6 39.2 78.4 117.6 156.9 225.5 294.1

Rated Speed (rpm) 1000 500 380 230 130 85 60 42 34

Rated Current (A) ≤0.22 ≤0.22 ≤0.22 ≤0.22 ≤0.22 ≤0.22 ≤0.22 ≤0.22 ≤0.22

Stall Current (A) 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4

Stall Torque (kg·cm) 0.15 0.28 0.40 0.65 1.30 1.90 2.50 3.00 4.00

Encoder Pulses/Revolution 29.04 38.71 88.41 153.3 297.9 452.87 629.27 893.7 1137.47

DC 6.0V (A12 Type, Max 0.2W)

Parameter	1:10	1:20	1:30	1:50	1:100	1:150	1:210	1:298	1:380
No-Load Current (mA)	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45
No-Load Speed (rpm)	1000	500	330	200	100	65	47	33	26
Rated Torque (kg·cm)	0.05	0.09	0.12	0.20	0.40	0.60	0.80	1.15	1.50
Rated Torque (mN·m)	4.9	8.8	9.8	19.6	39.2	58.8	78.45	112.75	147
Rated Speed (rpm)	700	350	200	120	65	45	30	20	17
Rated Current (A)	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
Stall Current (A)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Stall Torque (kg·cm)	0.07	0.12	0.20	0.32	0.70	0.90	1.20	1.50	2.00

DC 6.0V (A06 Type, Max 0.45W)

Parameter	1:10	1:20	1:30	1:50	1:100	1:150	1:210	1:298	1:380
No-Load Current (mA)	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60
No-Load Speed (rpm)	1550	800	530	310	155	105	75	52	41
Rated Torque (kg·cm)	0.07	0.14	0.20	0.35	0.70	1.00	1.40	2.00	2.50
Rated Torque (mN·m)	6.8	13.7	19.6	34.3	68.6	98	137.25	196.08	245.1
Rated Speed (rpm)	900	460	300	180	90	60	42	30	24
Rated Current (A)	≤0.17	≤0.17	≤0.17	≤0.17	≤0.17	≤0.17	≤0.17	≤0.17	≤0.17
Stall Current (A)	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Stall Torque (kg·cm)	0.16	0.30	0.50	0.80	1.50	2.20	2.80	3.00	4.00

DC 3.0V (A06 Type, Max 0.1W)

Parameter	1:10	1:20	1:30	1:50	1:100	1:150	1:210	1:298	1:380
No-Load Current (mA)	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45	≤45
No-Load Speed (rpm)	780	400	265	155	77	52	37	26	20
Rated Torque (kg·cm)	0.03	0.06	0.10	0.17	0.35	0.50	0.70	1.00	1.20
Rated Torque (mN·m)	2.94	5.88	9.8	16.67	34.4	49.02	68.63	98.04	117.6
Rated Speed (rpm)	450	230	150	90	45	30	21	15	12
Rated Current (A)	≤0.10	≤0.10	≤0.10	≤0.10	≤0.10	≤0.10	≤0.10	≤0.10	≤0.10
Stall Current (A)	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Stall Torque (kg·cm)	0.08	0.16	0.23	0.40	0.75	1.10	1.50	2.80	3.50
