N20 Micro DC Gear Motor, 55mm M4 Threaded Shaft, 3V 6V 12V, High Torque for Smart Robotics
核心概述

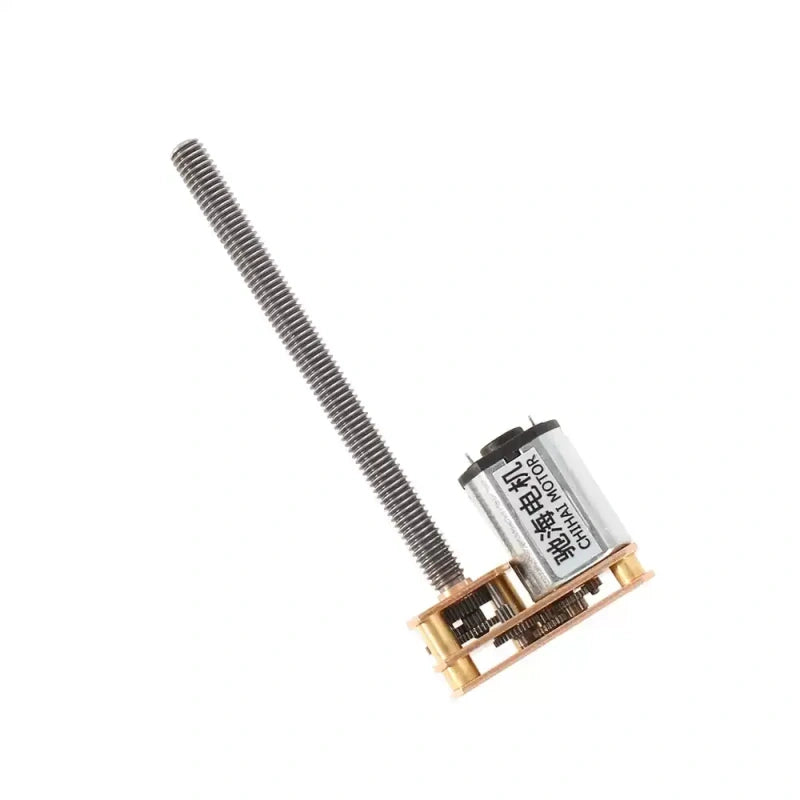

The CHF-GM1024-N20-M4/55 is a compact, lightweight DC gear motor with a 55mm long M4 threaded output shaft. Designed for low-speed, high-torque applications, it supports a wide voltage range (3.0V~12.0V) and features adjustable speed control.
关键特性

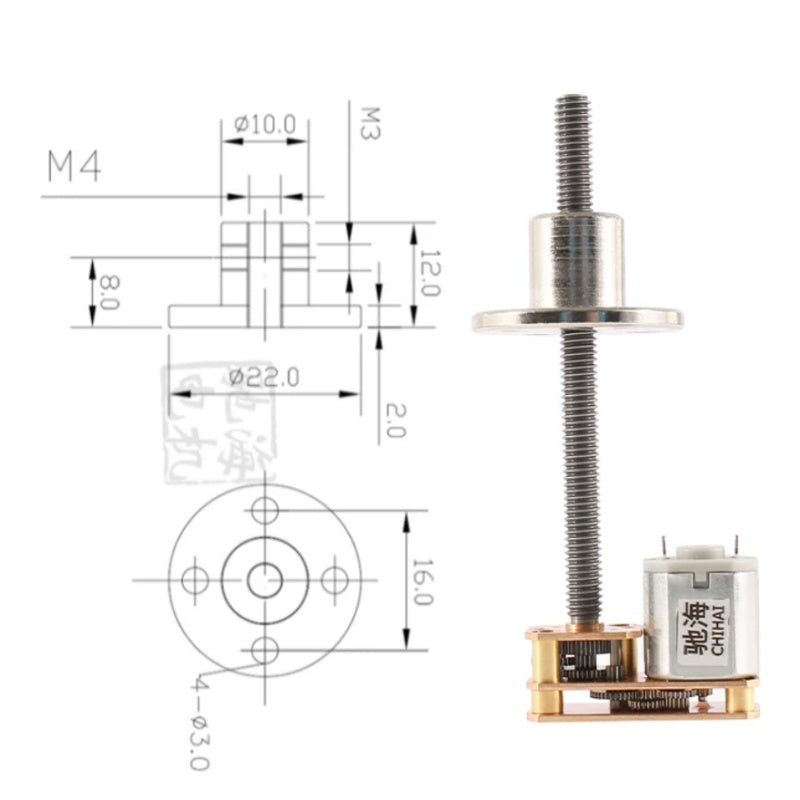

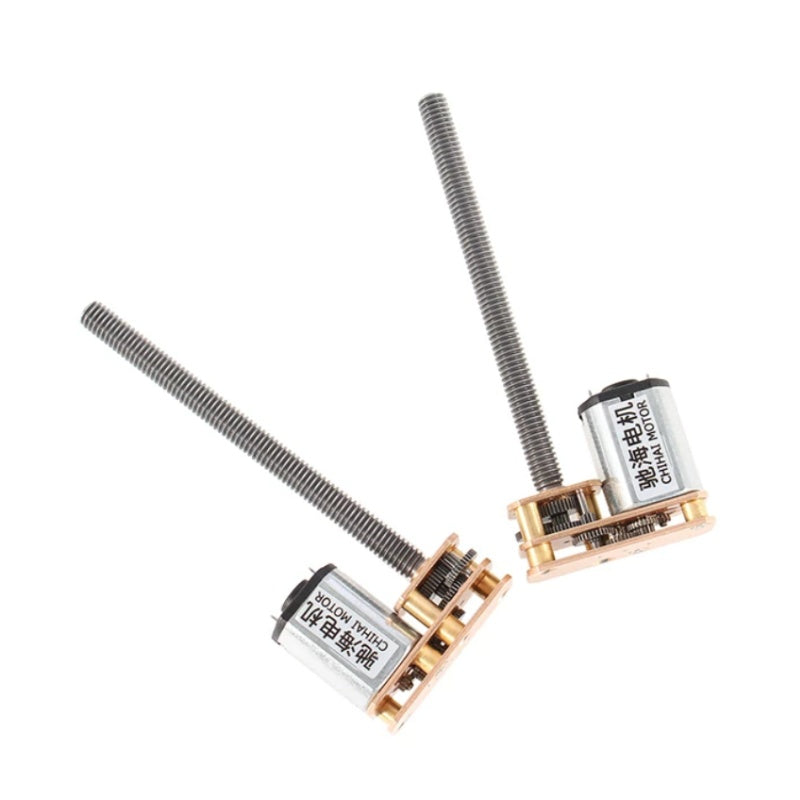

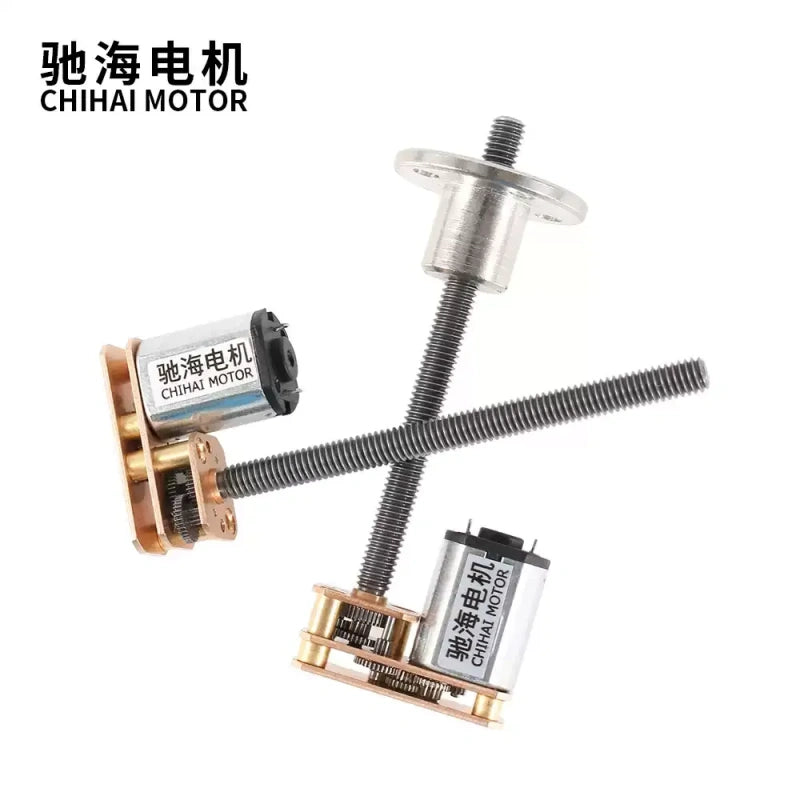

- Threaded Output Shaft: 55mm length with standard M4 male thread for direct mounting of wheels, brackets, or custom parts.
- Wide Voltage Compatibility: Available in 3V, 6V, and 12V variants, with multiple gear ratios (1:50 to 1:500) to match your speed/torque needs.

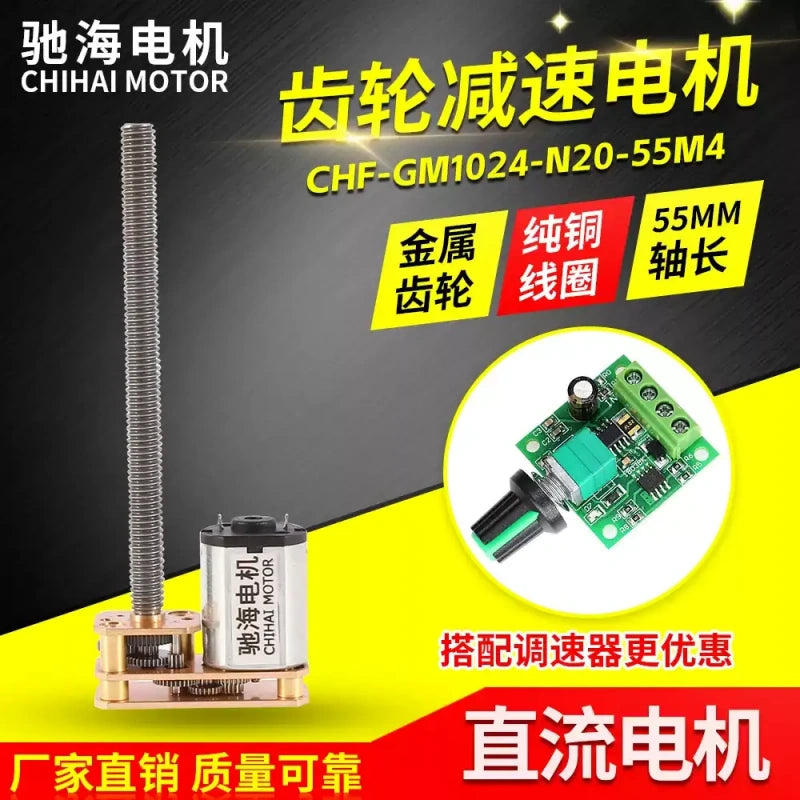

- Adjustable Speed: Compatible with external speed controllers (PWM or potentiometer-based) for precise motion control.
- Lightweight & Compact: Only ~15g, making it ideal for small-scale robotics and space-constrained projects.

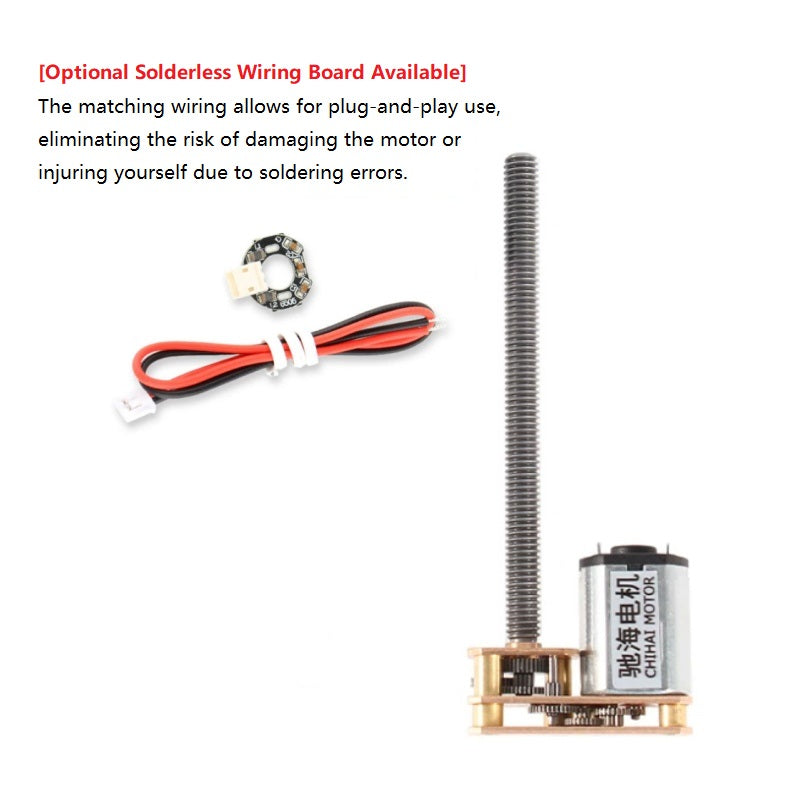

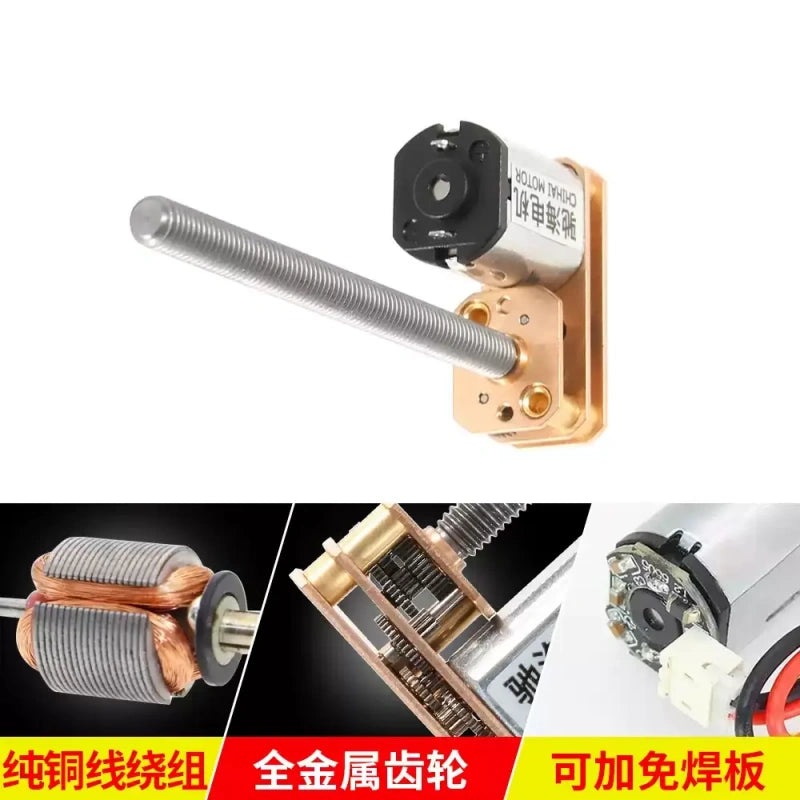

- Optional Accessories: Upgrade with a solderless wiring board, flange nut, or mini speed controller for plug-and-play use.
应用场景
Perfect for smart robots, robotic grippers, smart furniture, camera focus systems, miniature pan-tilt heads, and other automation projects requiring reliable, low-speed motion.
DATA SHEET
| 字段 | 英文值 |
|---|---|
product_type |
DC Gear Reduction Motor |
brand |
ChiHai Motor |
model |
CHF-GM1024-N20-M4/55 |
voltage_range |
DC 3.0V~12.0V |
rated_voltages |
3V, 6V, 12V |
gear_ratios |
1:50, 1:100, 1:150, 1:200, 1:350, 1:500 |
shaft_spec |

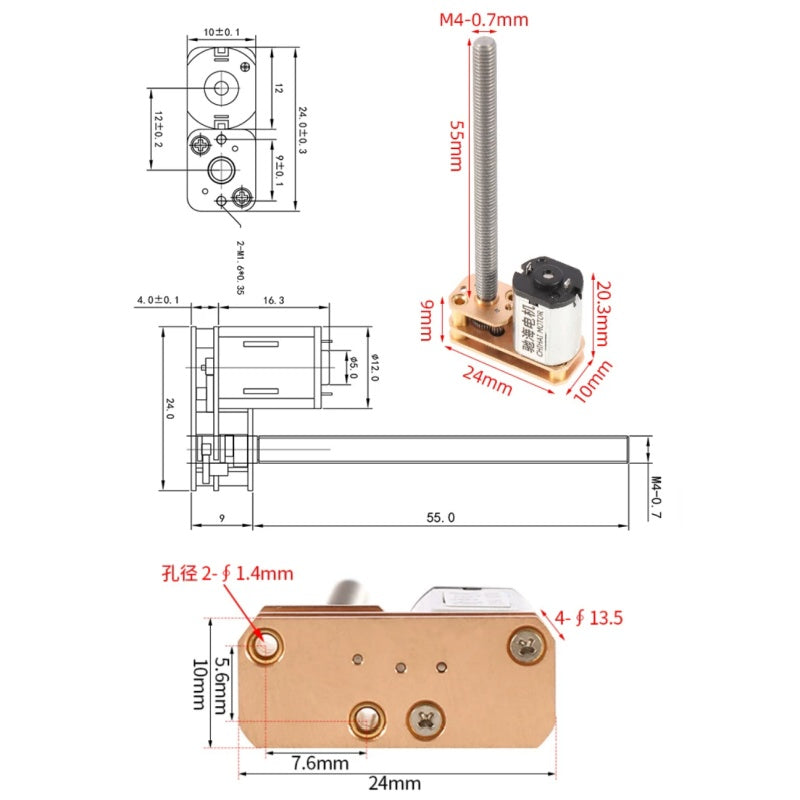

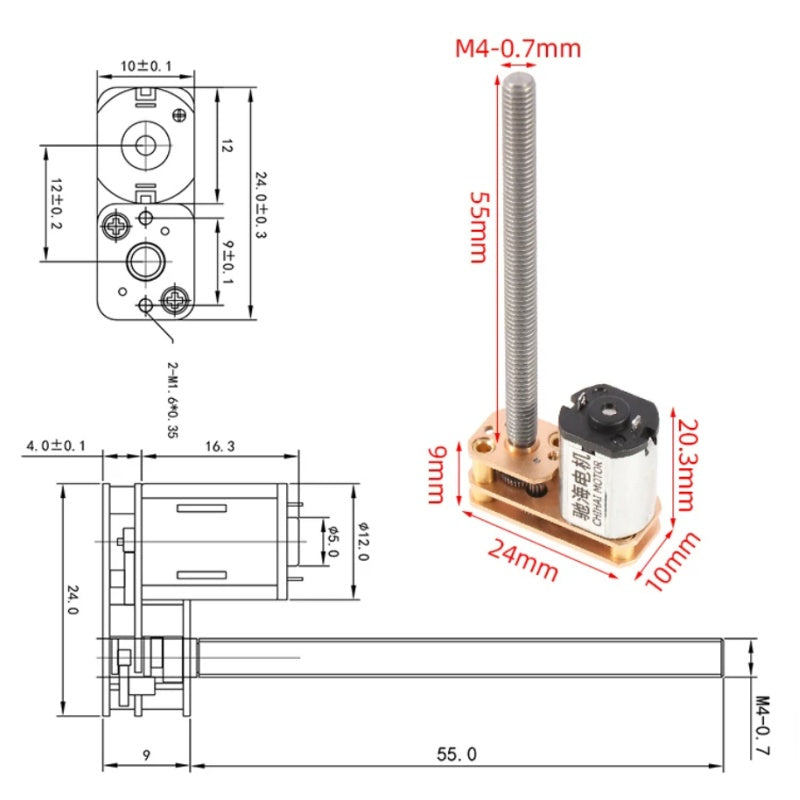

M4 Standard Thread, 55mm Length |
shaft_diameter |
4mm (M4 Thread) |
shaft_length |
55mm |
weight |
~15g |
control_feature |
Adjustable Speed |
optional_accessories |
Solderless Wiring Board, Flange Nut, Mini Speed Controller |
applications |
Smart Robots, Robotic Grippers, Smart Furniture, Camera Focus Systems, Mini PTZ Heads |
CHF-GM1024-N20-M4/55 DC Gear Motor Specifications
Model Overview
Model: CHF-GM1024-N20-M4/55
Brand: ChiHai Motor
Type: DC Gear Motor with M4 threaded shaft (55mm length)
Voltage Range: DC 3.0V ~ 12.0V
Max Allowable Load: 3.0 kg·cm (0.3 N·m) – exceeding this may damage gears
DC 12.0V (05 Type, Max 0.8W)
| Parameter | 1:50 | 1:100 | 1:150 | 1:200 | 1:350 | 1:500 |
|---|---|---|---|---|---|---|
| No-Load Current (mA) | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 |
| No-Load Speed (rpm) | 300 | 150 | 100 | 75 | 43 | 30 |
| Rated Torque (kg·cm) | 0.1 | 0.2 | 0.3 | 0.4 | 0.7 | 1.0 |
| Rated Speed (rpm) | 150 | 75 | 50 | 37 | 21 | 15 |
| Rated Current (A) | ≤0.07 | ≤0.07 | ≤0.07 | ≤0.07 | ≤0.07 | ≤0.07 |
| Stall Torque (kg·cm) | 0.45 | 0.9 | 1.2 | 1.8 | 2.2 | Max 3.0 |
| Stall Current (A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
DC 12.0V (35 Type, Max 1.4W)
| Parameter | 1:50 | 1:100 | 1:150 | 1:200 | 1:350 | 1:500 |
|---|---|---|---|---|---|---|
| No-Load Current (mA) | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 | ≤55 |
| No-Load Speed (rpm) | 430 | 215 | 143 | 105 | 61 | 43 |
| Rated Torque (kg·cm) | 0.25 | 0.5 | 0.7 | 1.0 | 1.5 | 2.0 |
| Rated Speed (rpm) | 290 | 145 | 95 | 72 | 40 | 29 |
| Rated Current (A) | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 |
| Stall Torque (kg·cm) | 0.65 | 1.3 | 2.0 | 2.6 | Max 3.0 | Max 3.0 |
| Stall Current (A) | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 | ≤0.45 |
DC 6.0V (26 Type, Max 0.6W)
| Parameter | 1:50 | 1:100 | 1:150 | 1:200 | 1:350 | 1:500 |
|---|---|---|---|---|---|---|
| No-Load Current (mA) | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
| No-Load Speed (rpm) | 330 | 160 | 110 | 80 | 45 | 32 |
| Rated Torque (kg·cm) | 0.25 | 0.5 | 0.7 | 1.0 | 1.5 | 2.0 |
| Rated Speed (rpm) | 190 | 100 | 65 | 48 | 28 | 20 |
| Rated Current (A) | ≤0.23 | ≤0.23 | ≤0.23 | ≤0.23 | ≤0.23 | ≤0.23 |
| Stall Torque (kg·cm) | 0.50 | 1.0 | 1.5 | 2.0 | Max 3.0 | Max 3.0 |
| Stall Current (A) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
DC 6.0V (35 Type, Max 0.4W)
| Parameter | 1:50 | 1:100 | 1:150 | 1:200 | 1:350 | 1:500 |
|---|---|---|---|---|---|---|
| No-Load Current (mA) | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| No-Load Speed (rpm) | 210 | 105 | 70 | 55 | 30 | 22 |
| Rated Torque (kg·cm) | 0.2 | 0.4 | 0.6 | 0.8 | 1.4 | 2.0 |
| Rated Speed (rpm) | 150 | 75 | 50 | 37 | 21 | 15 |
| Rated Current (A) | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| Stall Torque (kg·cm) | 0.35 | 0.7 | 1.0 | 1.3 | 2.2 | Max 3.0 |
| Stall Current (A) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
DC 3.0V (45 Type, Max 0.5W)
| Parameter | 1:50 | 1:100 | 1:150 | 1:200 | 1:350 | 1:500 |
|---|---|---|---|---|---|---|
| No-Load Current (mA) | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
| No-Load Speed (rpm) | 240 | 120 | 80 | 60 | 34 | 24 |
| Rated Torque (kg·cm) | 0.2 | 0.4 | 0.6 | 0.8 | 1.4 | 2.0 |
| Rated Speed (rpm) | 150 | 80 | 52 | 39 | 22 | 15 |
| Rated Current (A) | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 | ≤0.27 |
| Stall Torque (kg·cm) | 0.50 | 1.0 | 1.5 | 2.0 | Max 3.0 | Max 3.0 |
| Stall Current (A) | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 |
DC 3.0V (26 Type, Max 0.2W)
| Parameter | 1:50 | 1:100 | 1:150 | 1:200 | 1:350 | 1:500 |
|---|---|---|---|---|---|---|
| No-Load Current (mA) | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
| No-Load Speed (rpm) | 160 | 80 | 55 | 40 | 23 | 16 |
| Rated Torque (kg·cm) | 0.2 | 0.4 | 0.6 | 0.8 | 1.4 | 2.0 |
| Rated Speed (rpm) | 90 | 45 | 30 | 21 | 12 | 9 |
| Rated Current (A) | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 | ≤0.18 |
| Stall Torque (kg·cm) | 0.35 | 0.7 | 1.0 | 1.3 | 2.2 | Max 3.0 |
| Stall Current (A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
