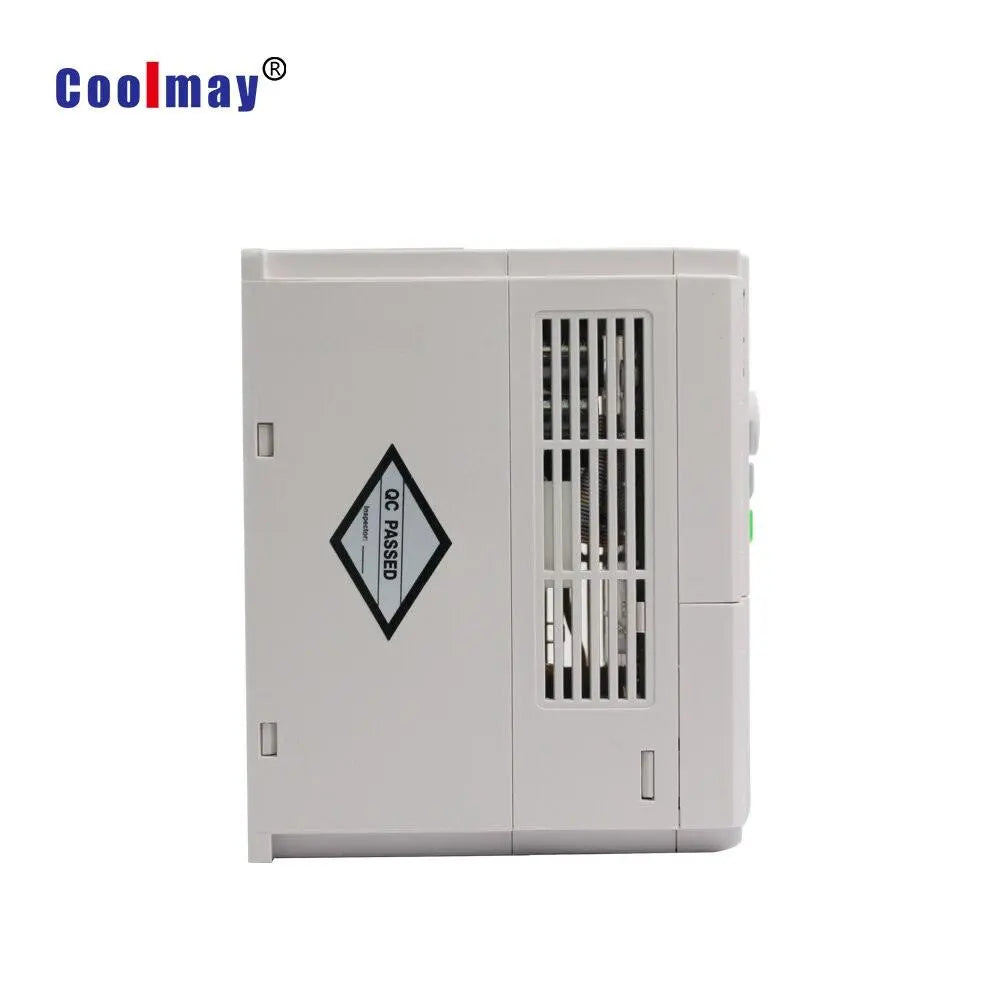

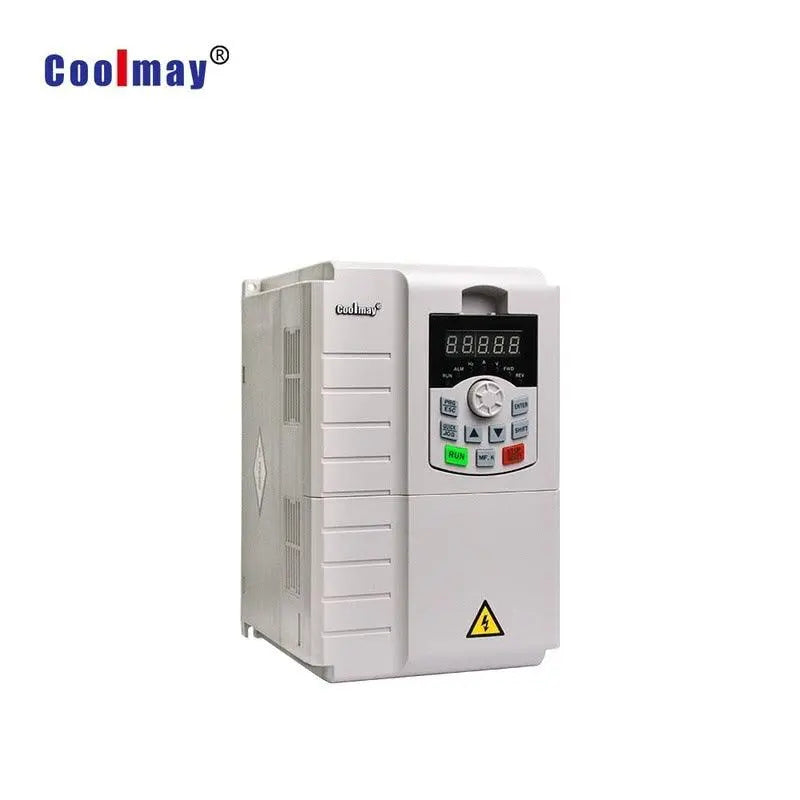

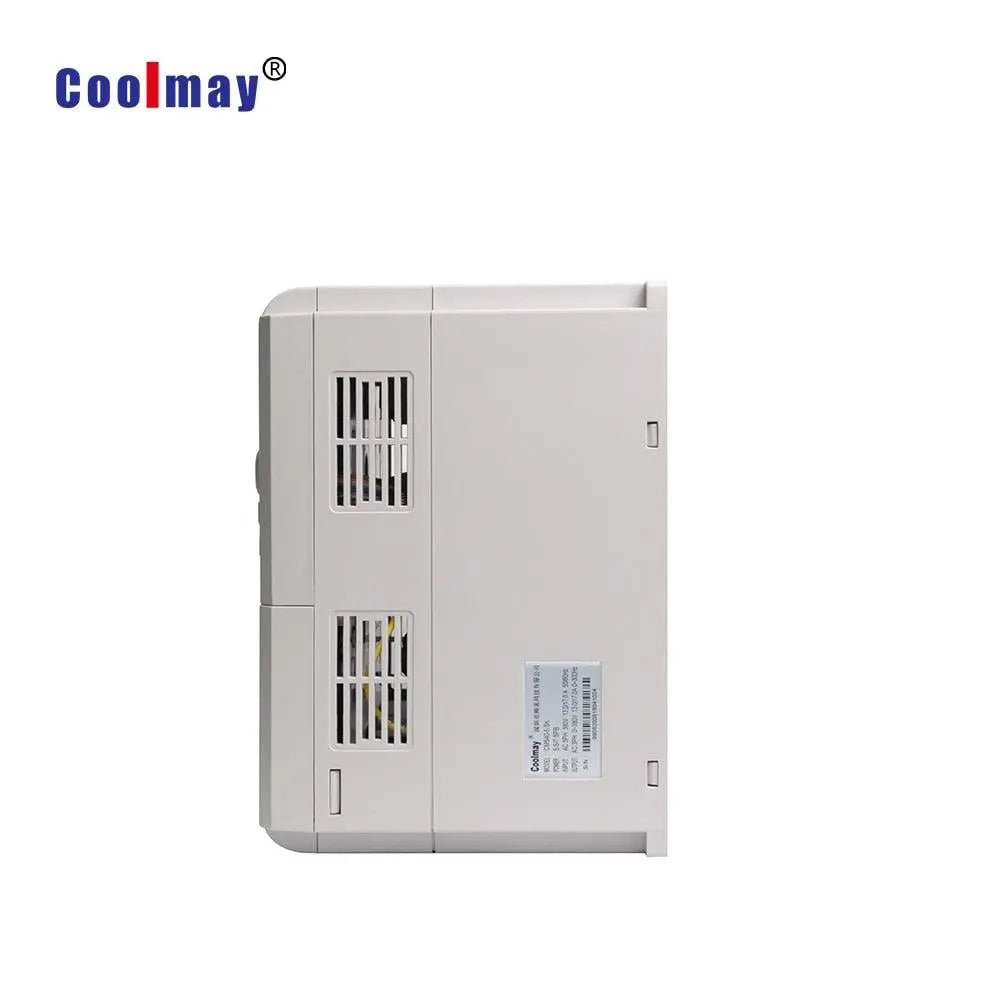

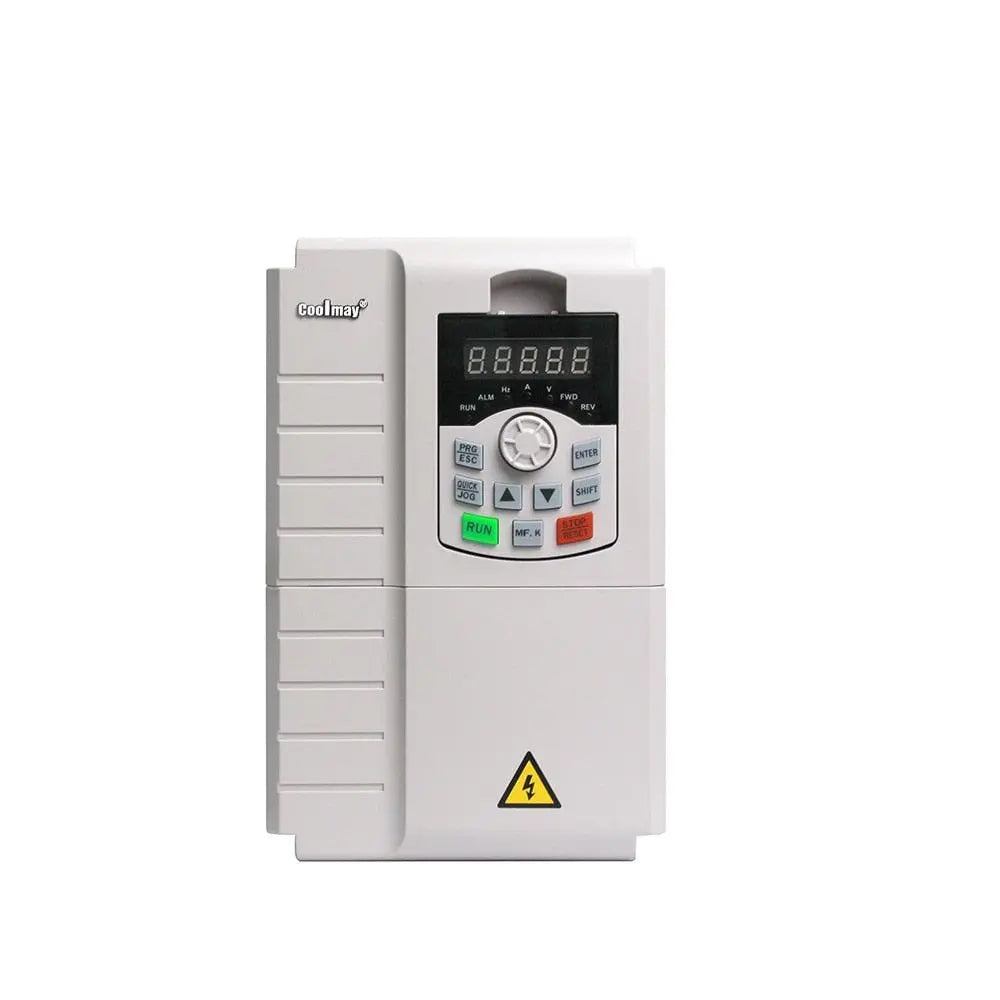

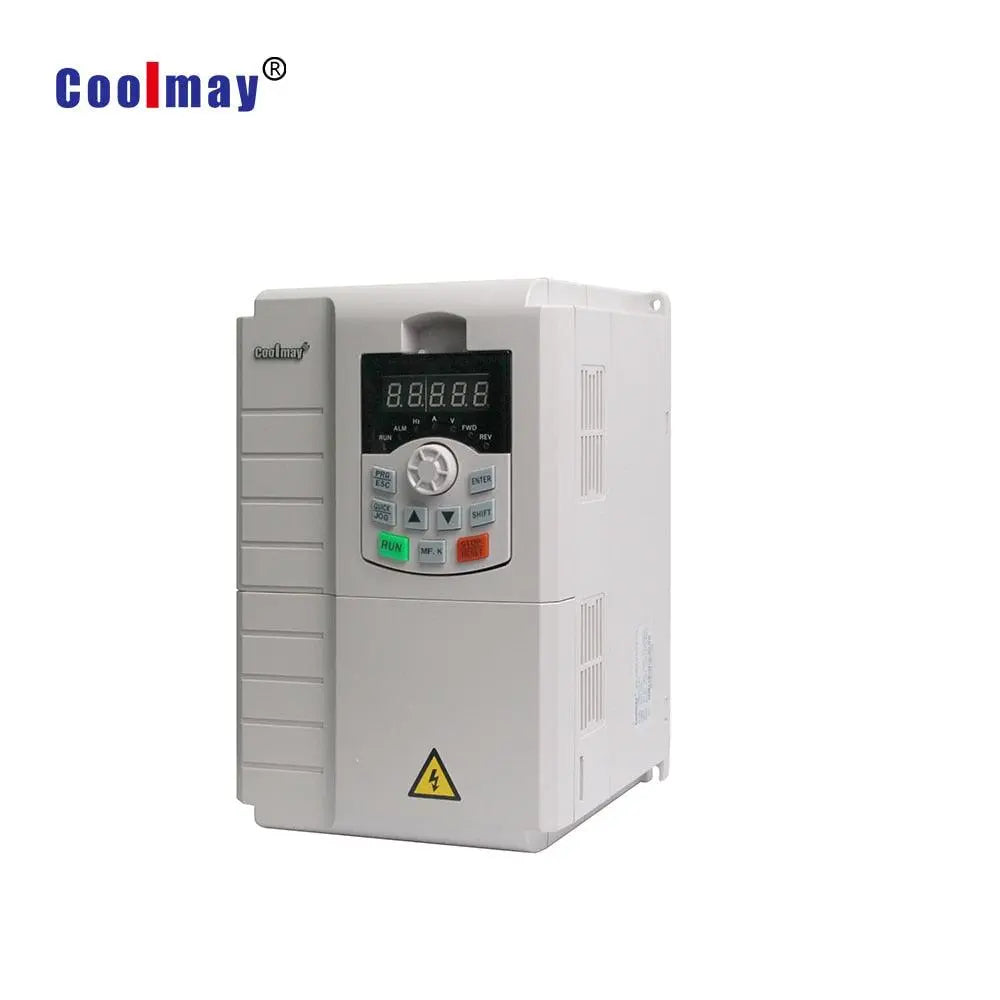

0.75/1.5/2.2/4KW Inverter VFD variable frequency drive three phase 380v

Regular price $368.00 NZD
Regular price $250.00 NZD Sale price $368.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color
Input Voltage
Output Voltage

SPECIFICATIONS

Coolmay Inverter VFD variable frequency drive three phase 380v

for electric move equipment

is_customized: Yes

Weight: 2.0kg

Type: DC/DC Converters

Size: 118*156*185

Output Type: Single

Output Power: 1 - 200KW

Origin: CN(Origin)

Model Number: CM540

Certification: CE

The packagewill include

* 1 set of device three phase 380V

* If you need 220V or 440V three phase, please contact our sales team for purchasing links.


Specifications of CM540series

Model

CM520-0.75/1.5KW

CM540-0.75/1.5/4.0KW

CM540-5.5/7.5/11KW

Dimension

86*114*143

118*156*185

247*160*176

L*W*Hmm

Weight

0.9kg

2.0kg

3.7kg

Basic Function

Maximum frequency

Vector control: 0.00~500.00Hz

V/F control: 0.00~500.00Hz

Carrier frequency

0.8kHz~12kHz. The carrier frequency automatically adjusted based on the load features.

Input frequency resolution

Digital setting: 0.01Hz

Analog setting: Maximum frequency ×0.025%

Control mode

Open-loop vector control (SVC), Closed-loop vector control (FVC), VF control.

Startup torque

G type: 0.25Hz/150% (SVC), 0Hz/180%(FVC), P type: 0.5Hz/100%

Speed range

1:200(SVC), 1:1000(FVC)

Speed stability accuracy

±0.5%(SVC), ±0.02%(FVC)

Torque control precision

±5%(SVC)(above 10Hz), ±3%(FVC)

Overload capacity

G type: 150% rated current 60s. 180% rated current 3s.

P type: 120% rated current 60s. 150% rated current 3s.

Torque boost

Automatic torque boost. Manual torque boost 0.1%~30.0%

V/F curve

Five modes: Straight-line, Multi-points, Square V/F, V/F separation, V/F Semi-separation

V/F Separation

Two modes: complete separation, semi-separation

Ramp mode

Straight-line ramp and S-curve ramp.

Four kinds of acceleration/deceleration time with the range of 0.0–6500.0s

DC injection braking

DC braking frequency: 0.00Hz~maximum, braking time: 0.0s~36.0s.

Braking action current value:0.0%~100.0%

Jog control

Jog frequency: 0.00Hz~50.00Hz

Jog acceleration and deceleration tome:0.0s~6500.0s

Simple PLC, multistage speed operation

It implements up to 16 speeds via the simple PLC function or combination of DI terminal states.

Built-in PID

It can keep constant output voltage automatically when the mains voltage changes.

Automatic voltage regulation(AVR)

Automatically maintain a constant output voltage when grid voltage changes.

Over voltage/Over current loss of speed control

Automatic limit of the current and voltage during the operation, prevent frequent over current and over voltage

Rapid current limit

Minimizing over-current fault and protect the normal operation of converter.

Torque limit and control

"Excavator" characteristics, automatic limit of the torque during the operation, to prevent frequent over-current trip. Closed-loop vector mode torque control can be achieved.

Other models: CM540-15/ 18.5/ 22KW, CM540-30/ 37KW

CM540-45/ 55/ 75KW, CM540-90/ 110KW

CM540-132/ 160/ 185KW, CM540-200/ 220/ 250/ 280KW

CM540-315/ 350KW.

The above models are all iron shells. For detailed dimensions, please contact us

Detail info refer to:

Coolmay CM520 VFD user manual Coolmay CM540-Inverter user manual
