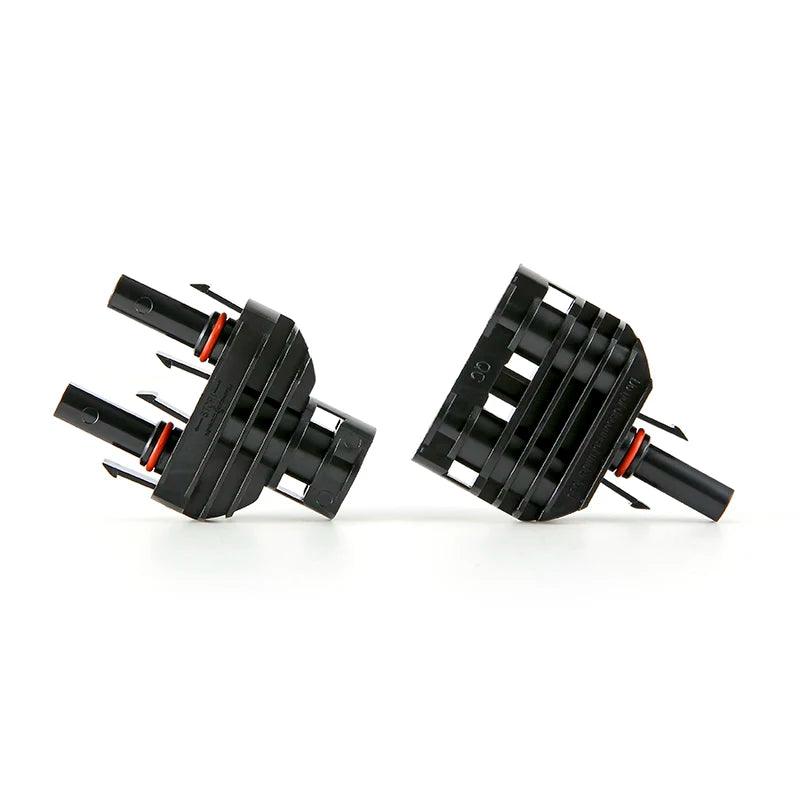

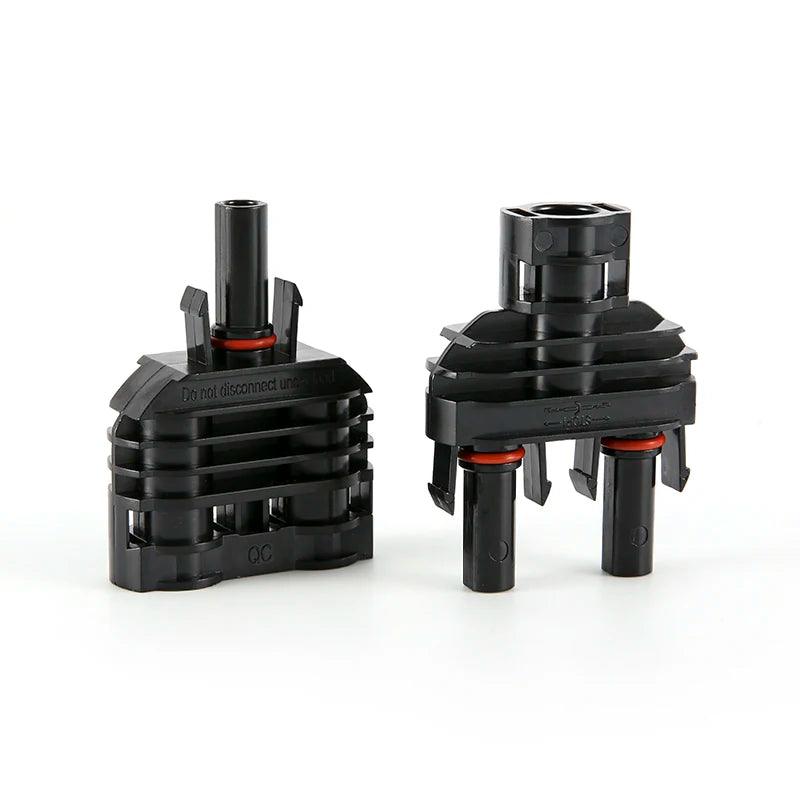

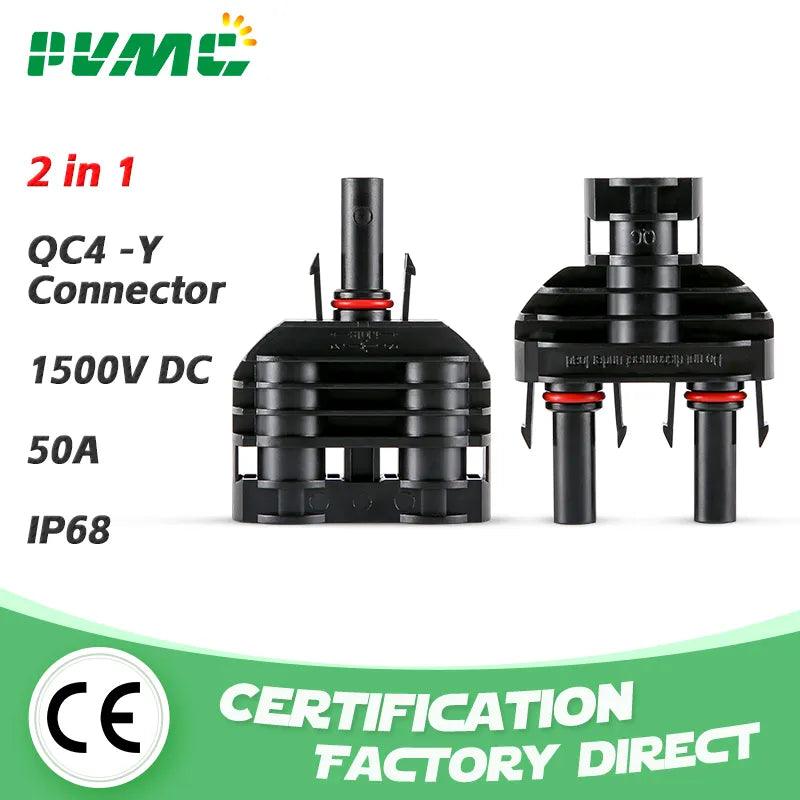

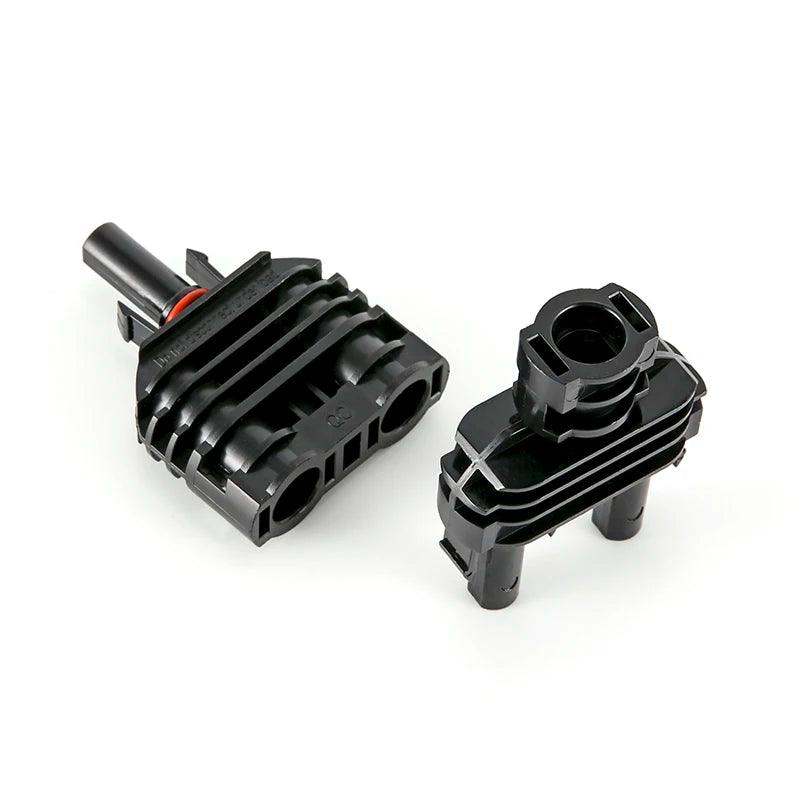

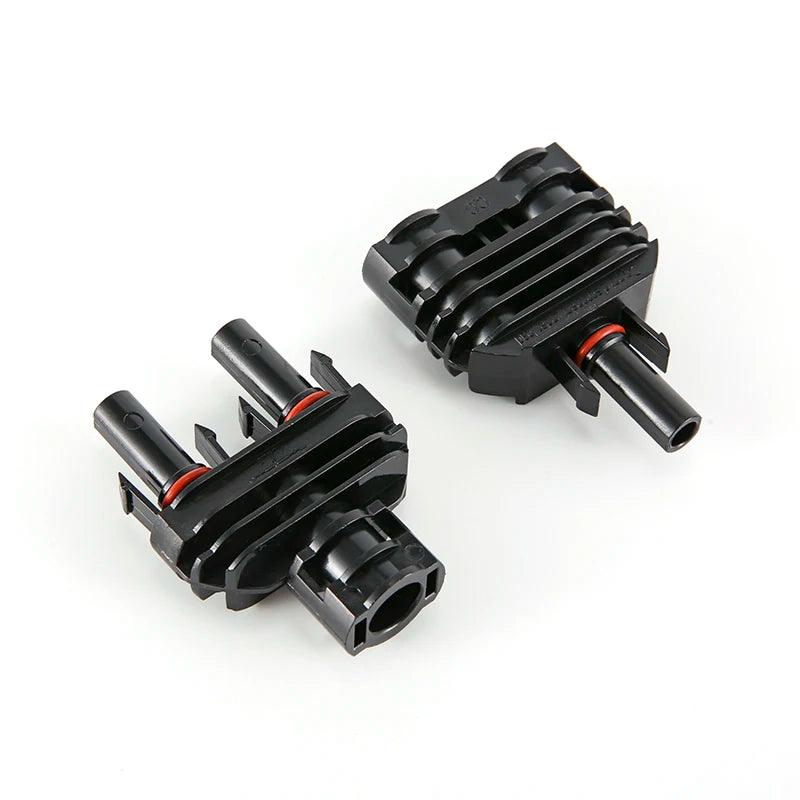

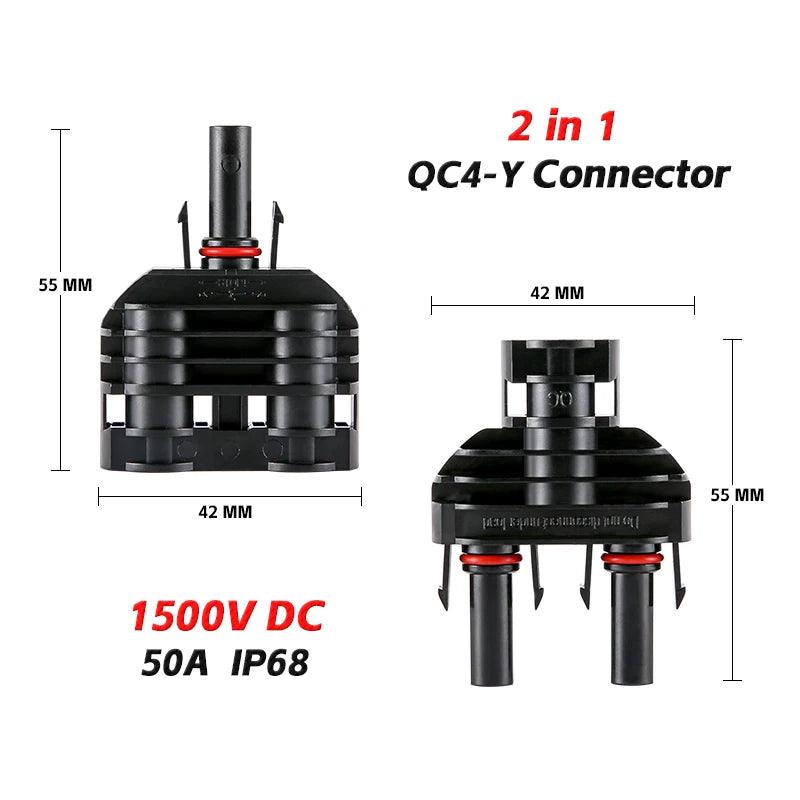

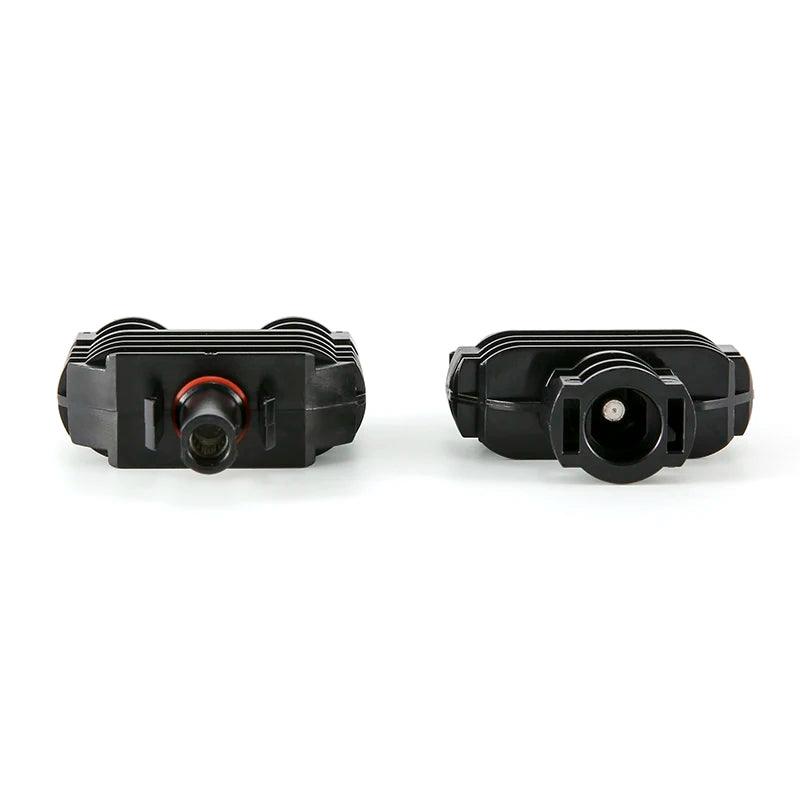

Free Shipping QC4-Y-50A 2 to 1 T Branch PV Connector 1500V IP68 Solar Stecker MMF+FFM Solar Panel Connectors 2 in 1 out

Regular price $27.00 NZD
Regular price $27.00 NZD Sale price $27.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Free Shipping  QC4-Y-50A  2 to 1 T Branch PV Connector 1500V IP68 Solar Stecker MMF+FFM Solar Panel Connectors    2 in 1 out

Brand Name: PVMC

Origin: Mainland China

Model Number: QC4-Y

Rated current:: 50A

Rated voltage:: 1500V DC

Degree of waterproof:: IP68

Flammability rating:: UL94-V0

Operating temperature range:: -40℃---+85℃

* Rated current: 50A

* Rated voltage: 1500V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP68

* Flammability rating: UL94-V0

* Safety: Class IImaterial: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃~ +85℃
