Free Shipping High Quality Z-type Aluminum Solar Panel Roof Mounting Bracket for Carvan Roof ZJ0218

Regular price $40.00 NZD
Regular price $46.00 NZD Sale price $40.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

Free Shipping High Quality Z-type Aluminum Solar Panel Roof Mounting Bracket for Carvan Roof ZJ0218

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Material: Stainless Steel

DIY Supplies: ELECTRICAL

Standard or Nonstandard: Standard

is_customized: Yes

Model Number: Solar panel bracket

Structure: Single-side Bracket

Usage: Other

Dimension: 48(L)x38(D)x27(H)mm

Z-Style Material: Aluminum

screws Material: stainless steel

use for: solar panel mounting

Size: Standard

Structure: Z-style

Usage: solar panel mounting

Choice: yes

Pay attention please

1.A lot = 1 sets.

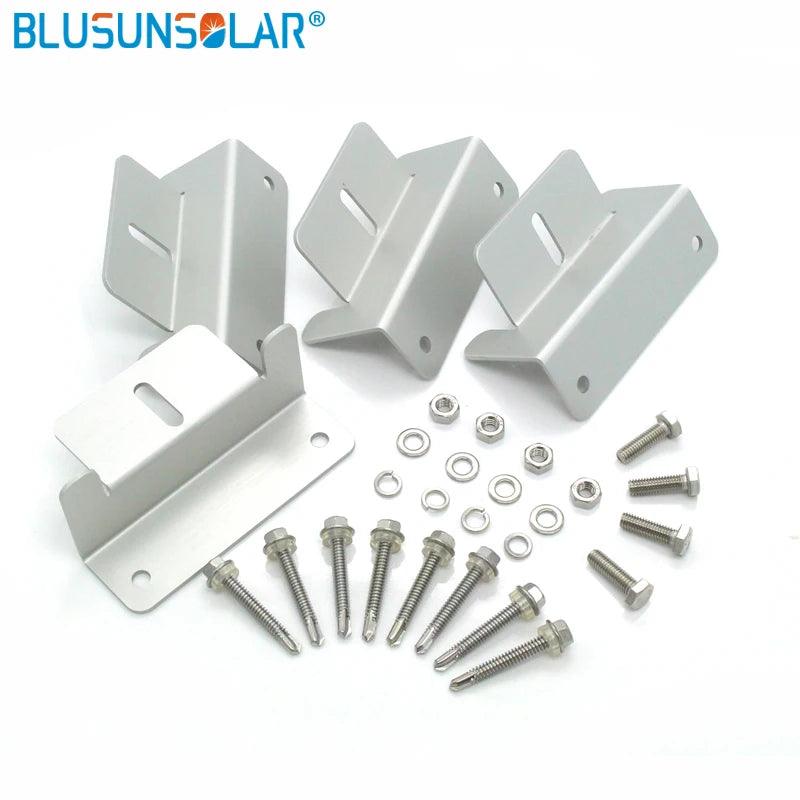

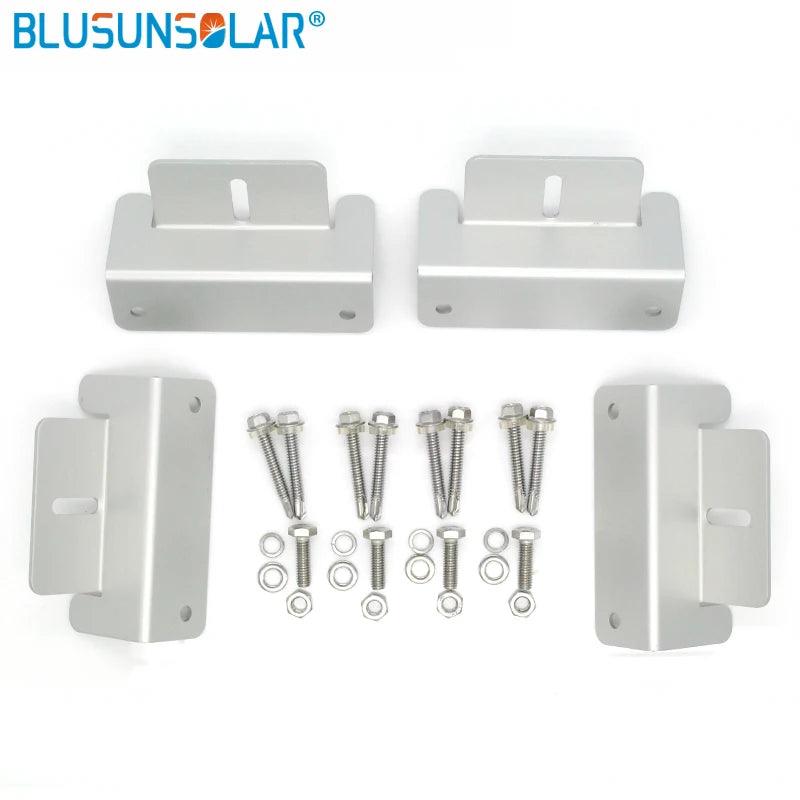

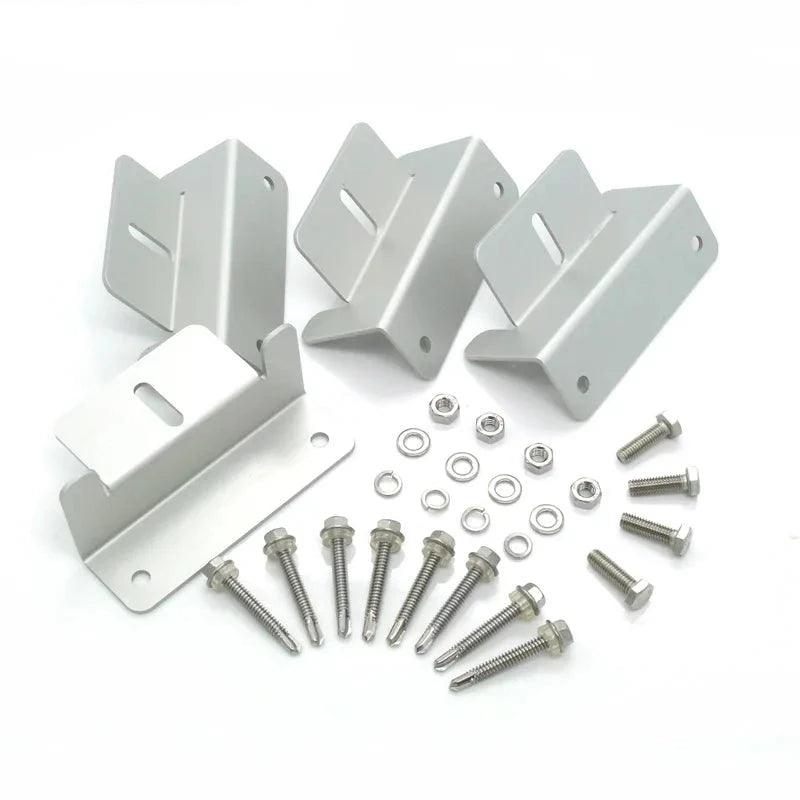

2.pack includes(1 set)

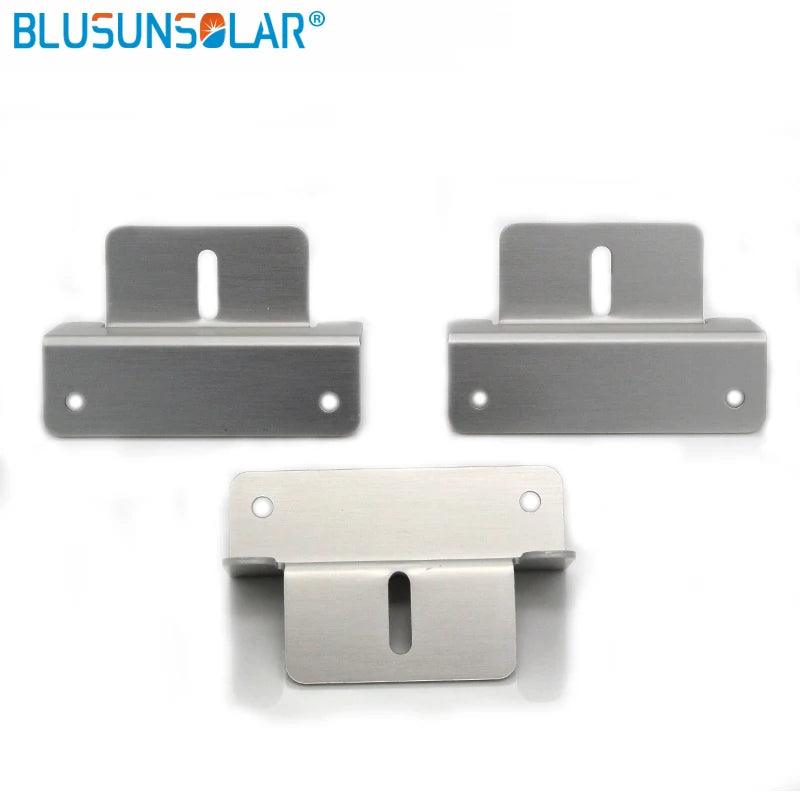

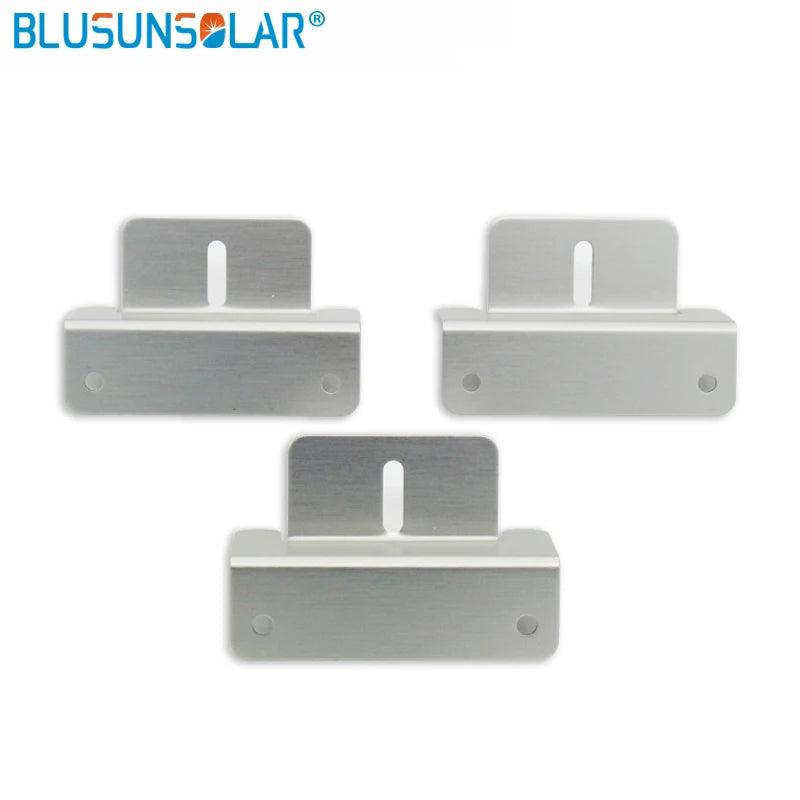

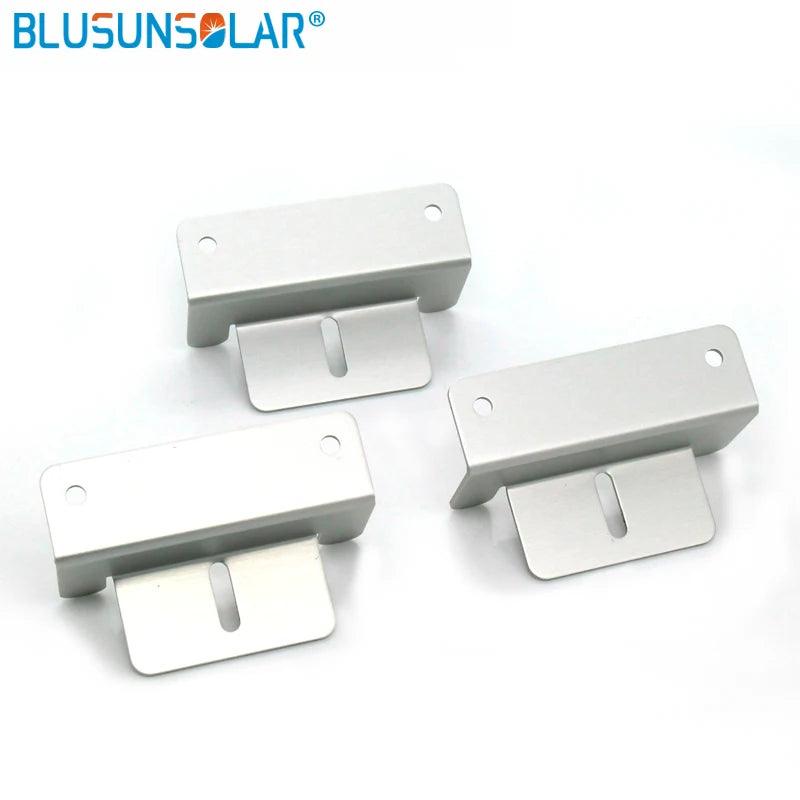

  • 4pcs Aluminum Caravan brackets

  • 4pcs Bolt M6x16

  • 4pcs Nut M6

  • 8pcs wood screws

  • 4pcs Lock washer

  • 4pcs Washer

For more products information, please free contact us via Aliexpress ,

we will reply to you in 2 hours. thanks

Install Manuel:

Step 1:Put the solar panel on the horizontal plane with the face side down,take out a 1 pc of bolt M6*16 and a washer.

Step 2:Insert the bolt to the panel frame hole from below then put down the caravan bracket with the bolt through the hole.

Step 3:Fitted the lock washer in then spin and tighten the nut M6.

Step 4:Mount the caravan brackets into the other panel frame holes in the same way.

Step 5 :Gently move the panel to the carvan roof,mark the exact place where you want the panel to be mounted.

Step 6 :Fixing the aluminum bracket to the marked palce by carefully drilling through the bracket hole with the wood screw.

Step 7:Carefully mount the other wood screws in the same way.
